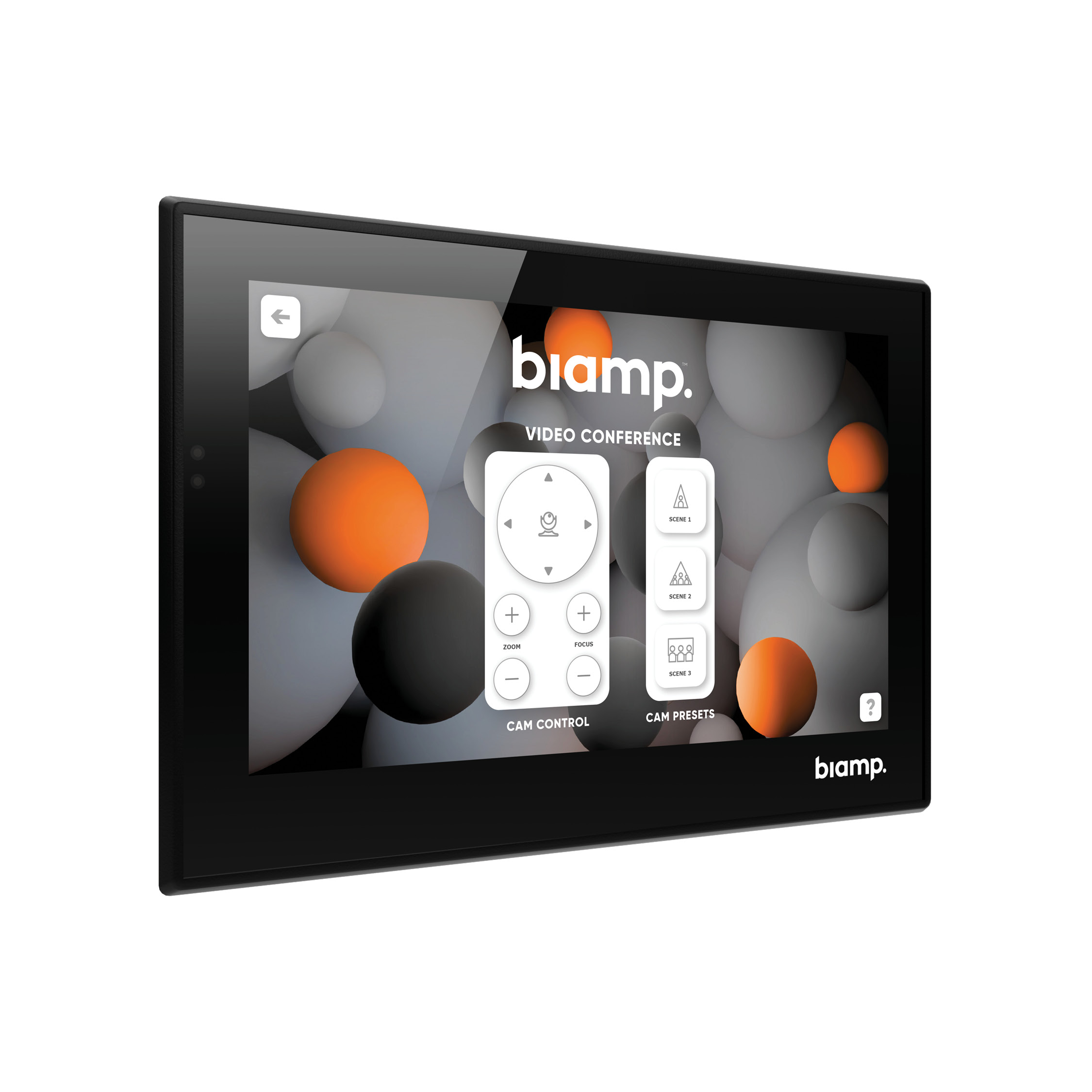

Biamp Apprimo Touch 7 Touch Control Panel
The Apprimo Touch 7 combines sleek design and intelligent functionality to deliver a versatile control interface for Tesira and other professional AV systems. With its 7-inch capacitive touch LCD, the Touch 7 offers smooth, responsive interaction for controlling lighting, audio, video, and more — all from a single, easy-to-use panel. It can be wall-mounted in landscape (horizontal) orientation or on a tabletop with the available table stand accessory.
The scratch-resistant glass display ensures lasting durability and a polished look suitable for high-traffic corporate, education, and hospitality environments. Using Project Designer software, users can select from pre-built UI templates and design themes or fully customize layouts to meet specific control requirements and maintain consistent corporate branding.
GENERAL
Height: 4.7 inches (120 mm)
Width: 7.0 inches (180 mm)
Depth: 1.6 inches (41 mm)
Weight: 0.73 lbs (330 g)
Display:
• High-Contrast Capacitive Touch LCD
• Display Size: 7” (178 mm) diagonal
• Display Resolution: 1024x595
• Maximum Display Brightness: 350 nits
Included Accessories:
• Mounting bracket and screws
• Ejector Pin
• USB-OTG adapter
• Polishing cloth
ENVIRONMENTAL
Ambient Operating Temperature Range: 32 - 104° F (0 - 40° C)
Humidity: 10-90% relative humidity (non-condensing)
Altitude: 0-6,600 ft (0-2000m) MSL
CONFERENCING
USB: Mini USB port: USB 2.0
NETWORK
Network Connection(s): RJ-45 with Ethernet cable (Cat 5e and above)
CONTROLS & INDICATORS
Proximity Sensor:
• Proximity
• Ambient Light
COMPLIANCE
Certifications:
• CE marked (Europe)
• RoHS Directive (Europe)
NOTES
Specification Notes:
• Controller Compatibility: Impera Alfa II
• Impera Lima
• Impera Tango
• Impera Sierra II
