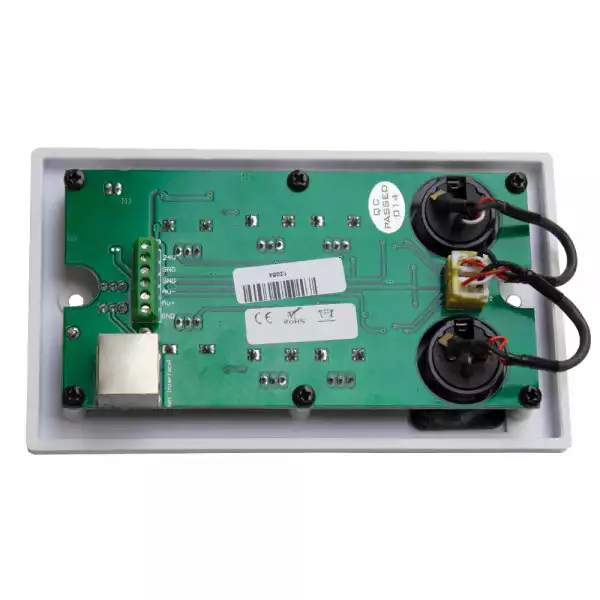

The MTX 8 MIC WHITE remote microphone input module is connected with MTX808 through universal
industrial standard CAT 5 where a remote location announcement is needed.
* Each controller provides eight RJ45 ports for the remote module.
* The CAT 5 wiring is not only featured of cost-effective, convenient layout, but also
integration of RS 485 communication, audio transmission and DC 24V power supply
together.
* Two remote mic by XLR inputs with volume control and bass, treble tone controls.
* A paging priority override music button is provided when a remote paging is needed.
* DC 24V power supply from controller, low power consumption 5W.
* Extra DC 24V power supply is needed when communication distance is more than 50 meters.
* Analog to digital conversion working principle to adjust controller's volume.
* Metal mounting box is supplied.

• Serial Communication Speed 4800bps
• Communication Port RJ45
• Communication Protocol RS485
• Serial Communication Distance Maximums 1Km
• MIC Input Sensitivity 5mV/600
• Audio output 0dB/600
• Frequency Response 50Hz~18KHz ( 1dB)
• S/N Ratio MIC Better than 65dB
• THD Less than 0.1% at 1KHz
• Controls Volume control
• Power Supply DC 24V
• Power Consumption 5W
• Weight 150g
• Dimensions 146x48x86mm
