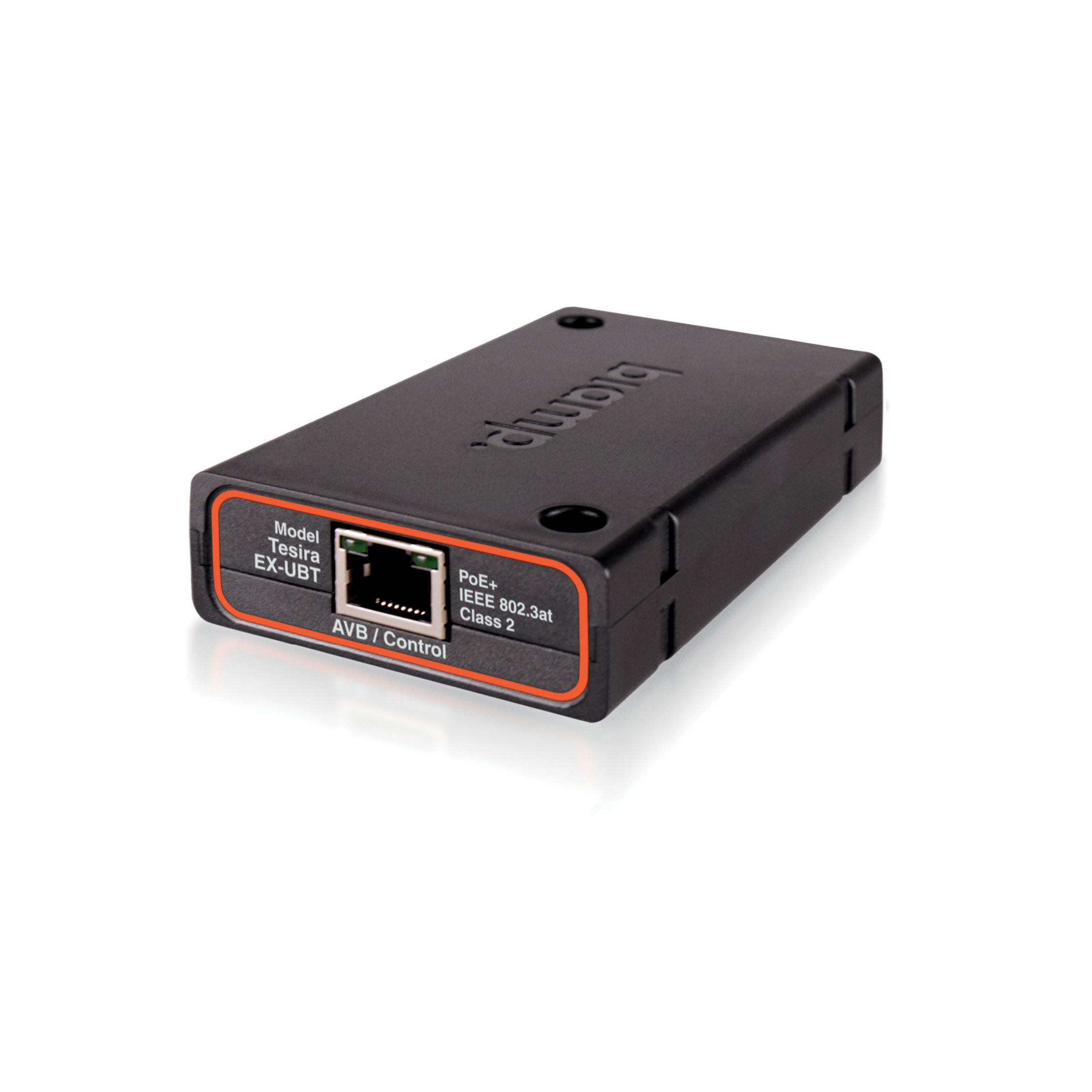

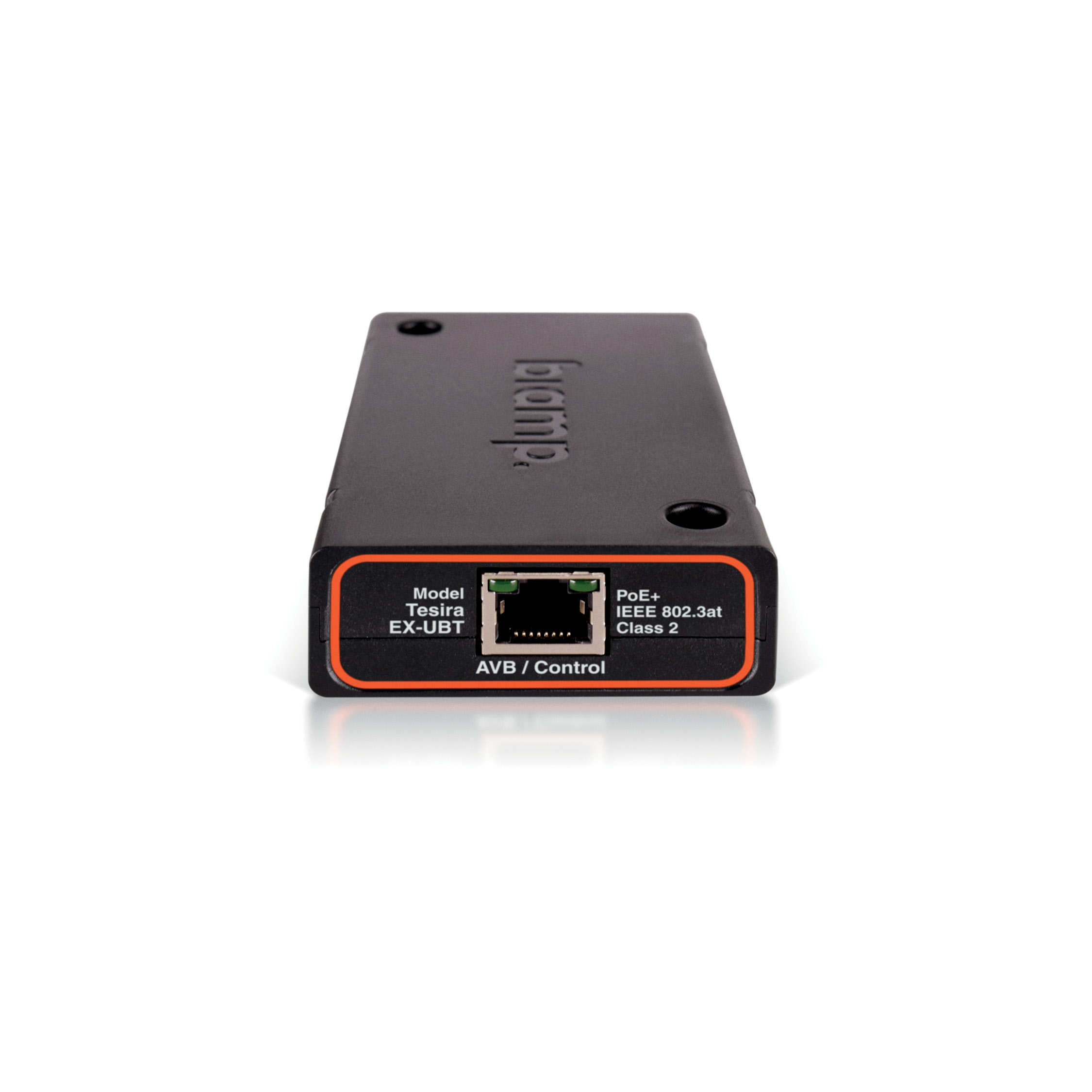

Tesira EX-UBT
The EX-UBT can transport USB digital audio reliably throughout a customer’s network. Since the Tesira EX-UBT is not limited by the specification-defined maximum USB connection length of 5 meters, it’s ideal for installations requiring USB connections not located in a rack or near other equipment, as well as for installations requiring multiple USB audio inputs, or in projects using Tesira SERVER or SERVER-IO as the DSP since they have no on-board USB connection. Powered by PoE, the EX-UBT expander supports up to eight channels of configurable USB audio as well as Bluetooth® wireless technology, which is enabled and configured through the Tesira software. With Bluetooth, the EX-UBT is able to provide a cable-free solution for teleconferencing using soft codecs, continuing a mobile phone call into a meeting room, or for supplying background music such as in a hospitality setting. It is the perfect solution for a variety of room types and sizes that require USB audio, such as conference rooms or multi-purpose spaces.
General
Network Connection: RJ-45 with Ethernet cable (Cat 5e and above)
Indicators:
• Power Indicator (Green/Red LED)
• Wireless Indicator (Blue/Red LED)
Bluetooth Wireless Technology:
• Version: 4.2, Class 2
• Mode: Bluetooth Classic
• Supported Profiles:
♦ Hands-Free Profile 1.7 (HFP)
♦ Advanced Audio
♦ Distribution Profile 1.3 (A2DP)
• Supported Codecs:
♦ mSBC (16 kHz),
♦ SBC (48 kHz),
♦ AAC (48 kHz),
♦ aptX (48 kHz)
• Maximum Transmit Power:
♦ BER/EDR: 6.43 dBm (EIRP)
♦ BLE: 7.69 dBm (EIRP)
♦ Receive Sensitivity (0.1% BER): -88 dBm
♦ Frequency Band: 2,402 to 2,480 MHz
♦ Wireless Range: Up to 100 feet (30 m)
Power: PoE (IEEE 802.3at Class 2, 7W)
USB:
• Bit Depth: 24-bit
• Number of Channels: up to 8
• Sample Rate: 48kHz
Environmental:
• Ambient Operating
• Temperature Range: 32 - 104° F (0 - 40° C)
• Humidity: 0-95% relative humidity (non-condensing)
• Altitude: 0-10,000 ft (0-3000m) MSL
Overall Dimensions
Height: 0.9 inches (24mm)
Width: 2.5 inches (64mm)
Depth: 4.2 inches (106mm)
Weight: 0.2 lbs (0.1 kg)
Compliance:
• FCC Part 15B (USA)
• CE marked (Europe)
• UL and C-UL listed (USA and Canada)
• RoHS Directive (Europe)
