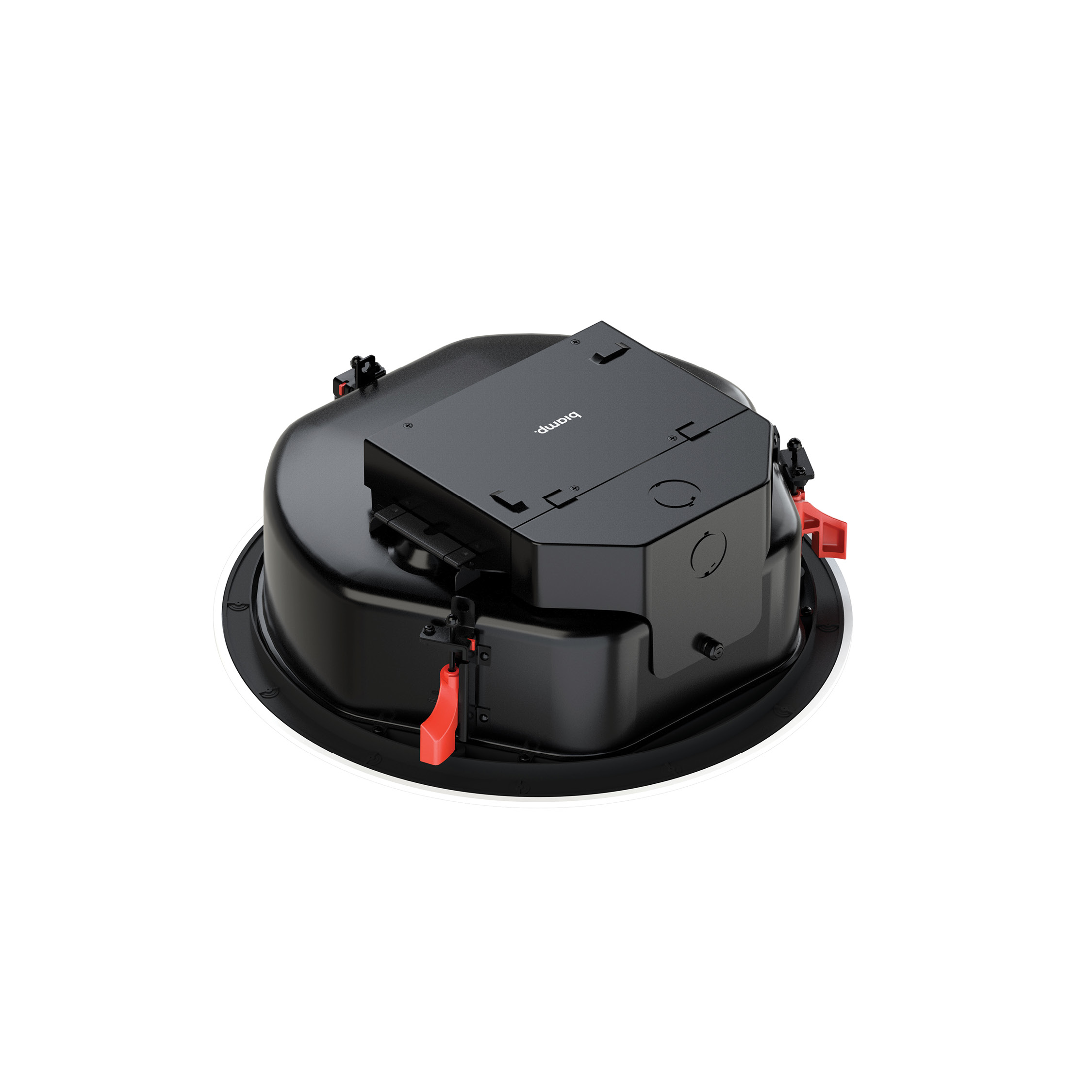

Biamp Desono C-IC6LP
The Desono C-IC6LP-W Ceiling Loudspeaker combines premium acoustic performance, fast installation, and a sleek, low-profile form factor ideal for commercial and conferencing spaces. Engineered for applications where high-quality conferencing audio is essential, it delivers clear, balanced sound in a variety of conference room environments.
With a 3.91-inch (100 mm) shallow depth, the C-IC6LP-W installs easily in ceilings with limited space while maintaining the rich, detailed sound quality expected of larger loudspeakers. Its genuine coaxial, acoustically aligned driver design uses separate magnets for the low- and high-frequency drivers, minimizing distortion and ensuring clean, accurate reproduction. The integrated HF waveguide provides wide, uniform coverage, placing every listener in the acoustic “sweet spot.”
GENERAL
Width: 13.41 inches (341 mm)
Depth: 3.96 inches (101 mm)
Diameter:
• Bezel Diameter: 13.42 inches x 3.96 inches (341 mm x 101 mm)
• Cutout Diameter: 12.20 inches (310 mm)
Weight: 9.1 lbs (4.12 kg)
Finish: Grille: Powder-coated perforated steel backed with color-matched woven fabric with safety line. White (RAL9016) finish.
Material:
• Back Can: Black, Matte finish Steel
• Face: UL 94V-0 rated ABS plastic, paintable Black finish.
Mounting: 3 SpringLock™ mounting clamps with 1.3 inches (33 mm) grip range
Included Accessories:
• Included Accessories: C-Ring supporting plate, tile support bridge rails, grilles, paint masks, cut-out template, wire strain-relief fittings
• Optional Accessories: New Construction Brackets (SPA-NC500), High Humidity Grilles (SPA-GHH500), Black Grilles (SPA-GRB510), 48-inch Tile Rails (SPA-RAIL48)
Required Accessories: 65 Hz, 18 dB/oct. high pass filter; DSP preset for ALC or Tesira
Ordering Information: C-IC6LP-W - loudspeaker with White grille, C-IC6LP-B - loudspeaker with Black grille
Recommended Amplifiers: Passive 60 W - 120 W into 8 Ω, (22 V - 31 V)
ENVIRONMENTAL
Operating Environment: Indoor
POWER
Power:
• Nominal Continuous Power Handling: Passive, 22 V (60 W @ 8 Ω)
• Rated Continuous Voltage: Passive 21.9 V (27 dBV)
LOUDSPEAKER
Loudspeaker System: Crossover Frequency: 2.5 kHz
Operating Mode: Passive with DSP
Operating Range: Operating Range (-10dB): 63 Hz to 20 kHz
Beamwidth: Nominal Beamwidth (H x V): 140°, conical
Transducers:
• LF 1 x 6.5 inches (165 mm) treated paper cone
• HF 1 x 1.0 inch (25 mm) treated soft dome driver with waveguide
Sensitivity: 87 dB (2.83 V), 87 dB (1 W at rated impedance 8 Ω)
AUDIO
Input Type: Input Connection: 4-position Euroblock connector, 2 RJ45 ports
SPL: Nominal Maximum SPL:
• Passive Peak: 109 dB
• Continuous: 103 dB
CERTIFIED SOLUTIONS
Zoom: Zoom Certified
COMPLIANCE
Certifications:
• ETL listed to comply with UL1480A, UL2043 and CSA62368-1
• Suitable for use in air handling spaces per NFPA 70 and NFPA 90
