Biamp Dynasound Pro DS1320
Active emitter for the DS8000, white, 4 pack, cables not included.
The DS1320 Qt Active Emitter, Fusion Edition is compatible with the DS8000. It fuses QtPro direct field technology with DynasoundPro networked sound masking, providing the most uniform coverage and precise control available in the sound masking industry. This makes it easier to mask buildings with varied ceiling architecture – for example, buildings with both open-plenum and drywall ceilings.
Loudspeaker Type: Active with integrated amplifierr
Frequency Response:
• Sound Masking1: 125Hz to 10kHz
• Music/Paging (-10dB)2: 115Hz to 12kHz
SPL:
• Minimum Masking SPL (@ 1m): 30dBA
• Maximum Masking SPL (@ 1m): 60dBA
• Maximum Music/Paging SPL (@ 1m): 74dBA
Nominal Impedance: 40 kΩ
Nominal Dispersion: 170° conical / half space

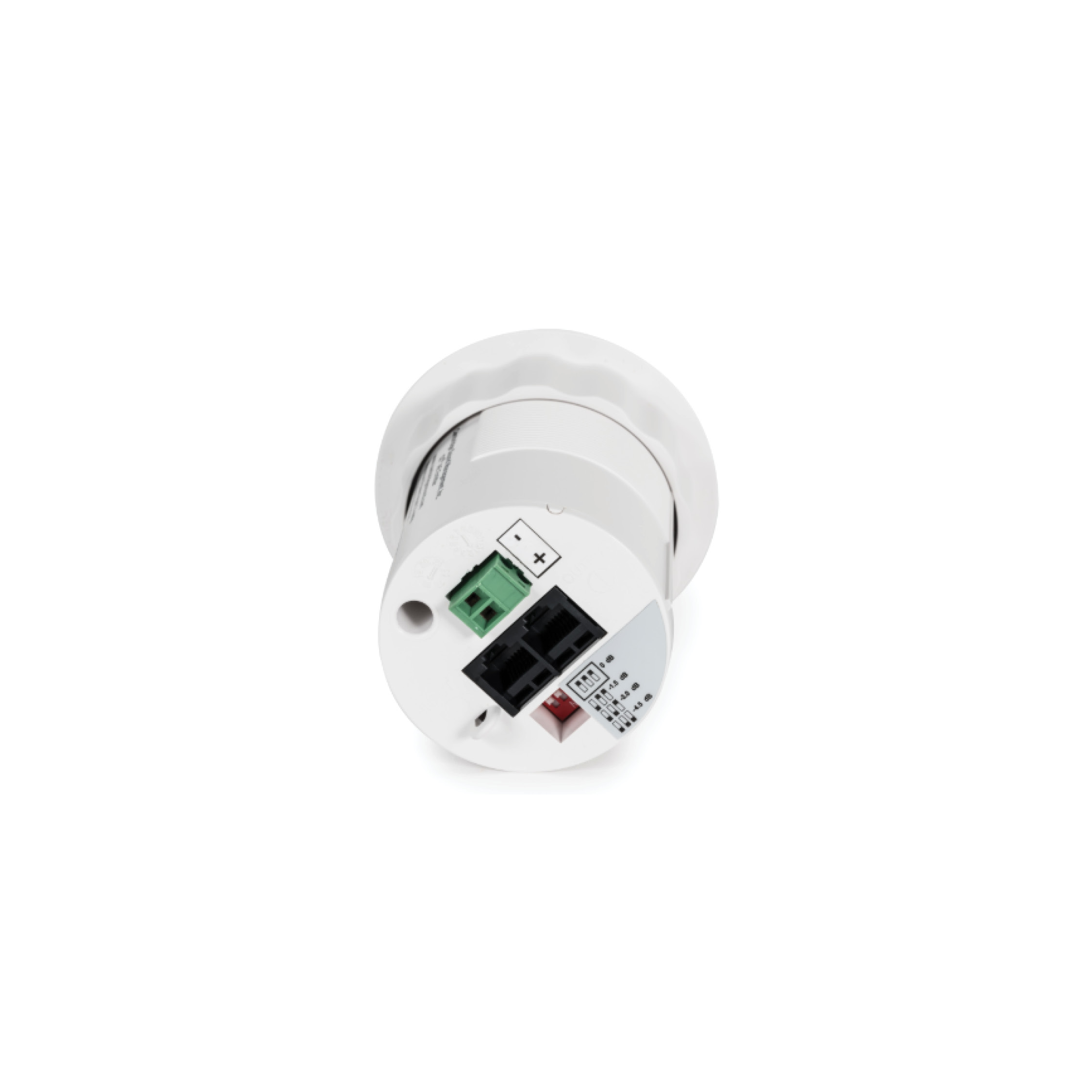

Connectors: Screw Terminal Plug (12 to 22 AWG)
Cabling: 2 conductor 18 AWG stranded wire
Maximum Power Consumption: 2 W
Driver Diameter: 1.25” (32mm)
Enclosure: Front Vented
Color: Black or White
Product Dimensions:
• Overall Diameter: 3.25 inches (83mm)
• Depth: 3.5 inches (89mm)
• Weight: 6.5 oz. (184g)
Included Accessories: Acoustic Ceiling Tile Mounting Ring
Compliance: UL listed (USA) Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
