BIAMP Parle TCM-X Black Ceiling Mic
The Parlé TCM-X is an AVB low-profile ceiling microphone for use in Tesira systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space.
The TCM-X microphone delivers the same level of performance as our other Beamtracking microphones in a sleek, unobtrusive design that mounts to the ceiling. The TCM-X actively tracks and intelligently mixes conversations from around the table, allowing far-end participants to experience the conversation as they would a face-to-face meeting.
GENERAL
Height: 1.2 inches (30 mm)
Width: 6.8 inches (172 mm)
Depth: 5.2 inches (132 mm)
Diameter: 5.9 inches (150 mm)
Weight: 1.4 lbs (625 g)
ENVIRONMENTAL
Ambient Operating Temperature Range: 32 - 104° F (0 - 40° C)
Humidity: 0-95% relative
Altitude: 0-10,000 ft (0-3000m) MSL
POWER
Power:
• PoE (IEEE 802.3at Class 3, 15.4W)
• Indicators: Power Indicator (Green/Yellow/Red LED)
Power Indicator(s): Microphone: Mute Indicator (Green/Red LED)
NETWORK

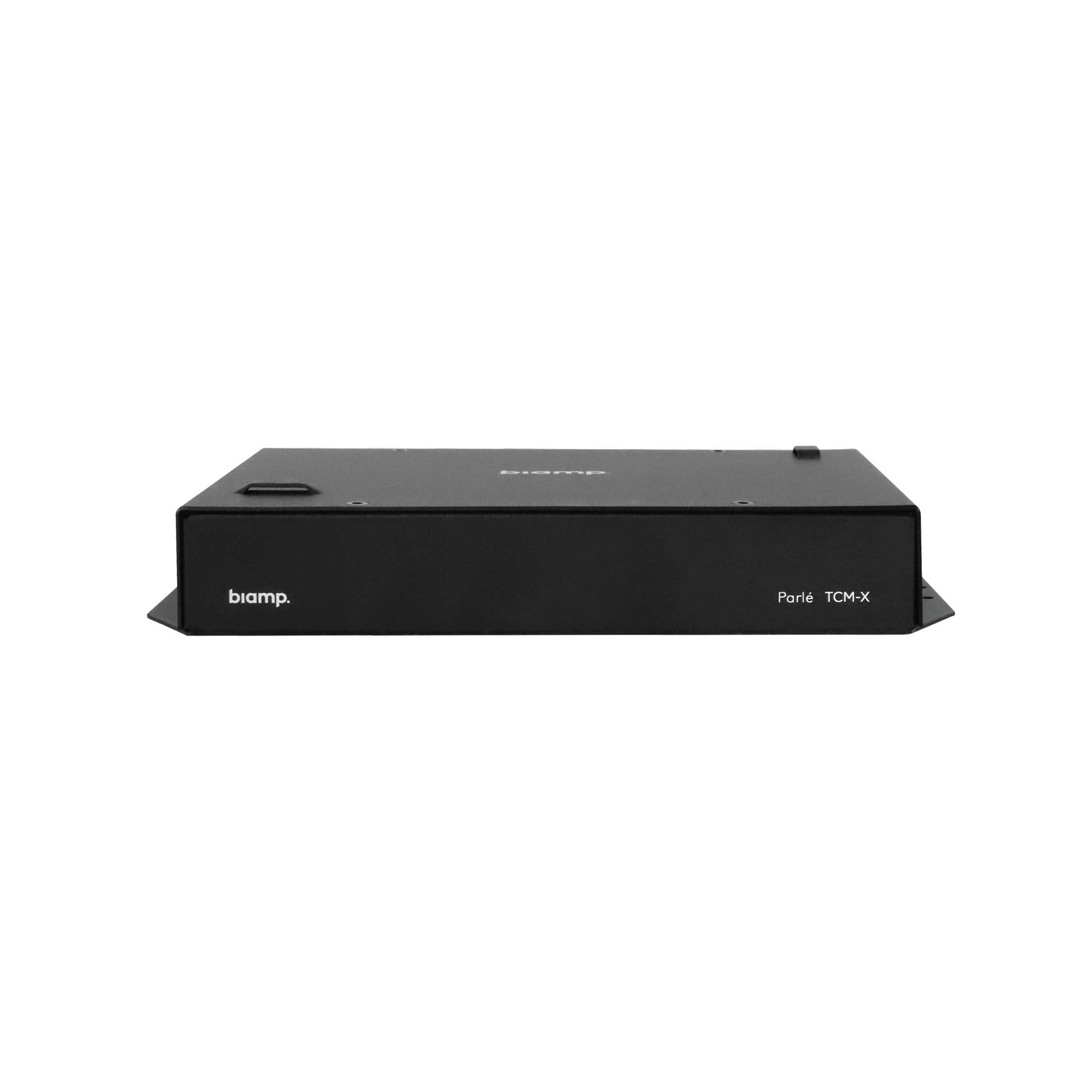

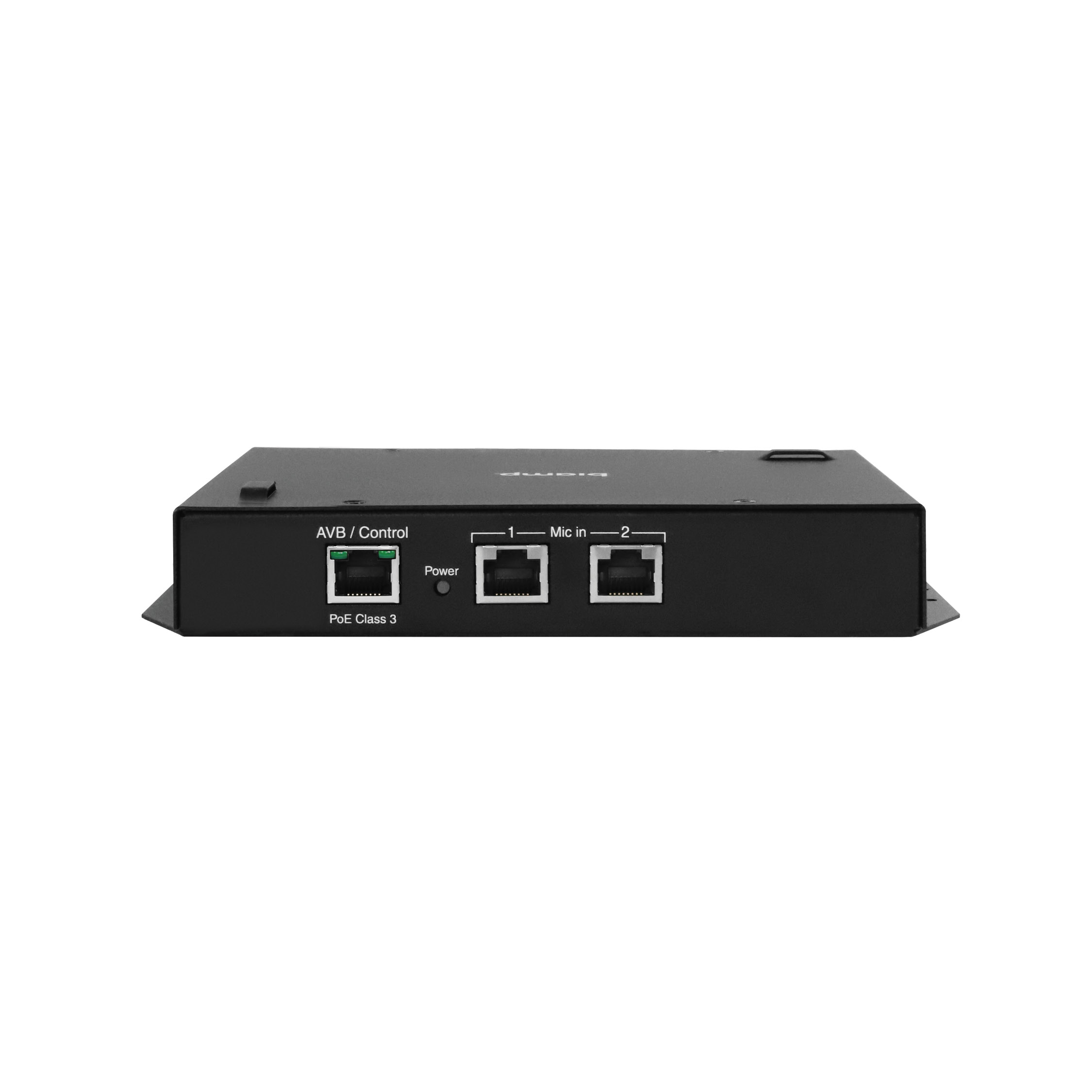

Network Connection(s):
• Network Box Connectors - Three RJ-45:
• One between TCM-X network box and switch
• One between the network box and microphone
• One between TCM-X network box and TCM-XEX
AUDIO

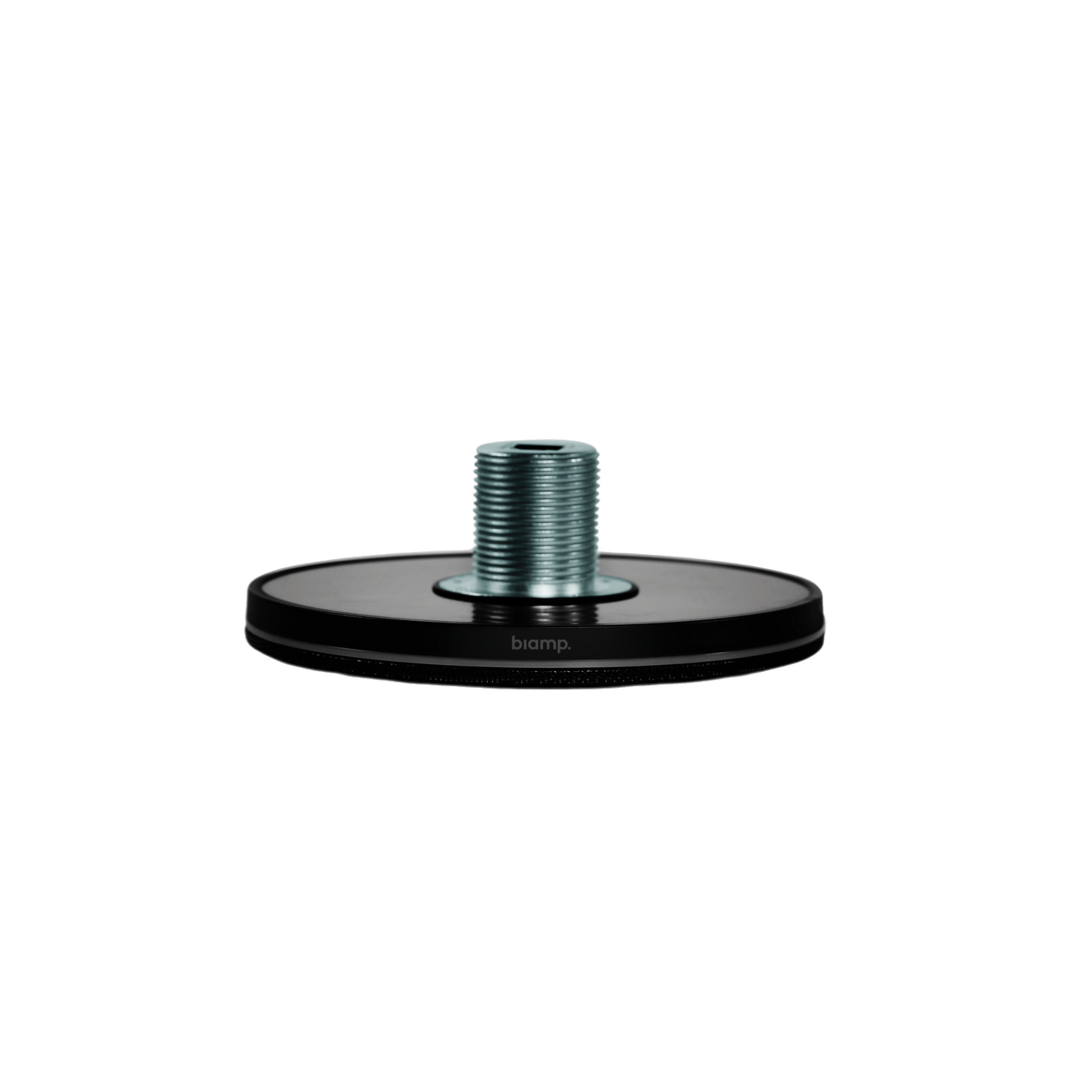

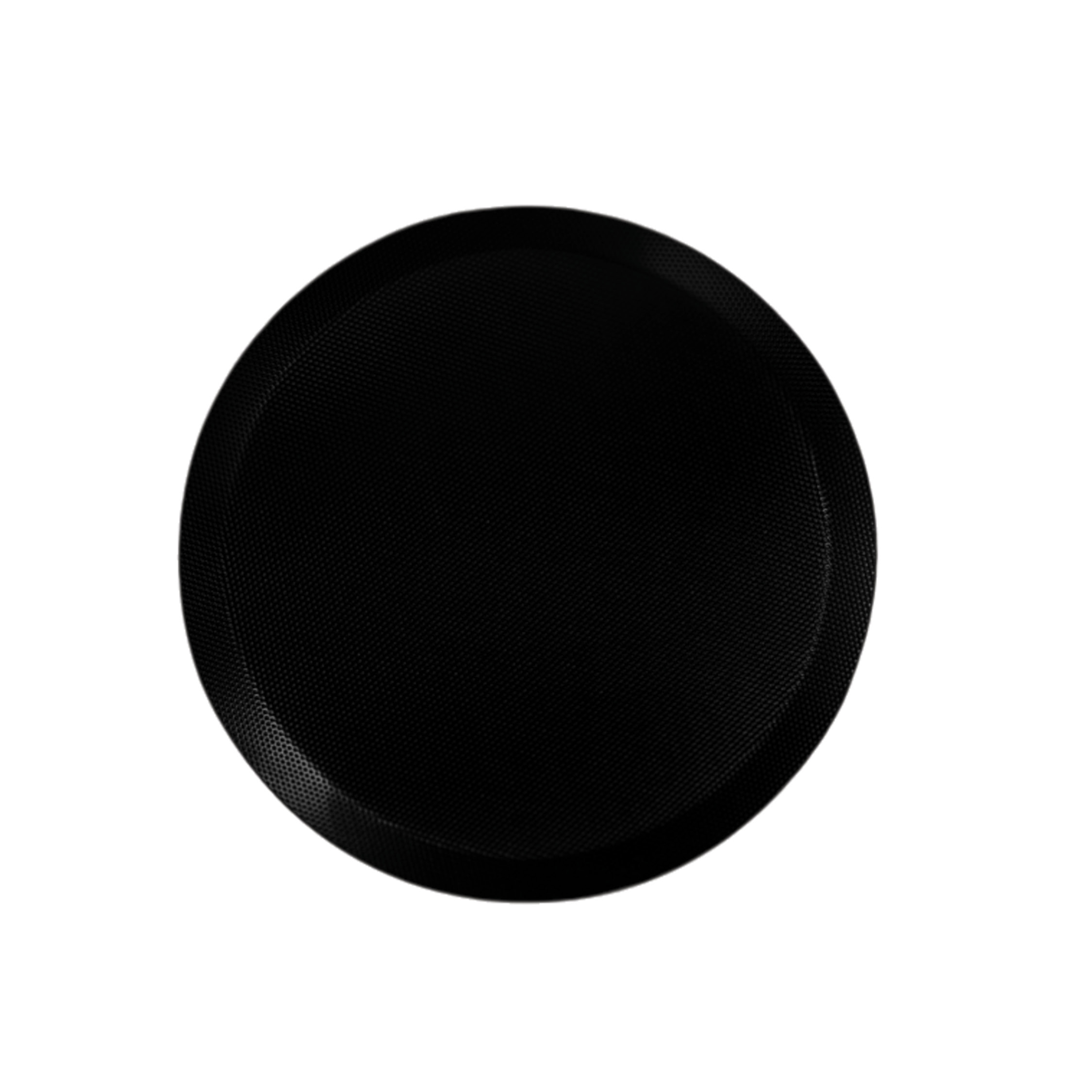

Microphone:
• Microphone Technology: 16-Element Digital Array
• Polar Pattern: Active Beamformed
• SNR (at 1kHz, 94dBSPL A-Weighted): > 76dB
• Digital Interface: Custom/Proprietary
• Connector: RJ-45 (cable length 6.6 feet [2 meters])
• Digital Interface: Custom/Proprietary
• Max Distance Between Devices:
• 330 feet (100 meters) from switch to TCM-X network box
• 33 feet (10 meters) between TCM-X network box and TCM-XEX
Frequency Response: (150 Hz - 16 kHz): ± 3dB
Dynamic Range: (THD+N < 1%): 92dB, A-Weighted
SPL: (at < 1% THD): 109dB
CERTIFIED SOLUTIONS
TAA Compliant: TAA Compliant
COMPLIANCE
Certifications:
• FCC Part 15B (USA)
• CE marked (Europe)
• UL and C-UL listed (USA and Canada)
• RoHS Directive (Europe)
• Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
