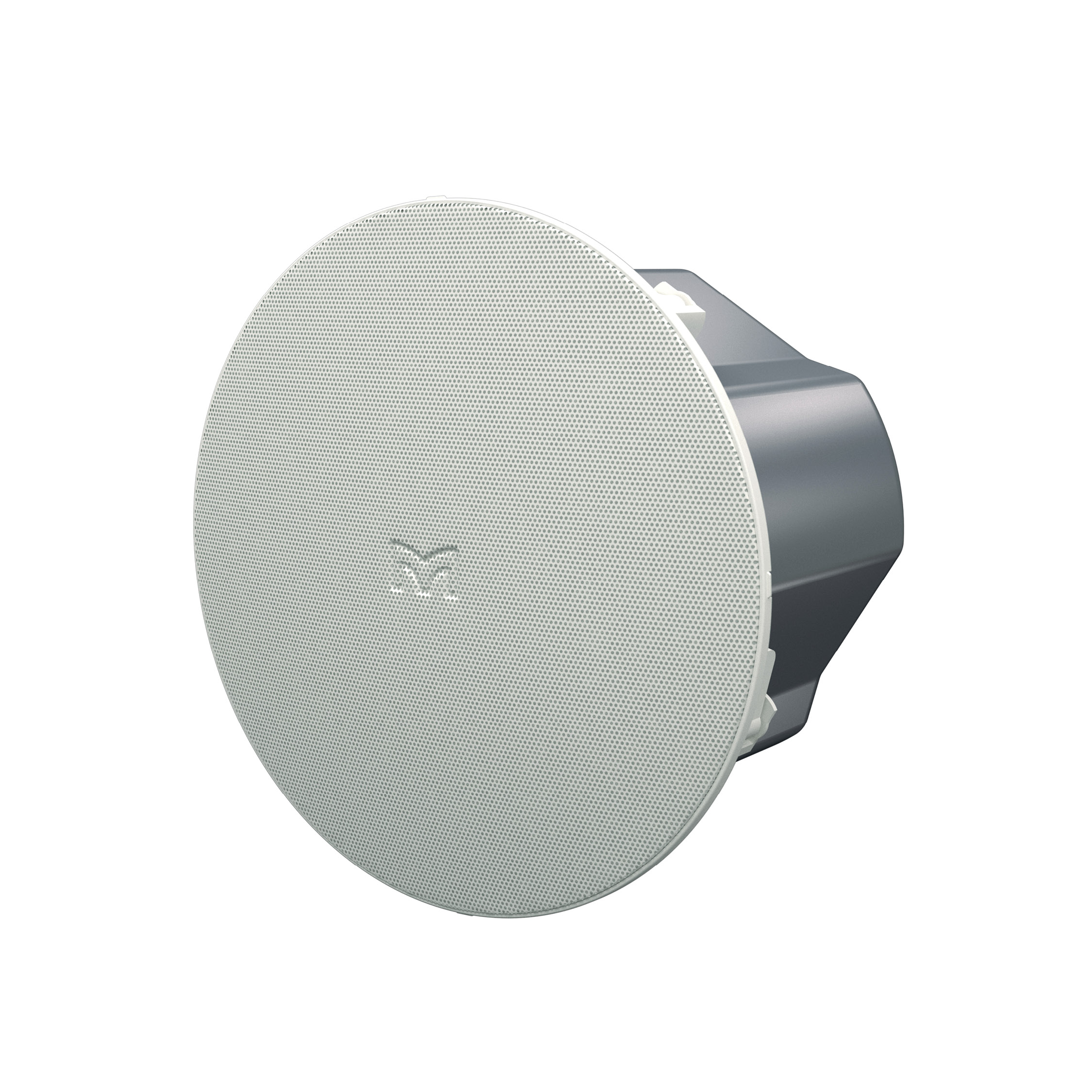

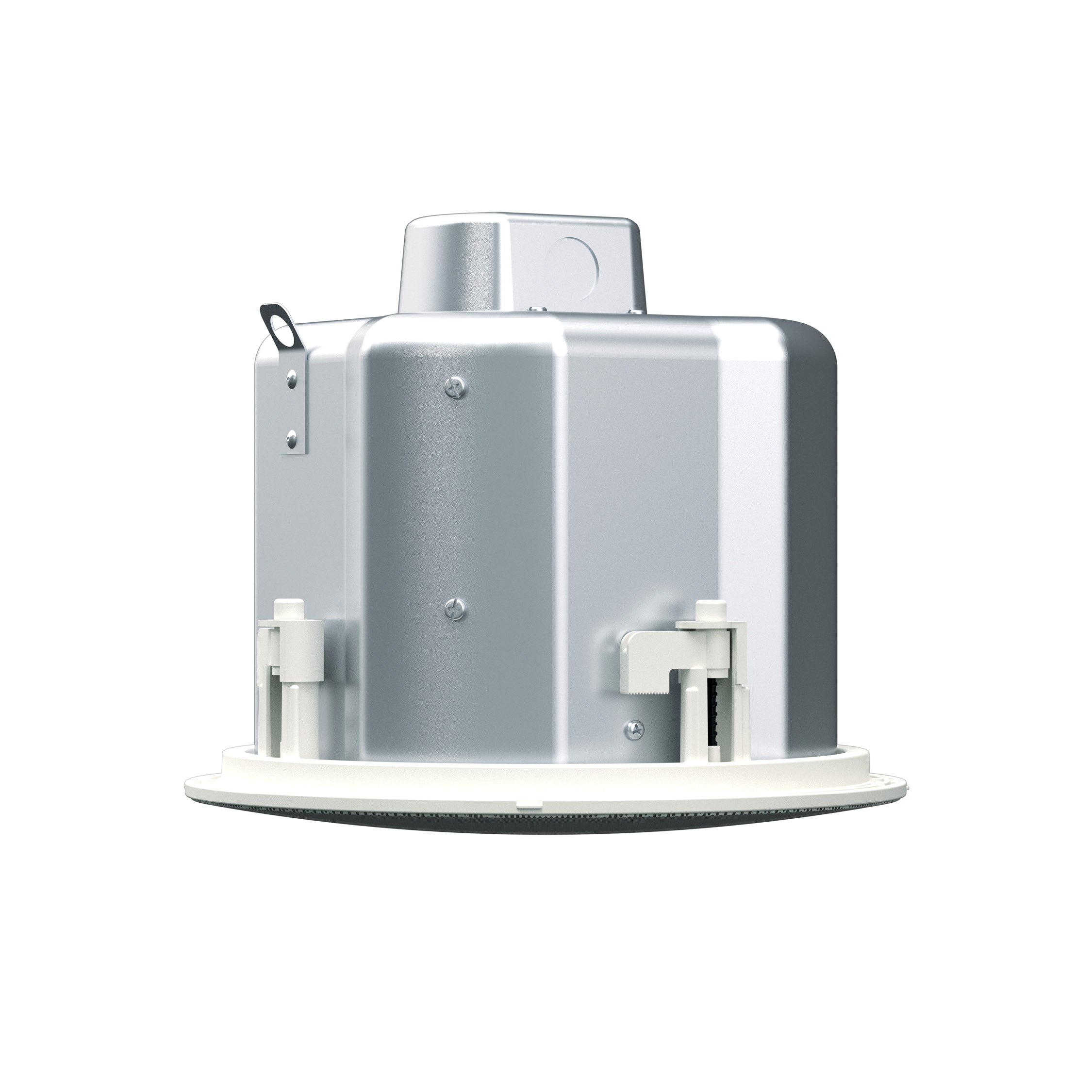

MARTIN AUDIO ACS-55T - Ugradni zvučnik
Garantujemo najnižu cenu!
- Centralni magacin
The ACS-55T brings full-frequency response, consistent coverage and intelligibility to a wide range of architectural environments — from hotels and concourses to retail outlets, bars and restaurants.
Comprising a 5.25” (135mm) LF driver and a 0.75” (19mm) silk-dome tweeter, the ACS-55T produces 113dB peak output at 1 metre and has a high-fidelity sonic character ideal for both music and speech reproduction. Its ported bass reflex design and backcan with generous internal volume maximises low frequency output and delivers strong bass that extends down to 62Hz.
Features
• High performance two-way ceiling speaker
• 5.25” (135mm) LF driver and 0.75” (19mm) HF dome tweeter
• Wide 150° conical coverage pattern reduces speaker count required for even coverage
• 70V/100V multitap line transformer or 16 ohm low-impedance operation
• Low and high-frequency overload protection
• UL94V-0 rated baffle with zinc-plated steel backcan
• Quick release, bezel-less grille
• Tile rails and C-ring included
• 5-year warranty
• UL 1480A, UL 2043 and CSA C22.2 No. 205-17 compliant
Applications
• Retail outlets
• Cafes, bars and restaurants
• Museums and Houses of Worship
• Hotels, casinos and concourses
• Transportation facilities
• Boardrooms and reception areas
TYPE: Compact, passive two-way ceiling speaker, ported bass reflex
FREQUENCY RESPONSE (1): 98Hz-20kHz ± 3dB -10dB @ 62Hz
DRIVERS:
• LF: 5.25” /1” high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis
• HF: 0.75” silk dome, neodymium motor
RATED POWER (2): 50W AES, 200W peak
RECOMMENDED AMPLIFIER: VIA2004 (for low-impedance operation)
SENSITIVITY(4): 90dB / 1W(4V) / 1m
MAXIMUM SPL (9): 113dB peak
NOMINAL IMPEDANCE: 16Ω
DISPERSION (-6dB): 150° conical up to 7kHz
CROSSOVER: 3kHz passive (LF and HF auto-resetting fuses)
TRANSFORMER TAPS:
• 70V: 30w / 15w / 7.5w / 3.75w
• 100V: 30w / 15w / 7.5w
RECOMMENDED HIGH-PASS FILTER: 65Hz 24dB/oct
ENCLOSURE: UL 94V-0 rated ABS baffle with steel backcan
FINISH: Baffle and grille: RAL9016 white Backcan: zinc plated
GRILLE: Perforated steel, powder-coated, bayonet fitting
CONNECTORS: Ceramic connector (in and link) located behind fire-retardant steel cover
ACCESSORIES (included):
• 2 tile rails
• C-ring backing plate
• Cut-out template
DIMENSIONS:
• (OD) 245mm x (D) Back Can 192mm, (D) Inc. Grille 209mm
• (OD) 9.7in x (D) Back Can 7.55in, (D) Inc. Grille 8.23in
HOLE CUT-OUT DIMENSION: 222mm (8.74”) diameter
WEIGHT: 3kg (6.6lbs)
CEILING SAFETY STANDARDS: Certified compliant: UL 1480A, UL 2043, CSA C22.2 No. 205-17
