MARTIN WISMAN EVACO505 - Plafonski zvučnik
Garantujemo najnižu cenu!
- Futoški put 1, Novi Sad
- Ugrinovački Put 10n, Zemun
- Svetogorska 9, Beograd
- Centralni magacin

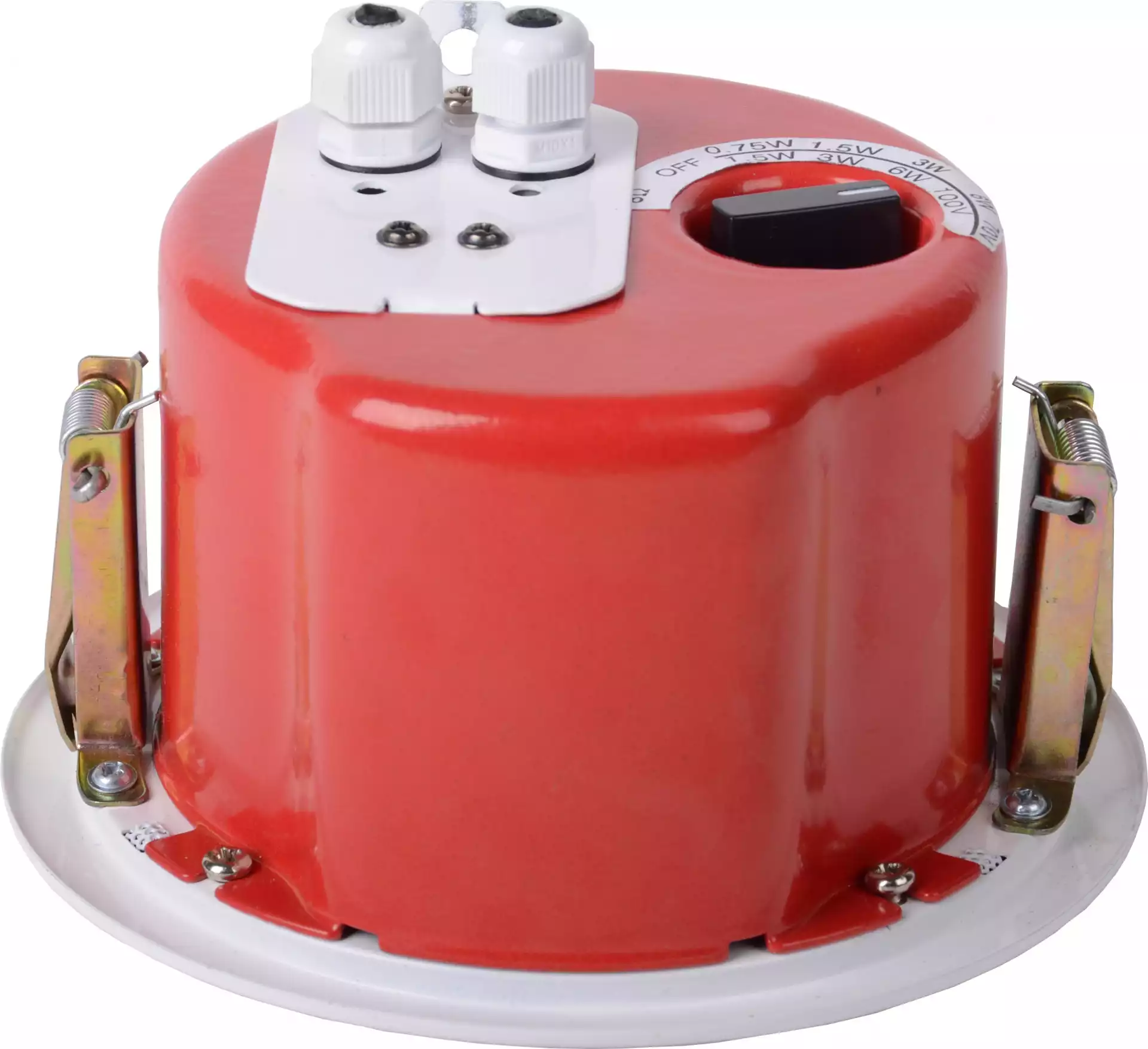

This newly developed speaker is made of full metal with a steel pot-case .
By the two assembly brackets ,which tighten automatically by spring action when inserting the speaker into the hole , assembling time is reduced to a minimum
The speaker is Fireproof ,UV proof is in one piece and surprisingly easy to mount the grille and installation ring are made of varnished steel and meet most fire regulation rules .
A high quality ,two size speaker available 5inch and 6.5inch and an equivalent 100v line tapping matching transformer allow perfect speech and music reproduction .
Modern, very discreet design with approx. 2mm rim height
Very easy to mount, suitable for all ceiling types .
Optionally with specially prepared chassis and transformer also in humid room execution available .
A special lacquer finish of the speaker in all RAL colours is possible ,if desired .
The high quality 100v transformer permits different adjustments
Please take further details from the technical data shown below .
|
Technical data |
EVACO 505 |
EVACO 610 |
|
Load rating |
5 W |
10 W |
|
Transformer tappings at 100 v |
5-2.5-1.25 W |
10-5-2.5 W |
|
Frequency range |
180-15kHz |
150-15kHz |
|
SPL(@1W/m) |
90dB |
92dB |
|
Speaker and Impedance |
5’’ /8 ohms |
6 1/2’’ /8 ohms |
|

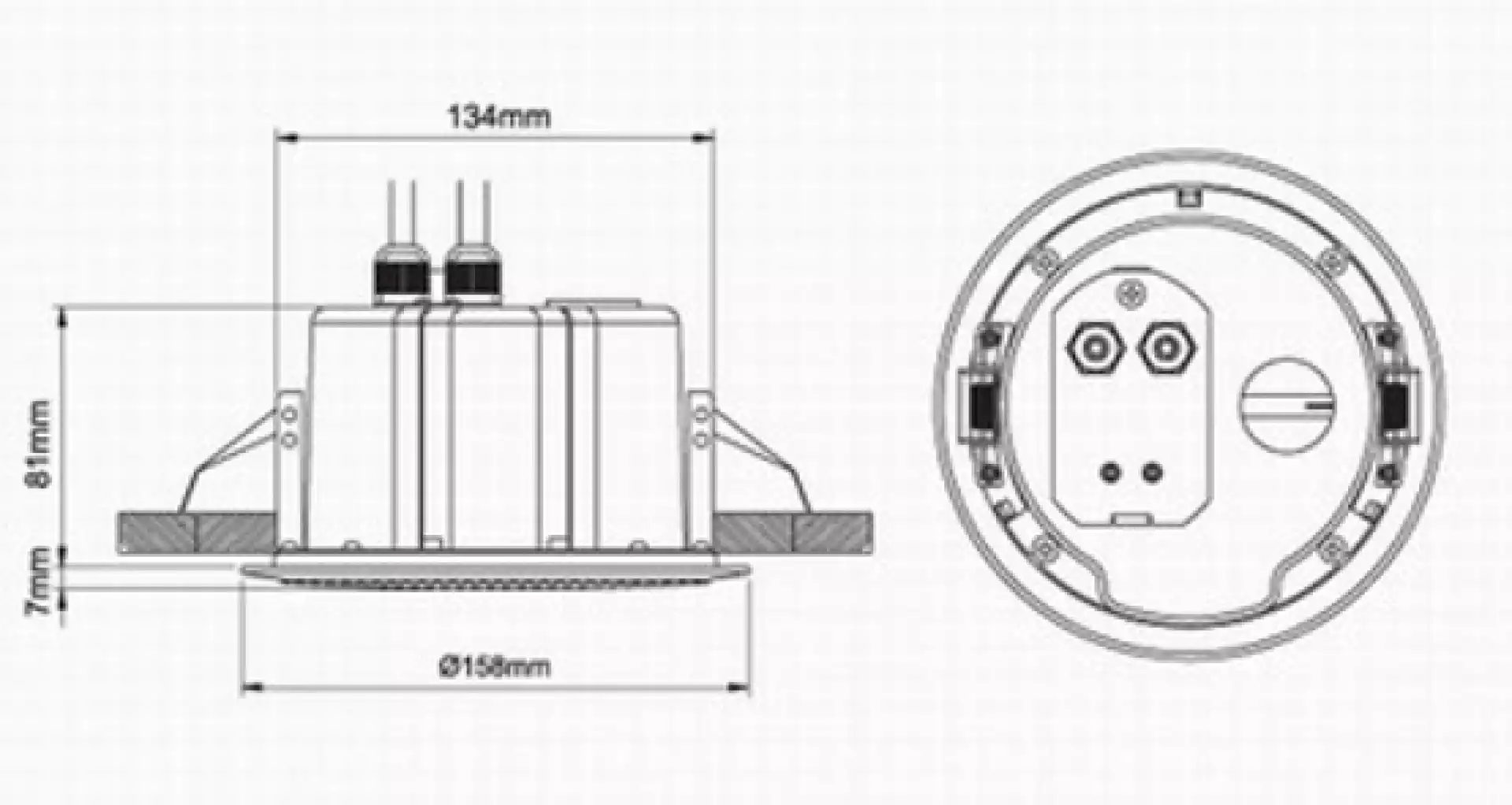

Dimension ￠,Install depth(max.) |
￠158(81)mm |
￠210(91)mm |
|
Weight , Color |
Appr 0.85kg , white |
Appr 0.96kg , white |
