Biamp Community R.35
Full-Range 3-Way 8-Inch 90 X 60 Speakers (Grey)

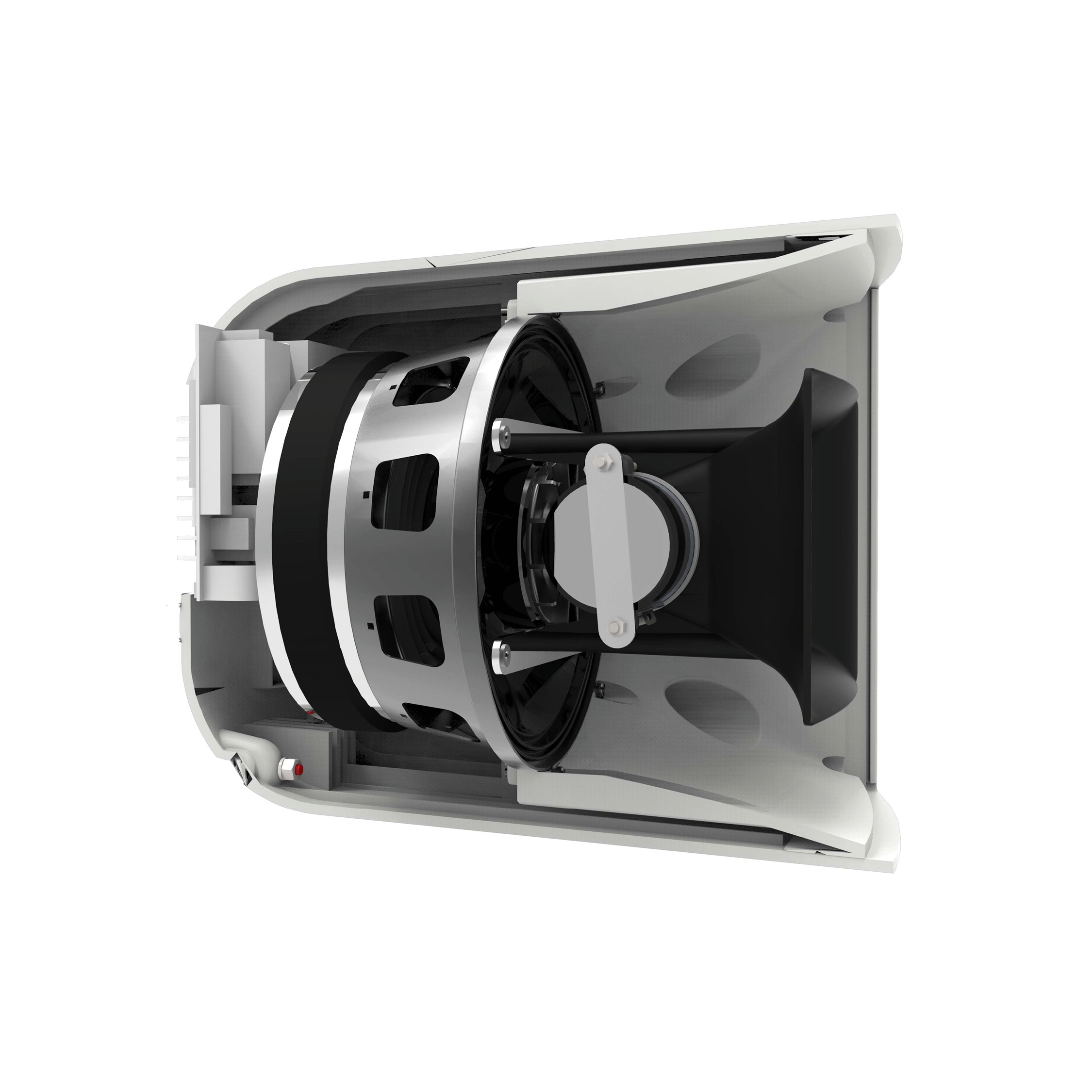

The R.35-3896-EN is an EN54-24 certified, triaxial 8-inch Carbon Ring Cone loudspeaker featuring Community’s exclusive MultiSource Waveguide technology which adeptly integrates the output from dual mid-range compression drivers and a 1-inch exit HF compression driver into a single coherent source. Fully passive, it is voiced for flat musical reproduction without EQ and delivers class-leading SPL levels for a loudspeaker of its size.
Operating Mode: Passive, Selectable Low Impedance or 70V/100V
Operating Environment: Indoor or Weather-Resistant Outdoor
Operating Range: 80 Hz to 16 kHz
Nominal Beamwidth (H x V): 90° x 60°
Transducers:
• LF 1 x 8" (203mm) Carbon ring cone with hydrophobic treatment, 3" (76mm) Voice Coil
• MR 2 x 2.35" (60mm) MultiSource Waveguide™ compression drivers
• HF 1 x 1" (25mm) exit polymer diaphragm compression driver
Continuous Power Handling @ Nominal Impedance: Passive 56V 400W @ 8 Ohms (1600W peak)
Autoformer Taps:
• 70V: 200W,100W, 50W, 25W
• 100V: 200W,100W, 50W
Nominal Sensitivity:
MUSIC (Passive):
@ 1W: 98dB
@ 2.83V: 98dB
VOICE (Passive):
@ 1W: 100 dB
@ 2.83V: 100 dB
Nominal Maximum SPL (Whole Space)
MUSIC (Passive):
Peak: 130 dB
Continuous: 124 dB
VOICE (Passive):
Peak: 132 dB
Continuous: 126 dB
Equalized Sensitivity:
MUSIC (System):
@ 1W: 97 dB
@ 2.83V: 97 dB
Equalized Maximum SPL:
MUSIC (System):
Peak: 129 dB
Continuous: 123 dB
Required Accessories: High Pass Filter - 80 Hz, 24 dB /octave, Digital Signal Processor
Recommended Amplifiers: 400W - 800W @ 8 Ohms, (56V - 80V)
PHYSICAL
Input Connection: NL4 Speakon-type connector (low impedance only), and 7-position terminal strip for low impedance or constant voltage operation
Controls: Music / Voice switch, 70V/100V operation jumper
Mounting: Points Two (2) M8 rigging points
Included Accessories: Zinc-rich epoxy dual-layer powder-coated yoke, included integral safety cable mounting point
Environmental:
• IP55W per IEC 529, designed to MIL-STD-810G
• Color-matched ABS plastic input panel weather cover with 13.5mm ID gland nut installed in .82" knockout
Dimensions: H x W x D 11.00" x 13.00" x 13.50" (279 x 330 x 343 mm)
Weight: 34 lbs (15.4 kg) with included yoke
Finish: Refer to the Technical Drawing (page 3)
OPTIONS
Accessories:
• R-VTY35: Provides pan-tilt aiming functions. Zinc-rich dual-layer powder-coated steel with SS hardware, color-matched to loudspeaker.
• R-FRY35: Provides full rotation mounting capability for down-firing application (i.e. top of press box). Zinc-rich epoxy dual-layer powder-coated steel with SS hardware, color-matched to loudspeaker
