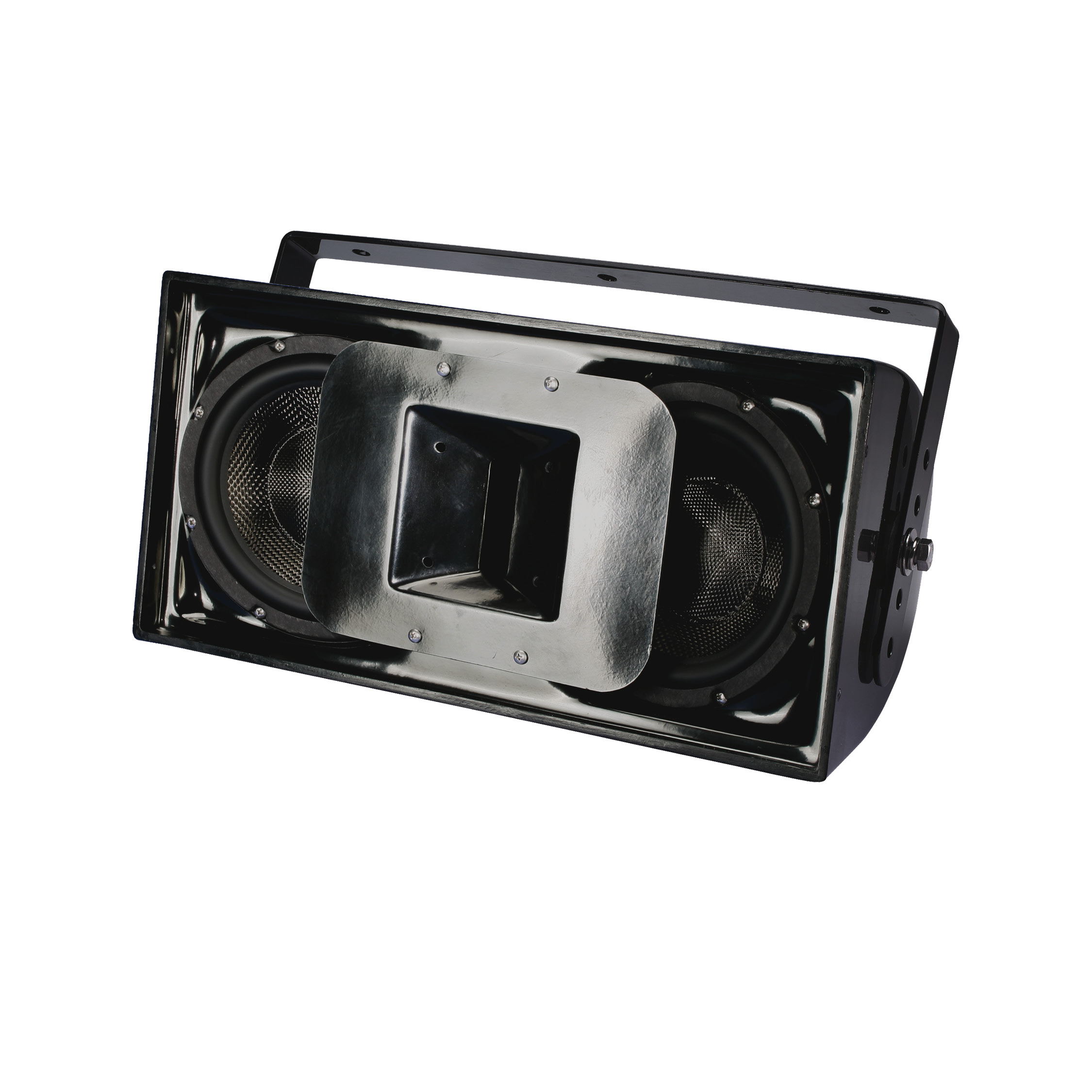

Biamp Community W2-2W8
Two-way, 8-inch, "wide" compact system, black.
The symmetrical design features two 8-inch woofers flanking a 120 x 60 horn for seamless, consistent wide dispersion coverage to 400Hz. It is optimal for sound reinforcement, down-fill, under balcony stage edge fill, monitoring, and other applications.
The unique molded “Super-V” configuration of the LF drivers provides exceptional uniform mid-range coverage that would be impossible to create with a conventional flat wood baffle plate. The Super-V configuration prevents the collapse of the horizontal coverage pattern throughout its range, especially the critical voice-range, when oriented in its usual horizontal position.
GENERAL
Height: 10.13 inches (257 mm)
Width: 20 inches (508 mm)
Depth: 11.5 inches (292 mm)
Weight: 40.4 lbs (18.3 kg)
Finish: RAL Color: Black RAL 9005
ENVIRONMENTAL
Operating Environment: IP55W per IEC 60529
POWER
Power:
• 250W Cont.
• 1000W Peak
LOUDSPEAKER
Loudspeaker Type: Two-way, dual 8-inch full-range weather-resistant loudspeaker
Sensitivity: (1W/1m) 97 dB
Dispersion: (H x V) 120° x 60°
Drivers:
• LF 2 x 8"
• HF 1 x 1"
AUDIO
Impedance: W2-2W8: 8Ω
Maximum Output:
• 121 dB
• 127 dB Peak
CERTIFIED SOLUTIONS
TAA Compliant: TAA Compliant
