Biamp Desono DP8-B Black
Garantujemo najnižu cenu!
- Ugrinovački Put 10n, Zemun

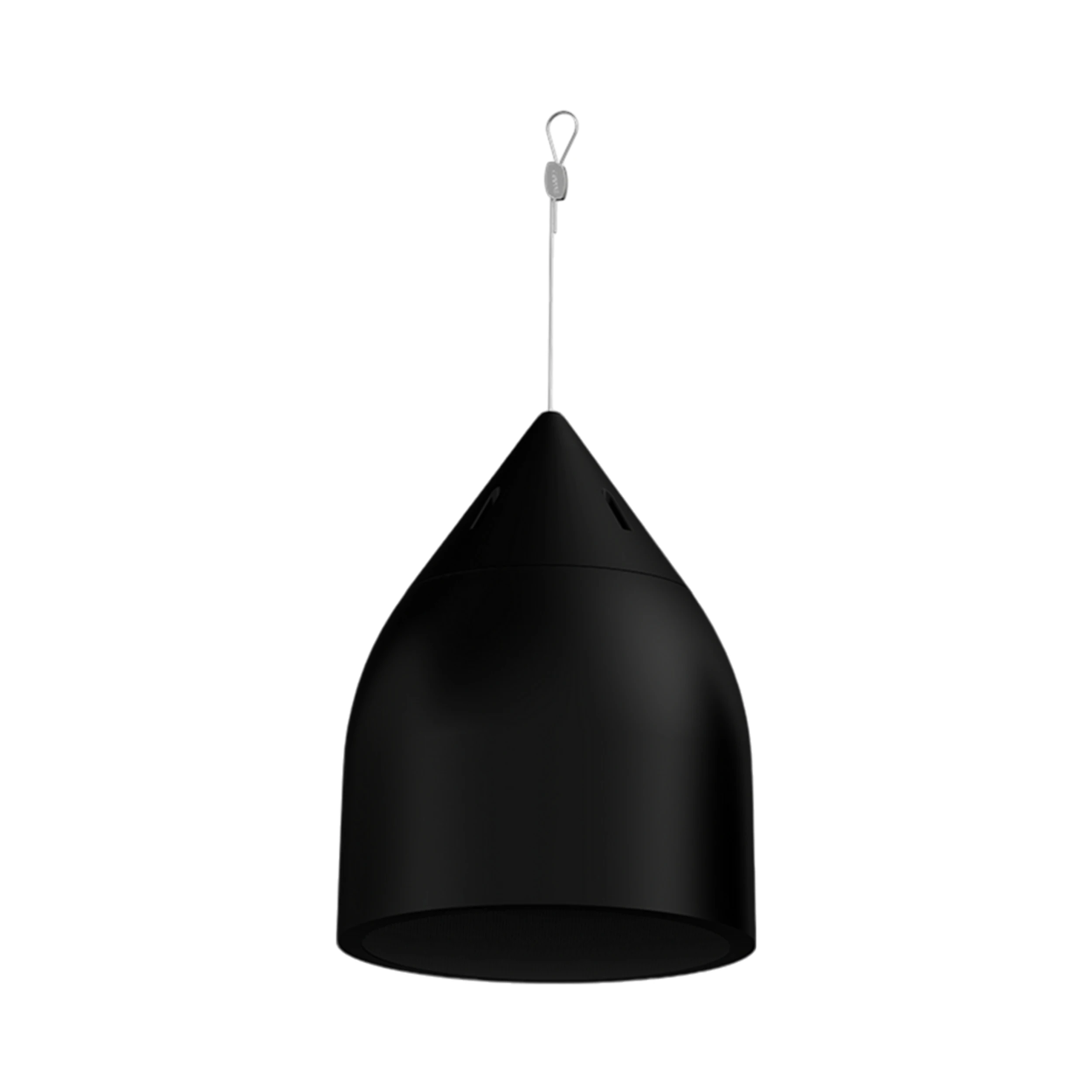

8-inch pendant loudspeaker, black.
Key Features
Zoom Rooms Certified
Stylish, contoured contemporary pendant design
Same components and voicing as the DX ceiling and surface mount loudspeaker family
Consistent, wide dispersion up to 16 kHz
True coaxial loudspeakers with HF compression drivers
Tru-Phase high-frequency waveguide
Patented Carbon Ring Cone Technology
High efficiency, high output, high intelligibility, low distortion
Paintable enclosure constructed of high-impact ABS plastic to reduce resonance
Easy-access power tap switch for selectable 8 ohm or 70V/100V operation
Integrated rear cover hiding all wires and hanging hardware
Weather-resistant constructed with treated drivers and two-layer powder coated grilles
ETL listed to comply with UL1480
Available in standard black or white finishes
5-year warranty
| GENERAL | |
| Height | 17.72 inches (450.1 mm) enclosure |
| Width | 13.40 inches (340.5 mm) face diameter |
| Weight | 16.5 lbs (7.5 kg) includes cables and Gripples |
| Finish | Black |
| Material | Grille: Powder coated steel with safety line, black or white finish, paintable Baffle: Reflex loaded UL 94V-0 rated ABS |
| Enclosure | UL 94V-0 rated ABS plastic, matte finish, paintable |
| Mounting | Two PHK-15 pendant hang kits (one for main suspension and one as a safety cable), each including 15ft (4.5m) long 2mm (0.77 inch) high tensile galvanized steel wire rope suspension cables with integrated spring clips for attaching the cable to the loudspeaker bracket and Gripple® brand adjustable height cable fasteners. |
| Included Accessories | Included Accessories: Two PHK-15 pendant hang kits Enclosure ABS plastic rear cover Rear cover ingress weather plug Optional Accessories: PHK-30 30ft (9.1m) pendant hang kit PHK-50 50ft (15.2m) pendant hang kit PSC replacement Gripple® speed clamp PST-14 trimmable 14ft (4.3m) decorative split loom tubing |
| Required Accessories | Electronic high pass filter |
| CONTROLS & INDICATORS | |
| Control | Front-face wattage / low impedance selector switch |
| AMPLIFIER | |
| Distortion | Distortion - 10% Full Power: 2nd Harmonic 500 Hz: 1.28% 2 kHz: 0.45% 8 kHz: 2.52% 3rd Harmonic 500 Hz: 1.14% 2 kHz: 0.23% 8 kHz: 0.02% |
| LOUDSPEAKER | |
| Loudspeaker Type | 2-way, full-range, coaxial pendant mount loudspeaker, 8 ohm or 70V/100V operation |
| Operating Range | 60 Hz - 22 kHz |
| Crossover | 1.3 kHz |
| Transformer | Transformer Taps 70V: 60W, 30W, 15W, 7.5W and low impedance 100V: 120,60W, 30W |
| Sensitivity | 95 dB SPL (120 Hz to 12.5 kHz 1/3 octave bands) 94 dB SPL (250 Hz to 4 kHz speech range) |
| Coverage | Nominal Coverage: 100º conical (1 kHz to 6 kHz) 115º conical (500 Hz to 6 kHz) |
| Signal Processing | Recommended High Pass Filter: 60 Hz / 24dB octive |
| Drivers | LF 1 x 8-inch HF 1 x 1.25-inch exit compression driver Driver Protection: Self-resetting solid state circuit breaker |
| AUDIO | |
| Audio | Input Connection: Two 2-position Euroblock connectors |
| Impedance | Nominal Impedance: 8 ohms Minimum Impedance: 5.6 ohms @ 200 Hz |
| Maximum Input | 150W continuous, 375W program 34.6 volts RMS, 69.3 volts momentary peak |
| Maximum Output | 117 dB SPL / 123 dB SPL (peak 8 ohm) |
| Frequency Response | 80 Hz - 20 kHz (±5 dB) |
| CERTIFIED SOLUTIONS | |
| Zoom | Zoom Certified |
| COMPLIANCE | |
| Safety Features | Safety Features: Included safety cable. Each cable has an SWL of 99 lbs (45 kg). Safety Agency Ratings: EETL listed to comply with UL1480 and CSA60065. Suspension system and Gripple™ brand cable fastener listed per UL1598 and UL2239, TUV and CSA Class 3426-01 and Class 3426-81 |
| NOTES | |
| Specification Notes | Axial Q / DI: 4.7 / 6.7, 500 Hz to 6 kHz |
