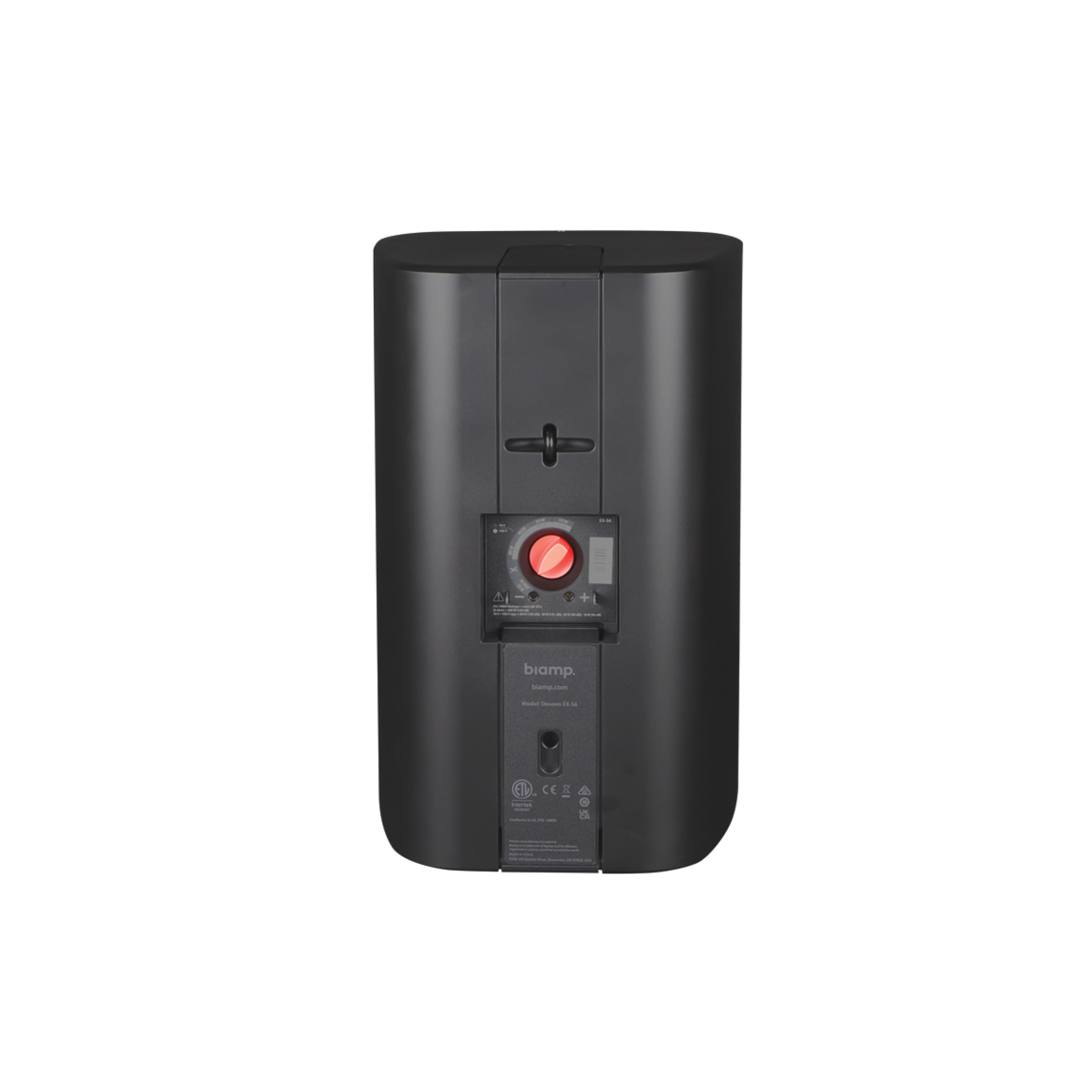

Biamp Desono EX-S6-CM-B
6.5-inch, 2-way, coaxial, surface-mount, indoor/outdoor, black loudspeaker; 8 Ohm or 70V/100V operation; included ClickMount pan-tilt mounting bracket.
The Desono EX-S6, the smallest member of EX Series, 6.5-inch, 2-way surface mount loudspeaker provides discreet, distributed sound in applications requiring exceptional audio clarity with a small visual footprint. With its wide coverage at 110° wide dispersion and flat response down below 80Hz, EX-S6 is optimal for near field listening.
Designed for easy and fast installation, our innovative, patented ClickMount™ brackets provide installers with two distinct mounting options. The ClickMount pan-tilt bracket provides indexed aiming control and allows for mounting EX Series quickly in either vertical or horizontal orientation without moving the bracket position. The ClickMount U-Bracket is also available for low profile mounting or exterior use and includes the ClickPlug with an integrated gland nut for weather-resistant applications. Both brackets are theft and tamper resistant.
GENERAL
Height: 13.7 inches (349 mm)
Width: 8.5 inches (217 mm)
Depth: 8.6 inches (220 mm)
Weight: 14.4 lbs (6.5 kg)
Finish: RAL Color: Black RAL 9017
Material:
• Grille: Powder-coated perforated Marine Grade aluminum backed with hydrophobic cloth.
• Enclosure: High-impact UL94 5VB rated polycarbonate/ABS blend, painted UV resistant matte finish
• Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover
Mounting: ClickMount pan-tilt bracket or ClickMount U-Bracket
Included Accessories:
• CMX-SM [-B,-W] - Small ClickMount pan-tilt bracket kit
• EXUB-S6 [-B,-W] - EX-S6 ClickMount U-Bracket kit
Required Accessories: 50 Hz, 12 dB / oct. Butterworth high pass filter; DSP preset
Recommended Amplifiers: 200 W - 400 W, 8 Ω (40 V - 57 V)
ENVIRONMENTAL
Operating Environment: Indoor/Outdoor
POWER
Power:
• 200W Cont.
• 800W Peak
LOUDSPEAKER
Loudspeaker Type: 2-way, 6.5-inch, indoor/outdoor, coaxial, surface mount, white loudspeaker.
Operating Mode: Passive with selectable low-impedance or 70V/100V operation
Operating Range: 58 Hz - 20 kHz
Transducers:
• LF 1 x 6.5 inches (165 mm) treated paper cone
• HF 1 x 1 inch (25 mm) treated soft dome tweeter w/ waveguide
Crossover: 1.58 kHz crossover, driver protection circuitry
Transformer:
• 70V: 80W, 40W, 20W, 10W
• 100V: 80W, 40W, 20W
Sensitivity: (1W/1m) 89 dB
Dispersion: 120° x 120°
Drivers:
• LF 1 x 6.5 inches
• HF 1 x 1 inch
AUDIO
Impedance: 8Ω
SPL:
• Nominal Maximum SPL
Continuous: 112 dB
Peak: 118 dB
• Rated Maximum SPL:
Continuous: 109 dB
Peak: 121 dB
CERTIFIED SOLUTIONS
Zoom: Zoom Certified
COMPLIANCE
Certifications:
• ETL listed to comply with UL 1480A
• CSA STD C22.2# 62368-1
• EN54-24
• ISO 7240-24
• IEC 62368-1
Environmental Ratings:
• IP54 per IEC 60529
• IEC 60068-2-5 (Solar Radiation)
• IEC 60068-2-11 (Salt Mist)
• IEC 60068-2-42 (SO2)
• IEC 60068-2-60 (Chlorine)
