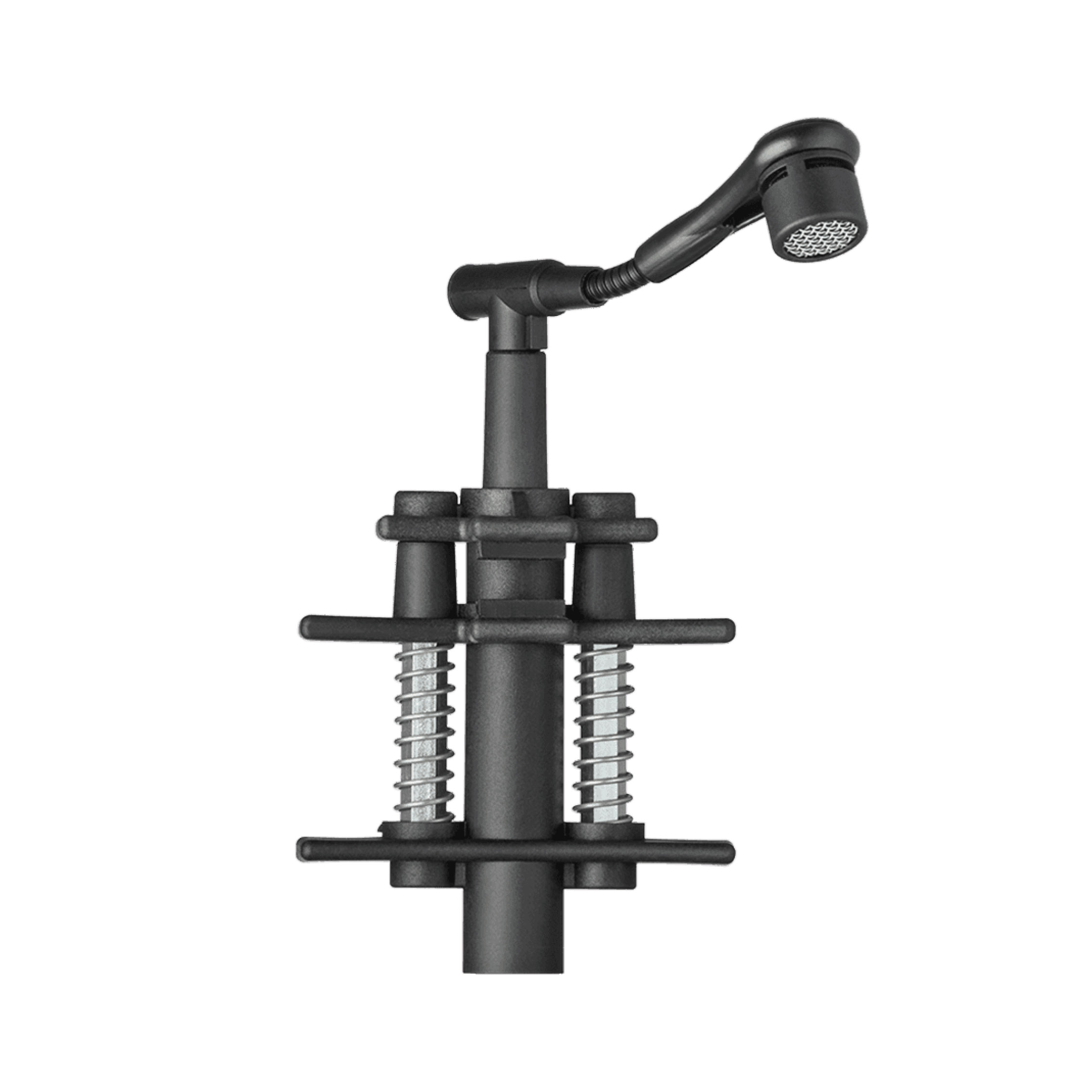

Beyerdynamic TG D58
Whether with standing toms, snare drums or percussion instruments - with its patented clip-on mount and integrated pre-amplifier, the TG D58 condenser microphone is mounted and ready in a flash. The expanded frequency range ensures faithful reproduction of all drum types and the 20 mm long flexible gooseneck in conjunction with the swivel mount allow it to be optimally positioned relative to the sound source. An elastic capsule suspension on the capsule housing protects against damage from drumstick strikes.
FEATURES
• Short, flexible gooseneck with horizontal swivel joint for optimum positioning
• Rugged construction with rubber shock-mounted microphone capsule
• Patented microphone clamp with integrated pre-amp and XLR connection
• No disturbing cable between microphone head and pre-amp
• Cardioid polar pattern for high-gain-before feedback
• Wide transmission range
• Phantom powering 12 - 48 V
TECHNICAL SPECIFICATIONS
Transducer type: Condenser (back electret)
Operating principle: Pressure gradient
Polar pattern: Cardioid
Frequency response:
• Close miking: 20 - 20,000 Hz
• Distant miking (measured at 1 m): 35 - 20,000 Hz
Open circuit voltage: 5 mV/Pa (-46 dBV) ±2.5 dB
Nominal impedance: 200 Ω
Load impedance: ≥ 1 kΩ
Max. SPL at 24 V and 48 V phantom power: 140 dB
S/N ratio:
• 59 dB [CCIR; Q-Peak]
• 70 dB [A; RMS]
Equivalent SPL:
• 35 dB [CCIR; Q-Peak]
• 724 dB [A; RMS]
Power supply: Phantom power: 12 - 48 V (recommended: 48 V)
Power consumption: 4.7 mA
Connection: XLR, 3-pin, male
Dimensions:
• Clamp (W x H): 85 x 118 mm
• Gooseneck length: 20 mm
Weight: approx. 140 g
