Biamp Parle TCM-1A Black

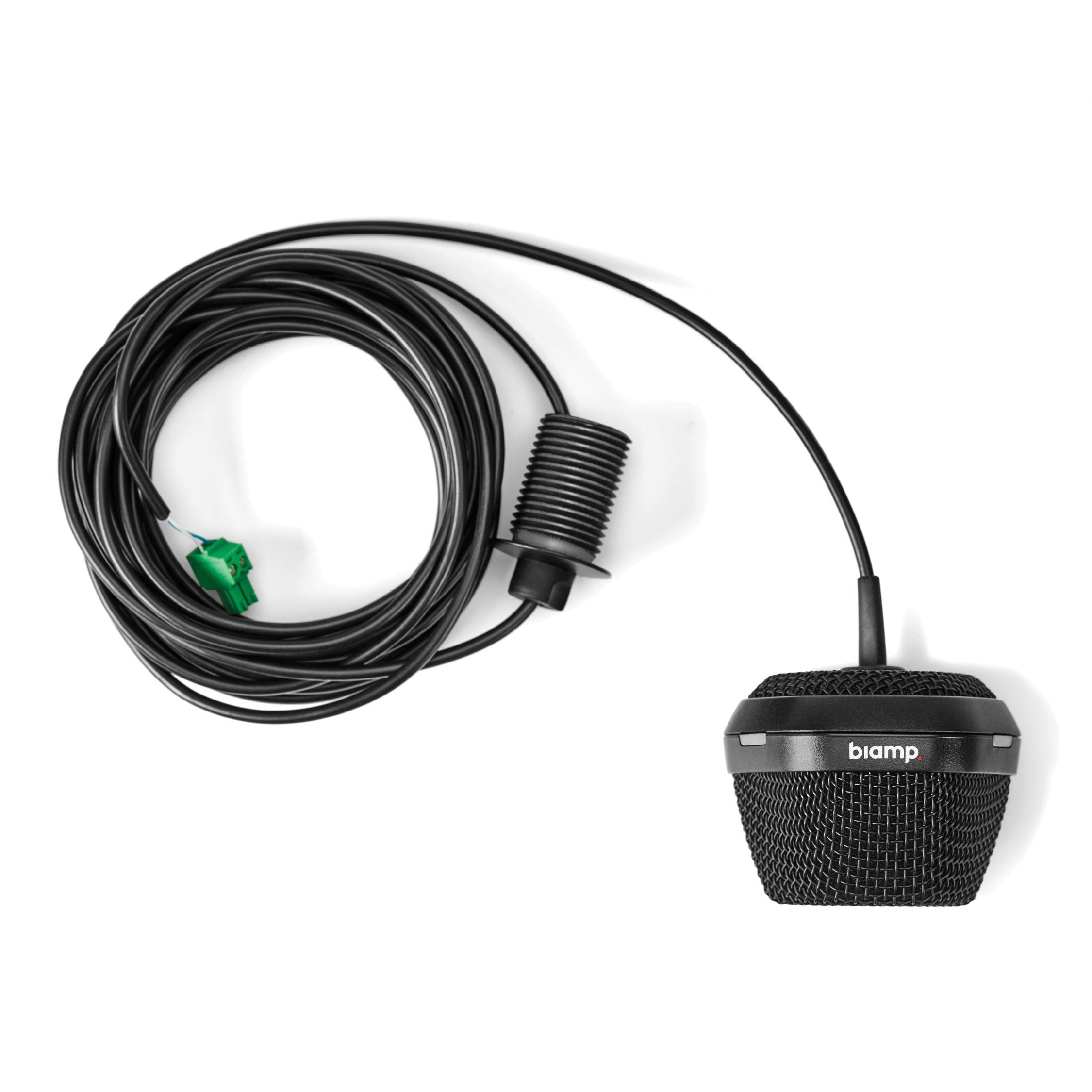

The Parlé TCM-1A is an AVB ceiling microphone and PoE+ amplifier comprised of a black pendant microphone and plenum box. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space.
The plenum box is equipped with an additional RJ-45 connector for daisy chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX). The two-channel PoE+ amplifier includes an internal limiter, selectable power, and a burst mode to handle peak signals.
GENERAL
Height: Microphone: 2 inches (51 mm) Plenum Box: 2 inches (51 mm)
Width: Microphone: 2.5 inches (63 mm) Plenum Box: 7 inches (178 mm)
Depth: Microphone: 2.5 inches (63 mm) Plenum Box: 7.125 inches (181 mm)
Weight: Microphone: 0.4 lbs (0.2 kg) Plenum Box: 2.4 lbs (1.1 kg)
Included Accessories:
PLENUM BOX (included):
• Connectors: Two RJ-45: one between TCM-1 plenum box and switch, the other between TCM-1 plenum box and additional TCM-1EX plenum box; 2-pin 3.5 mm Phoenix connector to TCM-1 microphone Power: PoE (IEEE 802.3at Class 3, 15.4W)
• Indicators: Power Indicator (Green/Yellow/Red LED)
• Digital Interface: Custom/Proprietary Max Distance Between Devices: 330 feet (100 meters) from switch to TCM-1 plenum box; 33 feet (10 meters) for daisy-chained connections between TCM plenum boxes
Amplifier:
AMPLIFIER: Number of Channels: 2 Connectors: 4-pin 5.08 mm Phoenix connectors Amplifier Topology: Class D Burst Power Output (per ANSI/CTA-2006-B @ 1kHz): 4Ω (per channel): 40W, 8Ω (per channel): 30W Continuous Power Output: Single Channel Driven, (4Ω, 8Ω): 8W, Dual Channel Driven (4Ω, 8Ω): 4W THD+N (20Hz-20kHz, at continuous power): < 0.3% Frequency Response (20Hz-20kHz): ± 1dB Dynamic Range (20Hz-20kHz BW): > 85dB Minimum Operational Load: 4Ω Intermodulation distortion (SMPTE): < 0.3% Cross Talk (channel to channel @ 1kHz): < -90dB
Audio:
PENDANT MICROPHONE: Microphone Technology: 8-Element Digital Array Frequency Response (150 Hz - 16 kHz): ± 3dB Polar Pattern: Beamformed Sensitivity (94dB SPL, 1kHz): > 70dB Maximum SPL (at 0.5% THD): 106dB Dynamic Range (THD+N < 10%): 92dB, A-Weighted Indicators: Mute Indicator (Green/Red LED) Digital Interface: Custom/Proprietary Connector: Custom 2-pin (cable length 10 feet [3 meters])
CERTIFIED SOLUTIONS
TAA Compliant: TAA Compliant
Certifications:
Compliance: FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe) Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
