Austrian Audio OC818 Dual Set Go

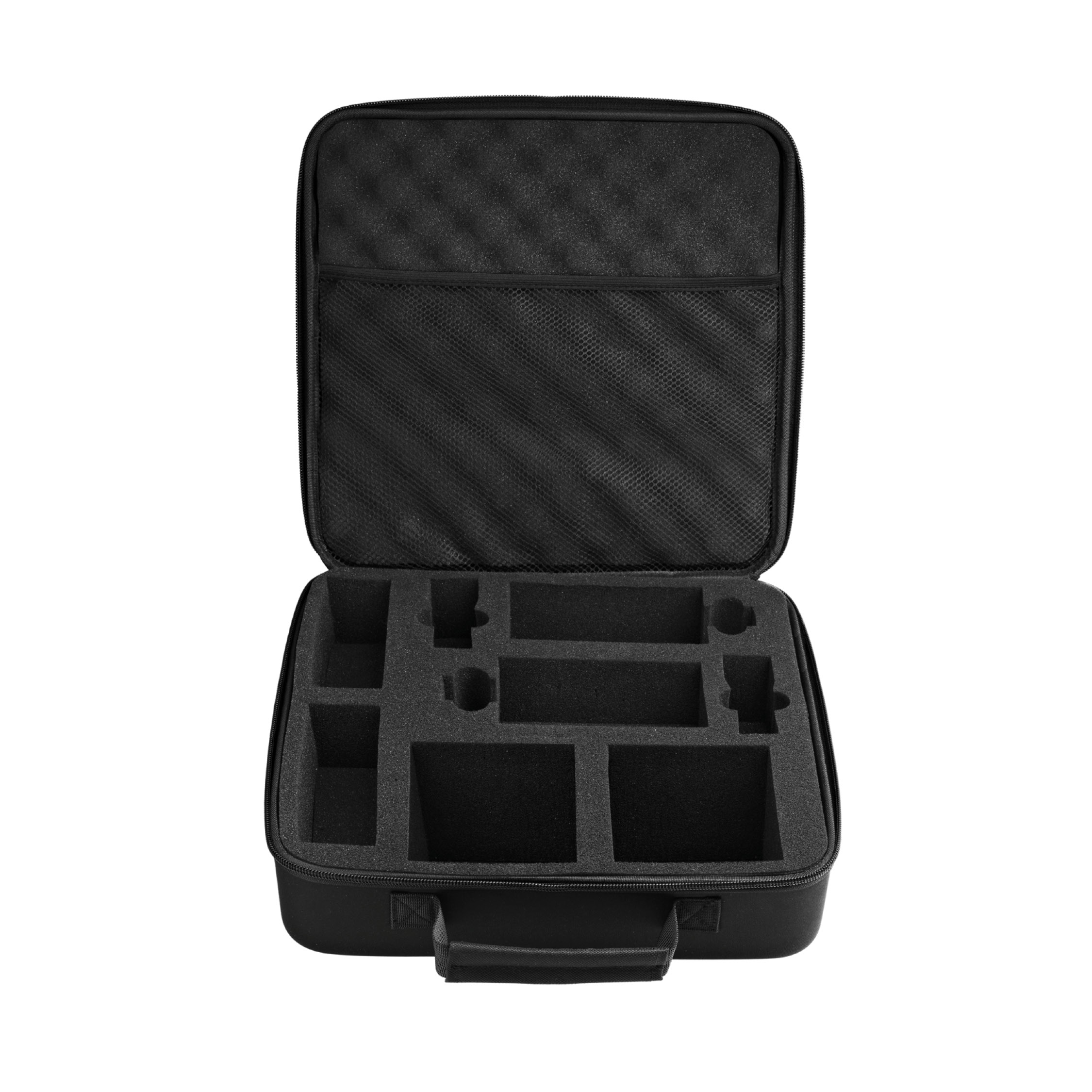

2x OC818 black, 2x OCC8 Mini XLR cables, 2x OCH8 clamps, 2x OCW8 windscreens, 1x case
The Austrian Audio OC818 multi-pattern condenser microphone combines classic design with modern innovation to go where no mic has gone before. Our handmade CKR12 ceramic capsule reimagines the celebrated CK12 capsule to deliver exceptional detail and nuance while also handling extremely high SPL. Each OC818 is manufactured and tested to the highest specifications at our Vienna facility, ensuring premium build quality and performance you can trust. OC818 is the most versatile condenser microphone ever made, and is destined to chart a legacy of its own.
Directional characteristic (Multi): Cardioid, Omnidirectional, Figure-8, Hypercardioid & preset/custom programmable
Frequency range: 20 Hz – 20 kHz
Sensitivity (all directions): 13 mV/Pa
Equivalent noise level: 9 dB SPL (A)
Max. SPL: 148 dB SPL (158 dB SPL)
Analog low cut filter: 40 Hz (2nd Order), 80 Hz (2nd Order), 160 Hz (1st Order down to 80Hz, 2nd Order below)
Switchable pad: -10 dB, -20dB
Impedance: 275 Ω (symmetrical)
Load impedance: > 1 kΩ
Supply voltage: 48 V (< 4mA, typical 2.1mA)
Main connector: XLR 3 pin
Second connector: Mini XLR 5 pin connector for back membrane
Dimensions: 157 x 63 x 36 mm
Weight: 360g
