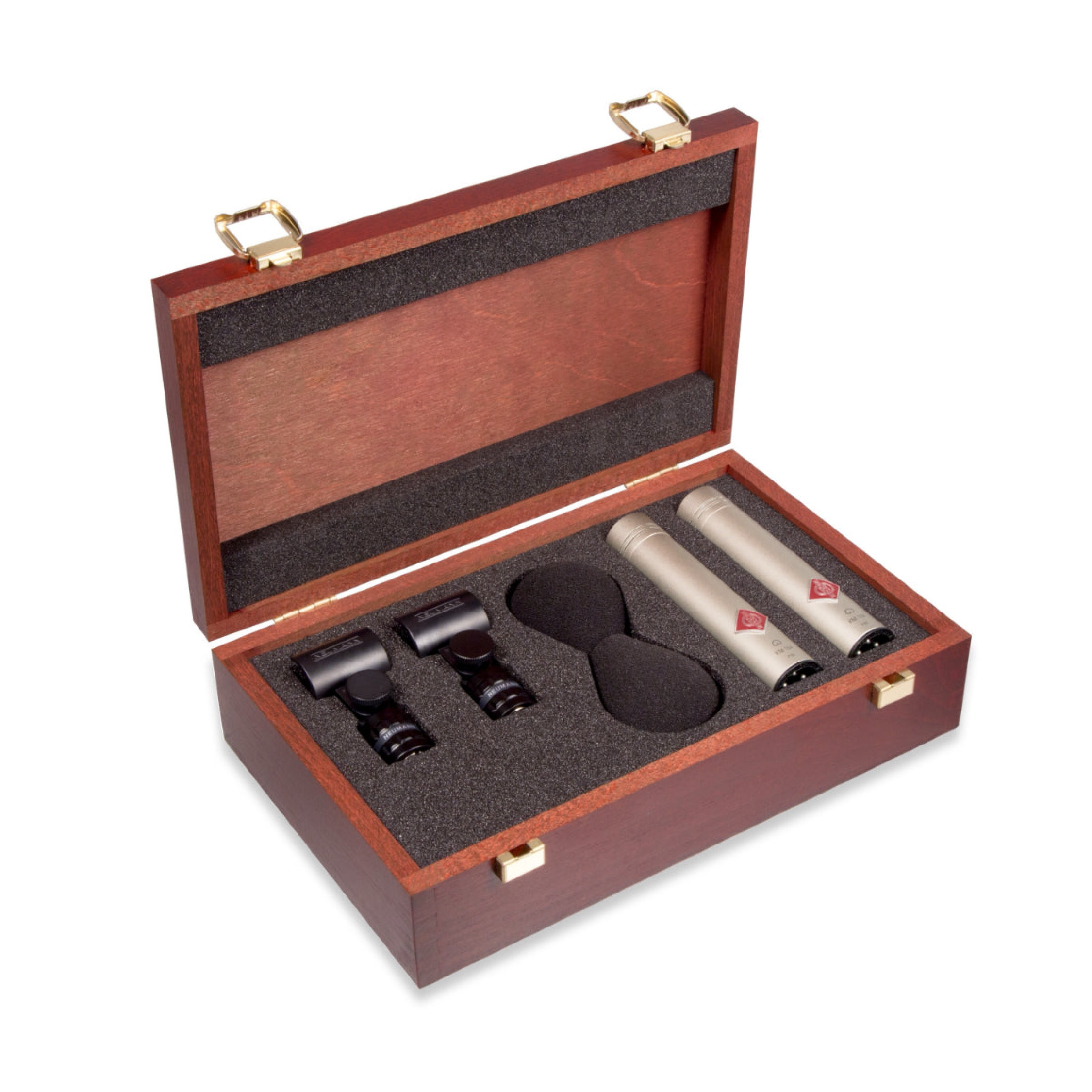

Neumann KM184 Stereo Set
Uncolored, Transparent, Versatile

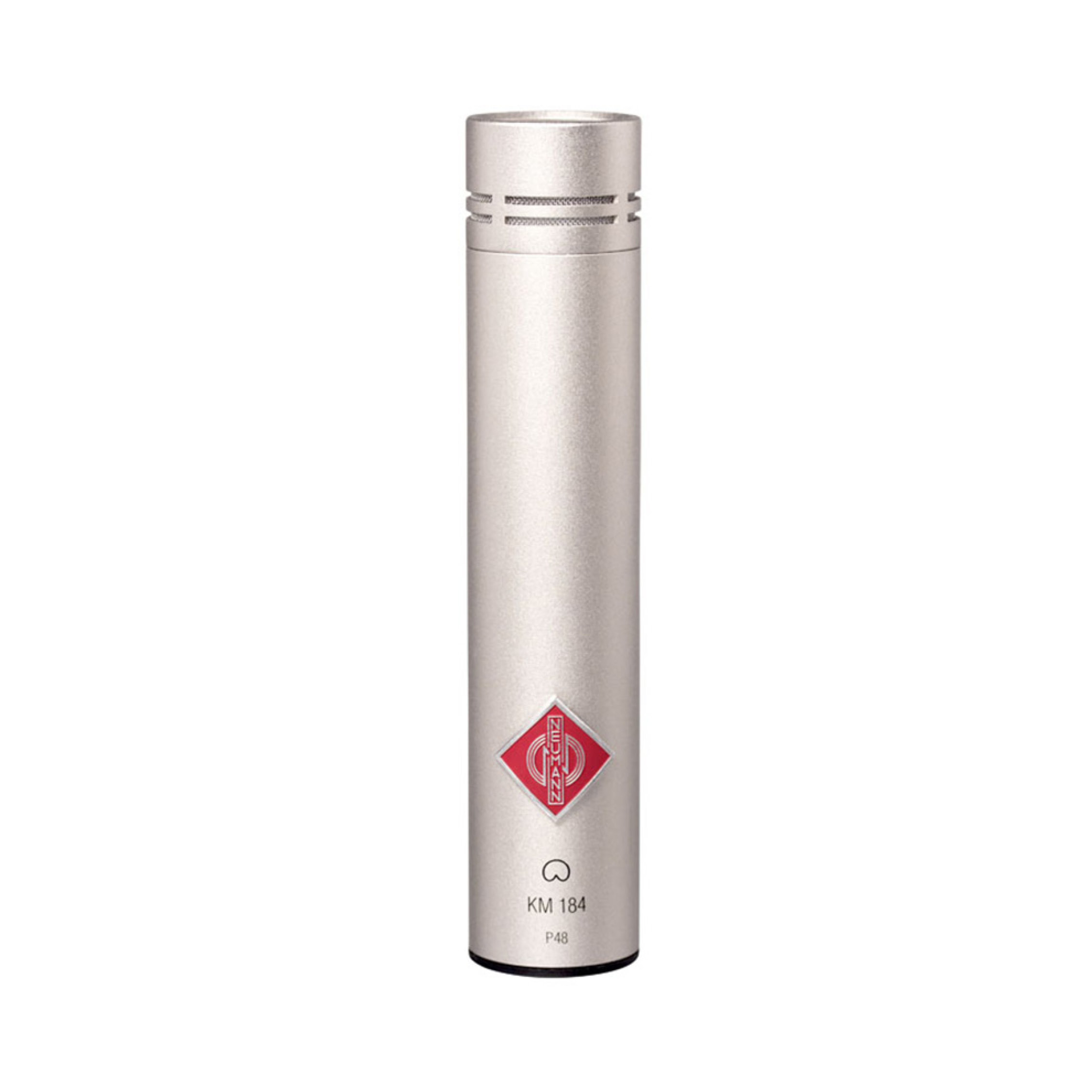

The KM 184 is a state-of-the-art small diaphragm condenser microphone with a uniform, frequency-independent cardioid polar pattern. Its very natural, transparent sound with very low self-noise and high SPL capability have made the KM 184 a worldwide stage and studio standard for many applications ranging from classical piano to heavy metal drums.
Acoustical operating principle: Pressure gradient transducer
Directional Pattern: Cardioid
Frequency Range: 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm: 15 mV/Pa ± 1 dB
Rated Impedance: 50 ohms
Rated load impedance: 1 kohms
Equivalent noise level, CCIR¹⁾: 22 dB
Equivalent noise level, A-weighted¹⁾: 13 dB-A
Maximum SPL for THD 0.5%²⁾: 138 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾: 72 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾: 81 dB
Maximum output voltage: 10 dBu
Supply voltage (P48, IEC 61938): 48 V ± 4 V
Current consumption (P48, IEC 61938): 3.2 mA
Matching connector: XLR 3 F
Weight: approx. 80 g
Diameter: 22 mm
Length: 107 mm
1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
2) measured as equivalent el. input signal
