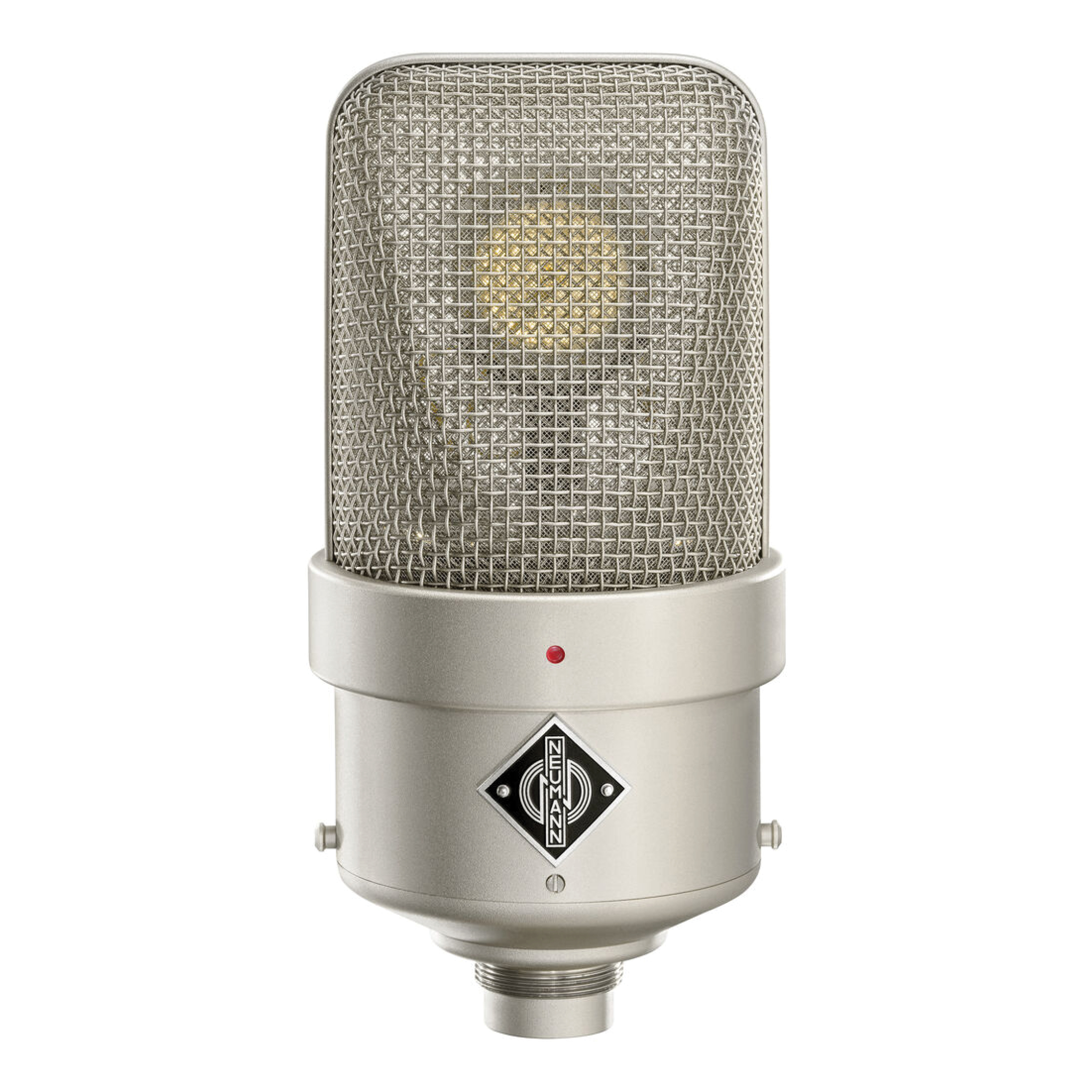

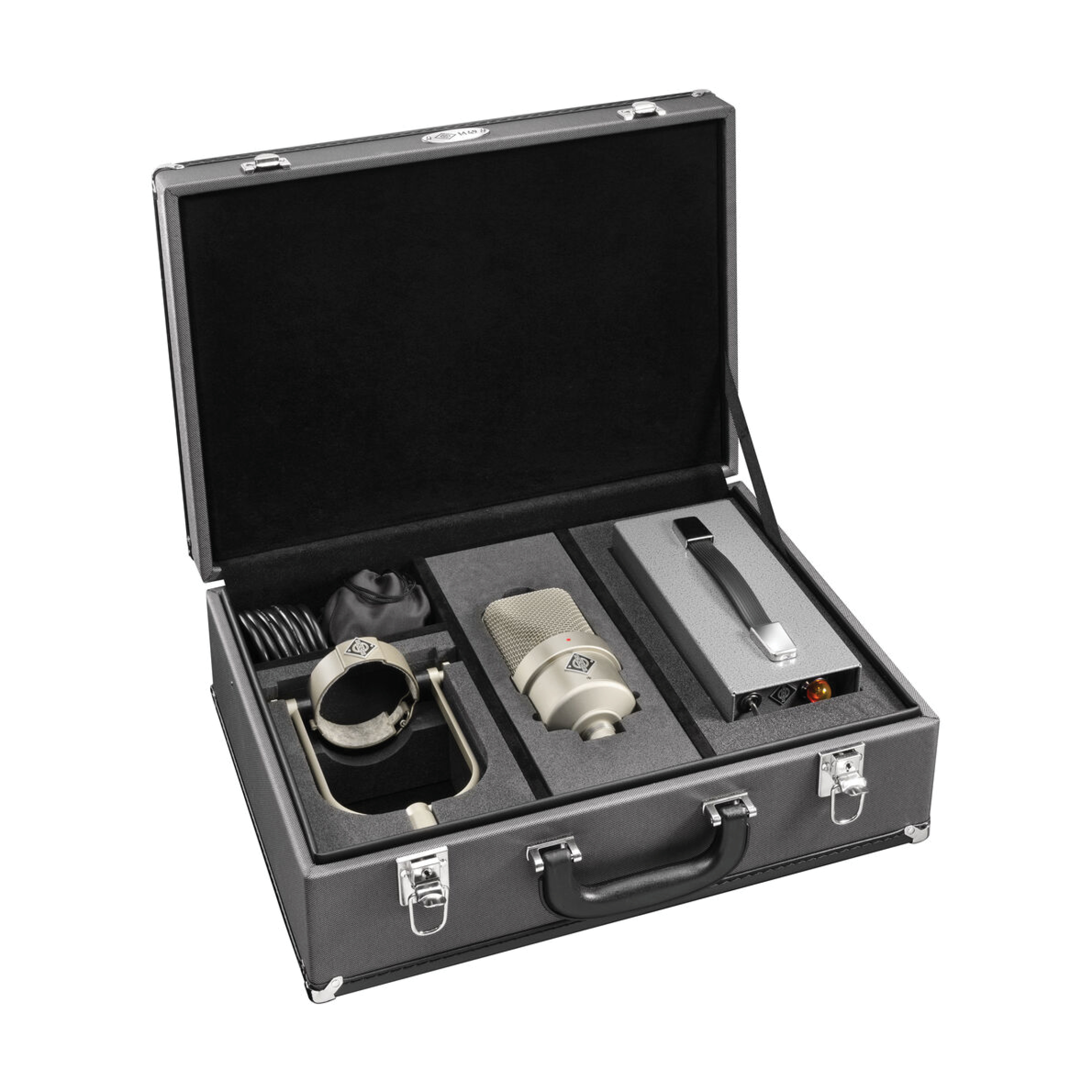

Neumann M 49 V SET
TRUE GREATNESS
Introduced in 1951, the M 49 revolutionized studio technology with its continuously variable, remote-switchable polar pattern. And, of course, with its incomparably full, silky sound, which has made its mark on countless recordings to this day. The M 49 V is what many have been eagerly waiting for: a reissue according to original specifications!
Acoustical operating principle: Pressure gradient transducer
Directional Pattern: variable (omnidirectional...cardioid…figure-8)
Frequency Range: 40 Hz...16 kHz
Sensitivity at 1 kHz into 1 kohm: 6.5/8/10 mV/Pa ± 1 dB -43.5/-42/-40 dBV
Rated Impedance: 200 ohms
Rated load impedance: 1000 ohms
Equivalent noise level, CCIR¹⁾: 32/30/30 dB
Equivalent noise level, A-weighted¹⁾: 21/20/19 dB-A
Maximum SPL for THD 0.5%²⁾: 125 dB (cardioid)
Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾: 62/64/64 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾: 73/74/75 dB
Maximum output voltage: 300 mV ~ - 8 dBu

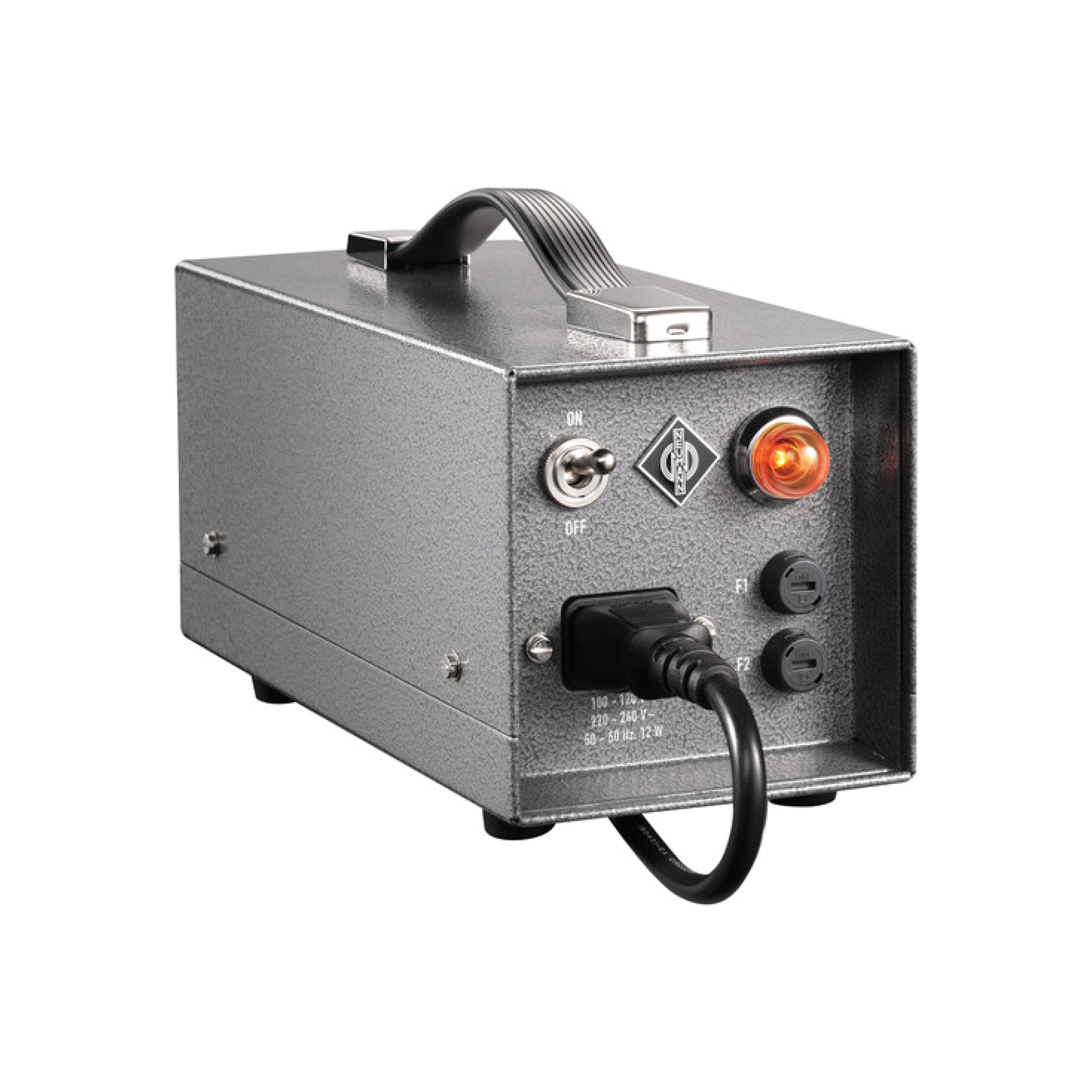

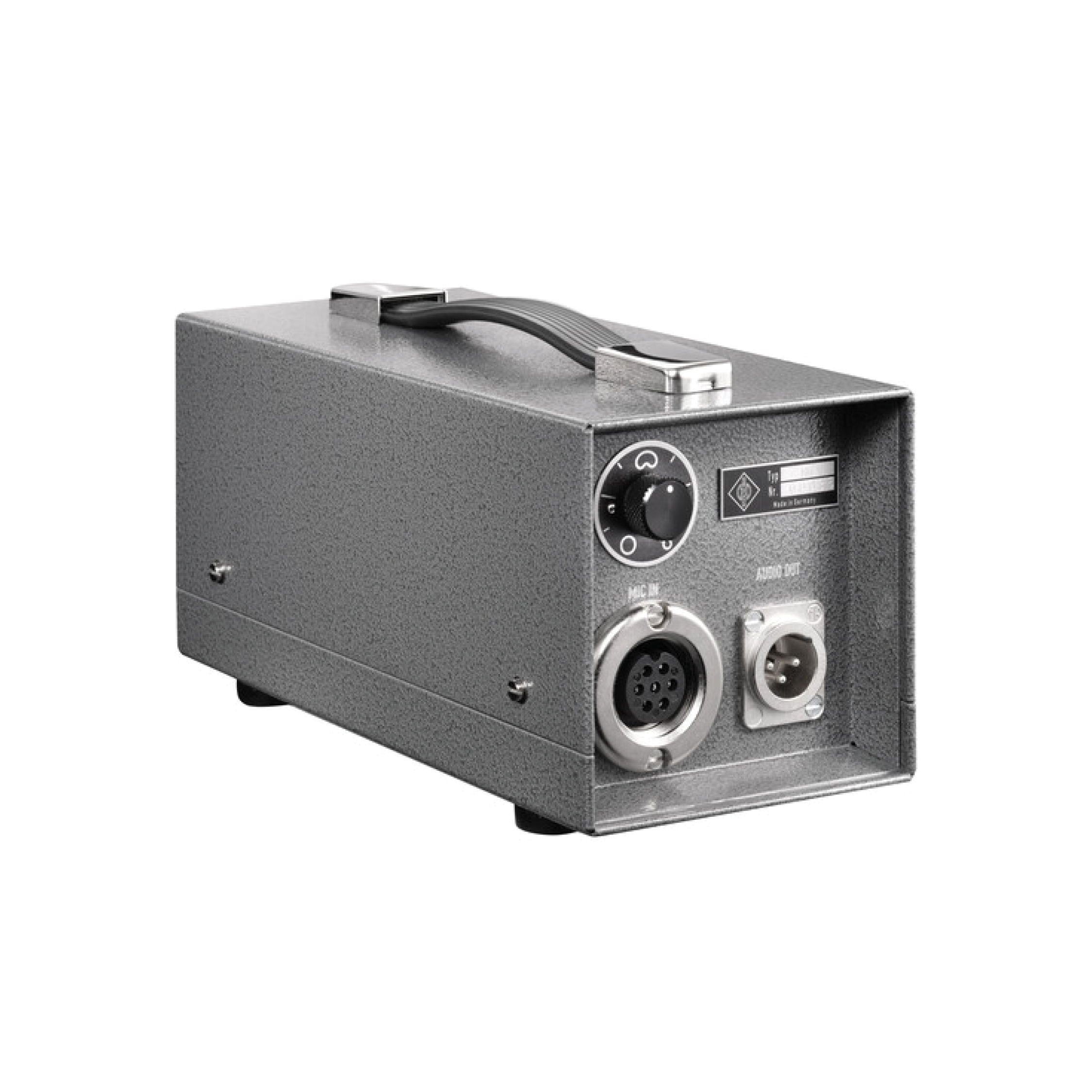

Power supply: NM V
Required connectors/Microphone: KC 5 cable (7-pin)
Required connectors / Power supply unit - output: XLR 3 F
Weight: 800 g
Diameter: 80 mm
Length: 163 mm
