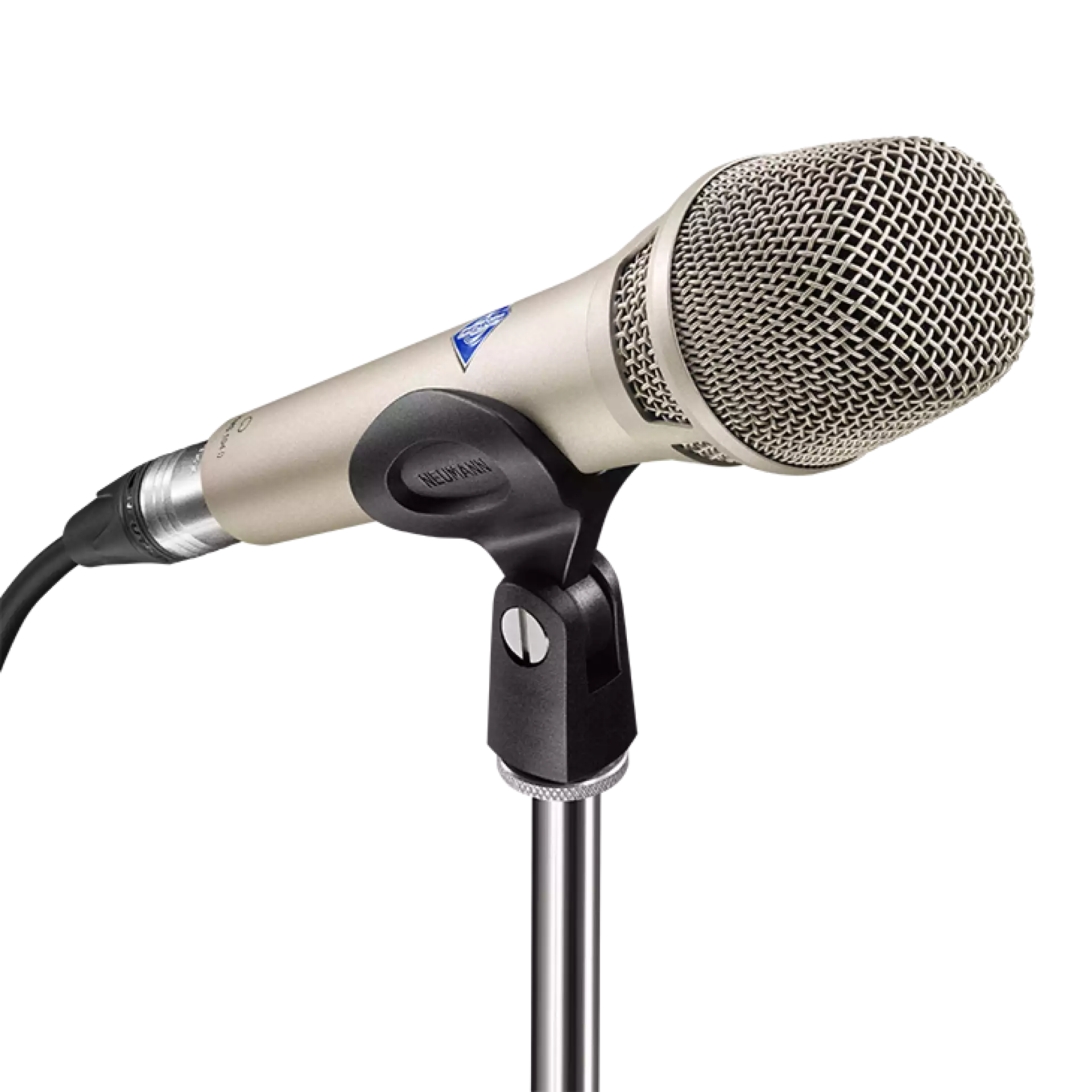

NEUMANN KMS 104 D
STAGE VOCALS WITH DIGITAL CLARITY
The KMS 104 D takes the well-established KMS 104 stage microphone into the digital domain. Based on the AES 42 standard, this microphone is an ideal choice for live and on-stage applications.
It provides all of the features of the analog counterpart. Additionally, it offers the advantages of Neumann’s digital microphone technology, such as an extended dynamic range, a more robust operation (EMC safe), and clipping protection by means of the integrated peak limiter/ compressor.
Using the DMI-2 or DMI-8 digital microphone interface together with the Remote Control Software (RCS), any pre-programmed settings may be stored in the microphones.
Further information on this microphone can be found on the webpages of the analog variant, the KMS 104. Further information on the Neumann digital microphone technology can be downloaded as PDF.
The digital Neumann microphone technology (Solution-D) will no longer be part of the Neumann product portfolio from 2021. Last order date for dealers will be 31 July 2020. After that, the products will be available as long as stock lasts. Service for all Solution-D hardware products is guaranteed until 31 Dec 2030.
The Remote Control Software (32 Bit, available also as VST plug-in) for the digital Neumann microphones is compatible with Windows 98SE – Windows 10 and Mac OS 8.6 – Mac OS X 10.14.6. There will be no further updates of the RCS software.
| Acoustical operating principle | Pressure gradient transducer |
| Directional Pattern | Cardioid |
| Frequency Range | 60 Hz ... 20 kHz |
| Sensitivity at 1 kHz, 0 dB gain, and 94 db SPL | 47 dBFS |
| Equivalent noise level, CCIR 1 | 27 dB |
| Equivalent noise level, A-weighted 2 | 16 dB-A |
| Maximum SPL at 0 dBFS (re. 94 dB SPL) | 141 dB SPL |
| Maximum SPL with 18 dB preatt. (RCS) (re. 94 dB SPL) | 159 dB SPL |
| Signal-to-noise ratio, CCIR (re. 94 dB SPL) 3 | 67 dB |
| Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 4 | 78 dB |
| Matching connector | XLR 3 F |
| Weight | 300 g |
| Diameter | 48 mm |
| Length | 180 mm |
| A/D conversion | Neumann process (patented), 28-bit internal word length |
| Digital signal processing | Fixed-point, variable internal word length 28 bits to 60 bits |
| Sampling rates | 44.1/48/88.2/96/176.4/192 kHz |
| Output data format | 24 bits as per AES/EBU (AES 3) |
| Latency: 44.1/48 kHz | 41 samples |
| Latency: 88.2/96 kHz | 49 samples |
| Latency: 176.4/192 kHz | 99 samples |
| Synchronization: Free-running (non-synchronous operation), frequency stability | ± 25 ppm |
| Synchronization: Synchronous operation, pulling range | min. ± 100 ppm |
| Supply voltage range | +7 V to +10.5 V |
| Current consumption | max. 150 mA (DDP) |
