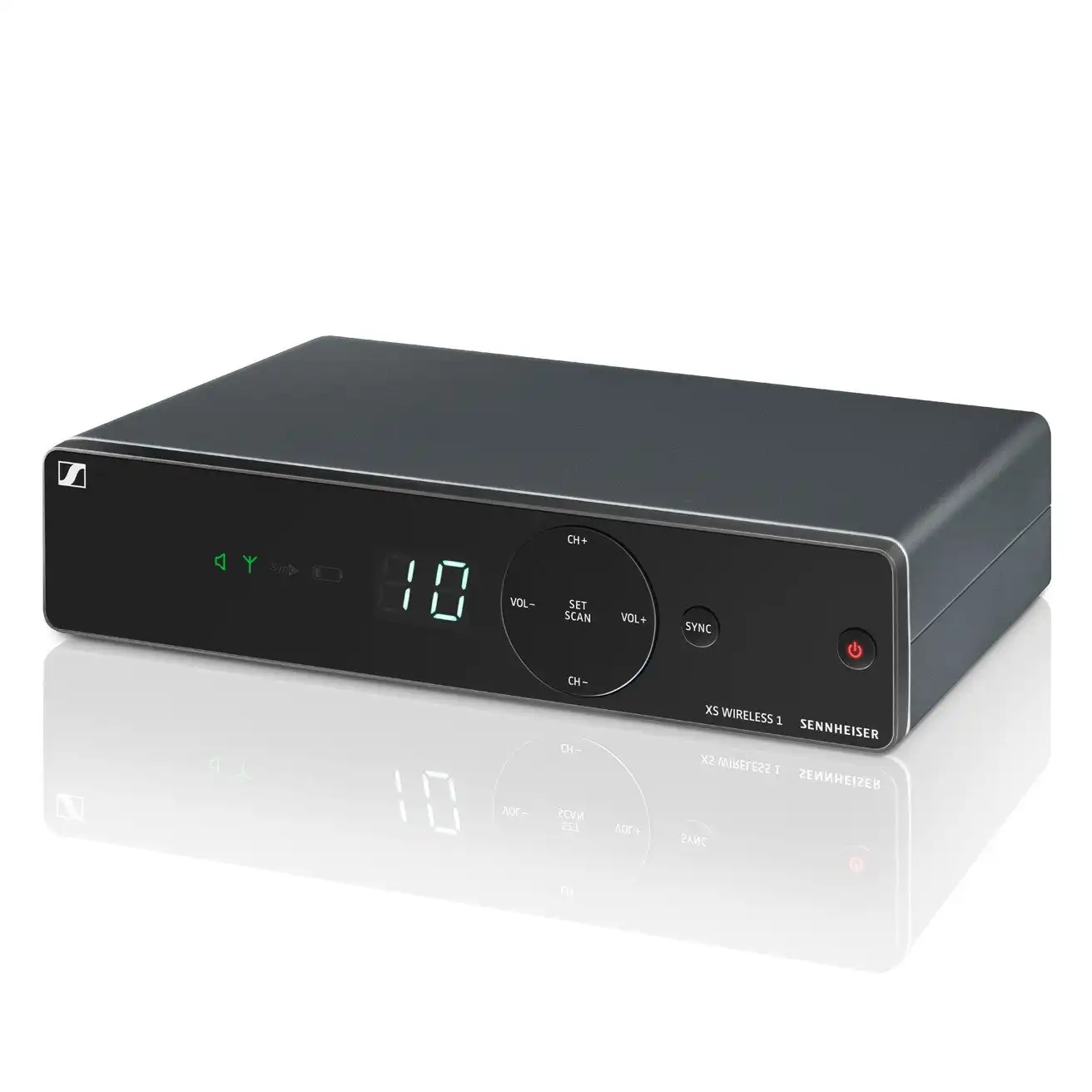

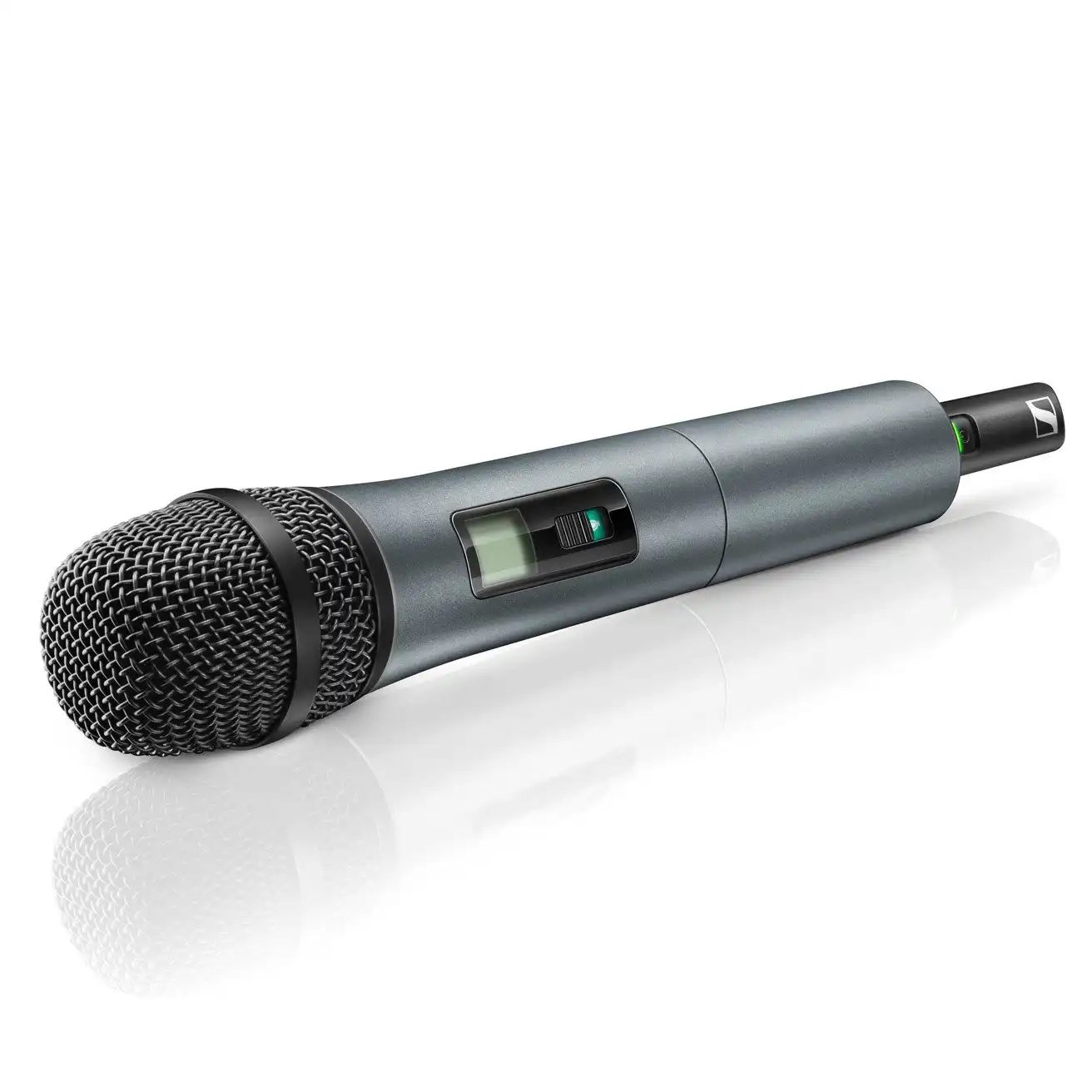

Raise your voice. Go for XS WIRELESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) or e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.

Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825 or e835)

Antenna-switching diversity reception

Integrated antennas

Automatic frequency management and synchronization via remote channel for easy setup

Selectable UHF frequencies within a large bandwidth

Up to 10 compatible channels

Automatic Frequency Management so you can focus on your performance

We developed XS Wireless 1 for those that want to concentrate on the show and not so much on the gear. Simply turn on XSW 1 and let the Automatic Frequency Management do the rest. In optimal environments, you can operate up to 10 wireless connections simultaneously, all without having to search for frequencies or worry about interference.

Automatic Frequency Management so you can focus on your performance
825 or 835, that is the question…

You’ve decided on XS Wireless 1, but you aren’t sure which capsule to go with. In most cases, the 825 is everything you’d need in a vocal mic—quality sound packaged in a design built to last. While the 825 is ideal for speech, the 835 is for vocalists that want a little more help cutting through the mix. Featuring a gentle boost at 3kHz – 5kHz to help with vocal presence, and then enhanced frequencies up to 12kHz for added brightness, the 835 helps your voice shine right out of the box.

Specifications
Dimensions
approx. 200 x 42 x 127 mm

THD, total harmonic distortion
≤ 0.9%

Pick-up pattern
cardioid

Signal-to-noise ratio
≥ 103 dBA

RF output power
10 mW

Switching bandwidth
up to 24 MHz

Operating time
approx. 10 hrs

Modulation
wideband FM

Output voltage
1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

Housing
rugged ABS housing

Dynamic range
dynamic

Frequency
8 frequency banks, each with up to 10 factory-preset channels

Frequency range
A: 548-572 MHz, GB: 606-630 MHz
B: 614-638 MHz
C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz

Sensitivity
< 3 μV at 52 dB(A)rms S/N

Squelch
adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)

Synchronization
2.4 GHz, Low Power OQPSK (only active during synchronization)

Input sensitivity
1.5 mV / Pa

Adjustment Range Transmitter
0 to -30 dB, adjustable in 10 dB steps

Audio adjustment range
45 dB, adjustable in 5-dB steps

Line / Mic level
20 dB, switchable

Temperature Range
operation: 0°C to +40°C, storage: –20°C to +70°C

Receiver Principle
double superheterodyne

Diversity principle
Antenna switching diversity via internal antennas
