Behringer X18 iPad/Andr Tablet

Šifra: 21734

Dodaj na listu želja

Obavesti me ako cena padne Postavi pitanje

Opcija:

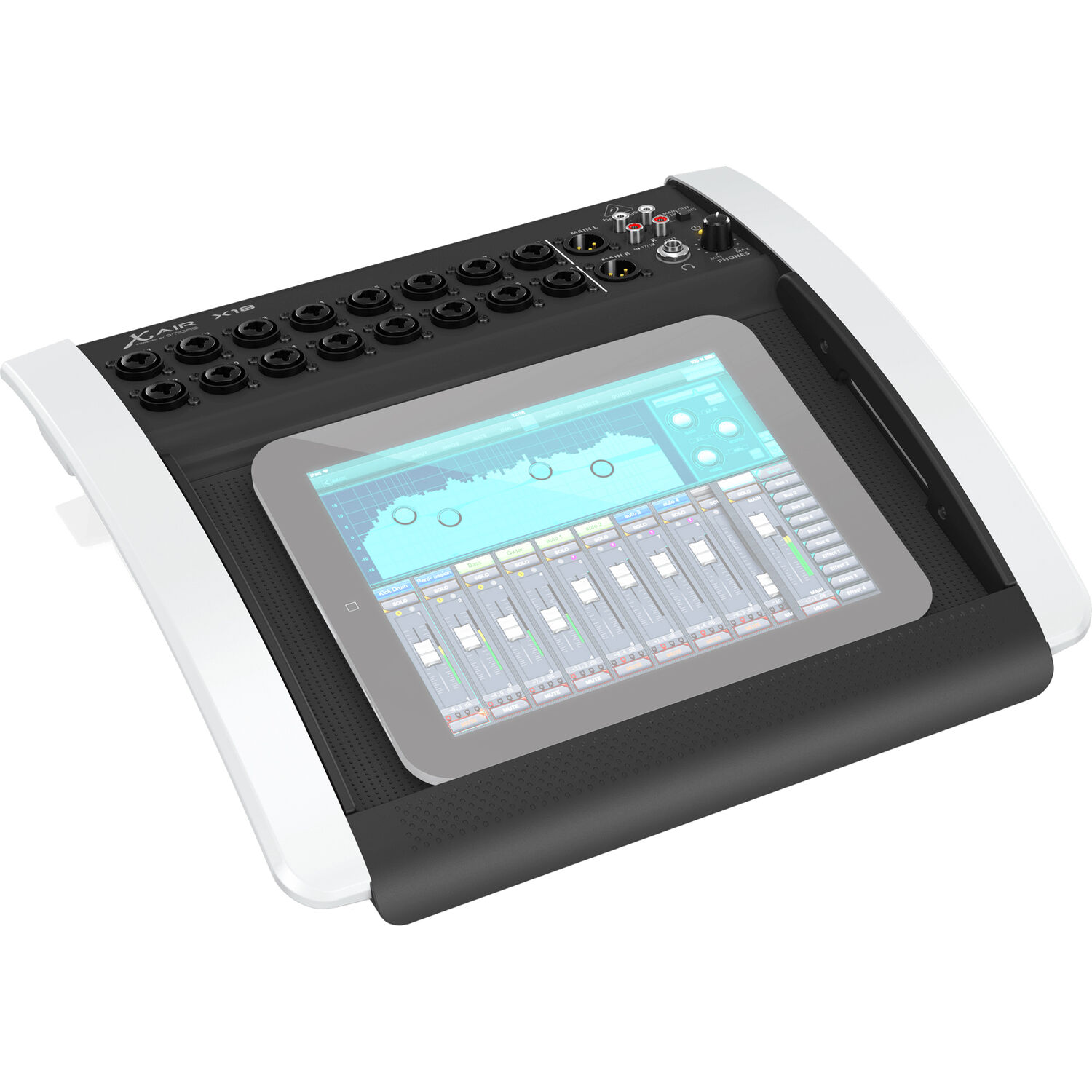

Ideally suited for both live and studio applications, the Behringer X AIR X18 is a powerhouse 18x12 portable mixer that's housed in an extremely sturdy desktop enclosure designed for use with iPad and Android tablets. It features 16 award-winning Midas-designed mic preamps, convenient integrated Wi-Fi module for wireless control, and a lightning-fast, bidirectional USB Audio Interface.

Max I/O Capacity	18x Input / 12x Output
Number of Analog Input Channels	16 (16 Mono / 0 Stereo)
Number of Mic Preamps	16
Number of Analog Output Channels	10
Faders & Level Adjustment	No
Analog Inputs	16x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 1x Stereo RCA Coaxial Unbalanced Line Input (1 Stereo Pair)
Analog Outputs	2x XLR Main/Bus Output 6x 1/4" Aux Send 1x Stereo RCA Control Room/Monitor Output 1x 1/4" Headphone Output
Digital I/O	1x RJ45 Ethernet (Control, 1 Gb/s) 1x RJ45 Ultranet (I/O)
USB I/O	1x USB-B 2.0 (Audio Playback, Control, Multitrack Record) 1x USB-A (Audio Playback, Recording)
Wireless	No
Rack Mountable	No

Mixer

Max I/O Capacity	18x Input / 12x Output
Number of Analog Input Channels	16 (16 Mono / 0 Stereo)
Number of Mic Preamps	16
Number of Analog Output Channels	10
Mix Routing	12x Stereo Bus
Groups	4x DCA Group 4x Mute Group
Presets	64x Scene
Faders & Level Adjustment	No

Signal Processing

Gain/Trim Range	Mic: 0 dB to +72 dB
Input Polarity	Normal/Reverse
Dynamic Processing	Input Channels: Compressor, Limiter, Soft Limiter, Gate
EQ	Input Channels: 4-Band EQ Output Buses, Outputs: 6-Band EQ
Graphic EQ	31-Band 1/3 Octave
Solo/Mute	No
Audio Delay	No
Automatic Mic Mixing	Yes

Digital Audio

Sample Rates	44.1 / 48 kHz
Bit Depth	AD/DA Conversion: 24-Bit

Performance

Frequency Response	10 Hz to 22 kHz +0/-1 dB (at 48 kHz)
Max Input Level	Combo XLR-1/4" Mic Input: +23 dBu Line Input: +16 dBu
Analog Dynamic Range	Input to Output: 106 dB at Unity Gain
I/O Impedance	Combo XLR-1/4" Line/Mic Input: 5 Kilohms (Unbalanced) 10 Kilohms (Balanced) 1/4" TRS Hi-Z Input: 1 Megohm (Unbalanced) 2 Megohms (Balanced) 1/4" TRS, RCA Line Input: 10 Kilohms (Unbalanced) 1/4" TRS, XLR Line Output: 50 Ohms (Balanced/Unbalanced) RCA Line Output: 1 Kilohm 1/4" TRS Headphone Output: 40 Ohms
Noise Floor	-92 dB A-Weighted
THD+N	Mic Input to Analog Output: 0.005% at +20 dB Gain (0 dBu)
Signal Generator	No

Connectivity

Analog Inputs	16x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 1x Stereo RCA Coaxial Unbalanced Line Input (1 Stereo Pair)
Analog Outputs	2x XLR 3-Pin Balanced Main/Bus Output 6x 1/4" TRS Balanced/Unbalanced Aux Send 1x Stereo RCA Coaxial Unbalanced Stereo Control Room/Monitor Output (1 Stereo Pair) 1x 1/4" TRS Headphone Output
Phantom Power	+48 V (Selectable on Individual Inputs)
Digital I/O	1x RJ45 Ethernet (Control, 1 Gb/s) 1x RJ45 Ultranet (I/O)
MIDI I/O	1x MIDI 5-Pin In 1x MIDI 5-Pin Out
USB I/O	1x USB-B 2.0 (Audio Playback, Control, Multitrack Record) 1x USB-A (Audio Playback, Recording)
USB I/O Capacity	18x Input / 18x Output
Expansion Ports	No
Wireless	No
External Display I/O	No

Recording

Max Multitrack Recording	18 Tracks
Media Support	USB Drive

Compatibility

OS Compatibility	Computer: macOS / Windows Mobile: Android/iOS
Mobile Device Compatibility	iPad Android Tablet

Power

Input Power

100 to 240 VAC, 50 / 60 Hz

Physical

Rack Mountable	No
Operating Conditions	41 to 104°F / 5 to 40°C
Dimensions	16.1 x 14.1 x 4.3" / 40.9 x 35.8 x 10.9 cm
Weight	7.1 lb / 3.2 kg

Packaging Info

Package Weight	10.52 lb
Box Dimensions (LxWxH)	18.25 x 16.63 x 5.7"
