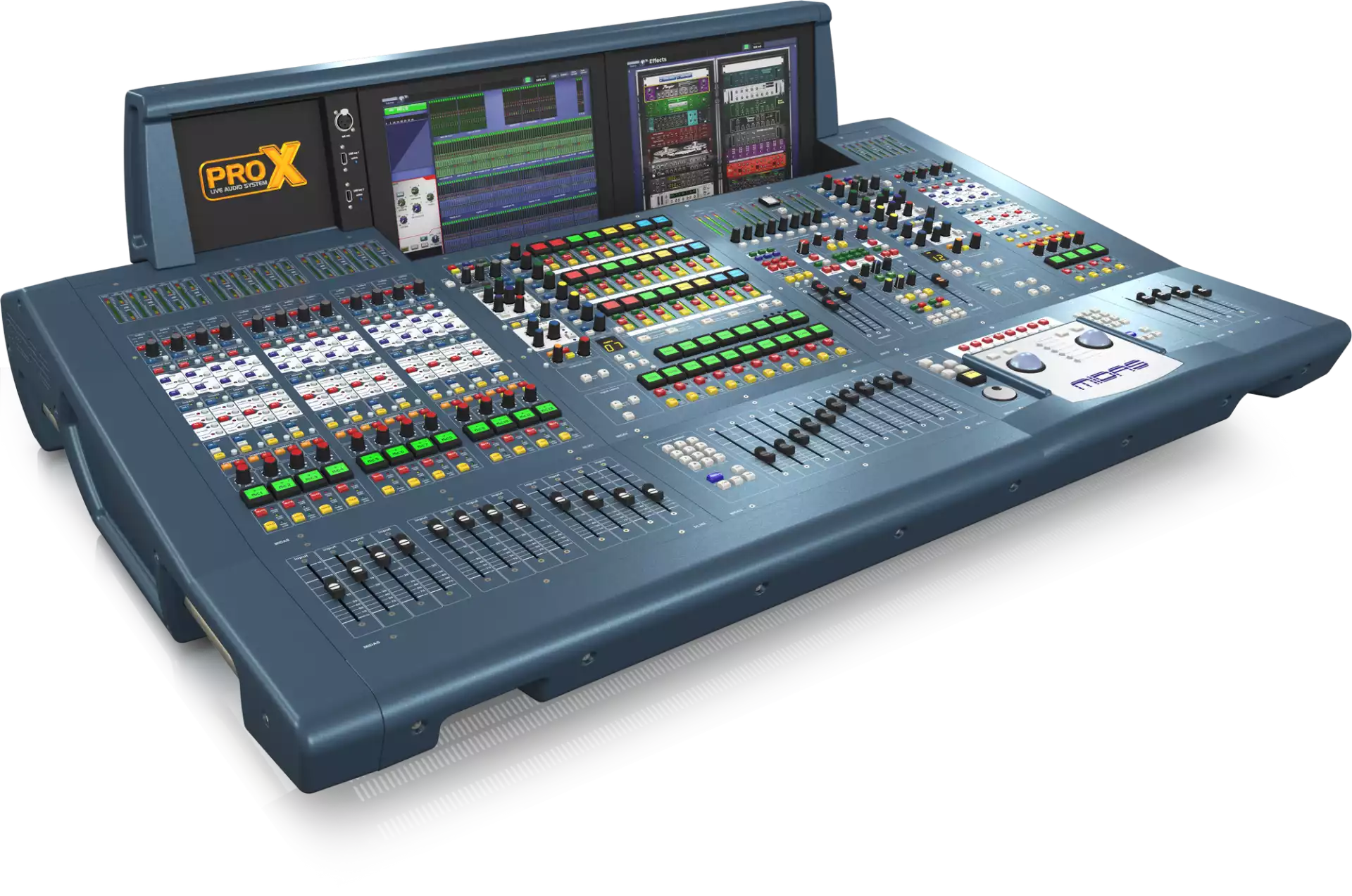

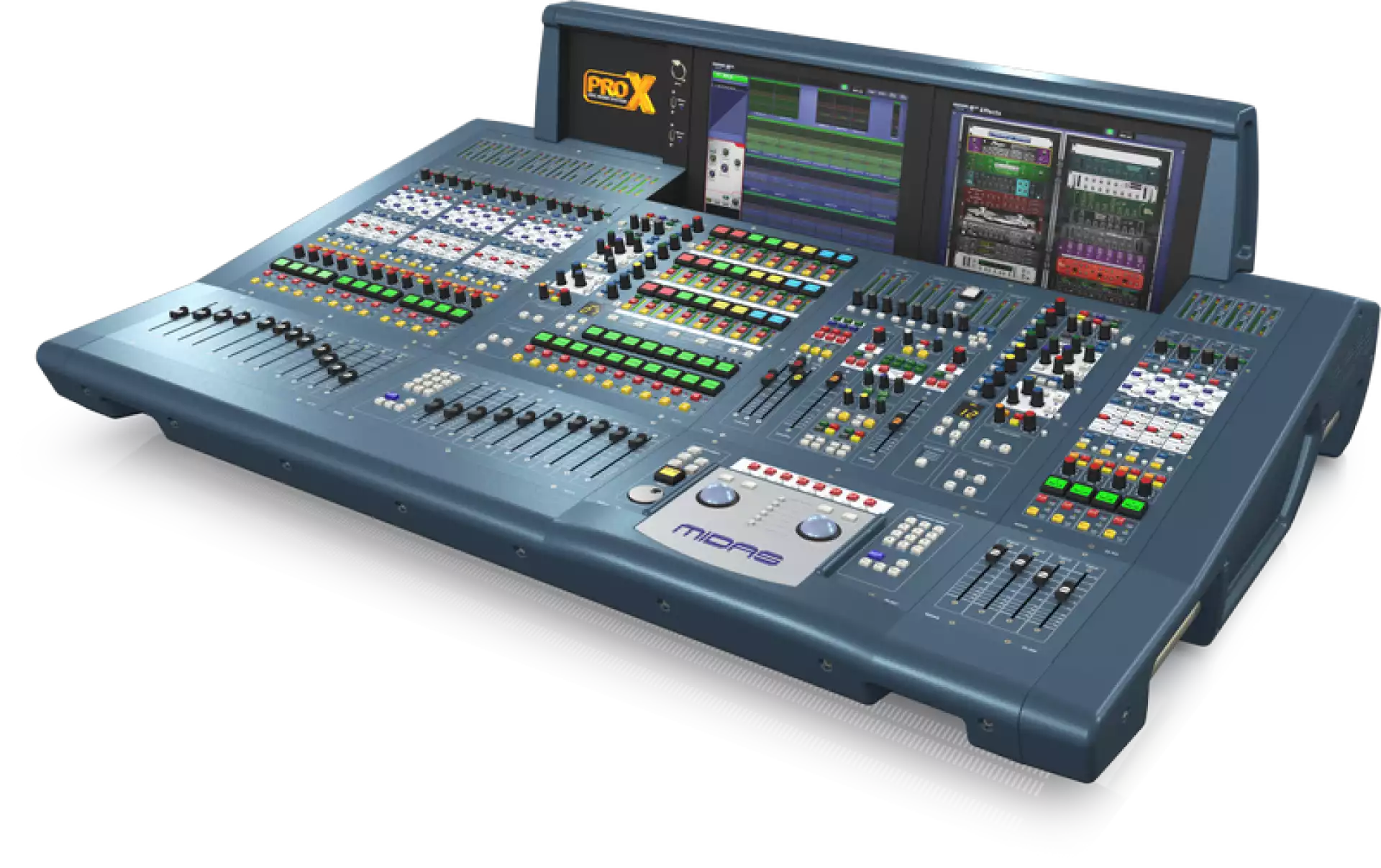

MIDAS PRO X-CC-TP - Digitalna mikseta
Garantujemo najnižu cenu!
Live Digital Console Control Centre with 168 Input Channels, 99 Mix Buses, 96 kHz Sample Rate and Touring Grade Road Case
- Live performance digital console control centre with up to 168 simultaneous inputs
- 99 time-aligned and phase-coherent mix buses
- HyperMAC and AES50 networking allows up to 288 inputs and 294 outputs @ 96 kHz Sample Rate
- Touring grade road case featuring marine grade plywood, aluminium extrusions and composite density protective foam
- HyperMAC router with 192 bidirectional channels over copper and optical fibre
- Provides dual redundant snake connection to the NEUTRON Audio System Engine
- Snake connections up to 500 m with optical fibre or 100 m with CAT5/5e cable
- 10 VCA (variable control association) and 8 POPulation groups
- 36 assignable 1/3 octave Klark Teknik DN370 graphic equalisers
- Up to 40 simultaneous multi-channel digital signal processing effects algorithms
- 29 Midas PRO motorised 100 mm faders
- 2 daylight viewable 15” full colour TFT display screens
- Fully interpolated touch sensitive controls
- Optional wireless remote control with Midas MIXTENDER App for iPad*
- Three bay auto-ranging universal switch-mode power supply with N+1 redundancy
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
System Specifications
| Sampling rate |
96kHz |
| Latency delay |
<2 ms (Input to Master output with no latency compensation) |
| Dynamic range |
110 dB, 22 Hz to 22 kHz |
| Maximum voltage gain |
80 dB, Inputs to Subgroups and Masters |
| Crosstalk |
-100 dB physically adjacent input channels |
| Fader/pan cut off |
-100 dB |
| Frequency Response |
0 dB to -1.0 dB, 20 Hz to 20 kHz |
| Gain Error @ 1kHz |
±1.0 dB |
Input CMRR
| 0 dB gain |
-80 dB |
| +40 dB gain |
-90 dB |
Distortion @ 0 dBu
| 0 dB gain |
0.01% |
| +40 dB gain |
0.03% |
Distortion @ +20 dBu
| 0 dB gain |
0.03% |
| +40 dB gain |
0.03% |
Noise Floor
| 0 dB gain |
-89 dBu, 22 Hz to 22 kHz (unweighted) |
| +40 dB gain |
-87 dBu, 22 Hz to 22 kHz (unweighted) |
Equivalent Input Noise (EIN)
| 0 dB gain |
-89 dBu, 22 Hz to 22 kHz (unweighted) |
| +40 dB gain |
-127 dBu, 22 Hz to 22 kHz (unweighted) |
Dynamic Range
| 0 dB gain |
110 dB, 22 Hz to 22 kHz (unweighted) |
| +40 dB gain |
108 dB, 22 Hz to 22 kHz (unweighted) |

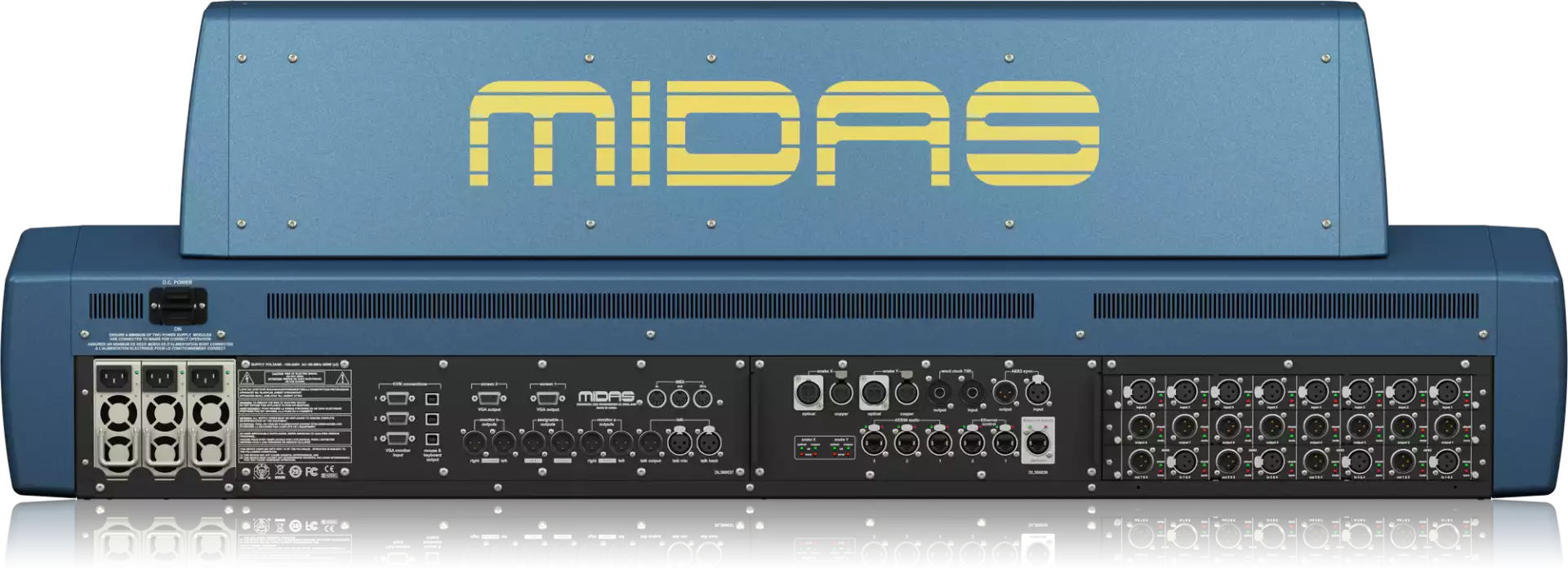

Analogue Audio System Inputs
| Mic/Line Inputs | |
|---|---|
| Quantity |
8 |
| Connector |
3-pin XLR balanced mic/line input with +48 V phantom power |
| A/D converter |
24 bit, 96 kHz with 128 x oversampling |
| Gain |
-25 dB to +60 dB |
| Maximum input level |
+26 dBu |
| Input impedance |
10 kOhm |
| Talk Mic Input | |
| Quantity |
1 |
| Connector |
3-pin XLR balanced mic input with +48 V phantom power |
| Mic gain |
+15 dB to +60 dB |
| Maximum input level |
+6 dBu |
| Input impedance |
600 Ohm |
| Talk Back Input | |
| Quantity |
1 |
| Connector |
3-pin XLR balanced line input |
| Maximum input level |
+21 dBu |
| Input impedance |
10k Ohm |
Analogue Audio System Outputs
| Line Outputs | |
|---|---|
| Quantity |
8 |
| Connector |
3-pin XLR balanced line output |
| D/A converter |
24 bit, 96 kHz with 128 x oversampling |
| Maximum signal level |
+21 dBu |
| Monitor Outputs | |
| Quantity |
4 |
| Connector |
3-pin XLR balanced line output |
| Maximum signal level |
+21 dBu |
| Assignable Outputs | |
| Quantity |
2 |
| Connector |
3-pin XLR balanced line output |
| Maximum signal level |
+21 dBu |
| Talk Output | |
| Quantity |
1 |
| Connector |
3-pin XLR balanced line output |
| Maximum signal level |
+21 dBu |
| Headphone Output | |
| Quantity |
2 |
| Connector |
¼" Jack (stereo |
| Maximum signal level |
+21 dBu |
Digital Audio System Inputs and Outputs
| AES3 Inputs | |
|---|---|
| Quantity |
4 |
| Format |
Conforms to AES3-2009 (2 channels of digital audio) |
| Connector |
3-pin XLR |
| Sample rate |
32 kHz to 96 kHz |
| Bypass |
Sample rate converter bypass |
| AES3 Outputs | |
| Quantity |
4 |
| Format |
Conforms to AES3-2009 (2 channels of digital audio) |
| Connector |
3-pin XLR |
| Sample rate |
48 kHz, 96 kHz or auto-tracking to inputs |
| Bypass |
Sample rate converter bypass |
| Word length |
16, 20 or 24 bit |
| AES50 Audio | |
| Quantity |
3 |
| Format |
Conforms to AES50-2011 (24 channels of bidirectional digital audio @ 96 kHz) |
| Connector |
Neutrik etherCON with status LEDs |
| Redundancy |
N+1 cable redundancy (X & Y) |
| Snake (Copper) | |
| Quantity |
2 |
| Format |
KLARK TEKNIK HyperMAC (192 channels of bidirectional digital audio @ 96 kHz) |
| Connector |
Neutrik etherCON with status LEDs |
| Redundancy |
Dual cable redundancy (X & Y) |
| Snake (Fibre) | |
| Quantity |
2 |
| Format |
KLARK TEKNIK HyperMAC (192 channels of bidirectional digital audio @ 96 kHz) |
| Connector |
Neutrik opticalCON DUO |
| Transmission |
1.25 Gb/s 1000 base-SX physical layer on 50/125 multimode fibre |
| Redundancy |
Dual optical fibre redundancy (X & Y) |
| Ethernet Control Data | |
| Quantity |
2 |
| Connector |
Neutrik etherCON with status LEDs |
| Redundancy |
Dual cable redundancy (1 & 2) |
| Word Clock Input | |
| Quantity |
1 |
| Format |
TTL level, 96 kHz square wave |
| Connector |
75 Ohm BNC |
| Word Clock Output | |
| Quantity |
1 |
| Format |
TTL level, 96 kHz square wave |
| Connector |
75 Ohm BNC |
| AES3 Sync Input | |
| Quantity |
1 |
| Format |
Conforms to AES3-2009 (2 channels of digital audio @ 96kHz) |
| Connector |
3-pin XLR |
| AES3 Sync Output | |
| Quantity |
1 |
| Format |
Conforms to AES3-2009 (2 channels of digital audio @ 96kHz) |
| Connector |
3-pin XLR |
| Output |
96 kHz Grade II reference clock |
Other Interfaces
| External Ethernet Tunnel | |
|---|---|
| Quantity |
1 |
| Connector |
Neutrik etherCON with status LEDs |
| Screen Outputs | |
| Quantity |
2 |
| Connector |
Analogue VGA |
| KVM Inputs | |
| Quantity |
3 |
| Connector |
Analogue VGA, USB keyboard & mouse |
| USB Interface | |
| Quantity |
2 |
| Format |
USB 2.0 full speed (12.0 Mbit/s), 5 V 1 A maximum load |
| Connector |
USB Type A |
| MIDI Interface | |
| Quantity |
3 |
| Format |
MIDI IN, MIDI OUT, MIDI THRU |
| Connector |
5-pin DIN Displays |
| Quantity |
2 |
| Type |
15" daylight-viewable colour TFT LCD screen |
| Displays | |
| Quantity |
2 |
| Type |
15" daylight-viewable colour TFT LCD screen |
Power
| Power Supplies | |
|---|---|
| Quantity |
3 |
| Format |
PRO Series Power Supply Module (MKT-PSU-2) |
| Connector |
IEC mains inlet |
| Mains Input Voltage |
100 to 240 VAC, 50 to 60 Hz |
| Redundancy |
N+1 power supply redundancy |
| Power Consumption | |
| 115 VAC |
2 PSUs - 1.8 A, 207 W |
| 230 VAC |
2 PSUs - 0.8 A, 184 W |
Physical
| Dimensions |
1365 mm wide x 940 mm deep x 434 mm high (53.7" x 37.0" x 17.1") |
| Net weight |
120 kg (264 lbs) |
| Operating temperature range |
+5°C to +40°C |
| Storage temperature range |
-20°C to +60°C |
