Live Digital Console with 48 Input Channels, 24 Midas Microphone Preamplifiers, 27 Mix Buses and 96 kHz Sample Rate
- Live performance digital console with up to 48 simultaneous input channels
- 24 award-winning Midas microphone preamplifiers
- 27 time-aligned and phase-coherent mix buses
- AES50 networking allows up to 172 inputs and 172 outputs @ 96 kHz sample rate
- 8 VCA (Variable Control Association) and 6 POPulation groups
- Up to 28 assignable 1/3 octave Klark Teknik DN370 graphic equalisers
- Up to 6 multi-channel digital signal processing effects engines
- 18 Midas PRO motorised 100 mm faders
- Daylight viewable 15” full colour TFT display screen
- Fully interpolated touch sensitive controls
- Optional wireless remote control with Midas MIXTENDER App for iPad*
- Auto-ranging universal switch-mode power supply
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
System Specifications
| Sampling frequency |
96 kHz |
| Latency |
<2 ms input to master (no compensation) |
| Dynamic range |
107 dB, 22 Hz to 22 kHz (no pre-emphasis) |
| Maximum voltage gain |
80 dB inputs to subgroups and masters 86 dB inputs to aux and matrix |
| Crosstalk at 1 kHz |
-100 dB physically adjacent input channels |
| Crosstalk at 10 kHz |
-90 dB physically adjacent input channels |
| Fader/pan cut off at 1 kHz |
-100 dB |
| Fader/pan cut off at 10 kHz |
-100 dB |
| Display screen |
1 x 15" daylight-viewable colour screen |
| Dimensions (H x W x D) |
685 x 722 x 288.6 mm (27.0 x 28.4 x 11.4") |
| Net weight |
PRO1 control centre: 21.5 kg |
| Shipping weight |
Touring (in flight case): 97.5 kg Install (in carton): 28.7 kg |
| Power requirements |
100 V to 240 V a.c. ±10%, 50 to 60 Hz |
| Operating temperature range |
+5°C to +45°C |
| Storage temperature range |
-20°C to +60°C |
Frequency Response
| 0 dB Gain | |
|---|---|
| Input |
Surface I/O |
| Output |
Surface I/O |
| 20 Hz |
0 dB to -1.0 dB |
| 20 kHz |
0 dB to -1.0 dB |
| Input |
Surface I/O |
| Output |
Surface I/O |
| 20 Hz |
0 dB to -1.0 dB |
| 20 kHz |
0 dB to -1.0 dB |
| 40 dB Gain |
Gain Error at 1 kHz
| 0 dB Gain | |
|---|---|
| Input |
Surface I/O |
| Output |
Surface I/O |
| Maximum |
+1.0 dB |
| Minimum |
-1.0 dB |
| 45 db Gain | |
| Input |
Surface I/O |
| Output |
Surface I/O |
| Maximum |
+1.0 dB |
| Minimum |
-1.0 dB |
Input CMRR
| 0 dB Gain | |
|---|---|
| Input |
Surface I/O |
| Output |
Surface I/O |
| 100 Hz |
60 dB |
| 1 kHz |
60 dB |
| 45 dB Gain | |
| Input |
Surface I/O |
| Output |
Surface I/O |
| 100 Hz |
90 dB |
| 1 kHz |
90 dB |
Distortion at 0 dBu
| 0 dB Gain | |
|---|---|
| Input |
Surface I/O |
| Output |
Surface I/O |
| 1 kHz |
0.01% |
| 10 kHz |
0.01% |
| 45 dB Gain | |
| Input |
Surface I/O |
| Output |
Surface I/O |
| 1 kHz |
0.03% |
| 10 kHz |
0.03% |
Distortion at +20 dBu
| 0 dB Gain | |
|---|---|
| Input |
Surface I/O |
| Output |
Surface I/O |
| 1 kHz |
0.03% |
| 10 kHz |
0.03% |
| 45 dB Gain | |
| Input |
Surface I/O |
| Output |
Surface I/O |
| 1 kHz |
0.03% |
| 10 kHz |
0.03% |
Mixing Noise (All Bus Types) 22 Hz to 22 kHz Unweighted
| 12 Inputs | |
|---|---|
| Gain |
0 dB |
| Fader position |
#NAME? |
| Pan |
Central |
| Output noise |
-91 dBu |
| 12 Inputs | |
| Gain |
0 dB |
| Fader position |
0 dB |
| Pan |
Central |
| Output noise |
-78 dBu |
| 24 Inputs | |
| Gain |
0 dB |
| Fader position |
#NAME? |
| Pan |
Central |
| Output noise |
-91 dBu |
| 24 Inputs | |
| Gain |
0 dB |
| Fader position |
0 dB |
| Pan |
Central |
| Output noise |
-75 dBu |
| 48 Inputs | |
| Gain |
0 dB |
| Fader position |
#NAME? |
| Pan |
Central |
| Output noise |
-91 dBu |
| 48 Inputs | |
| Gain |
0 dB |
| Fader position |
0 dB |
| Pan |
Central |
| Output noise |
-72 dBu |
Signal Path Noise 22 Hz to 22 kHz Unweighted
| 0 dB Gain | |
|---|---|
| Input |
Surface I/O |
| Output |
Surface I/O |
| Output Noise |
-86 dBu |
| EIN |
-86 dBu |
| 45 dB Gain | |
| Input |
Surface I/O |
| Output |
Surface I/O |
| Output Noise |
-81 dBu |
| EIN |
-126 dBu |
Dynamic Range 22 Hz to 22 kHz Unweighted
| 0 dB Gain | |
|---|---|
| Input |
Surface I/O |
| Output |
Surface I/O |
| Maximum Output |
+21 dBu |
| Dynamic Range |
107 dBu |
| 45 dB Gain | |
| Input |
Surface I/O |
| Output |
Surface I/O |
| Maximum Output |
+21 dBu |
| Dynamic Range |
102 dBu |

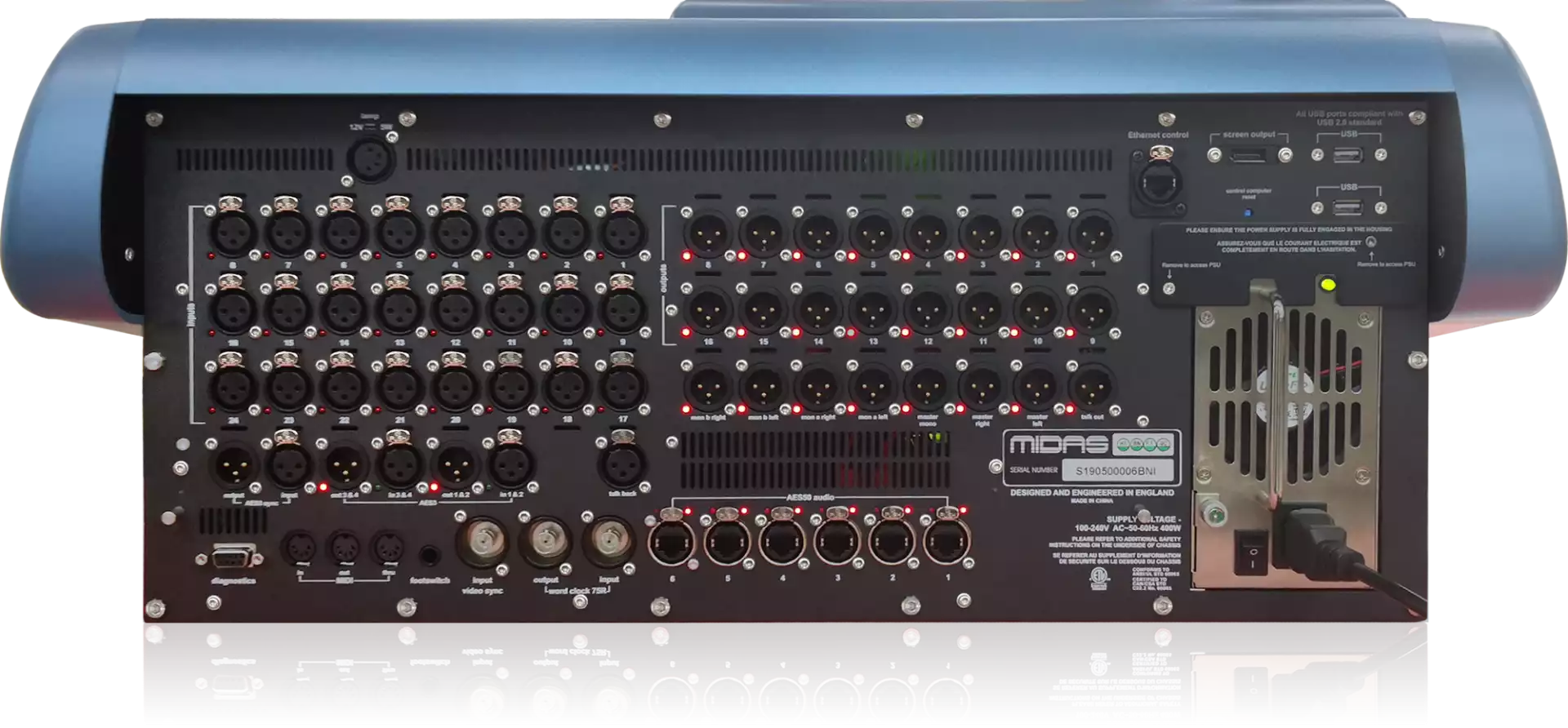

PRO1 Control Surface - DSP/Router System Inputs and Outputs
| System connectors |
6 x AES50 (24 channels of bidirectional digital audio) on etherCon XLR |
| Word clock IN connector |
BNC |
| Word clock OUT connector |
BNC |
| Video sync IN connector |
BNC |
| AES3 sync IN connector |
3-pin XLR |
| AES3 sync OUT connector |
3-pin XLR |
PRO1 Control Surface - Analogue Audio System Inputs
| Connector |
3-pin XLR balanced |
| A/D converter |
24-bit, 96 kHz with 128 times oversampling |
| Talkback connector |
3-pin XLR balanced line |
| Talk connector |
3-pin XLR balanced mic with +48 V phantom power |
PRO1 Control Surface - Analogue Audio System Outputs
| Connector |
3-pin XLR balanced |
| D/A converter |
24-bit, 96 kHz with 128 times oversampling |
| Monitor connector |
3-pin XLR balanced line |
| Talk connector |
3-pin XLR balanced line |
| Headphone connector |
¼" Jack (stereo) |
PRO1 Control Surface - Digital Audio System Inputs and Outputs
| Input connector |
AES3 (two channels of digital audio) on 3-pin XLR |
| Sample rates |
Accepts any frequency 32 kHz - 96 kHz |
| Bypass |
Sample rate converter can be bypassed |
| Output connector |
AES3 (two channels of digital audio) on 3-pin XLR |
| Sample rate |
48 kHz, 96 kHz, or auto-tracking to inputs |
| Bypass |
Sample rate converter can be bypassed |
| Word length |
16, 20 or 24-bit |
PRO1 Control Surface - Control Data System Inputs and Outputs
| System connector |
etherCon XLR |
PRO1 Control Centre - Miscellaneous Inputs and Outputs
| Monitor output connector |
DVI/DP+ |
| USB host connection |
USB 2.0 full speed (12.0 Mbs) 5 V, 1A maximum load |
| Lamp connector |
4-pin XLR |
| MIDI |
In, Out and Thru on 5-pin DIN |
| Footswitch connector |
¼" Jack |
Analogue Input Characteristics
| Surface I/O | |
|---|---|
| Load Z |
10 k |
| Gain |
-22.5 dB to +65 dB |
| Maximum Level |
+24 dBu |
| Connector |
XLR |
| Talk Mic | |
| Load Z |
600R |
| Gain |
+15 dB to +60 dB |
| Maximum Level |
+6 dB |
| Connector |
XLR |
| Monitor | |
| Load Z |
10 k |
| Gain |
0 dB |
| Maximum Level |
+21 dBu |
| Connector |
XLR |
Analogue Output Characteristics
| Surface I/O | |
|---|---|
| Source Z |
50R |
| Gain |
0 dB |
| Maximum Level |
+21 dBu |
| Connector |
XLR |
| Talk Out | |
| Source Z |
50R |
| Gain |
0 dB |
| Maximum Level |
+21 dBu |
| Connector |
XLR |
| Monitor | |
| Source Z |
50R |
| Gain |
0 dB |
| Maximum Level |
+21 dBu |
| Connector |
XLR |
| Headphones |
Digital I/O Characteristics
| AES3 | |
|---|---|
| Channels |
2 |
| Data length |
24-bit |
| I/O |
Input |
| Description notes |
Conforms to AES3-2003 |
| Connector |
XLR |
| AES3 | |
| Channels |
2 |
| Data length |
24-bit |
| I/O |
Output |
| Description notes |
Conforms to AES3-2003 |
| Connector |
XLR |
| AES50 | |
| Channels |
24 |
| Data length |
24-bit |
| I/O |
Bidirectional |
| Description notes |
Conforms to AES50 -2011 |
| Connector |
etherCon XLR |
Miscellaneous Digital Characteristics
| Word clock | |
|---|---|
| I/O |
IN |
| Description notes |
Accepts TTL level, 96 kHz square wave; impedance 75 O |
| Connector |
BNC |
| Word clock | |
| I/O |
OUT |
| Description notes |
Provides TTL level, 96 kHz square wave |
| Connector |
BNC |
| AES sync | |
| I/O |
IN |
| Description notes |
Accepts a 96 kHz digital audio signal conforming to AES3-2003 |
| Connector |
XLR |
| AES sync | |
| I/O |
OUT |
| Description notes |
Provides a 96 kHz grade II reference signal conforming to AES3-2003 |
| Connector |
XLR |
