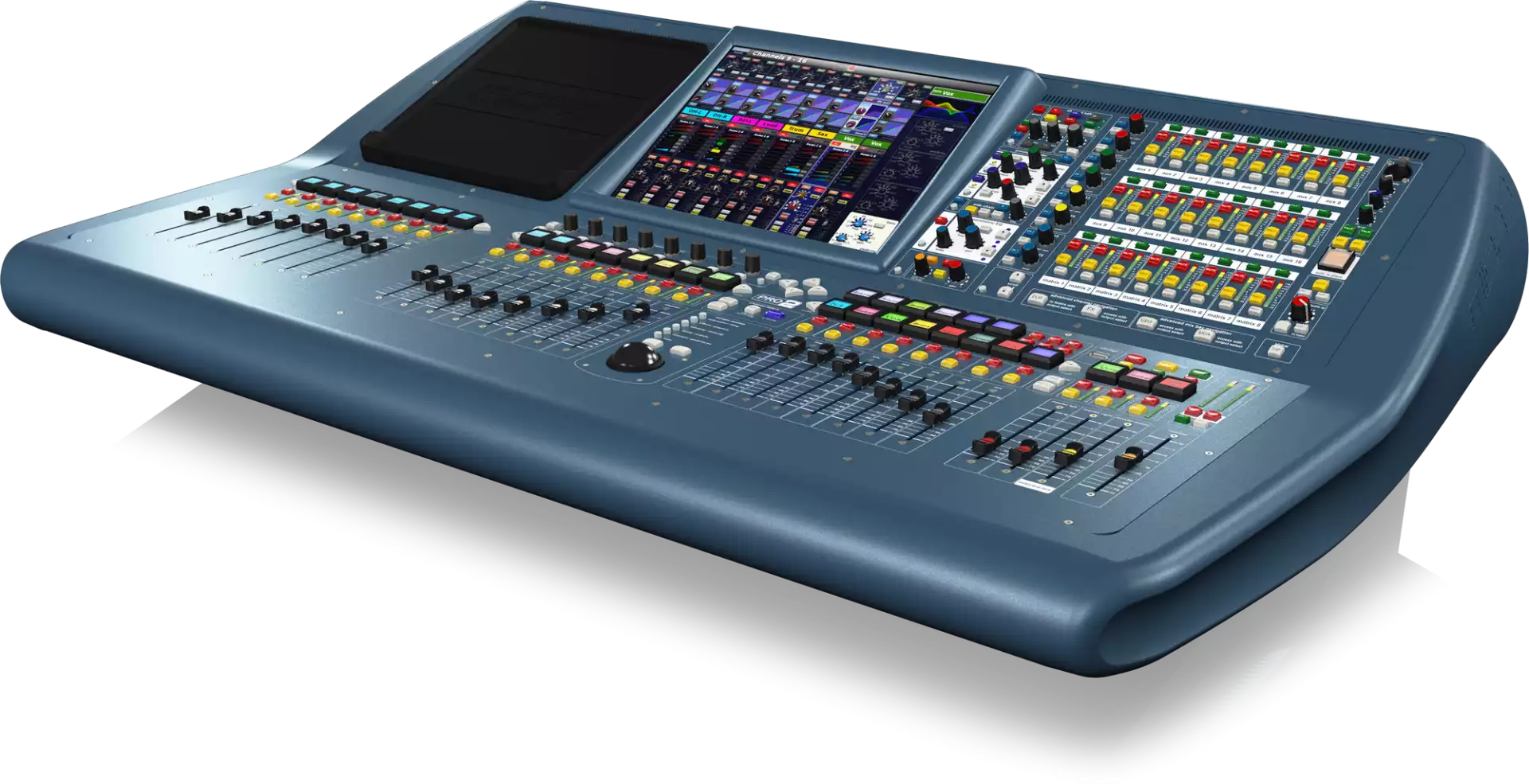

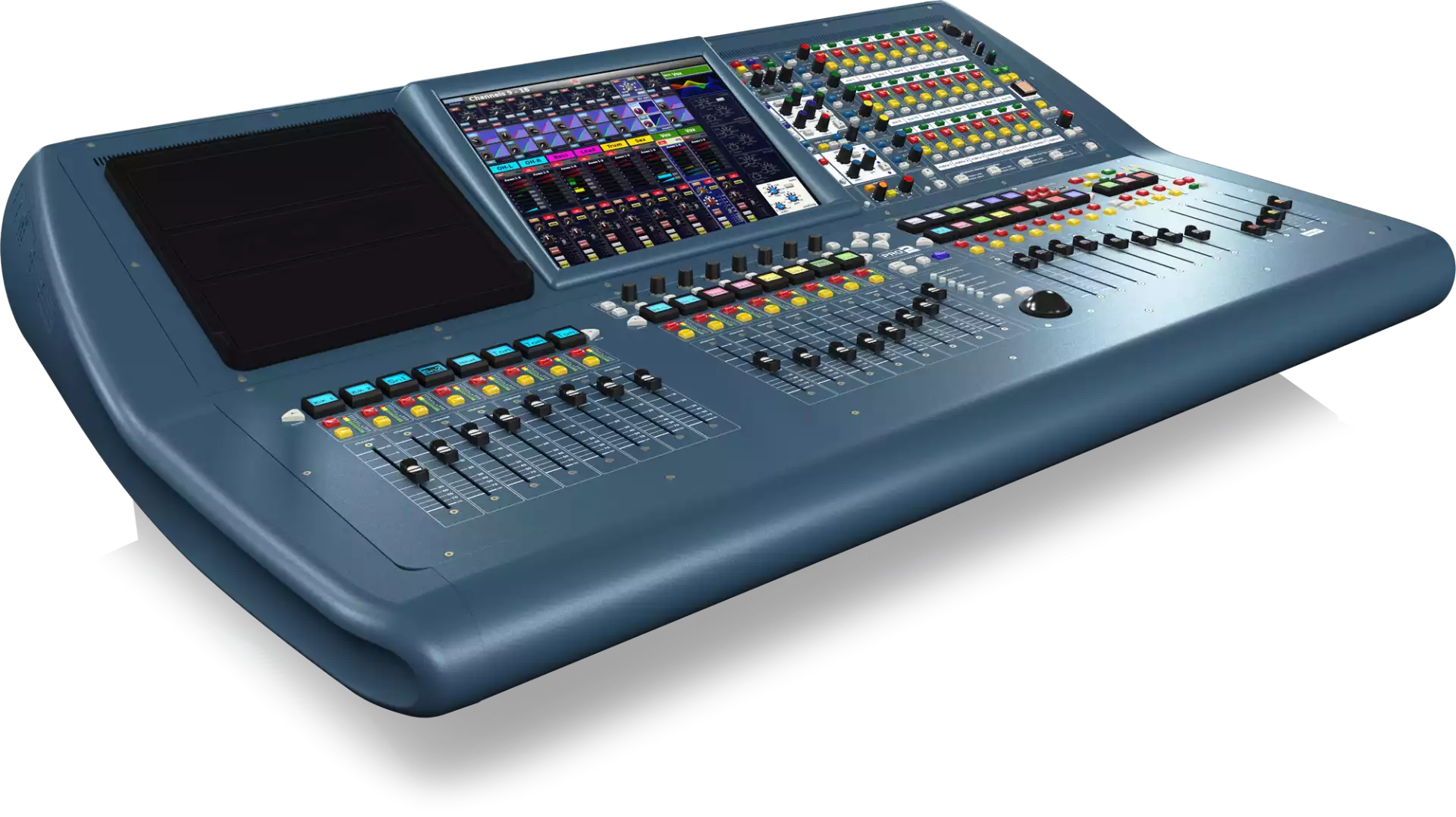

MIDAS PRO2-CC-IP - Digitalna mikseta
Garantujemo najnižu cenu!
Live Digital Console Control Centre with 64 Input Channels, 8 Midas Microphone Preamplifiers, 27 Mix Buses and 96 kHz Sample Rate
- Live performance digital console control centre with up to 64 simultaneous input channels
- 8 award-winning Midas microphone preamplifiers
- 27 time-aligned and phase-coherent mix buses
- AES50 networking allows up to 156 inputs and 164 outputs @ 96 kHz sample rate
- Advanced MCA (mix control association) channel control and navigation
- 8 VCA (variable control association) and 6 POPulation groups
- Up to 28 assignable 1/3 octave Klark Teknik DN370 graphic equalisers
- Up to 6 multi-channel digital signal processing effects engines
- 28 Midas PRO motorised 100 mm faders
- Daylight viewable 15” full colour TFT display screen
- Fully interpolated touch sensitive controls
- Optional wireless remote control with Midas MIXTENDER App for iPad*
- Dual redundant auto-ranging universal switch-mode power supplies
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
System Specifications
| Sampling rate |
96kHz |
| Latency delay |
<2 ms (Input to Master output with no latency compensation) |
| Dynamic range |
106 dB, 22 Hz to 22 kHz |
| Maximum voltage gain |
80 dB, Inputs to Subgroups and Masters |
| Crosstalk |
-100 dB physically adjacent input channels |
| Fader/pan cut off |
-100 dB |
| Frequency Response |
0 dB to -1.0 dB, 20 Hz to 20 kHz |
| Gain Error @ 1kHz |
±1.0 dB |
Input CMRR
| 0 dB gain |
-60 dB |
| +45 dB gain |
-90 dB |
Distortion @ 0 dBu
| 0 dB gain |
0.01% |
| +45 dB gain |
0.03% |
Distortion @ +20 dBu
| 0 dB gain |
0.03% |
| +45 dB gain |
0.03% |
Noise Floor
| 0 dB gain |
-85 dBu, 22 Hz to 22 kHz (unweighted) |
| +45 dB gain |
-81 dBu, 22 Hz to 22 kHz (unweighted) |
Equivalent Input Noise (EIN)
| 0 dB gain |
-85 dBu, 22 Hz to 22 kHz (unweighted) |
| +45 dB gain |
-126 dBu, 22 Hz to 22 kHz (unweighted) |
Dynamic Range
| 0 dB gain |
106 dB, 22 Hz to 22 kHz (unweighted) |
| +45 dB gain |
102 dB, 22 Hz to 22 kHz (unweighted) |
Analogue Audio System Inputs
| Mic/Line Inputs | |
|---|---|
| Quantity |
8 |
| Connector |
3-pin XLR balanced mic/line input with +48 V phantom power |
| A/D converter |
24 bit, 96 kHz with 128 x oversampling |
| Gain |
-22.5 dB to +65 dB |
| Maximum input level |
+6 dBu |
| Input impedance |
10 kOhm |
| Talk Mic Input | |
| Quantity |
1 |
| Connector |
3-pin XLR balanced mic input with +48 V phantom power |
| Mic gain |
+15 dB to +60 dB |
| Maximum input level |
+6 dBu |
| Input impedance |
600 Ohm |
| Talk Back Input | |
| Quantity |
1 |
| Connector |
3-pin XLR balanced line input |
| Maximum input level |
+21 dBu |
| Input impedance |
10 kOhm |
Analogue Audio System Outputs
| Line Outputs | |
|---|---|
| Quantity |
8 |
| Connector |
3-pin XLR balanced line output |
| D/A converter |
24 bit, 96 kHz with 128 x oversampling |
| Maximum signal level |
+21 dBu |
| Master Outputs | |
| Quantity |
3 |
| Connector |
3-pin XLR balanced line output |
| Maximum signal level |
+21 dBu |
| Monitor Outputs | |
| Quantity |
4 |
| Connector |
3-pin XLR balanced line output |
| Maximum signal level |
+21 dBu |
| Talk Output | |
| Quantity |
1 |
| Connector |
3-pin XLR balanced line output |
| Maximum signal level |
+21 dBu |
| Headphone Output | |
| Quantity |
2 |
| Connector |
¼" Jack (stereo |
| Maximum signal level |
+21 dBu |
Digital Audio System Inputs and Outputs
| AES3 Inputs | |
|---|---|
| Quantity |
2 |
| Format |
Conforms to AES3-2009 (2 channels of digital audio) |
| Connector |
3-pin XLR |
| Sample rate |
32 kHz to 96 kHz |
| Bypass |
Sample rate converter bypass |
| AES3 Outputs | |
| Quantity |
2 |
| Format |
Conforms to AES3-2009 (2 channels of digital audio) |
| Connector |
3-pin XLR |
| Sample rate |
48 kHz, 96 kHz or auto-tracking to inputs |
| Bypass |
Sample rate converter bypass |
| Word length |
16, 20 or 24 bit |
| AES50 Audio | |
| Quantity |
6 |
| Format |
Conforms to AES50-2011 (24 channels of bidirectional digital audio @ 96 kHz) |
| Connector |
Neutrik etherCON with status LEDs |
| Redundancy |
N+1 cable redundancy (X & Y) |
| Ethernet Control Data | |
| Quantity |
1 |
| Connector |
Neutrik etherCON with status LEDs |
| Redundancy |
Dual cable redundancy (1 & 2) |
| Word Clock Input | |
| Quantity |
1 |
| Format |
TTL level, 96 kHz square wave |
| Connector |
75 Ohm BNC |
| Word Clock Output | |
| Quantity |
1 |
| Format |
TTL level, 96 kHz square wave |
| Connector |
75 Ohm BNC |
| Video Sync Input | |
| Quantity |
1 |
| Format |
Horizontal video sync (black burst), HD & SD formats |
| Connector |
75 Ohm BNC |
| AES3 Sync Input | |
| Quantity |
1 |
| Format |
Conforms to AES3-2009 (2 channels of digital audio @ 96kHz) |
| Connector |
3-pin XLR |
| AES3 Sync Output | |
| Quantity |
1 |
| Format |
Conforms to AES3-2009 (2 channels of digital audio @ 96kHz) |
| Connector |
3-pin XLR |
| Output |
96 kHz Grade II reference clock |
Other Interfaces
| Screen Output | |
|---|---|
| Quantity |
1 |
| Format |
DVI-C |
| USB Interface | |
| Quantity |
2 |
| Format |
USB 2.0 full speed (12.0 Mbit/s), 5 V 1 A maximum load |
| Connector |
USB Type A |
| MIDI Interface | |
| Quantity |
3 |
| Format |
MIDI IN, MIDI OUT, MIDI THRU |
| Connector |
5-pin DIN |
| Footswitch Input | |
| Quantity |
1 |
| Format |
Contact closure |
| Connector |
¼" TS jack |
| Lamps | |
| Quantity |
2 |
| Format |
5 V, 12 W supply |
| Connector |
4-pin XLR |
| Displays | |
| Quantity |
1 |
| Type |
15" daylight-viewable colour TFT LCD screen |
Power
| Power Supplies | |
|---|---|
| Quantity |
2 |
| Format |
PRO1/PRO2/PRO2C Series Power Supply Module (MKT-PSU-7) |
| Connector |
IEC mains inlet |
| Mains Input Voltage |
100 to 240 VAC, 50 to 60 Hz |
| Redundancy |
N+1 power supply redundancy |
| Power Consumption | |
| 110 VAC |
1 PSUs - 1.6 A, 170 W |
| 230 VAC |
1 PSUs - 0.8 A, 165 W |
Physical
| Dimensions |
1179.6 mm wide x 730.3 mm deep x 274.9 mm high (46.4" x 28.8" x 10.8") |
| Net weight |
46.0 kg (101.2 lbs) |
| Operating temperature range |
+5°C to +40°C |
| Storage temperature range |
-20°C to +60°C |
