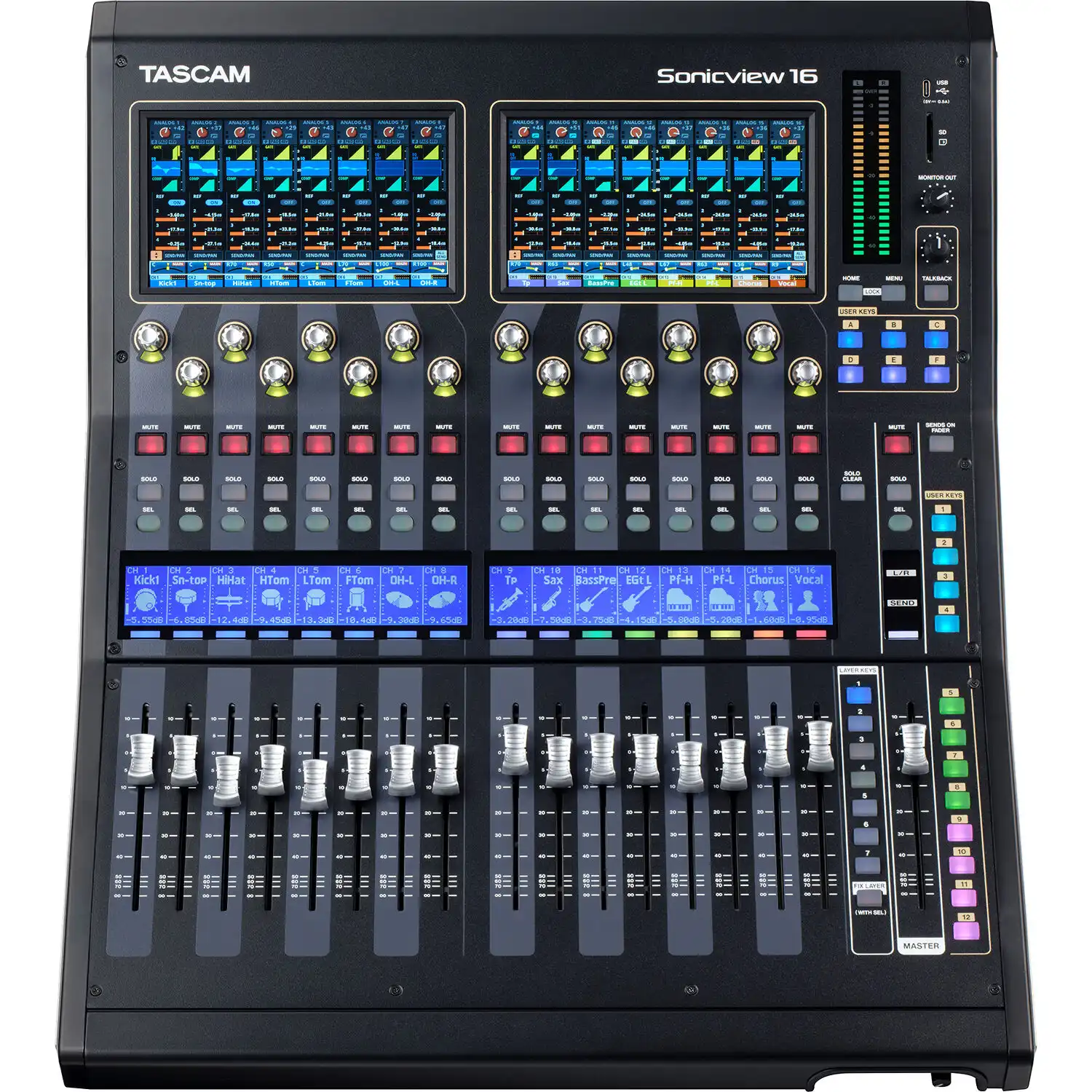

TASCAM Sonicview 16 - Digitalna mikseta
Šifra: 17421
Na stanju
Regularna cena:
639.480,00 rsd
499.000,00 rsd (Bez PDV-a)
Cena sa popustom * :
Cena za kupovinu na rate:
Cena sa popustom * :
598.800,00 rsd
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.
Iznos rate:
Ušteda :
40.680,00 rsd
Prikazana cena je za komad.
Garantujemo najnižu cenu!
Dostupno u prodavnici:
- Svetogorska 9, Beograd

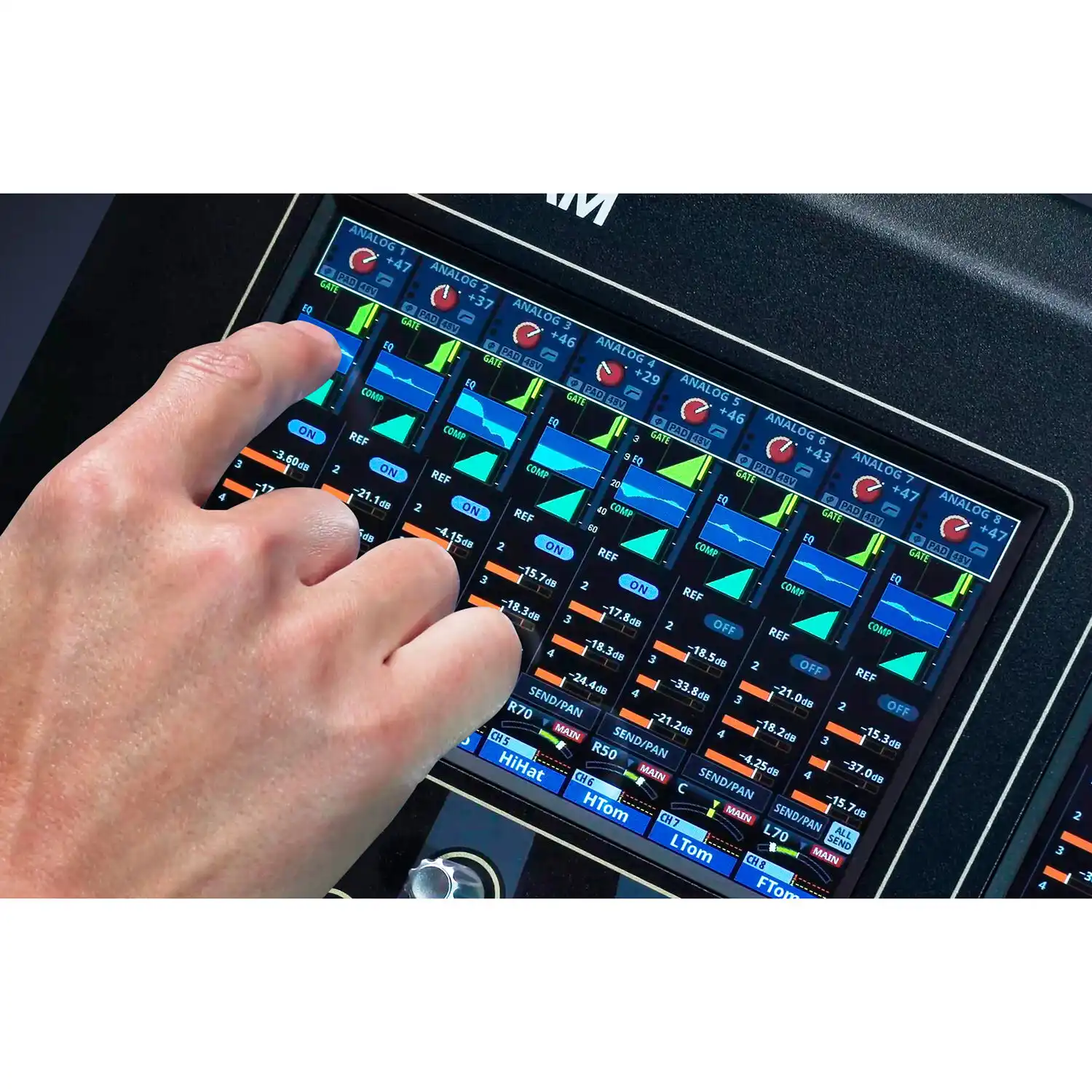

Digital Mixer with Multi-environment Touch Screens
Next-Generation Digital Mixing console
| Mixer Specifications | |
| Processing Capability | |
| Input | 52 [Monaural: 40, Stereo: 2 (Stereo),Fx Return: 4 (Stereo)] |
| Bus | 32 [AUX/GROUP Switchable MIX bus: 22, MAIN L/R bus: 1 (Stereo), Fx Send bus: 4 (Stereo)] |
| Built in Fx | 4 |
| Input Ports | |
| 96 kHz | Max 152 ports |
| 48 kHz | Max 248 ports |
| MIC/LINE | 16 |
| Stereo (RCA) | 4 (2xStereo) |
| Dante | 32 (96 kHz), 64 (48 kHz) |
| SLOT | 32x2 (96 kHz), 64x2 (48 kHz) |
| USB Audio | 32 |
| Built in Player | 2 (1xStereo) |
| OSC | 1 |
| TALKBACK | 1 |
| Output Ports | |
| 96 kHz | Max 148 ports |
| 48 kHz | Max 244 ports |
| LINE | 16 |
| Dante | 32 (96 kHz), 64 (48 kHz) |
| SLOT | 32x2 (96 kHz), 64x2 (48 kHz) |
| USB Audio | 32 |
| MONITOR OUT (Analog) | 2 (1xStereo) |
| Built in Recorder | 2 (1xStereo) |
| I/O Ports | |
| Analog Insert I/O | 2 I/O (MIC/LINE Input 7/8) |
| Digital Signal Processing | |
| Mixer Engine | 96 kHz/54 bit floating point |
| ADC | 96 kHz, 32 bit |
| DAC | 96 kHz, 24 bit |
| Digital I/O sampling rate | 96 kHz, 48 kHz |

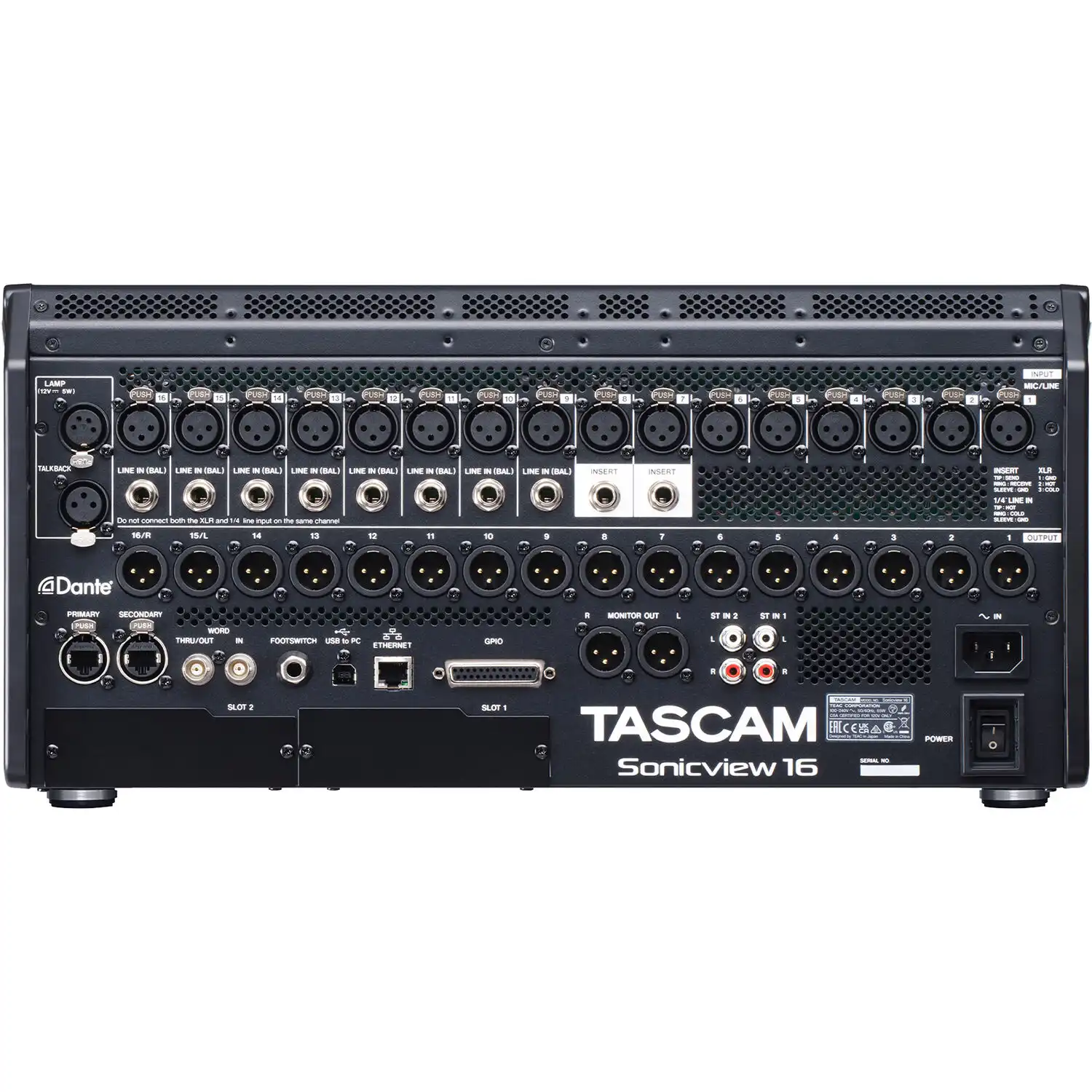

| Analog Audio Inputs/Outputs | |
| MIC/LINE inputs (1-16 channels) | |
| Connector | XLR-3-31 equivalent (1:GND,2:HOT,3:COLD) |
| Max input level | +12dBu (PAD=OFF, TRIM MIN), +32dBu (PAD=ON, TRIM MIN) |
| Min input level | -62dBu (PAD=OFF, TRIM MAX), -42dBu (PAD=ON, TRIM MAX) |
| Input impedance | 5.0kΩ or more |
| Phantom power | +48V available |
| LINE inputs (9-16 channels) | |
| Connector | Connector: Φ6.3mm(1/4")TRS phone jack, Balanced (TIP: HOT, RING: COLD, SLEEVE: GND) |
| Max input level | +12dBu (PAD=OFF, TRIM MIN), +32dBu (PAD=ON, TRIM MIN) |
| Min input level | -62dBu (PAD=OFF, TRIM MAX), -42dBu (PAD=ON, TRIM MAX) |
| Input impedance | 5.0kΩ or more |
| INSERT (7-8 channels) | |
| Connector | Φ6.3mm(1/4")TRS phone jack (TIP: SEND, RING: RETURN, SLEEVE: GND) |
| RETURN (RING) | |
| Max input level | +18dBu |
| Nominal Input level | -2dBu |
| Input impedance | 5.0kΩ or more |
| SEND (TIP) | |
| Max input level | +18dBu |
| Nominal Input level | -2dBu |
| Input impedance | 100kΩ or less |
| TALKBACK inputs | |
| Connector | XLR-3-31 equivalent (1: GND,2: HOT,3: COLD) |
| Max input level | +10dBu |
| Min input level | -65dBu |
| Gain range | 0 - 55dB |
| Input impedance | 5.0kΩ or more |
| Phantom power | +48V available |
| Stereo (RCA) inputs (1-2) | |
| Connector | RCA pin jack |
| Max input level | +6dBV (1.995Vrms) |
| Nominal Input level | -10dBV (0.316Vrms) |
| Head room | 16dB |
| Input impedance | 10kΩ or more |
| LINE Outputs (1-16 channels) | |
| Connector | XLR-3-32 equivalent (1: GND, 2: HOT, 3: COLD) |
| Nominal output level | +6dBu (D.ref: -9dBFS) +4dBu (D.ref: -14dBFS, -16dBFS) +4dBu or 0dBu (D.ref: -18dBFS, -20dBFS) |
| Max output level | +15dBu (D.ref.: -9dBFS, A.ref.: +6dBu) +18dBu (D.ref.: -14dBFS, A.ref.: +4dBu) +20dBu (D.ref.: -16dBFS, A.ref.: +4dBu) +18dBu (D.ref.: -18dBFS, A.ref.: 0dBu) +20dBu (D.ref.: -20dBFS, A.ref.: 0dBu) +22dBu (D.ref.: -18dBFS, A.ref.: +4dBu) +24dBu (D.ref.: -20dBFS, A.ref.: +4dBu) |
| Output impedance | 100Ω or less |
| MONITOR Outputs (L,R) | |
| Connector | XLR-3-32 equivalent (1: GND, 2: HOT, 3: COLD) |
| Max output level | +24dBu |
| Nominal output level | +4dBu |
| Output impedance | 100Ω or less |
| Headphone Output | |
| Connector | Φ6.3mm(1/4") stereo phone jack and 3.5mm stereo mini phone jack |
| Max output power | 100mW + 100mW (32Ω load, when connected to only one side) |
| Digital Audio Inputs/Outputs | |
| USB Audio | |
| Connector | Type-B |
| Input | 32ch *USB to Sonicview |
| Output | 32ch *Sonicview to USB |
| Sampling rate | 48 kHz, 96 kHz |
| Bit depth | 32 bit |
| Dante (Primary/Secondary) | |
| Connector | etherCON Cat5e compatible |
| Number of channels | 64 channels (48 kHz), 32 channels (96 kHz) |
| Ethernet | 1000BASE-T (IEEE802.3ab) |
| Cable | CAT5e STP |
| Supports Redundant mode and Switched mode | |
| Control Inputs/Outputs | |
| GPIO | DSUB25pin female, inch type |
| Input circuit | pull up (5V) |
| Output circuit | Open corrector |
| Output impedance | 10Ω |
| Voltage Resistance | 20V |
| Max Current | 35mA |
| Max supply current (+5V) | 50mA |
| FOOT SWITCH | |
| Connector | Φ6.3mm(1/4")TS phone jack (TIP:SIG, SLEEVE: GND) |
| ETHERNET (for control) | |
| Connector | RJ-45 |
| Ethernet | 100BASE-TX, 1000BASE-T |
| Protocol | TCP/IP |
| Other Inputs/Outputs | |
| WORD IN | |
| Connector | BNC (Unbalanced) |
| Input level | 0.5Vpp - 5Vpp |
| Impedance | 75Ω +/-10% |
| Input frequency | 48 kHz, 96 kHz |
| Allowable frequency deviation | +/-100ppm |
| WORD THRU/OUT | |
| Connector | BNC (Unbalanced) |
| Output level | equivalent to 5V TTL |
| Output frequency | 48kHz, 96kHz |
| Impedance | 75Ω +/-10% |
| USB (Top panel) | For Keyboard, and Mass Storage |
| Connector | Type-C |
| Standard | USB2.0 HIGH SPEED (480Mbps) |
| Bus power | 5V-0.5A |
| Class | HID, Mass storage |
| USB (Rear panel) | For Audio Interface (Dedicated driver required) |
| Connector | Type-B |
| Standard | USB2.0 HIGH SPEED (480Mbps) |
| Lamp | |
| Connector | XLR 4pin female (1:N.A., 2:N.A., 3:GND, 4:+12V) |
| Supply voltage | 0V-12V (Adjustable brightness) |
| Max power | 5W |
| Recorder/Player | |
| Media | |
| SD Card | SDHC (8GB-32GB Class10 or more), SDXC (64GB-128GB Class10 or more) |
| USB memory | Size: 8GB-128GB (Play Only) |
| Supported File System: | FAT32 (SDHC, USB memory) exFAT (SDXC, USB memory) |
| Stereo recording/Playback Formats | |
| WAV/BWF | |
| Recording | 48 kHz/96 kHz, 24 bit, 2ch |
| Playback | 48 kHz/96 kHz, 16/24bit、2ch |
| MP3 | |
| Playback | 44.1 kHz/48 kHz, 32kbps～320kbps |
| AAC | |
| Playback | 44.1 kHz/48 kHz, 64kbps～320kbps |
| General | |

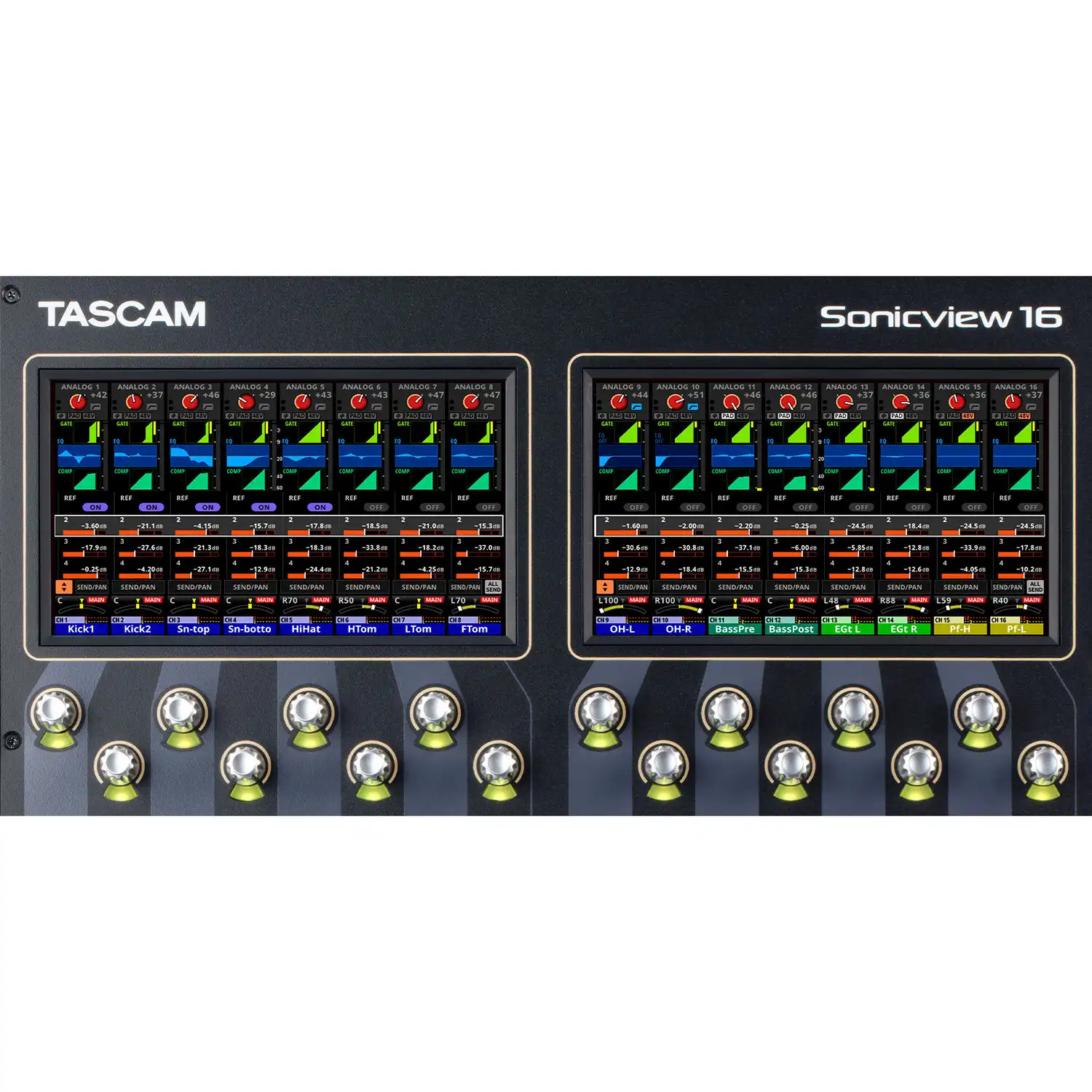

| Main display | 7 inch, Colored touch panel display x2 |
| Resolution | 800x480 |
| Channel display | Monochrome x2 |
| Resolution | 384x68 |
| Fader | 100mm stroke, Motor driven |
| Overall dimensions | 472.0(W) x 228.1(H) x 554.4(D) mm 18.59 (W) x 8.99(H) x 21.83 (D) inch |
| Weight | 13kg / 28.67lb |
| AC IN | AC100V-240V 50/60Hz |
| Power consumption | 65W |
| Operating Temperatures | 0 - 40 ℃ |
| Computer system requirements | |
| USB Audio Interface | |
| Windows | |
| Supported Operating System | Windows 11 64 bit Windows 10 64 bit |
| Computer hardware requirements | Windows computer with a USB2.0(or higher) port. |
| Mac | |
| Supported Operating System | macOS Monterey (12) macOS Big Sur (11) macOS Catalina (10.15) |
| Computer hardware requirements | Mac with a USB2.0(or higher) port. |

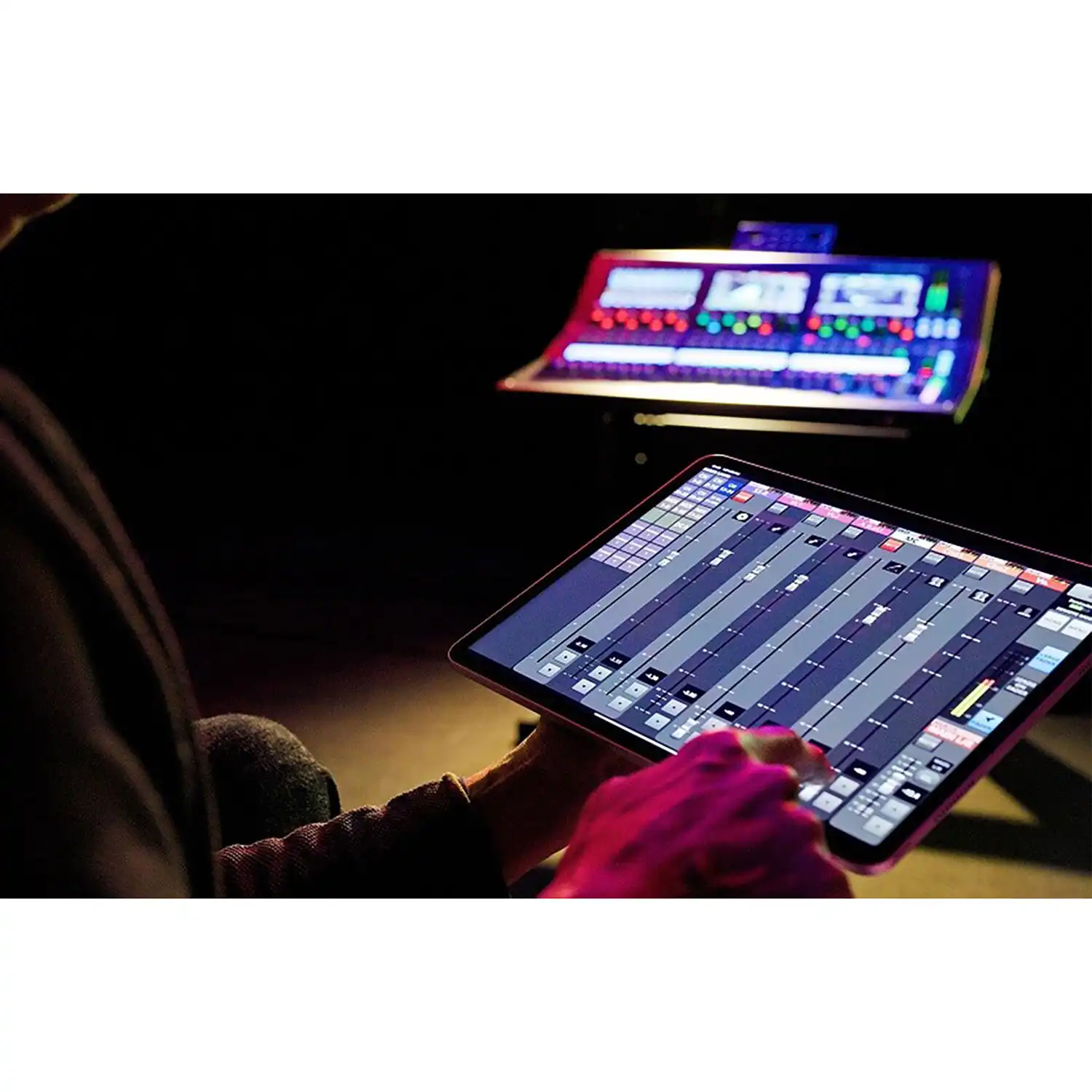

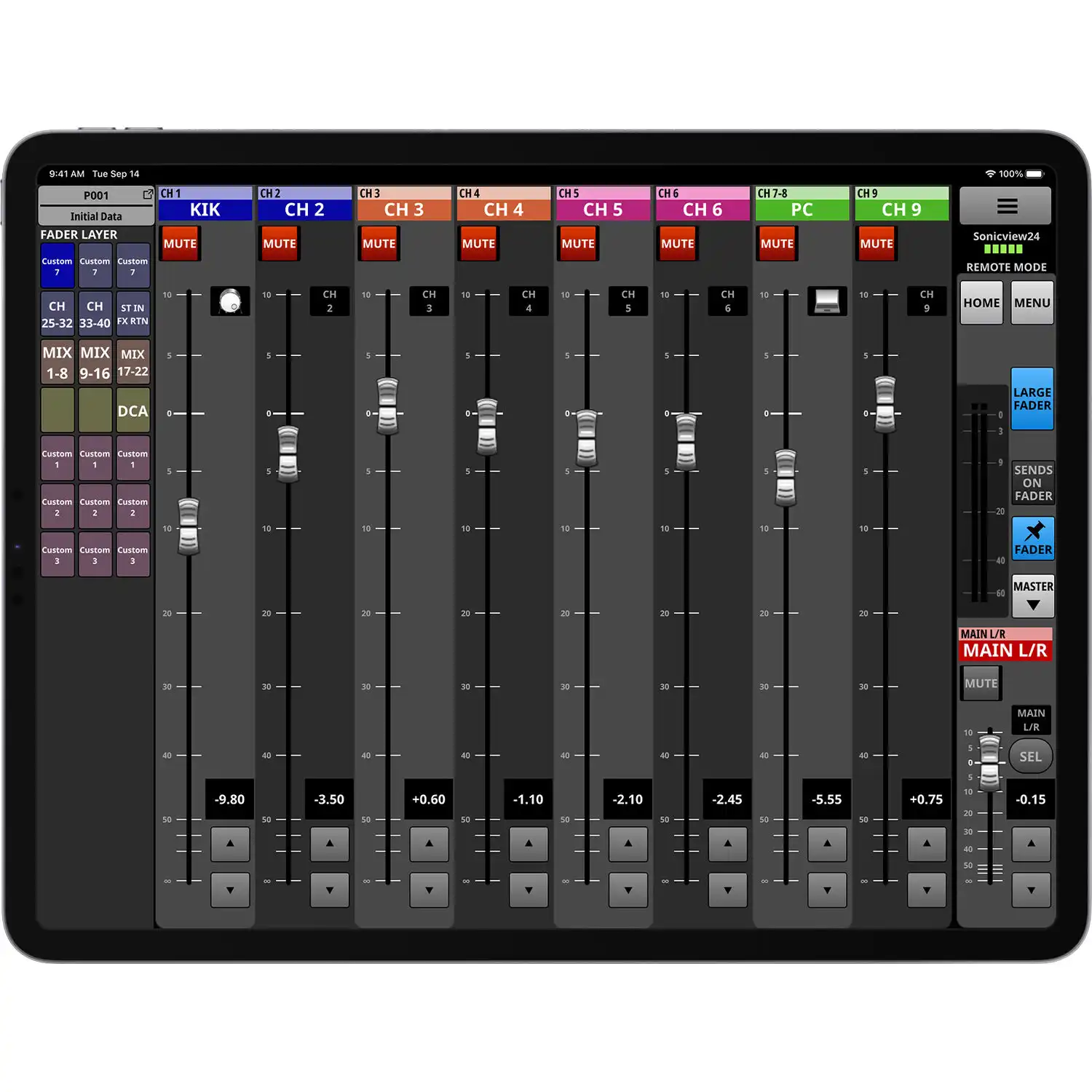

| Control Software | |
| Windows | Windows 11 64 bit Windows 10 64 bit |
| Mac | macOS Monterey (12) macOS Big Sur (11) macOS Catalina (10.15) |
| iPadOS | iPadOS 15 iPadOS 14 |
| Included Items | |
| TASCAM Sonicview 16 x1 | |
| Power code (JAPAN USA/EUROPE/OCEANIA) x3 | |
| Owner's manual with warranty x1 | |
| TASCAM ID registration guide x1 | |
| Options | |
| AK-DCSV16: Dust cover | |
| AK-TB15: Tablet shelf | |
| AK-RKSV16: Rack mount kit | |
| IF-AE16: AES interface card, I/O 16ch | |
| IF-DA64: Dante interface card, I/O 64ch, Redundant Supported | |
| IF-MA64/EX: MADI interface card, I/O 64ch Coaxial/Optical | |
| IF-MA64/BN: MADI interface card, I/O 64ch Coaxial | |
| IF-AN16OUT: Analog outputs interface card, 16ch | |
| IF-MTR32 (Scheduled to be released in 2023): MTR card, 32 tracks, punch-in | |
| SB-16D (Scheduled to be released in 2023): Stage box, Dante, 16ch I/O |
