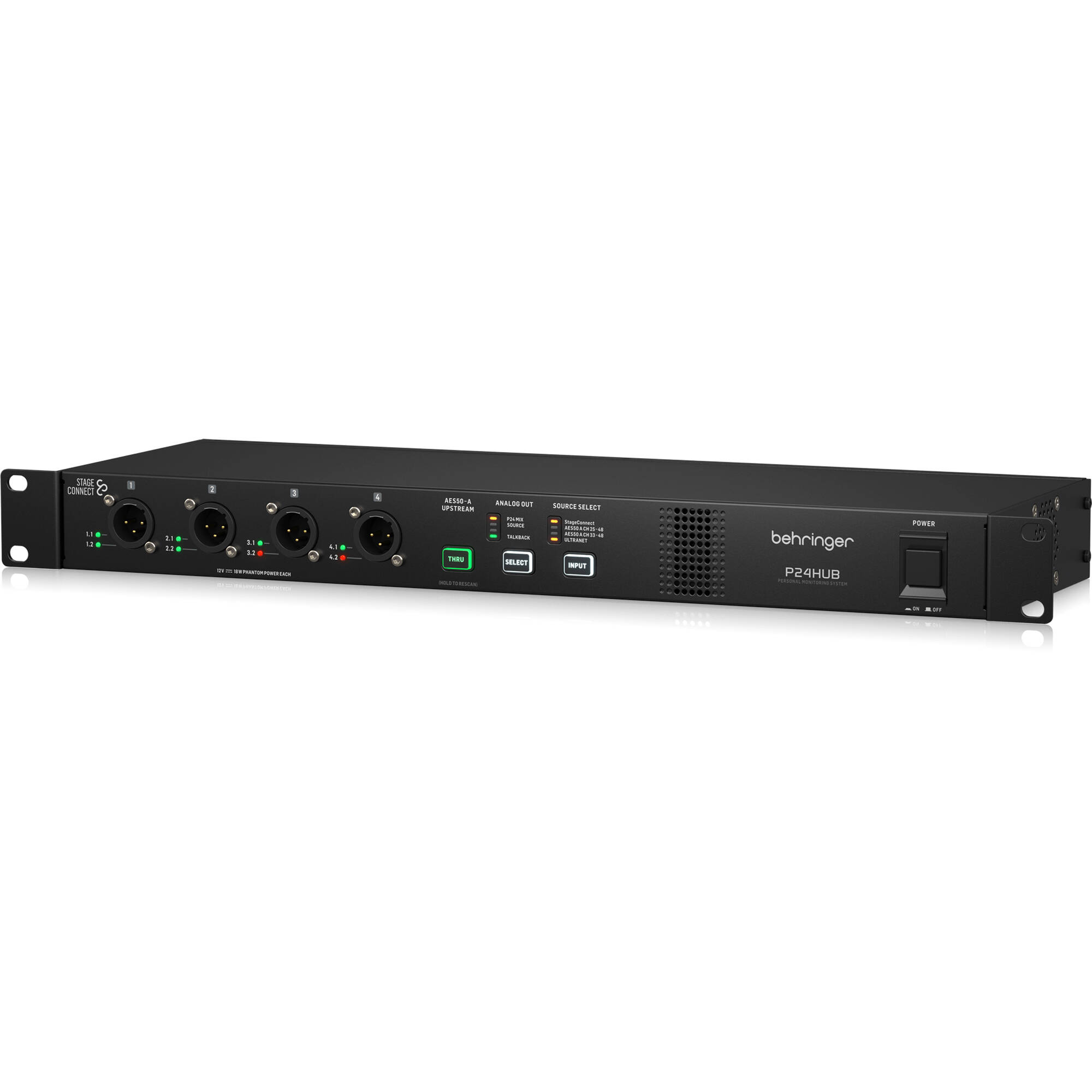

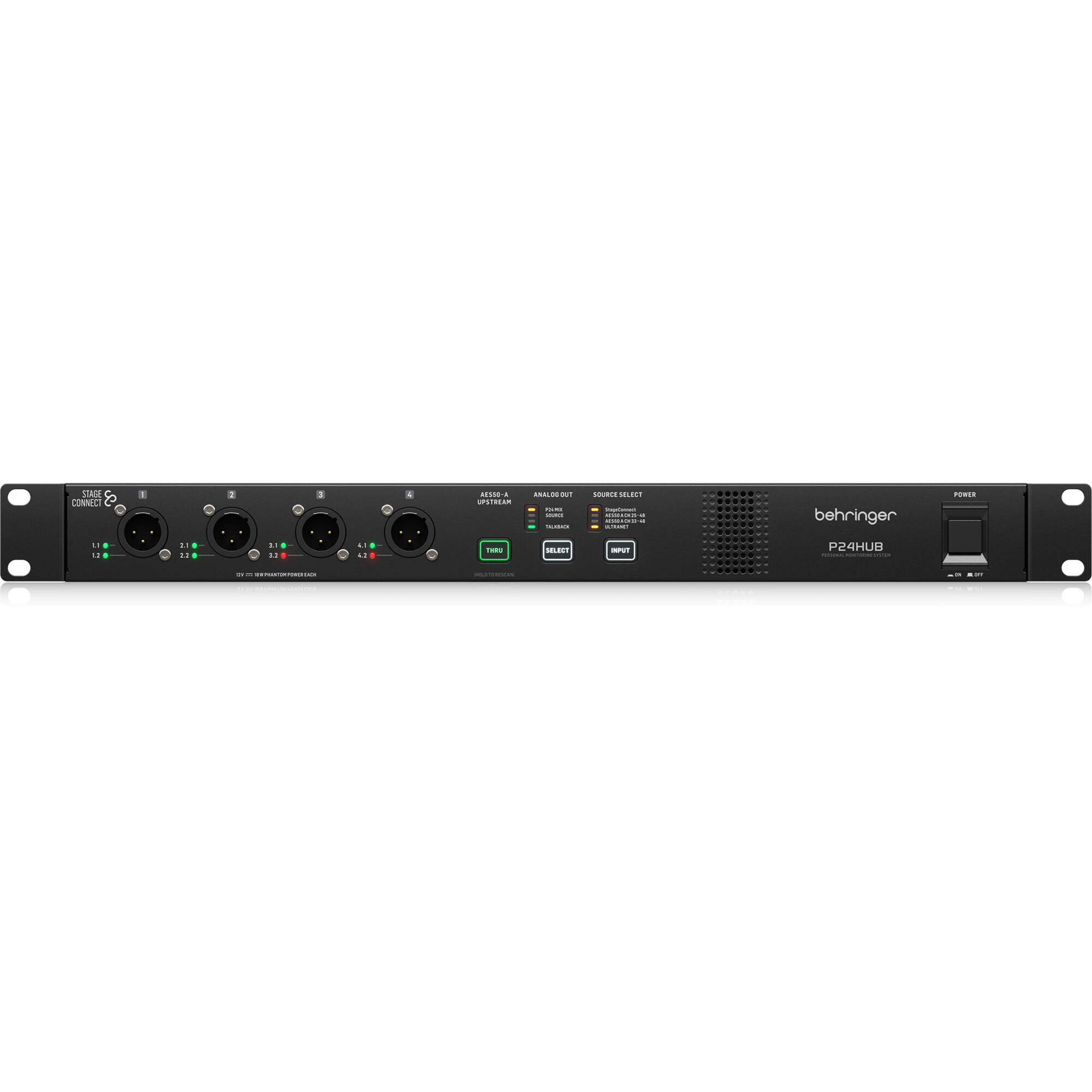

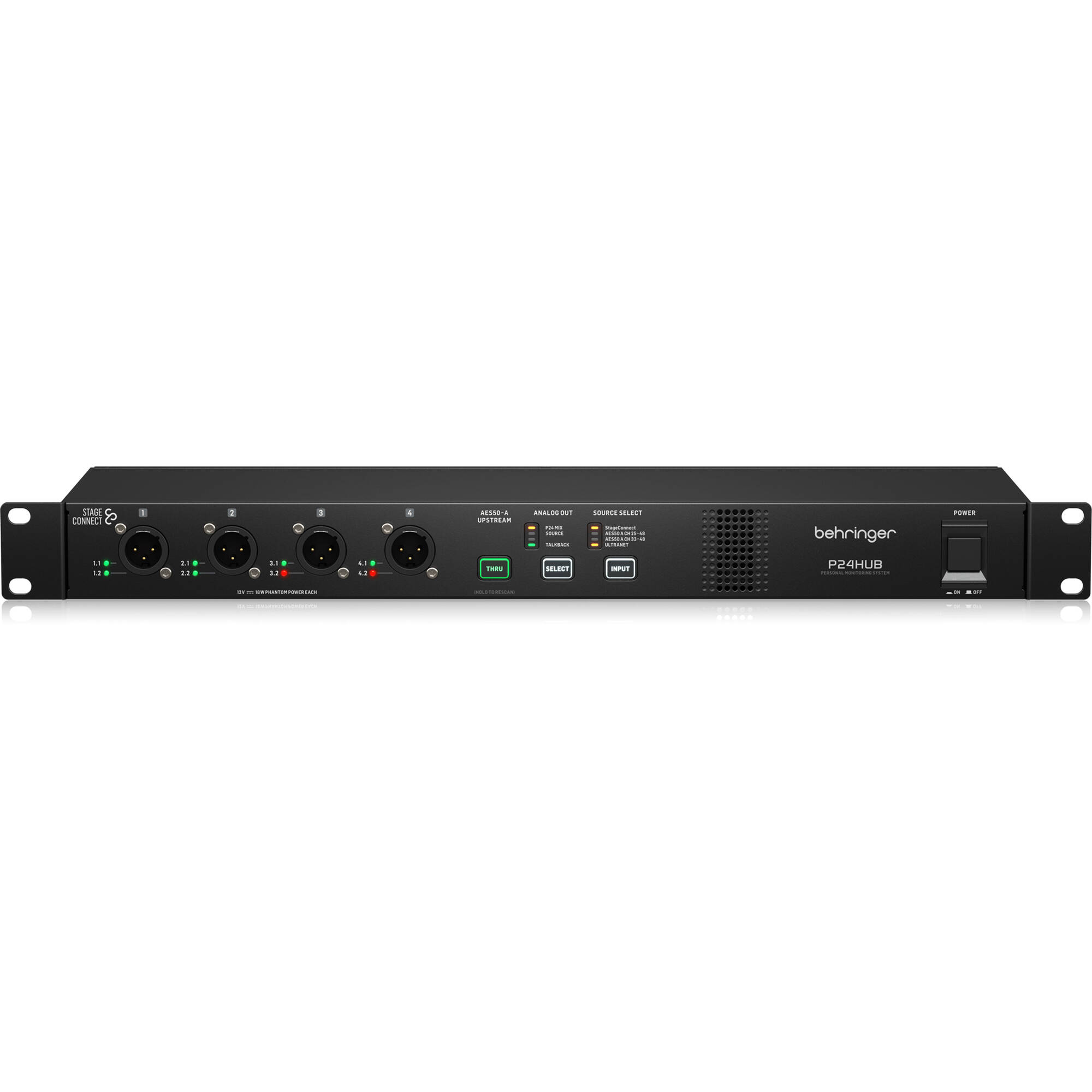

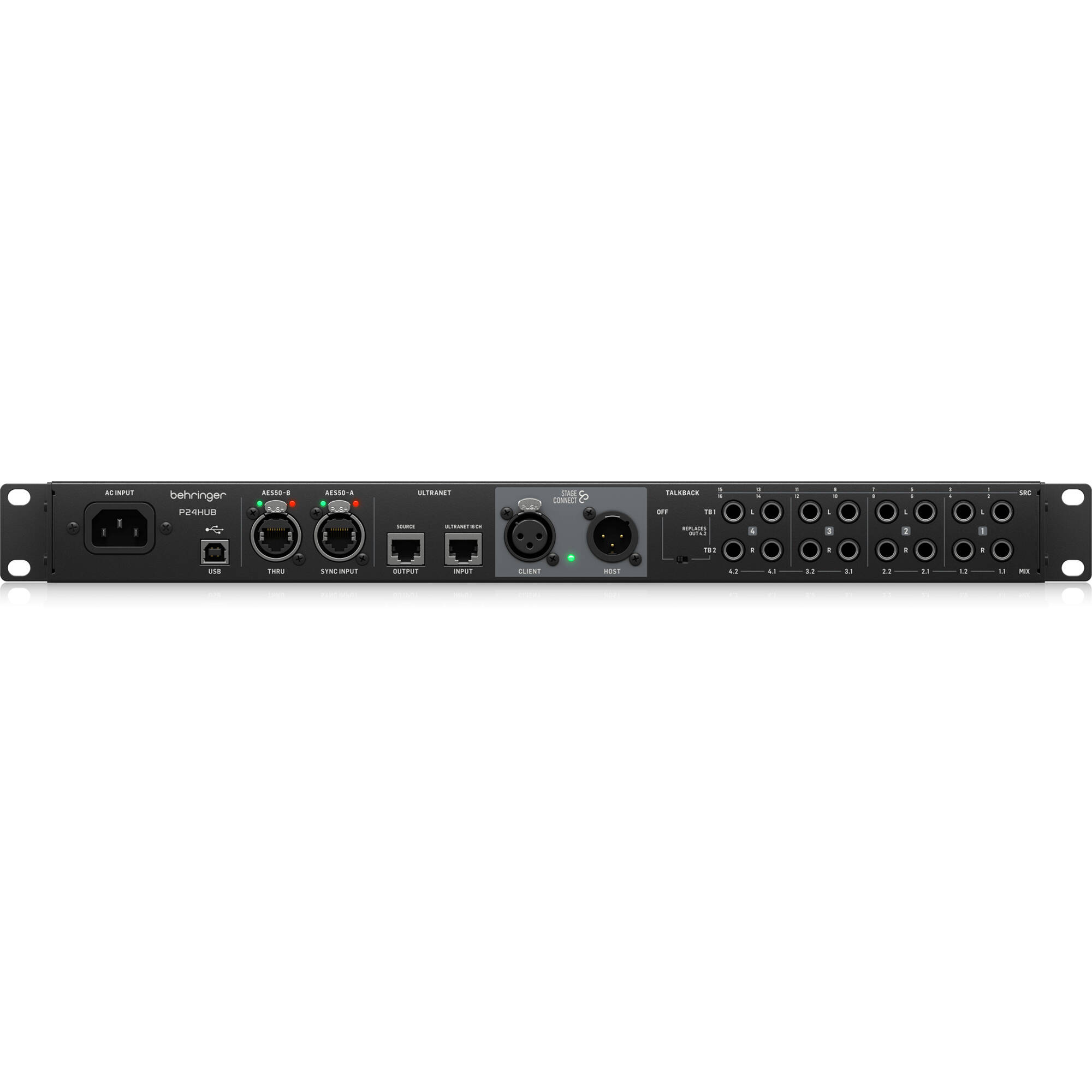

Behringer P24 HUB StageConnect
Šifra: 21730
The Behringer P24Hub is a professional 16-channel distribution hub designed to centralize and power a personal monitoring system. It serves as the bridge between your main console and up to eight P24 personal mixers, providing audio and bus power over single XLR cables.
| Kategorija | Specifikacija |
|---|---|
| Tip uređaja | Audio distribucioni hub za personalni monitoring |
| Analogni izlazi | 16 x 1/4" TRS balansirani (za 8 stereo mikseva) |
| Digitalni ulazi/izlazi | AES50 (In/Thru), Ultranet (In/Out), USB (Type-B) |
| StageConnect portovi | 4 prednja porta (napajaju do 8 P24 miksera putem daisy-chain-a) |
| Audio kanali | StageConnect: 26x6; AES50: 24-ch; Ultranet: 16-ch |
| Kvalitet zvuka | 24-bit uncompressed PCM, 44.1 / 48 kHz |
| Latencija | 146 μs (@ 44.1 kHz) / 125 μs (@ 48 kHz) |
| Domet kablova | DMX: do 40m; AES50: do 80m (CAT5e); Ultranet: do 75m |
| Fizičke dimenzije | 1U Rackmount (44 x 483 x 151 mm) |
| Težina | 2.72 kg (6.00 lbs) |
| Potrošnja struje | 125 W (Auto-ranging napajanje) |
Opis nije dostupan
