Behringer Eurocom MA4008
Šifra: 21738

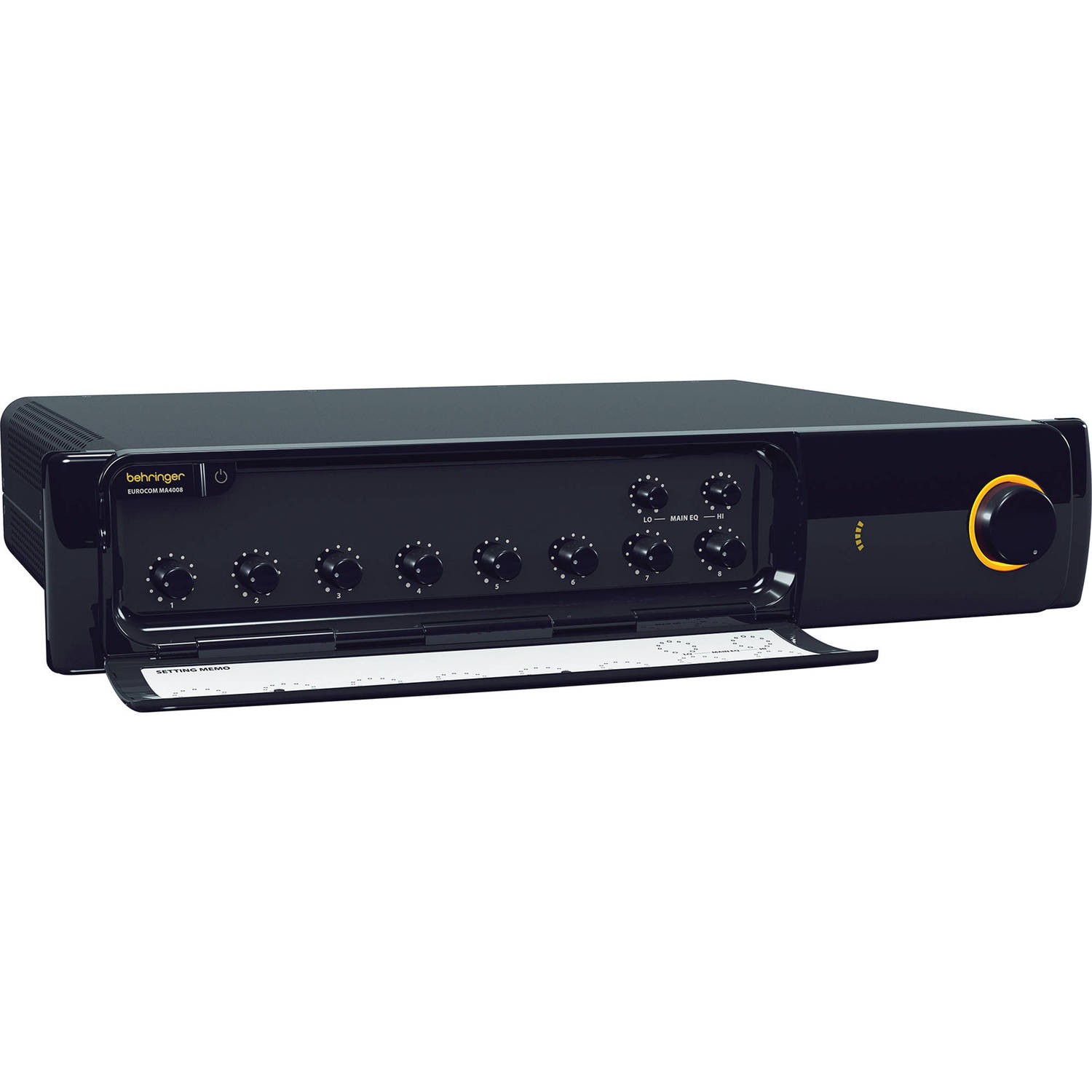

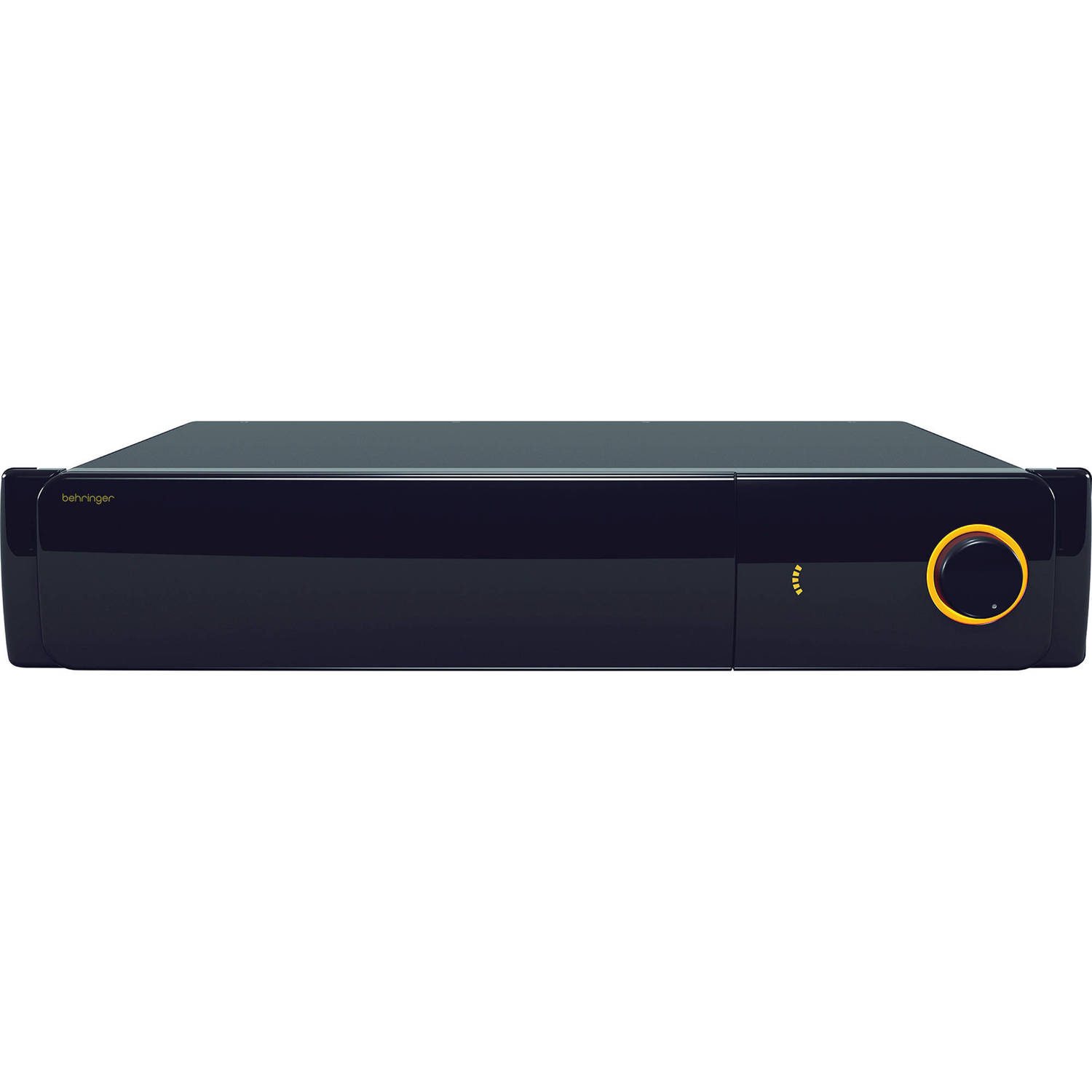

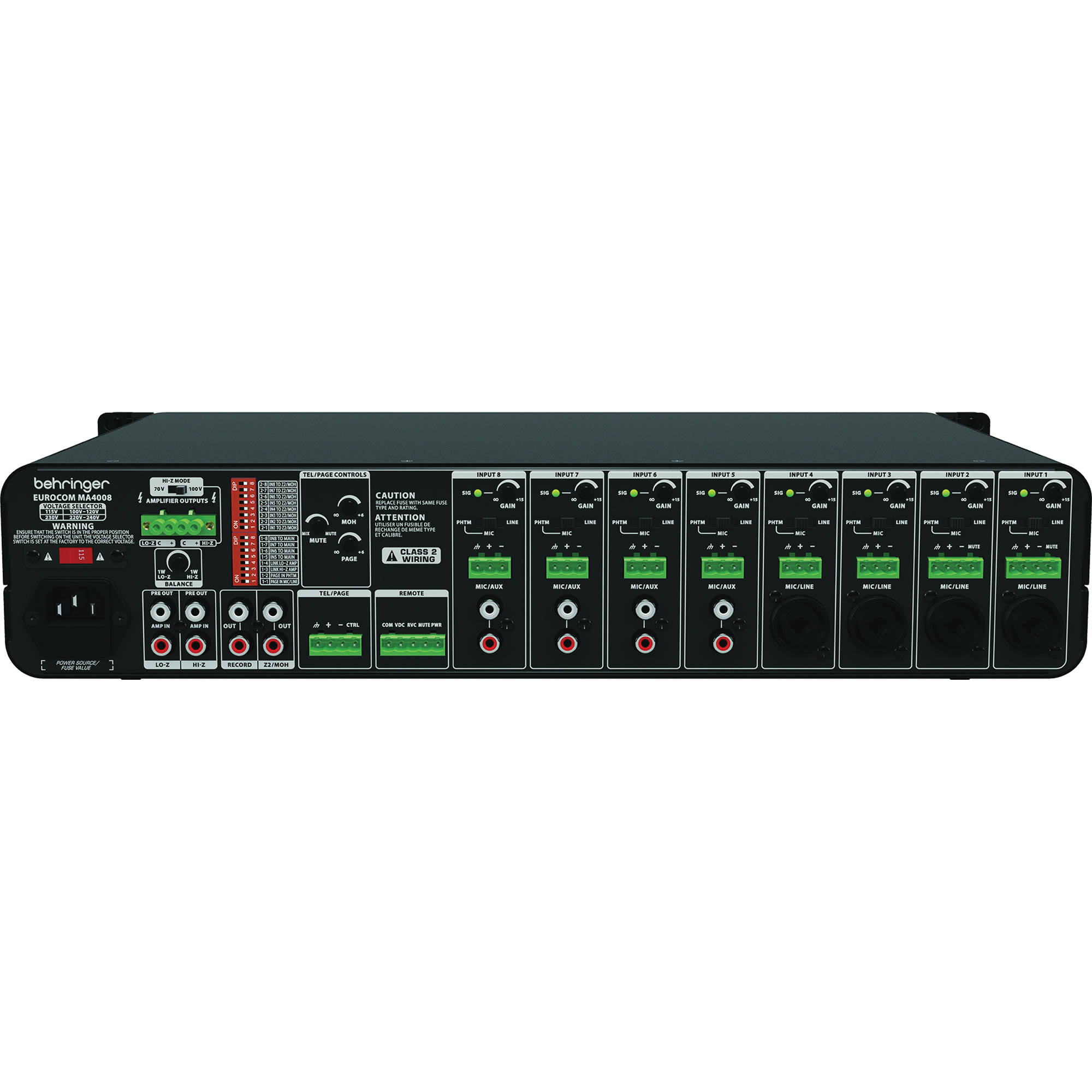

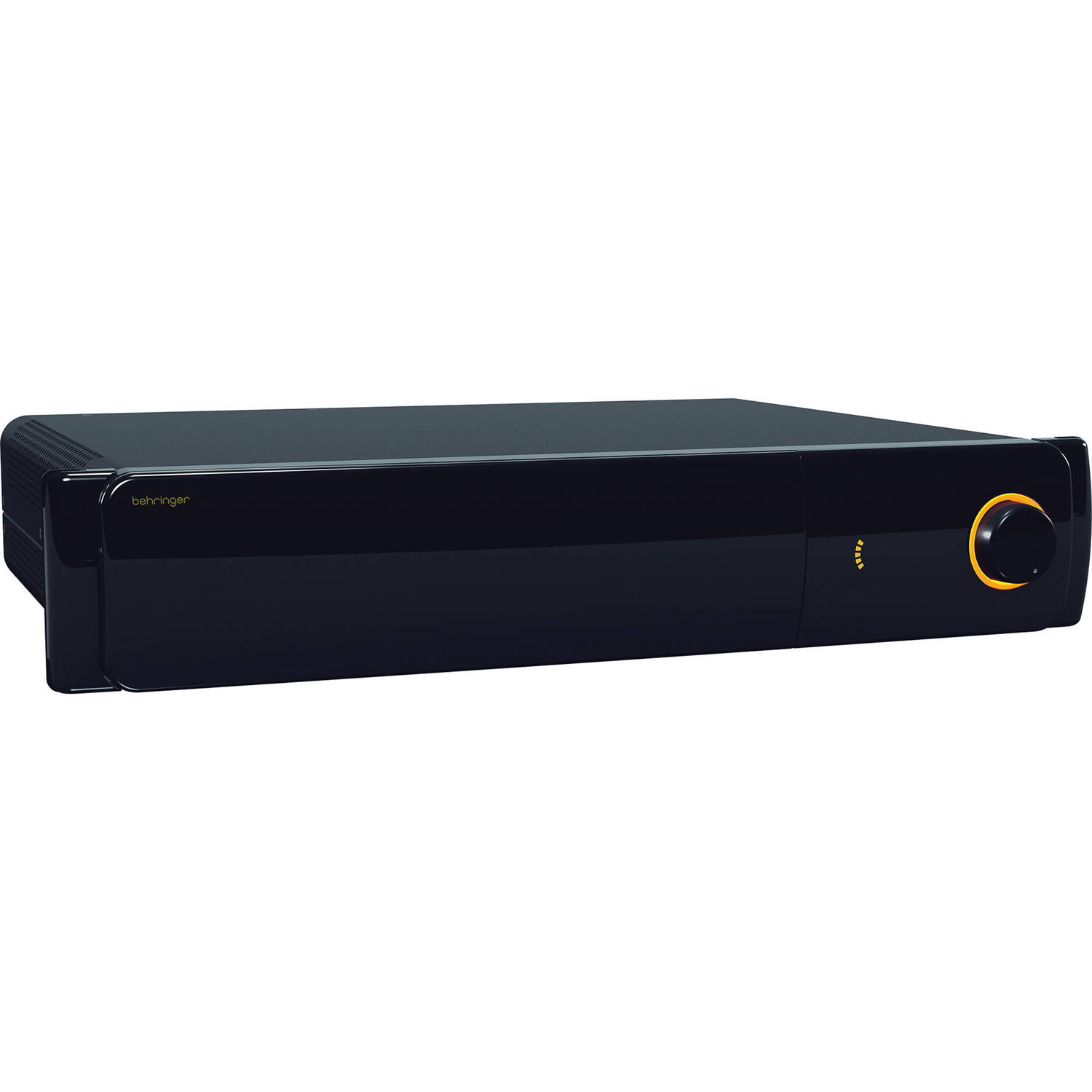

The Behringer Eurocom MA4008 Installed Sound Multi-Function Mixing-Amplifier allows you to distribute audio and page listeners within two speaker zones. The unit consists of two Class-D mono amplifiers, one for high-performance low-impedance speakers and the other for 70- or 100-volt speakers. It features eight channels of mic/line inputs on Euroblock connectors with switchable phantom power, individual trim pots, and post-trim LED level indicators. In parallel, the device also includes four switchable microphone XLR/line TRS combination jacks with phantom power switches, and four dual summed to mono RCA jacks for sources such as MP3 players and TV tuners.
| Kategorija | Karakteristike |
|---|---|
| Izlazna snaga (RMS) | 80 W @ 4 Ω (niska impedansa) / 80 W @ 70V ili 100V |
| Tip pojačala | Dva nezavisna pojačala Klase-D (Dual Drive tehnologija) |
| Frekvencijski odziv | 50 Hz – 18 kHz, ±2 dB |
| Dinamika (Dynamic Range) | Mikrofon: 65 dB / Linijski ulaz: 80 dB |
| Distorzija (THD+N) | 0.5% pri 1 kHz (nazivna snaga) |
| Ulazni kanali | 8 kanala (Euroblock, XLR/TRS combo, RCA sumirani) |
| Fantomsko napajanje | +24 VDC, prekidačko po kanalu |
| Kontrole tona | Low: ±12 dB @ 100 Hz / High: ±12 dB @ 10 kHz |
| Dodatni izlazi | Preamp Out, Zone 2/MOH, Record Out (svi RCA) |
| Prioritetni ulaz | Namenski Tel/Page ulaz sa prioritetnim utišavanjem (muting) |
| Dimenzije (V x Š x D) | 88 x 432 x 406 mm (2U visina) |
| Težina | 4.6 kg |
