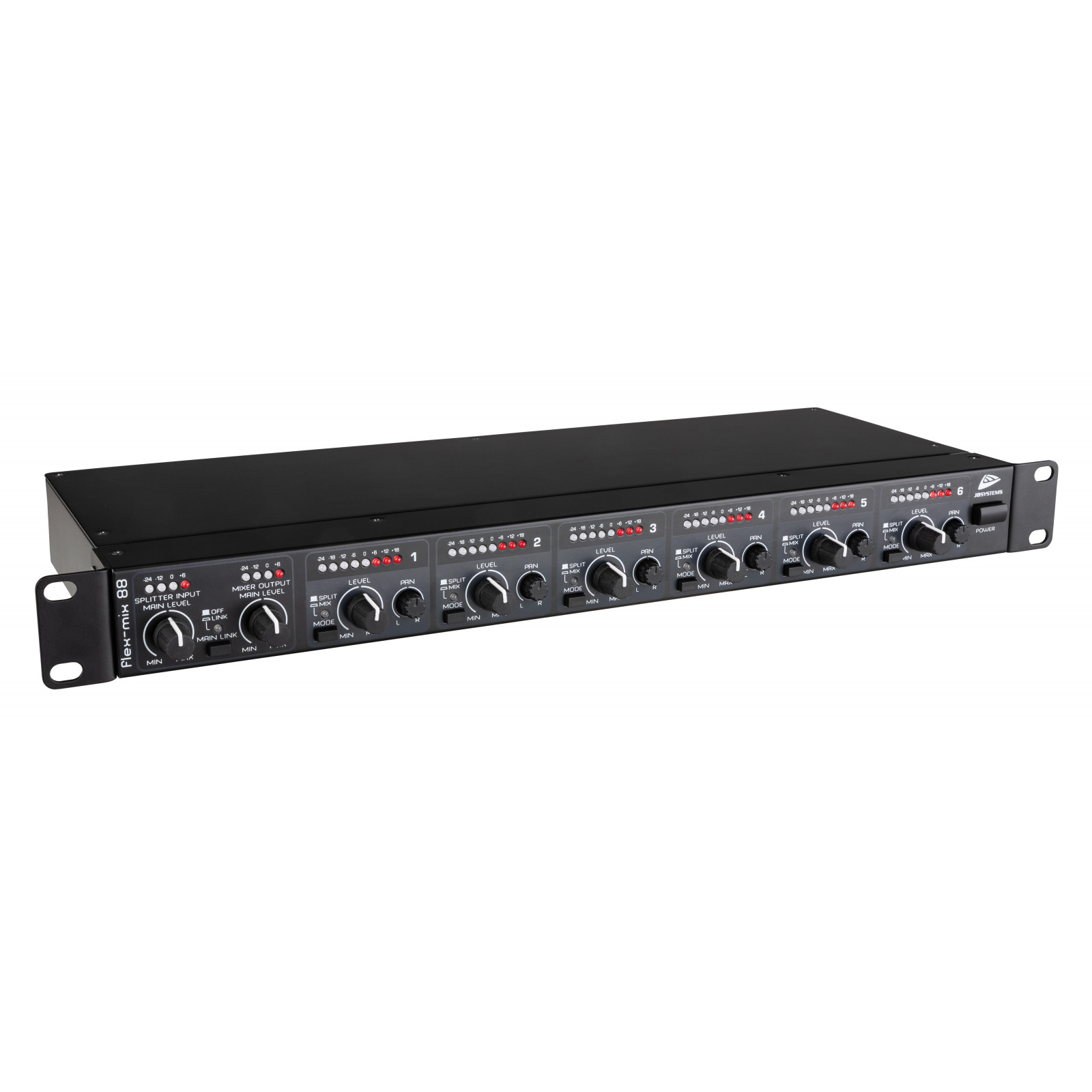

This ultra-multifunctional audio splitter / mixer is a true lifesaver that can be used in many different applications:

        AUDIO SPLITTER with 2-inputs / 7-outputs (stereo input → 1 stereo + 6 mono outputs)
        Possible applications are: distribution and control of audio to different zones in hotels, churches, schools, theatres, …
        AUDIO MIXER with 7-inputs / 2-outputs (1 stereo + 6 mono inputs → stereo output)
        A simple but effective mixer to combine and control audio from different sources.
        …other combinations are possible.

    Available balanced line inputs & outputs:
        1 Main Stereo line input (XLR)
        1 Main Stereo line output (XLR)
        6 Mono line inputs/outputs (XLR / JACK): can be used by pair to route stereo signals!

    Each input / output section has its own volume control, pan/balance control and individual level meters.
    Compact 19” / 1U rackmount.
    Perfect for live sound, studio recording, multizone control, active speaker demo, etc

General : Dimensions (cm)     48 x 4.4 x 18.5 (W x H x D)
General : Weight (kg)     2.61
General : Powerinput     AC 100 - 240V, 50/60Hz
General : Energy Label     No
General : Power consumption W     18
General : Color     black
General : Display     none
General : Fixation     19" rack mountable
General : RU     1U
Audio : min. frequency (Hz)     20
Audio : max. frequency (Hz)     20000
Connections : input     3 pin XLR, jack, IEC
Connections : output     3 pin XLR, jack
