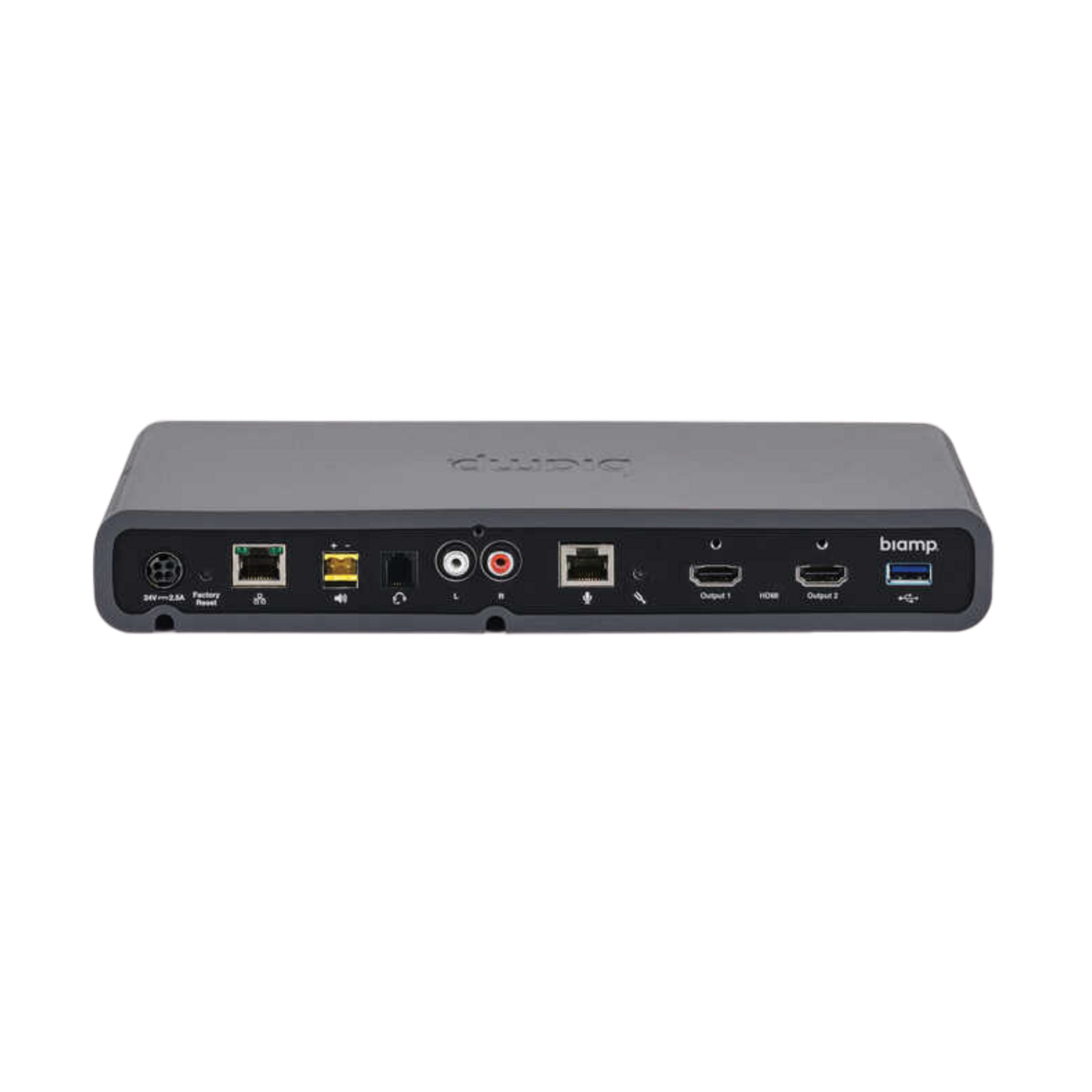

Biamp Devio SCR-25T
The Devio SCR-25T is a conferencing hub bundled with the Devio DTM-1 tabletop microphone that provides users with exceptional audiovisual experiences when using web-based conferencing systems. Intended for huddle rooms or small conference rooms, the SCR-25 uses Beamtracking microphones and professional grade DSP to optimize the audio quality, allowing far end conference participants to experience the conversation naturally.
The Devio SCR-25 supports a variety of room designs for computer-based conferencing including a BYOD approach or connection via a dedicated in-room PC. Devio works in concert with PCs running a variety of web-based conferencing solutions including Microsoft Teams, Zoom, Google Meet, Cisco Webex, BlueJeans and many more.
GENERAL
Height: 1.8 inches (46 mm)
Width: 11.2 inches (284 mm)
Depth: 6.9 inches (175 mm)
Weight: 2.0 lbs (0.9 kg)
ENVIRONMENTAL
Ambient Operating Temperature Range: 32-104° F (0-40° C)
Humidity: 0-95% relative humidity (non-condensing)
Altitude: 0-6,600 ft (0-2000 m) MSL
POWER
Power: 24V DC 60W
CONFERENCING
USB:
USB:
• Bit Depth: 24-bit
• Sample Rate: 48 kHz
• Device Charging: **Up to 5 W
NETWORK
Network Connection(s): RJ-45 with Ethernet cable (Cat 5e and above)
CONTROLS & INDICATORS
Front Panel Indicator(s):
• Mic Status Indicator (Green/Red LED)
• Room Tuning Indicator (Green/Red LED)
• Power/Wireless Indicator (Green/Red/Blue LED)
AMPLIFIER
Amplifier:
• Number of Channels: 1
• Continuous Power Output: (THD+N < 0.025%): 20 W into RatedLoad Impedance
• Frequency Response (20 Hz - 20 kHz): +0.2/-0.5 dB
• THD+N (1 kHz, 20 kHz bandwidth, 1 W): < 0.03%
• Dynamic Range (THD+N < 0.5%): 100 dB, A-Weighted
• Minimum Operational Load: 4Ω
• Intermodulation distortion (SMPTE, 60 Hz/7 kHz, 4:1, 1W): < 0.07%
VIDEO
Supported Resolution:
• 640 x 480p (60 Hz)
• 720 x 480p (60 Hz)
• 720 x 576p (50 Hz)
• 1280 x 720p (50/60 Hz)
• 1920 x 1080p (50/60 Hz)
• *3840 x 2160p (30 Hz)
Physical Interfaces: HDMI
HDMI Audio Formats: 2ch L-PCM, 44.1 kHz/48 kHz, 16-bit
Video: HDCP Support: 1.4
Output Impedance: (Unbalanced): 100Ω
Maximum Output: +8.5 dBu
THD+N: (20 Hz - 10 kHz, 20 kHz B/W, FS): < 0.005%
Frequency Response: (20 Hz - 20 kHz, FS): +0/-0.25 dB
Dynamic Range: (THD+N < 0.005%): 107 dB, A-Weighted
Sampling Rate: 48 kHz
D/A Converters: 24-bit
Audio: Analog Audio Output (RCA)
CERTIFIED SOLUTIONS
TAA Compliant: TAA Compliant
COMPLIANCE
Certifications:
• FCC Part 15B (USA)
• UL and C-UL listed (USA and Canada)
• CE Marked (Europe)
• RoHS Directive (Europe)
