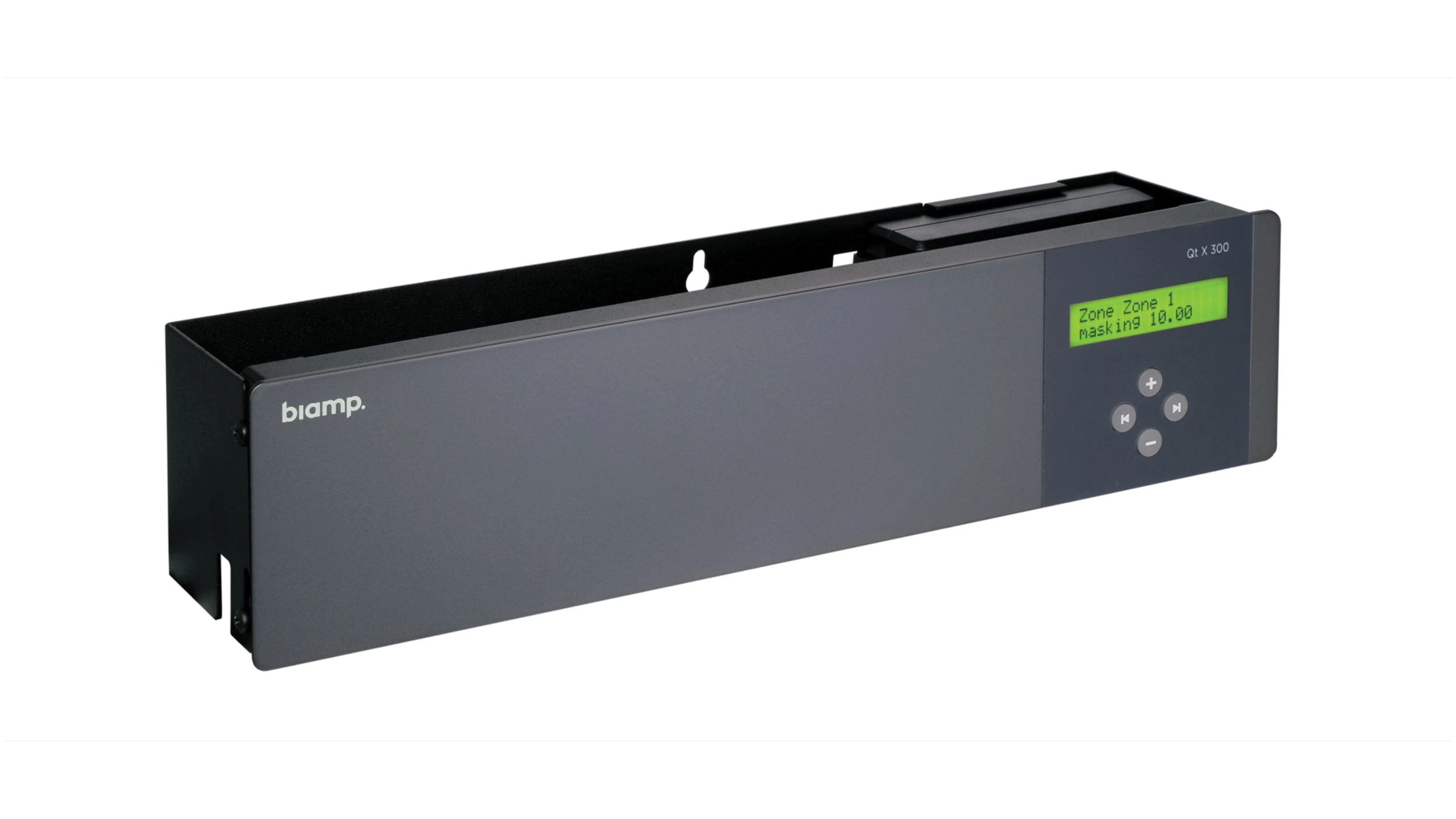

Biamp Cambridge Qt X 300
Deliver exceptional sound masking, paging, and background music coverage with the Cambridge Qt X 300, a three-zone, networkable controller that combines a sound masking generator, third-octave band equalizer, and amplifier into one powerful, scalable platform.
The Cambridge Qt X 300 is an all-in-one sound masking, paging, and audio distribution controller engineered for medium-sized installations up to 36,000 square feet (3,345 m²). Combining a sound masking generator, third-octave band equalizer, and integrated amplifier, it provides precise control over acoustic comfort and intelligibility in open-plan offices, healthcare environments, and other commercial spaces.
Each of the three independent zones supports Qt standard or active emitters, with separate adjustment for masking and auxiliary audio levels and spectra. With two auxiliary inputs, the Qt X 300 enables flexible paging and background music distribution, while system-wide synchronization is made possible through AVB or Dante networking (Qt X 300/D variant).
GENERAL
Height: 3.5 inches (89mm)
Width: 14 5/8 inches (371.5mm)
Depth: 3.8 inches (97mm)
Weight: 4.1 lbs (1.88 kg) (with surface mount bracket installed)
Included Accessories: ACT Hole Saw, Wall Bracket
ENVIRONMENTAL
Operating Environment: Indoor
Ambient Operating Temperature Range: 40 - 104° F (4 – 40° C)
Humidity: 0-95% relative humidity (non-condensing)
Altitude: 0-10,000 ft (0-3000m) MSL
POWER
Power:
• Power Supply:
Operating Voltage: 100-240VAC 50/60Hz
Current Draw: 0.9A
Power Consumption: Max. Power Consumption (24VDC): 22W
Power Output: Output: 24VDC @ 2.7A
CONTROLS & INDICATORS
Control:
• Remote Control:
• Connector Type: Captive Screw Terminal
• Input Type: Contact Closure (Normally Open)
• Number of Inputs: 2
• Output Type: Logic Status (5VDC)
• Number of Outputs: 2
• 2 Channels GPIO
SOUND MASKING
Sound Masking System:
• Number of Masking Zones: 3 (2 cable runs per zone)
• Number of Non-Correlated Masking Sources: 4 per zone
• Masking Level Adjustment: 0.5dB steps
AUDIO
Audio: Output Connections: (6) RJ-45
Input Type:
• Input Connector Type: Captive Screw Terminal
• Number of Inputs: 2 (Mono)
• Input Level: +24dBu (12.3VRMS max)
• Input Gain Range: 6dB steps
• Input Level Adjustment: 1dB steps
• Input Impedance: 8kΩ
• Phantom Power: +48VDC (7mA/input)
Output Impedance: Minimum: 2Ω (per channel)
CERTIFIED SOLUTIONS
TAA Compliant: TAA Compliant
COMPLIANCE
Certifications:
• FCC Part 15B (USA)
• UL Listed (USA and Canada)
• CE Marked (Europe)
• RoHS Directive (Europe)
• Met Works with WELL licensing criteria for sound masking
