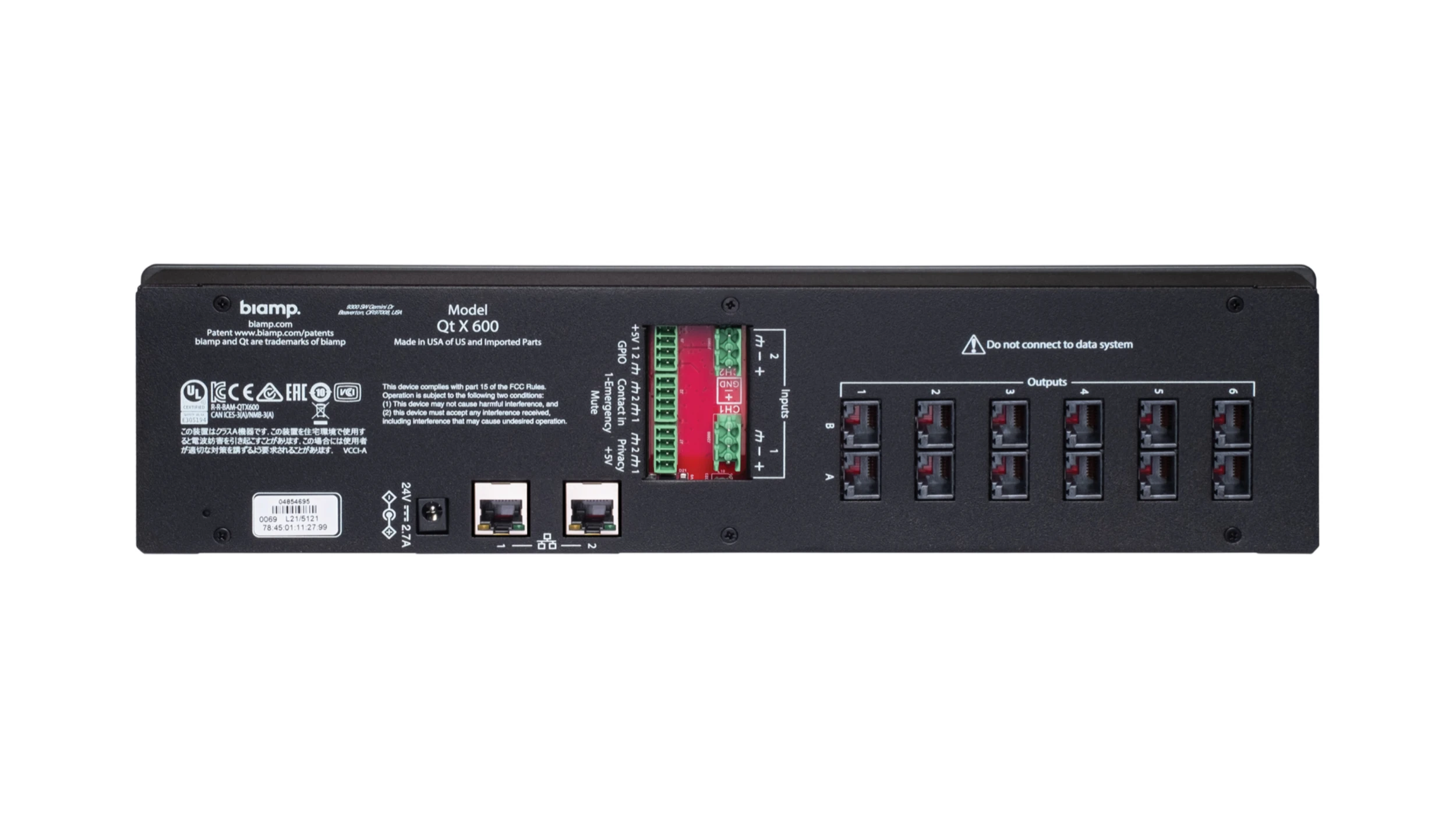

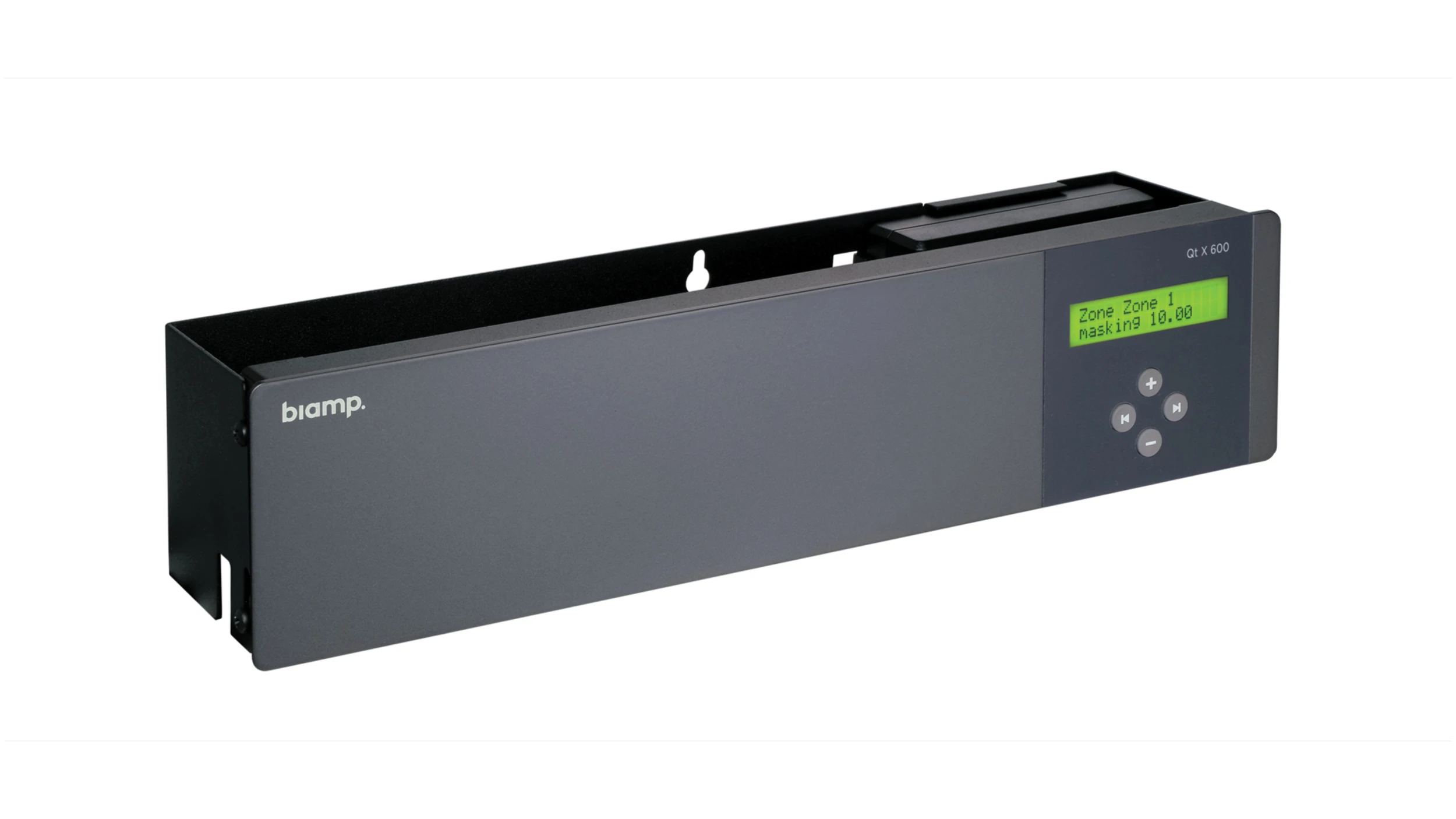

Biamp Cambridge Qt X 600
The Cambridge Qt X 600 is a next-generation sound masking and audio distribution controller designed for large facilities up to 72,000 square feet (6,690 m2) requiring precise acoustic management and paging functionality. Combining a sound masking generator, third-octave band equalizer, amplifier, and networked controller in one compact unit, it supports up to six independently adjustable zones of Qt standard or active emitters.
Each zone can be uniquely configured for masking level, spectrum, and auxiliary audio, allowing system designers to tailor sound coverage to each area’s acoustic and operational needs. Two auxiliary inputs enable the integration of paging systems or background music, while AVB or Dante connectivity (Qt X 600/D variant) allows synchronized audio sharing across multiple controllers.
GENERAL
Height: 3.5 inches (89mm)
Width: 11 inches (279mm)
Depth: 3.8 inches (97mm)
Weight: 1.5 lbs (0.68kg)
Included Accessories: ACT Hole Saw, Wall Bracket
ENVIRONMENTAL
Operating Environment: Indoor
Ambient Operating Temperature Range: 40 - 104° F (4 – 40° C)
Humidity: 0-95% relative humidity (non-condensing)
POWER
Power: Operating Voltage: 100-240VAC 50/60Hz
Power Consumption: Max. Power Consumption (24VDC): 30W
Current Draw: 1.25A
Power Output: 24VDC @ 2.7A
CONTROLS & INDICATORS
Control
• Remote Control:
• Connector Type: Captive Screw Terminal
• Input Type: Contact Closure (Normally Open)
• Number of Inputs: 2
• Output Type: Logic Status (5VDC)
• Number of Outputs: 2
• 2 Channels GPIO
SOUND MASKING
Sound Masking System:
• Number of Masking Zones: 6 (2 cable runs per zone)
• Number of Non-Correlated Masking Sources: 4 per zone
• Masking Level Adjustment: 0.5dB steps
AUDIO
Audio: Output Connections: (6) RJ-45
Input Type:
• Input Connector Type: Captive Screw Terminal
• Number of Inputs: 2 (Mono)
• Input Level: +24dBu (12.3VRMS max)
• Input Level Adjustment: 1dB steps
• Phantom Power: +48VDC (7mA/input)
Impedance: 8kΩ
Input Gain Range: 6dB steps
Output Impedance: Minimum: 2Ω (per channel)
CERTIFIED SOLUTIONS
TAA Compliant: TAA Compliant
COMPLIANCE
Certifications:
• FCC Part 15B (USA)
• UL Listed (USA and Canada)
• CE Marked (Europe)
• RoHS Directive (Europe)br> Met Works with WELL licensing criteria for sound masking
