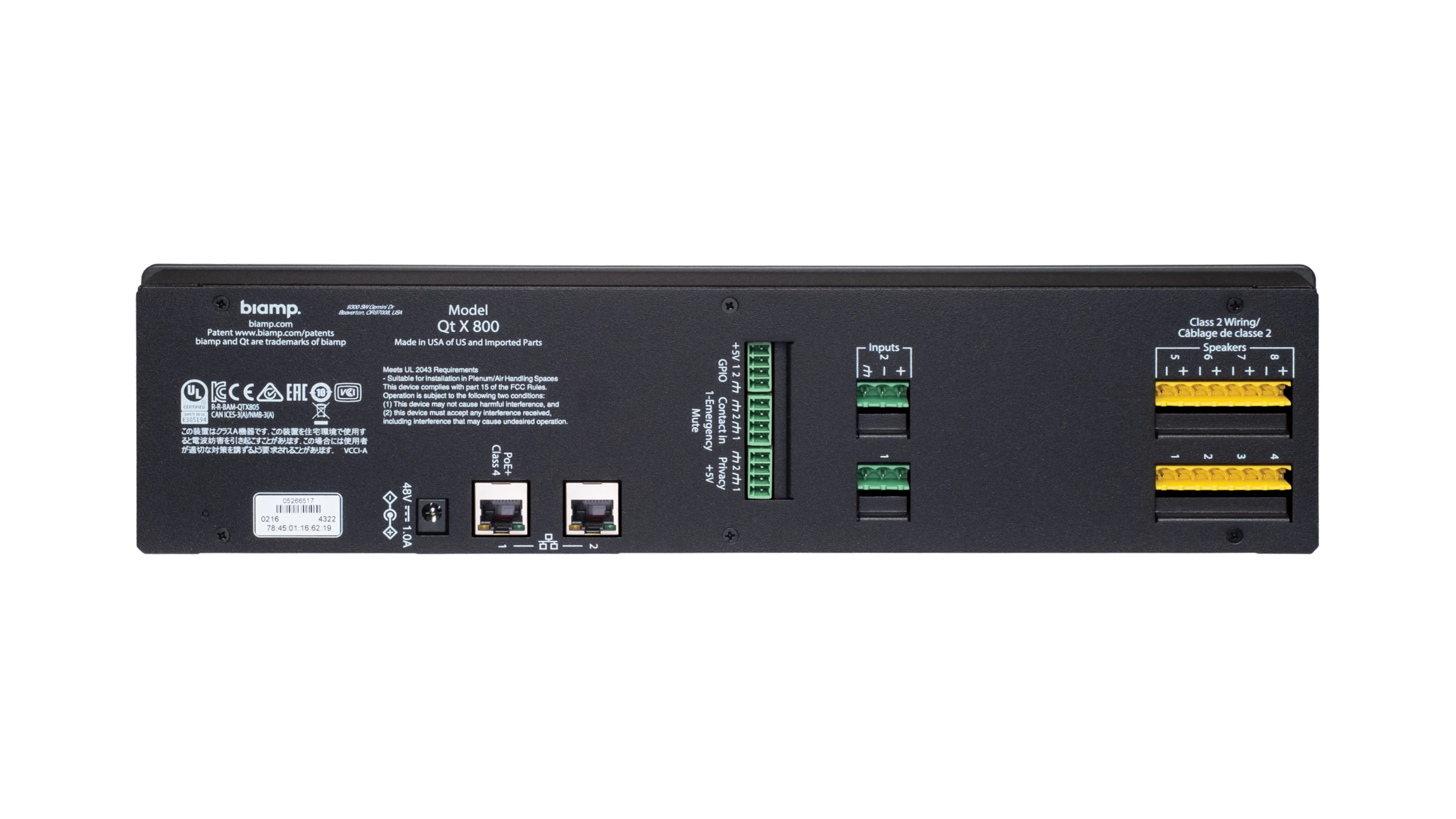

Biamp Cambridge Qt X 800
The Cambridge Qt X 800 is a high-capacity sound masking and audio distribution controller designed for large and complex environments requiring precise acoustic control. Combining a sound masking generator, third-octave band equalizer, amplifier, and controller in one scalable unit, the Qt X 800 supports direct-field emitters, indirect loudspeakers, or a combination of both, making it ideal for diverse installation needs.
The system supports up to eight independently adjustable zones, each with its own masking and auxiliary audio level and spectral control. With two auxiliary inputs, the Qt X 800 integrates paging and background music, while AVB or Dante connectivity (Qt X 800/D variant) enables synchronized operation and shared audio inputs across multiple controllers.
GENERAL
Height: 3.5 inches (89mm)
Width: 14 5/8 inches (371.5mm)
Depth: 3.8 inches (97mm)
Weight: 1.5 lbs (0.68kg)
Included Accessories: Plenum T-bar mount with wire hanger positions
ENVIRONMENTAL
Operating Environment: Indoor
Ambient Operating Temperature Range: 40 - 104° F (4 – 40° C)
Humidity: 0-95% relative humidity (non-condensing)
POWER
Power:
• Power PoE: PoE (IEEE 802.3at), Connected on Network position 1
• Power Optional DC 48V dc @ 1Amp (max)
CONTROLS & INDICATORS
Control:
• Remote Control:
• Connector Type: Captive Screw Terminal
• Input Type: Contact Closure (Normally Open)
• Number of Inputs: 2
• Output Type: Logic Status (5VDC)
• Number of Outputs: 2
• 2 Channels GPIO
SOUND MASKING
Sound Masking System:
• Number of Non-Correlated Masking Sources: 8
• Masking Level Adjustment: 0.5dB steps
AUDIO
Audio:
• Output Connector Type: Captive Screw Terminal
• Number of Outputs: 8
• Nominal Output Impedance: 4Ω
Input Type:
• Input Connector Type: Captive Screw Terminal
• Number of Inputs: 2 (Stereo or Mono)
• Input Level: +24dBu (12.3VRMS max)
• Input Gain Range: 6dB steps
• Input Level Adjustment: 1dB steps
• Input Impedance: 8kΩ
Equalization:
• Sound Masking (100Hz – 10kHz): ISO 1/3 Octave Bands
• Active (125Hz – 8kHz): ISO 1/1 Octave Bands
CERTIFIED SOLUTIONS
TAA Compliant: TAA Compliant
COMPLIANCE
Certifications:
• FCC Part 15B (USA)
• UL Listed (USA and Canada)
• CE Marked (Europe)
• RoHS Directive (Europe)
• Met Works with WELL licensing criteria for sound masking
