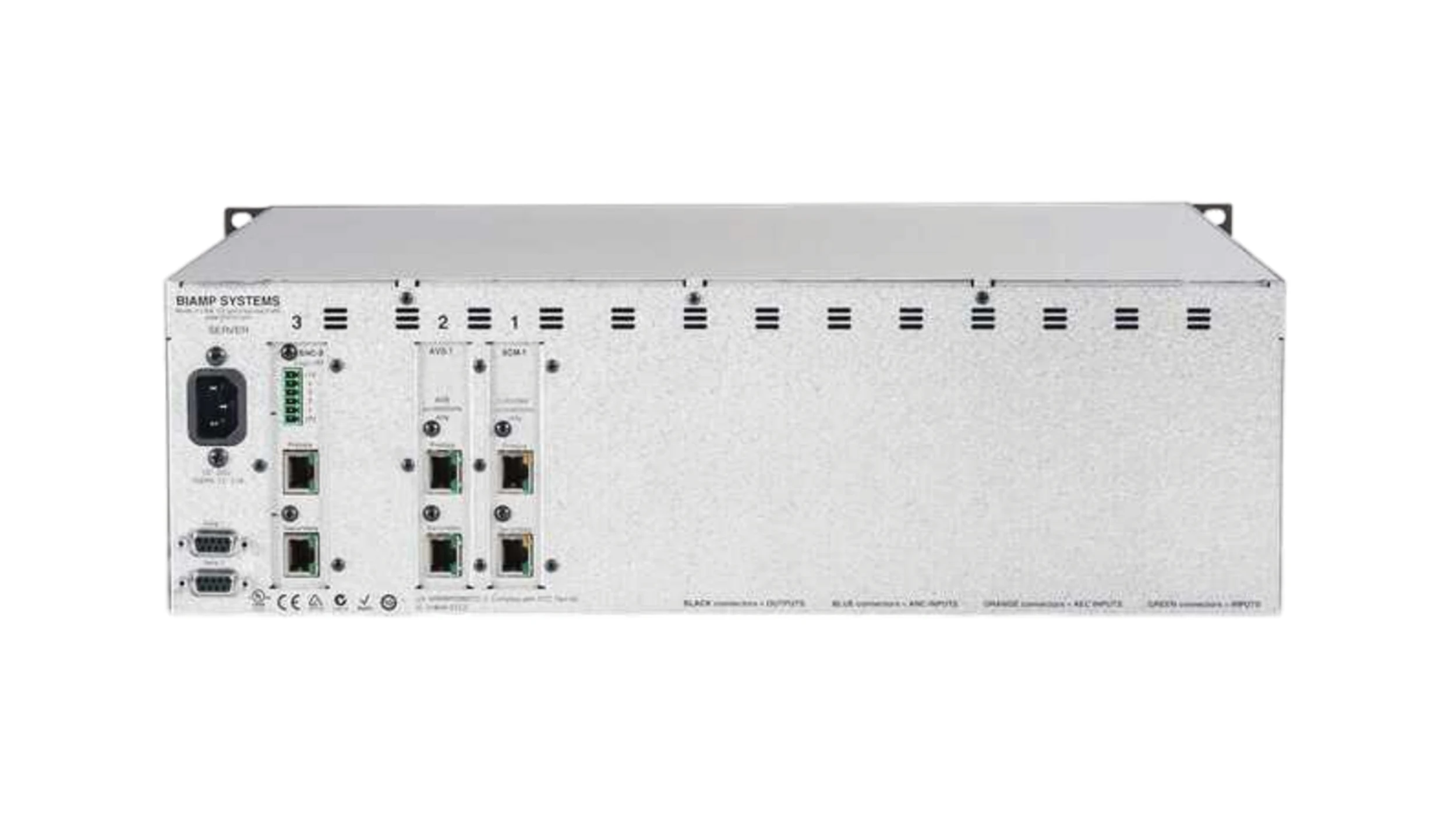

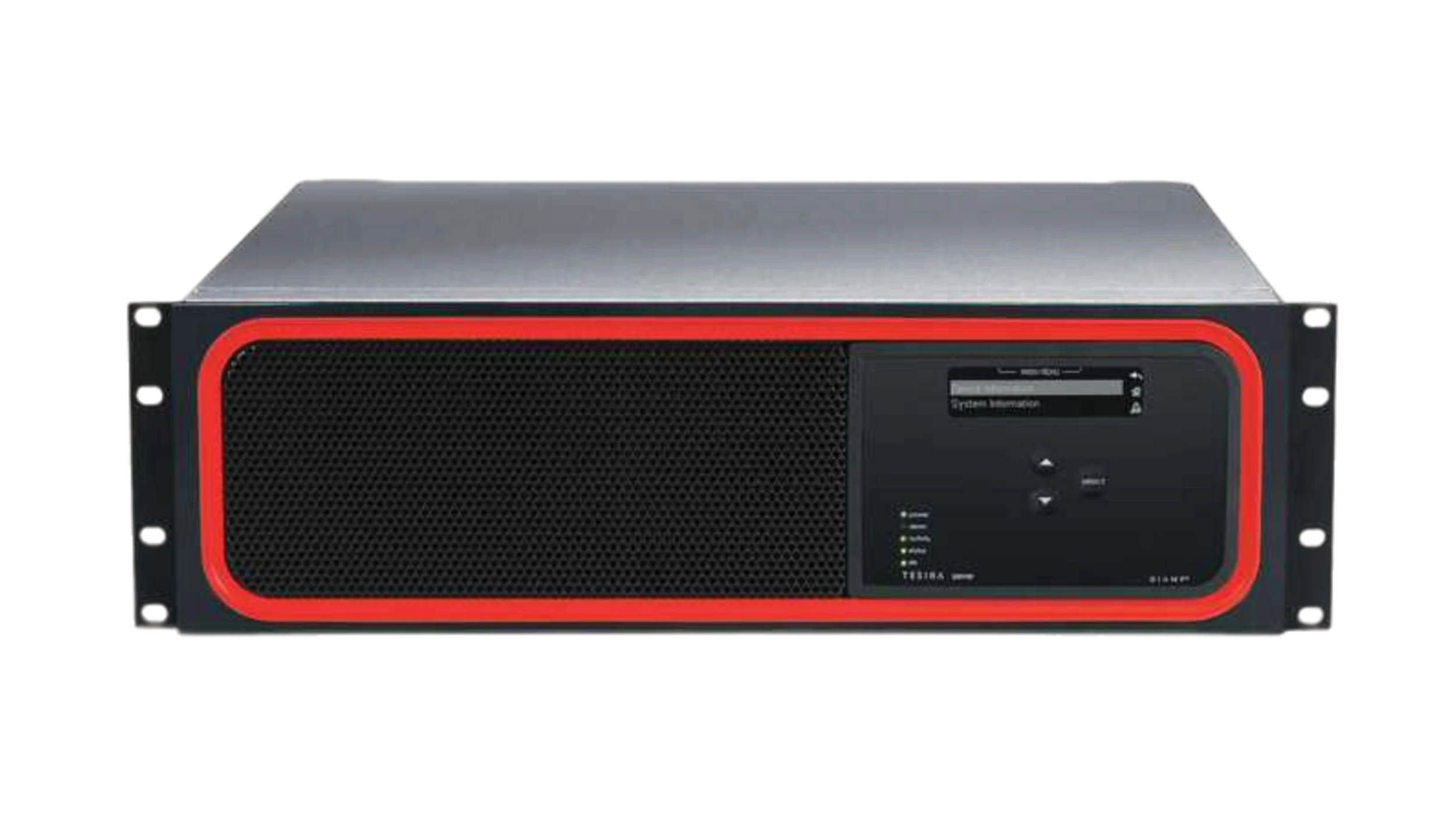

Biamp Tesira SERVER-IO AVB
Â
The Tesira SERVER-IO AVB is a digital signal processor.
It is factory configured with one DSP-2 card (capable of handling up to two additional DSP-2 cards) and one AVB-1 network card (capacity for three total audio networking cards per server). The combinations of networking cards may include one AVB-1 Audio Video Bridging network cards, up to two SCM-1 CobraNet network cards, and up to two DAN-1 Dante network cards in any configuration.
The SERVER-IO AVB can support up to 12 standard Tesira I/O cards for up to 48 channels of audio I/O (e.g. microphone and line level, VoIP, and FXO telephone interface).
The SERVER-IO AVB can be used as a standalone device or with Tesira expanders to form a highly scalable audio network.
The Tesira SERVER-IO AVB complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
GENERAL Â Â Â
Height: 5.25 inches (133 mm)
Width: 19.0 inches (483 mm)
Depth: 17.0 inches (432 mm)
Weight: 18 lbs (8.2 kg)
Included Accessories: Tesira SERVER-IO configured with one AVB-1 card.
ENVIRONMENTAL Â Â Â
Ambient Operating Temperature Range: 32-104° F (0-40° C)
Humidity: 0-95%, non-condensing
Altitude: 0-10,000 Feet (0-3,000 meters) MSL
POWER Â Â Â
Power: Power Consumption: (100~240VAC 50/60Hz): < 150W
Power Consumption: (100~240VAC 50/60Hz): < 150W
Phantom Power: +48 VDC, (7mA/input)
AUDIO Â Â Â
Impedance: (balanced): 8kΩ
Input Gain Range: (6dB Steps): 0 - 66dB
Maximum Input: +24dBu
Output Impedance: (balanced): 200Ω
Maximum Output: +24dBu
THD+N (20Hz~20kHz):
• @ 0dB Gain, +4dBu In: < 0.006%
• @ 54dB Gain, -50dBu In: < 0.040%
Frequency Response: (20Hz~20kHz @ +4dBu): +0/-0.25dB
EIN: (20Hz~20kHz, 66dB Gain, 150Ω): < -125dBu
Dynamic Range: (20Hz~20kHz, 0dB): > 108dB
Crosstalk (channel to channel @ 1kHz):
• @ 0dB Gain, +4dBu In: < -85dB
• @ 54dB Gain, -50dBu In: < -75dB
Sampling Rate: 48kHz
A/D Converters: 24-bit
CERTIFIED SOLUTIONS Â Â Â
TAA Compliant: TAA Compliant
COMPLIANCE Â Â Â
Certifications Compliance:
• FCC Part 15B (USA)
• FCC Part 68 (USA)
• Industry Canada CS-03 (Canada)
• CE marked (Europe)
• UL and C-UL listed (USA & Canada)
• RCM (Australia)
• EAC (Eurasian Customs Union)
• RoHS Directive (Europe)
