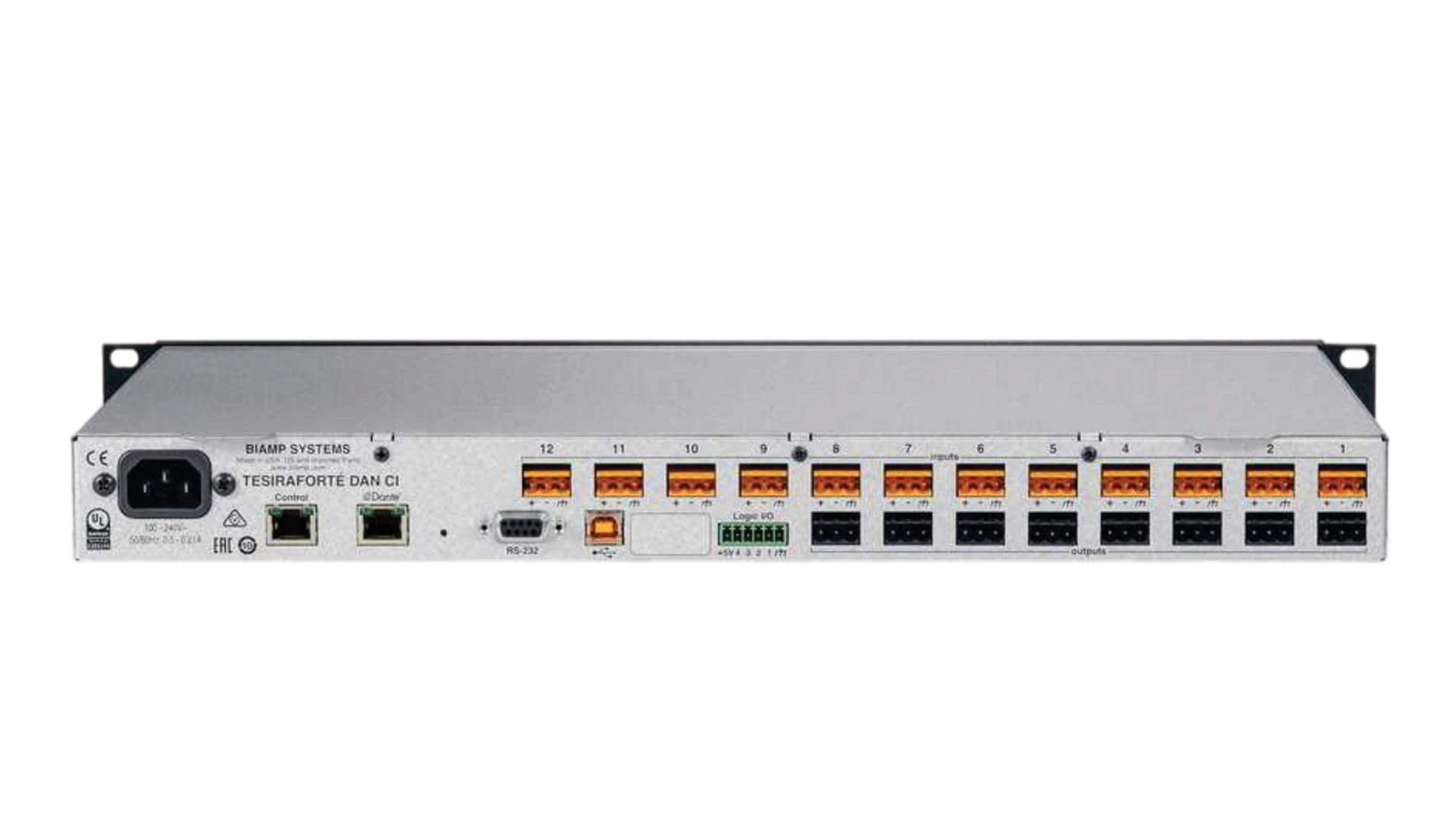

Biamp TesiraFORTE DAN CI

Šifra: 22464
Obavesti me ako cena padne Postavi pitanje
Opcija:



The TesiraFORTÉ DAN CI is a purpose-built digital signal processor designed for conferencing environments that require Dante networking, AES67 interoperability, and advanced acoustic echo cancellation. With 32×32 channels of Dante, the processor integrates seamlessly into large-scale audio-over-IP systems, offering robust routing and low-latency audio transport across enterprise, education, and government installations.

Equipped with 12 microphone/line inputs featuring AEC, the TesiraFORTÉ DAN CI delivers clean, echo-free speech for remote participants, ensuring clarity even in acoustically challenging rooms. The 8 mic/line outputs provide flexible distribution to loudspeakers, zone amplifiers, recording devices, and auxiliary systems.

Configuration and control are managed through Tesira software, offering comprehensive tools for routing, mixing, EQ, filtering, dynamics, and delay processing. The unit provides Gigabit Ethernet, RS-232, and GPIO connectivity for integration with automation platforms and third-party control systems. An onboard two-line OLED display with capacitive-touch navigation allows installers to quickly review system status and make critical adjustments onsite.

Engineered for reliability and ease of deployment, the TesiraFORTÉ DAN CI includes an internal universal power supply and meets CE, UL, and RoHS compliance standards. The processor is fully TAA compliant, making it appropriate for U.S. federal and government projects. As a Biamp Workplace Ready device, it supports cloud-based monitoring, remote commands, and lifecycle management through the Biamp Workplace platform.

GENERAL
Height: 1.75 inches (44 mm)
Width: 19.0 inches (483 mm)
Depth: 10.5 inches (267 mm)
Weight: 8 lbs (3.63 kg)


ENVIRONMENTAL
Ambient Operating Temperature Range: 32-104° F (0–40° C)
Humidity: 0–98%, non-condensing
Altitude: 0-6,600 feet (0–2000 Meters) MSL


POWER
Power Consumption: 100-240VAC 50/60Hz: < 35W
Phantom Power: +48VDC (7mA/input)


AUDIO
Audio: Fixed I/O DSP with 32 bi-directional channels of Dante™ digital audio, 12 analog inputs with Acoustic Echo Cancellation (AEC), and 8 analog outputs. It also includes up to 8 channels of configurable USB audio.
Input Type: USB: Bit Depth: 16- or 24-bit Number of Channels: up to 8 Sample Rate: 48kHz
Impedance: (balanced): 8kΩ
Input Gain Range: (6dB steps): 0-66dB
Maximum Input: +24dBu
Output Impedance: (balanced): 207Ω
Maximum Output: (selectable): +24dBu, +18dBu, +12dBu, +6dBu, 0dBu, -31dBu
Frequency Response: 20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB
EIN: (no weighting, 22Hz to 22kHz): < -125dBu
Dynamic Range: (in presence of signal): 22Hz to 22kHz, 0dB gain: > 108dB
Crosstalk: channel to channel, 1 kHz: 0dB gain, +4dBu input: < -85dB 54dB gain, -50dBu input: < -75dB
Sampling Rate: 48kHz
A/D Converters: A/D - D/A Converters: 24-bit


CERTIFIED SOLUTIONS
TAA Compliant: TAA Compliant


COMPLIANCE
Certifications:
• FCC Part 15B (USA)
• CE marked (Europe)
• UL und C-UL listed (USA and Canada)
• RCM (Australia)
• RoHS Directive (Europe)
