SYNQ DLP-48W
Garantujemo najnižu cenu!
- Milutina Milankovića 120D, Novi Beograd
Professional digital loudspeaker management processor.
4 inputs (DIGITAL AES + analog) and 8 analog outputs with full matrix routing capability
Direct access to 3 programmable default settings
The 4 inputs have:
8 Band equalizer (parametric, high shelf, low shelf)
Delay (adjustable up to 1000ms [= 346m]
Noisegate
Phase reverse
Gain / mute
All 8 outputs have:
Flexible source selection
Crossover (Linkwitz/Riley, Bessel, Butterworth)
6 Band equalizer (parametric, high shelf, low shelf)
Delay (adjustable up to 1000ms [= 346m]
Limiter
Phase reverse
Gain / mute
30 different speaker setups can be stored in the memory
If needed, the unit can be locked via a password

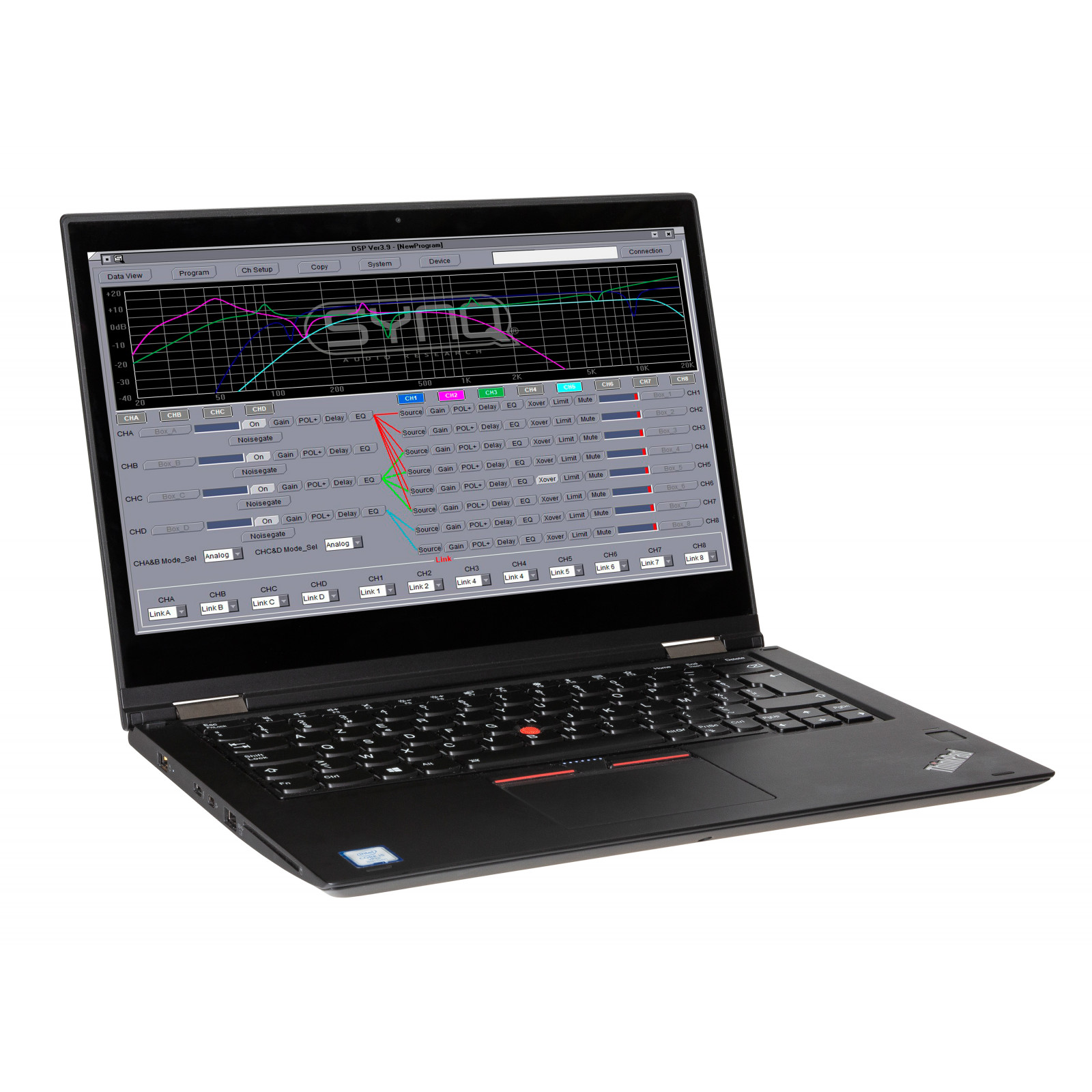

Easy parameter setup via PC:
Via USB: easy setup but cable length limited to 5m
Via LAN: long distance control for max. 250 units.
Via WiFi: wireless control
Complete Windows® software included with visually attractive and easy setup capabilities

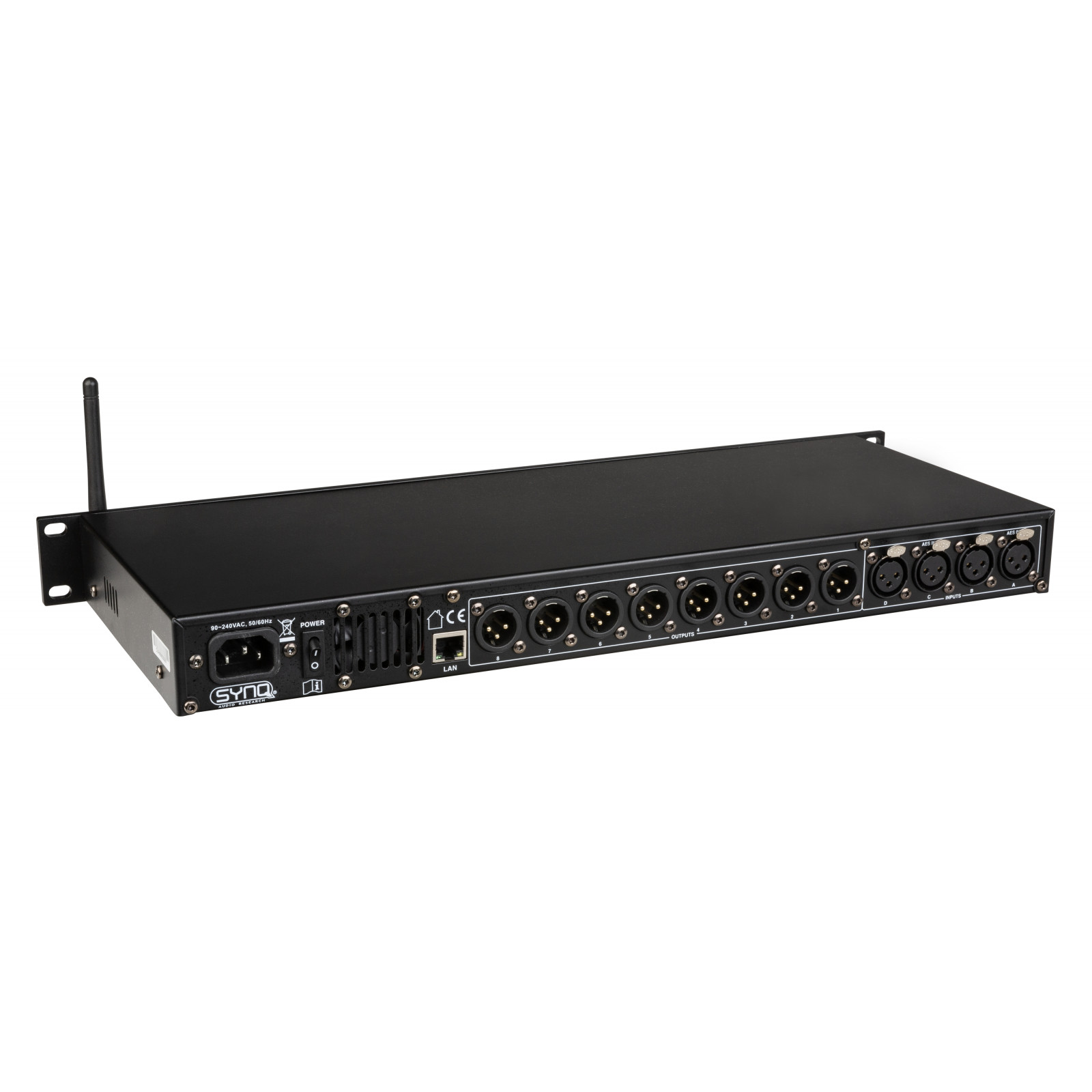

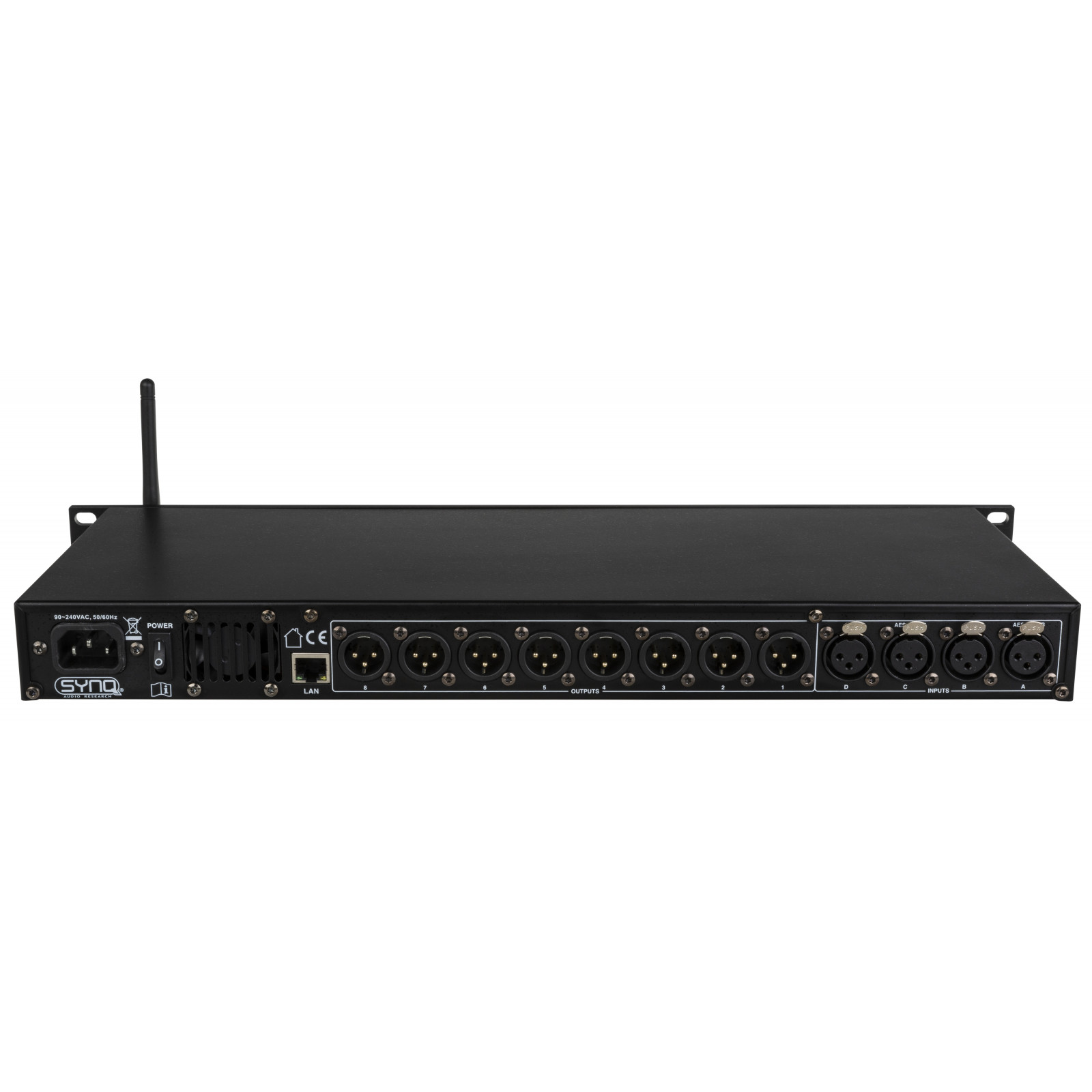

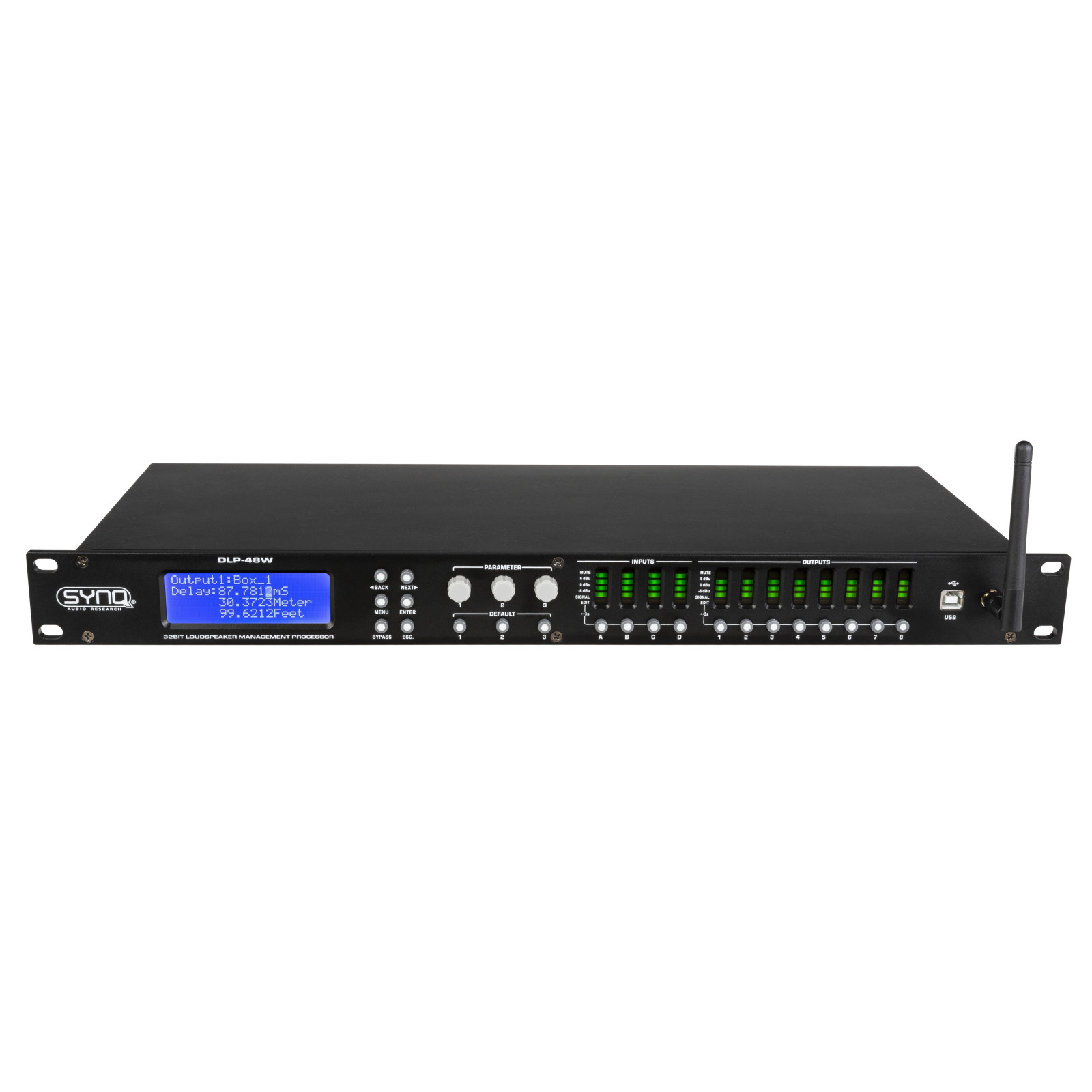

Clear LCD display. Balanced XLR in/outputs
|
General : Dimensions (cm) |
48 x 4.4 x 22 |
|
General : Weight (kg) |
2.62 |
|
General : Color |
black |
|
General : Powerinput |
AC 100 - 240V, 50/60Hz |
|
General : Energy Label |
No |
|
General : Display |
LCD |
|
General : Fixation |
Optional 19" rack mountable |
|
General : RU |
1U |
|
General : IP rating |
indoor |
|
Audio : min. frequency (Hz) |
20 |
|
Audio : max. frequency (Hz) |
20000 |
|
Audio : S/N ratio (> dB) |
100 |
|
Audio : max. output channels |
8 |
|
Audio : functions |
equalizer, adjustable crossover, limiter |
|
Connections : input |
3 pin XLR, usb, wifi, RJ45, IEC |
|
Connections : output |
3 pin XLR |
