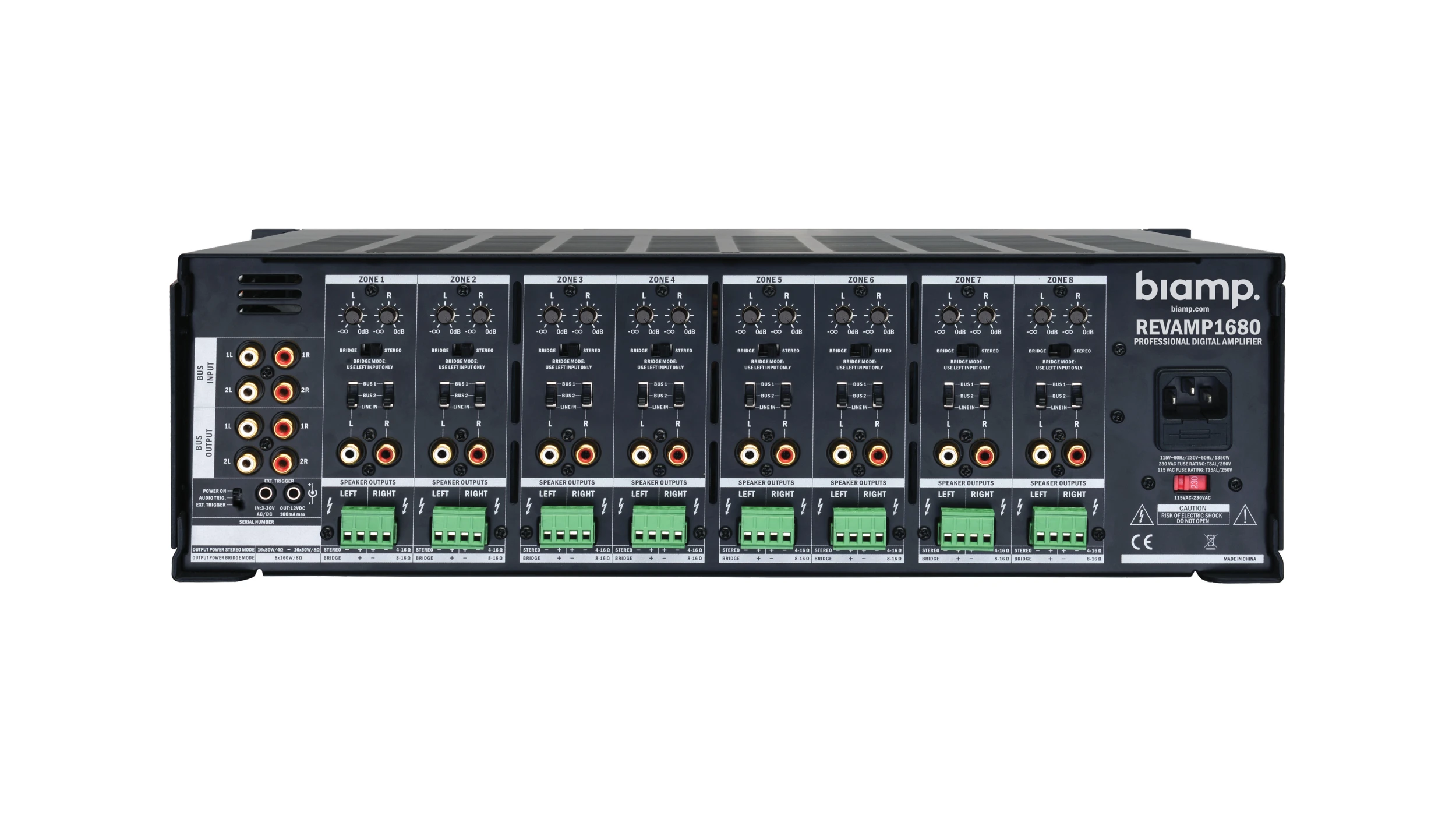

Biamp REVAMP1680
REVAMP1680 is a professional 16-channel digital power amplifier with 16 x 100 watts output power @ 4 ohms, but the unit is also bridgeable to 8 x 200 watts @ 8 ohms. This 3-rack unit high amplifier with very high channel separation also has a dual analog power supply with toroidal power transformers. The standby power consumption is very low, less than 0.5 watts.
Another smart feature of the REVAMP1680 is the switching mode standby power supply with multiple auto power on/off options. You can power on or power off the unit via a trigger input. The trigger input is ideal when you want to switch on the power amplifier automatically using an external AC or DC trigger signal coming from your audio system. The amplifier will be switched on as long as the trigger voltage is present.
Alternatively, you can set the power on mode switch to the audio trig position: the amp will automatically switch on when a sufficiently strong audio signal is present at the input and automatically switch off after a few minutes of silence.
dynamic output power 4 ohms in watts: 16 x 100
dynamic output power 8 ohms in watts: 16 x 60
dynamic output power bridged 8 ohms in watts: 8 x 200
minimum impedance load per channel in ohms: 4
power consumption (max) in watts: 1350
height- rack units (1U=44 mm) in U: 3
depth (incl front) in mm: 421
power supply technology: toroidal transformers
line input unbalanced: 20
power amp topology: class-D
cooling system: convection
Net weight product (kg): 21.70
RMS output power 4 ohms in watts: 16 x 80
RMS output power 8 ohms in watts: 16 x 40
output power RMS bridged 8 ohms in watts: 8 x 160
minimum impedance load bridged per channel in ohms: 8
19" (483 mm wide) rack mounting: yes
depth (build in) in mm: 405
power supply: 115 - 230 VAC
output channels: 16
channel separation: > 68 dB @ 1 kHz
frequency response (in Hz): 20 - 30 k
applicable low impedance: yes
