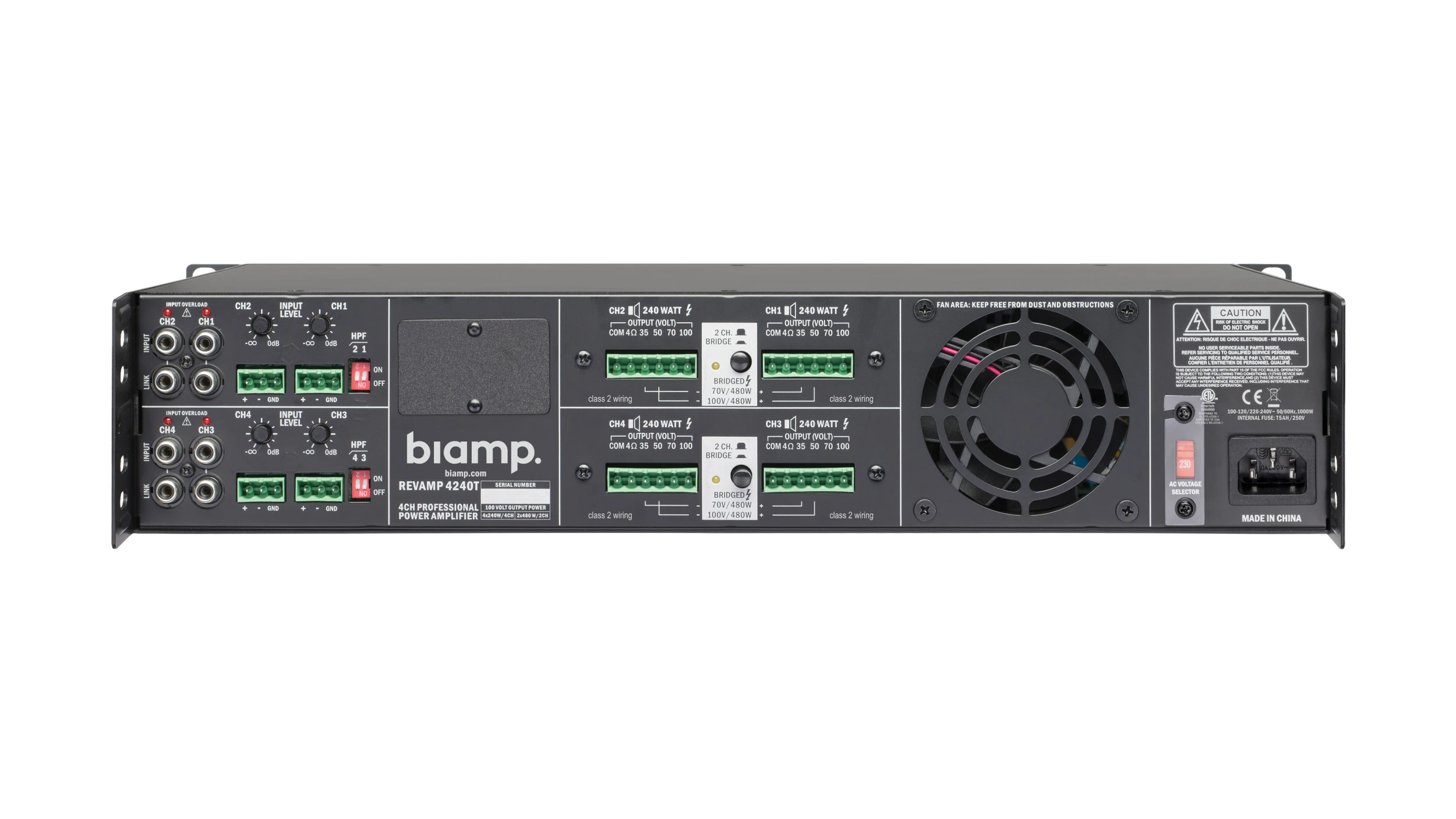

Biamp REVAMP4240T
The REVAMP4240T is a professional 4-channel digital power amplifier with 4 x 240W output power @ 100 volt, which is bridgeable to 2 x 480W @ 100 volt. The unit incorporates a high efficiency SMPS power supply and outputs with efficient Class D output topology.
The REVAMP4240T is the ideal amplifier for applications with 4 zones in mono, 2 zones in stereo or even bridged dual mono or bridged stereo systems. This amplifier contains an intelligent variable speed cooling fan that only will be activated in case of emergency.
In order to match each input to its respective source the input sensitivity can be adapted to specific needs. The input stage also features a built-in 250 Hz HP-filter to optimize the system for use on horn speakers.
GENERAL
Height:
• 88 mm
• Height - rack units 1U (44 mm) 2
Depth: 338 mm
Depth (build in): 330 mm
Weight: 16.70 kg
Mounting: Rack Mounting 19-inch (483 mm wide)
ENVIRONMENTAL POWER
Power: Power supply 115 - 230 VAC
Power Consumption: 1050 watts
Power Output:
• Dynamic output power 4 ohms 4 x 240 watts
• Dynamic output power 8 ohms 4 x 120 watts
• Dynamic output power bridged 8 ohms 2 x 480 watts
• Output power RMS 100 volts 4 x 240 watts
• RMS output power 4 ohms 4 x 240 watts
• RMS output power 8 ohms 4 x 120 watts
• Output power RMS bridged 8 ohms 2 x 480 watts
• Output power RMS bridged 100 volts 2 x 480 watts
• Output voltage tappings 4 ohms 100 - 70 - 50 - 35 volts
AMPLIFIER
Channels: Channel separation > 68 dB @ 1 kHz output channels 4
Amplifier: Power amp topology class-D
Power Banks: Power supply technology 2 x switching mode power supply
AUDIO
Impedance:
• Minimum impedance load per channel 4 ohms
• Minimum impedance load bridged per channel 8 ohms
• Applicable low impedance yes
Frequency Response: 50 - 20 kHz
NOTES
Specification Notes:
• Applicable in 100V
• Line input unbalanced 4
• Line input balanced 4
• Cooling System - Fan
