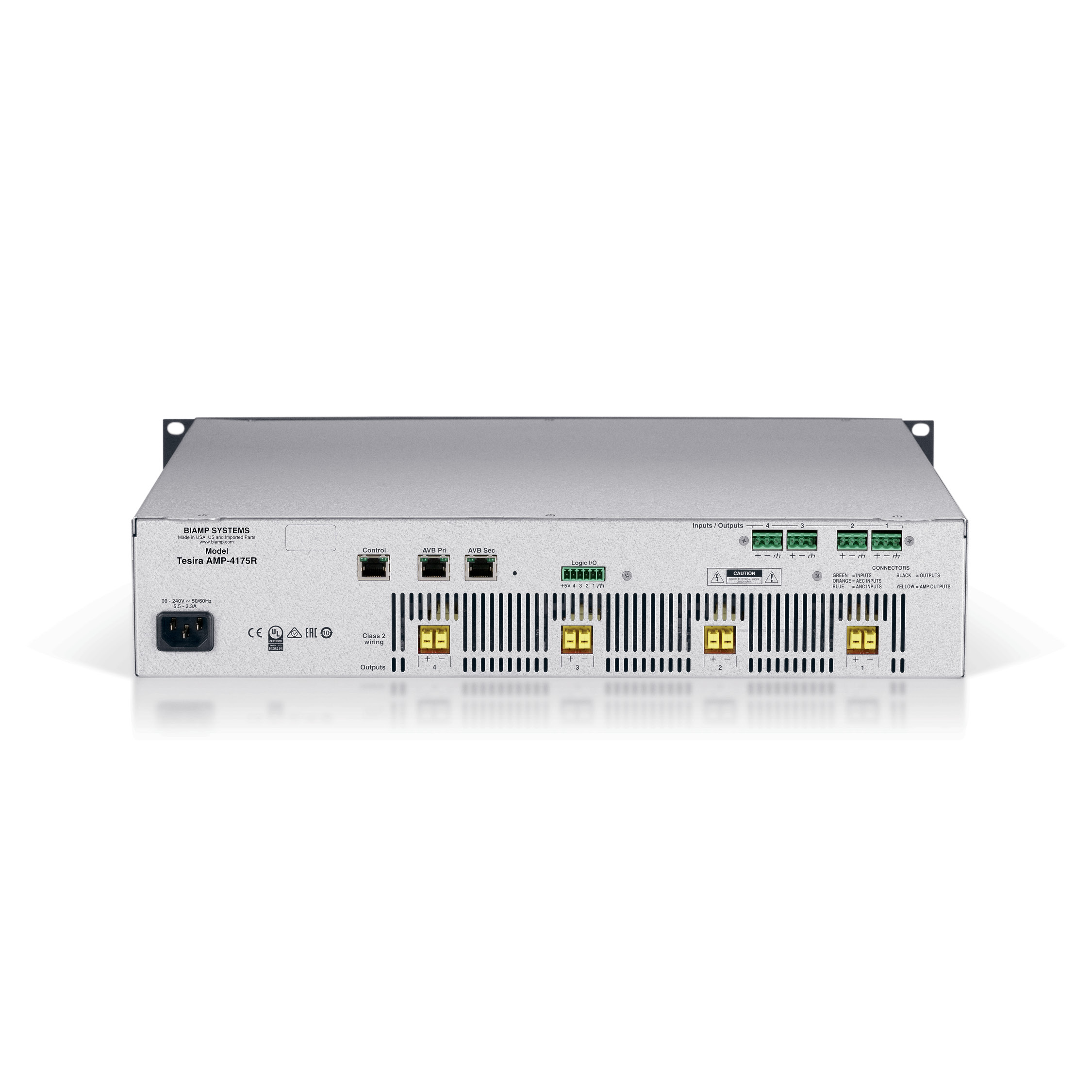

Biamp Tesira AMP-4175R
4-channel, 175W digital networked amplifier.
The Tesira AMP-4175R is a digital networked, four channel amplifier. It is AVB/TSN enabled and delivers 175 watts per channel. It is rack mountable, and part of an integrated Tesira audio network. It also offers fault reporting, impedance monitoring, and optional analog failover. The Tesira AMP-4175R complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
GENERAL
Height: 3.5 inches (89mm)
Width: 19 inches (483mm)
Depth: 17.4 inches (441mm)
Weight: 20.6 lbs (9.3 kg)
ENVIRONMENTAL
Ambient Operating Temperature Range: 32 - 104° F (0 - 40° C)
Humidity: 0-95% relative humidity (non-condensing)
Altitude: 0-10,000 ft (0-3000m) MSL
POWER
Power: Current Draw (100-240VAC 50/60Hz): 5.5–2.3A
Current Draw: (100-240VAC 50/60Hz): 5.5–2.3A
Cooling: Variable speed fan
AMPLIFIER
Channels: 4
Amplifier: Minimum Operational Load: 2Ω
Optional Cards:
• Optional Analog Cards:
• Tesira EX-MOD cards:
• EIC-4, EIOC-4, EOC-4
AUDIO
Input Type: Dual AVB/TSN Input:,br> RJ-45 (CAT-5 or higher) inputs; primary and secondary
Impedance: Balanced Input Impedance (Analog Failover Inputs): 8 kΩ
Maximum Output:
• Maximum Rated Output:
• Single Channel, 4Ω, 8Ω: 175W
• Bridged, 8Ω: 350W
THD+N: (20Hz-20kHz, @ rated power): < 0.3%
Frequency Response: (20Hz-20kHz): ± 1dB
Dynamic Range: (20Hz-20kHz): > 100dB
CERTIFIED SOLUTIONS
TAA Compliant: TAA Compliant
COMPLIANCE
Certifications:
• FCC Part 15B (USA)
• UL and C-UL listed (USA and Canada)
• CE Marked (Europe)
• RoHS Directive (Europe)
• Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
DISCONTINUED
Discontinued Products: Discontinued
