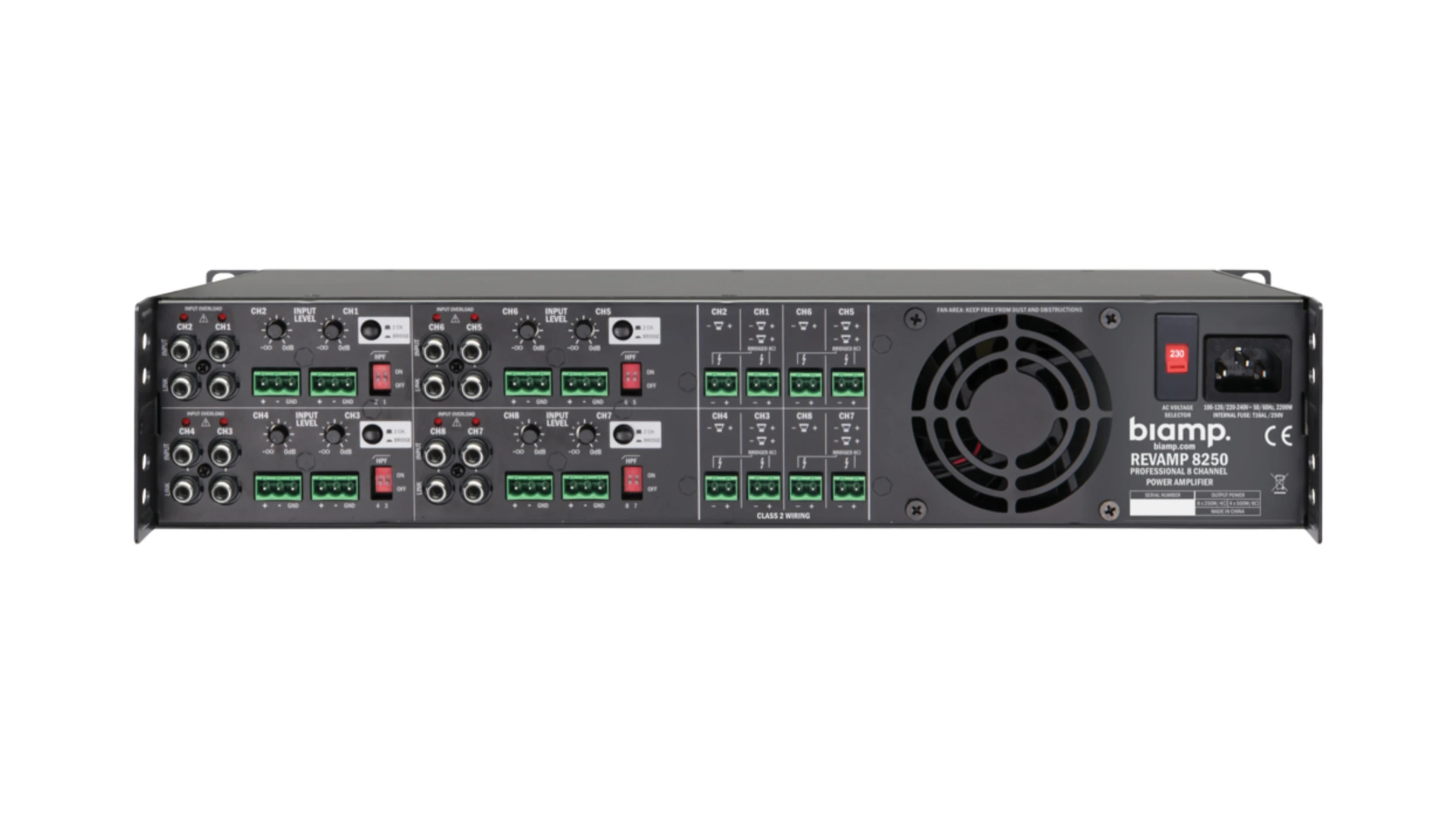

Biamp Commercial Audio REVAMP8250
8-channel Class D amplifier 8 x 250 Watts.
This 8-channel bridgeable power amplifier is all about versatility. Combined with a pre-amplifier or matrix, the REVAMP8250 can be used to create 8 zones in mono, 4 zones in stereo, even 4 bridged mono or 2 bridged stereo systems can be created. The amplifier has an intelligent variable speed cooling fan built-in to keep the unit cool.
When installing the REVAMP8250, a helpful input overload LED indicator on the rear and amplifier clip indicator on the front will help ensure a fast and hassle-free installation.
GENERAL
Height: 1U: 1.73 inches (44 mm): 2 Rack units
Width: Rack Mounting: 19 inches (483 mm)
Depth:
• 13.07 inches (338 mm (including front)
• 12.99 inches (build in) 330 mm)
Weight: 47.84 lbs (21.7 kg)
POWER
Power: Power supply 115 - 230 VAC
Power Consumption: 2200 watts
Power Output:
• Dynamic output power 4 ohms: 8 x 350 watts
• Dynamic output power 8 ohms: 8 x 175 watts
• Dynamic output power bridged 8 ohms: 4 x 650 watts
• RMS output power 4 ohms: 8 x 250 watts
• RMS output power 8 ohms: 8 x 125 watts
• Output power RMS bridged 8 ohms: 4 x 500 watts
• Output voltage tappings 4 ohms: 100 - 70 - 50 - 35 volts
AMPLIFIER
Channels:
• Channel separation > 60 dB @ 1 kHz
• Output channels: 8
Amplifier: Power amp topology class-D
Power Banks:
• Max Power Consumption: 525 watts
• Power supply technology: switching mode power supply
AUDIO
Impedance:
• Minimum impedance load per channel: 4 ohms
• Minimum impedance load bridged per channel: 8 ohms
• Applicable low impedance: yes
Frequency Response: 50 - 20 kHz
NOTES
Specification Notes:
• Applicable in 100V
• Line input unbalanced 8
• Line input balanced 8
