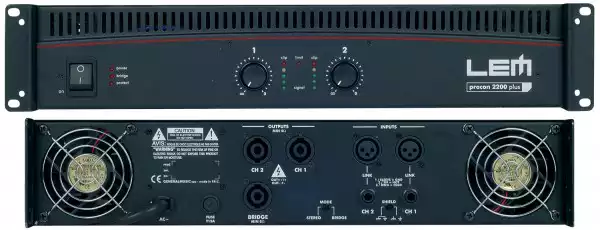

LEM Procon 2200 plus - Razglasno pojačalo
Šifra: 2031
Na stanju
Regularna cena:
71.880,00 rsd
49.900,00 rsd (Bez PDV-a)
Cena sa popustom * :
Cena za kupovinu na rate:
59.880,00 rsd
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.
Iznos rate:
Ušteda :
12.000,00 rsd
Prijavi povoljniju cenu
Prikazana cena je za komad.
Garantujemo najnižu cenu!
Dostupno u prodavnici:
- Futoški put 1, Novi Sad
- Ugrinovački Put 10n, Zemun
The PROCON SERIES power amplifiers have been designed by LEM in order to provide great efficiency, dynamics and reliability at a very affordable price, in a variety of fixed and mobile audio applications. The accurately designed circuitry and selected components offer excellent sound quality and high fidelity audio reproduction. The compact design improves the price/performance ratio, while the rugged metal chassis guarantees maximum sturdiness.
| Power specifications | |
| EIA output power (1 kHz, THD 1%) Both channels |
8 ohms: 650W + 650W 4 ohms: 1.100W + 1.100W 8 ohms bridged: 2.200W |
| Electrical specifications | |
| Input sensitivity | 0dB (0.775V) |
| Input impedance | 10 kohms (balanced) |
| Frequency response | 10Hz - 50kHz (-0,5dB) |
| Voltage gain | 39 dB |
| Slew rate | 22 V/ms |
| Damping factor | Higher then 400:1 @ 1kHz, 8 ohms |
| Crosstalk | -82dB (1kHz) |
| S/N ratio | -98dB |
| Harmonic distorsion (THD) |
Lower then 0,1% (ref 20Hz -20kHz) |
| Intermodulation distortion SMPTE |
Lower then 0,1% (SMPTE method, 60Hz & 7kHz, 400:1 ratio) |
| General specifications | |
| Protections | Power transformer thermal protection; short circuit protection; sensor for current on outputs; clip limiter on each channel; soft-start circuit (1000P to 2200P) |
| Controls | On/off switch, 21-detect input level control for each channel, Mode selector, Shield selector |
| Indicators | Power On: 1 red LED Bridge: 1 red LED Protect: 1 red LED Level: 2 x 5 LED meter Limit: 1 red LED |
| Connections | Input: 1 XLR-F + 1 1/4' jack in parallel for each channel Output: 2 binding post + 1 speakon for each channel (400-1500); 1 speakon for each channel + 1 speakon for Bridge output (1800-2200) |
| Power supply | See label on the apparatus |
| Dimensions (W x H x D) |
483 x 88 x 456 mm / 19' x 3,46' x 17,95' |
| Weight | 25 kg / 55,1 lbs |
