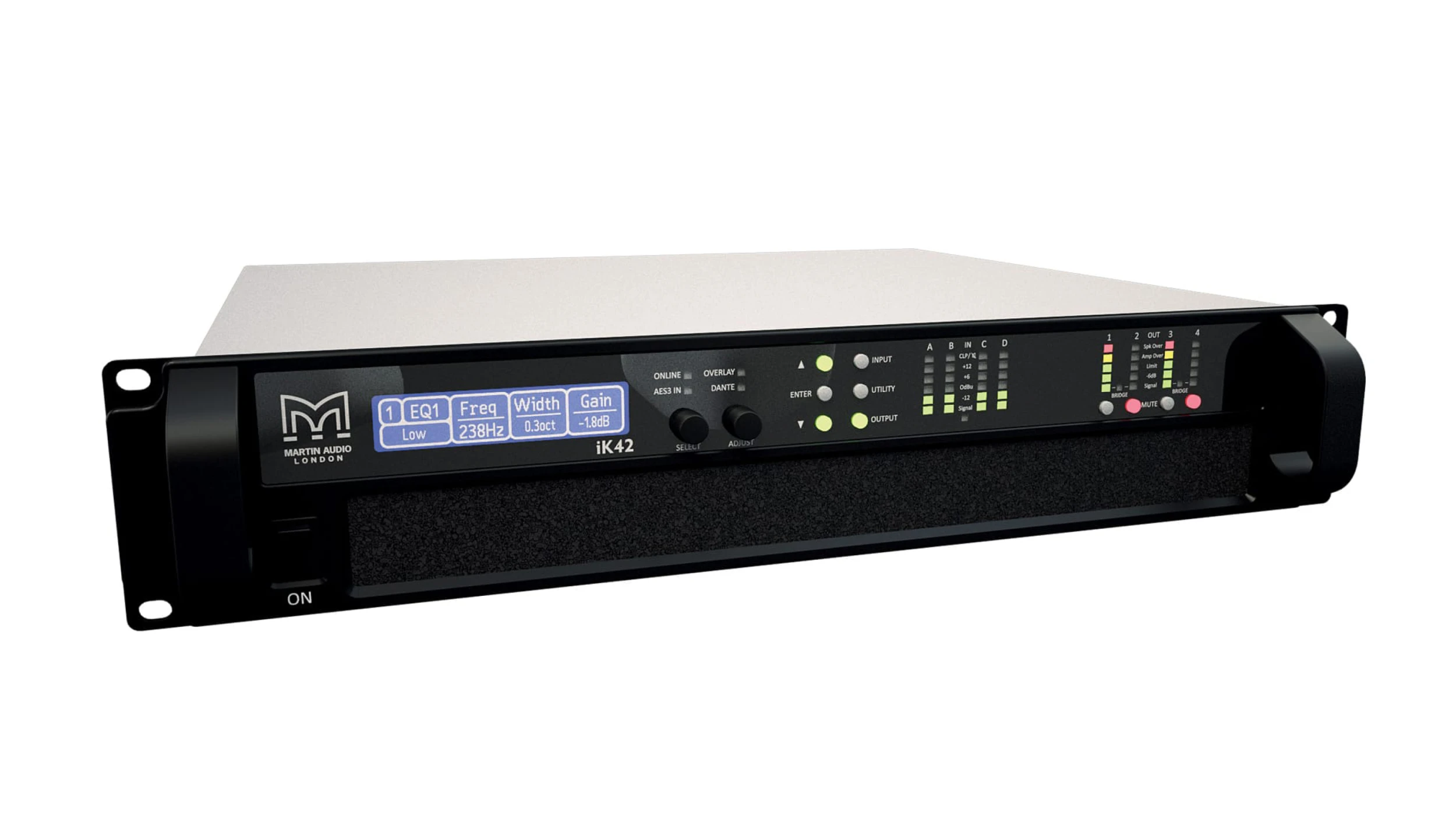

Four-channel 20,000W Class D Power Amplifier
The iKON iK42 is an advanced 4-channel power amplifier which combines very high power density with superb audio performance, state-of-the-art DSP and network control. A dedicated controller amplifier for Martin Audio Wavefront Precision line arrays and XE Series stage monitors, the iK42 can also provide multi-channel amplification across the Martin Audio loudspeaker range.
General
TYPE: Four-channel Class D amplifier
POWER OUTPUT (*):
ā¢ 5000W into 2Ī©
ā¢ 3000W into 4Ī©
ā¢ 1500W into 8Ī©
ā¢ 750W into 16Ī©
ā¢ 10000W bridged per channel pair, 4Ī©
ā¢ 6000W bridged per channel pair, 8Ī©
CV LINE OUTPUT (*):
ā¢ 1250W, 25V line
ā¢ 3500W, 70V line
ā¢ 5000W, 100V line
DIGITAL SIGNAL PROCESSING: 96kHz/48kHz DSP on all inputs and outputs
COOLING: Dual vari-speed fans, front-to-back airflow
MAXIMUM AMBIENT TEMPERATURE: 40Ā°C (104Ā°F)

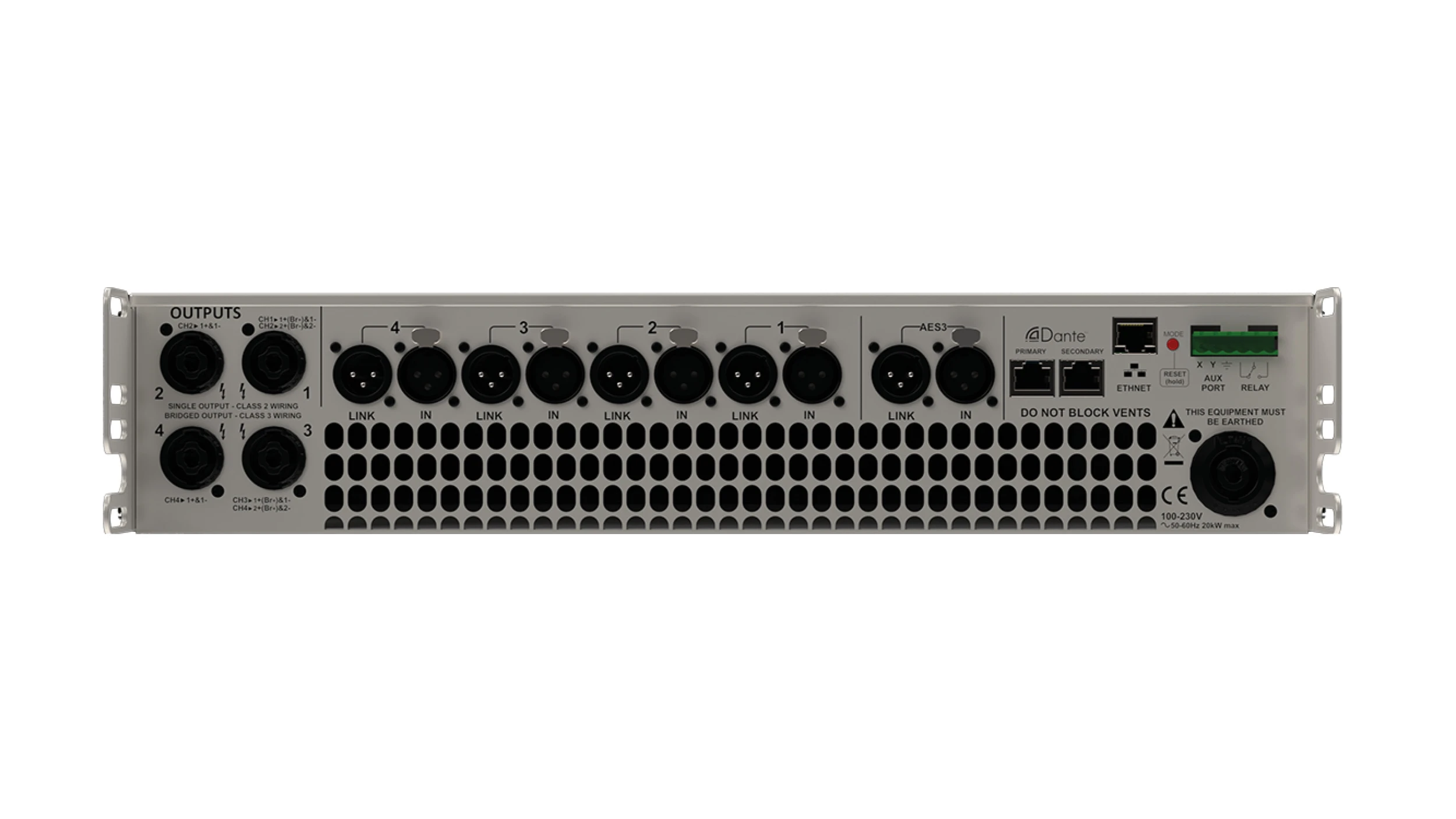

Audio Inputs/Outputs
ANALOGUE IN/LINK (4 CHANNELS):
ā¢ 4 x female
ā¢ 4 x male Neutrikā¢ XLR
ANALOGUE INPUT IMPEDANCE: 20kĪ© balanced to ground
MAXIMUM ANALOGUE INPUT LEVEL: +20dBu
AES3 IN/LINK (2 CHANNELS): 1 x female, 1 x male Neutrikā¢ XLR, balanced
DANTEā¢ (4 CHANNELS) (AES67 COMPATIBLE): 2 x shielded RJ45, primary and secondary
AMPLIFIER OUTPUTS: 4 x Neutrik Speakonā¢ NL4
Audio Performance
DYNAMIC RANGE:
ā¢ >113dBA, analogue input
ā¢ >114dBA AES/Danteā¢ input
FREQUENCY RESPONSE: 7Hz-30kHz (ā2.5dB points, 4Ī© load)
TOTAL HARMONIC DISTORTION: <0.05% typical @ 1kHz, 4Ī© load
SLEW RATE: >60V per microsecond
DAMPING FACTOR: >800 at amplifier output, ref 8Ī©
Control and Monitoring Network
PROTOCOL: Ethernet
CONTROL APPLICATION: Martin Audio VU-NETā¢
Digital Signal Processing
SAMPLE RATE: 96kHz (48kHz for FIR filter implementation)
AUDIO INPUTS: 4 x analogue, 1 x AES pair with link output, 4 x Danteā¢ inputs routable to 4 x input DSP
DRIVE MODULE INPUT DSP:Ā
ā¢ Input signal routing, delay, gain, HPF, Phase, Mute
ā¢ EQ: 2 x low shelf, 6 x PEQ/bandpass and FIR shelving filters
DRIVE MODULE OUTPUT DSP:Ā
ā¢ Source, delay, gain, Phase, Mute, crossover filters, limiters
ā¢ EQ: low shelf, 8 x PEQ / band pass and shelving filters
Power Supply
TYPE: High performance Series Resonant
AC INPUT OPERATING RANGE: 85 ā 240V ~ AC, 47 - 63Hz
MAINS INRUSH CURRENT: 6A at 115V, 12A at 230V (max for <10ms)
MAINS CONNECTOR: Neutrik 32A Powerconā¢
Physical
DIMENSIONS:Ā
ā¢ (W) 482 x (H) 2U/88mm x (D) 441mm
ā¢ (W) 18.98in x (H) 2U/3.46in x (D) 17.35in (incl handles and optional rear support)
WEIGHT: 12.5kg (27.5lbs)
