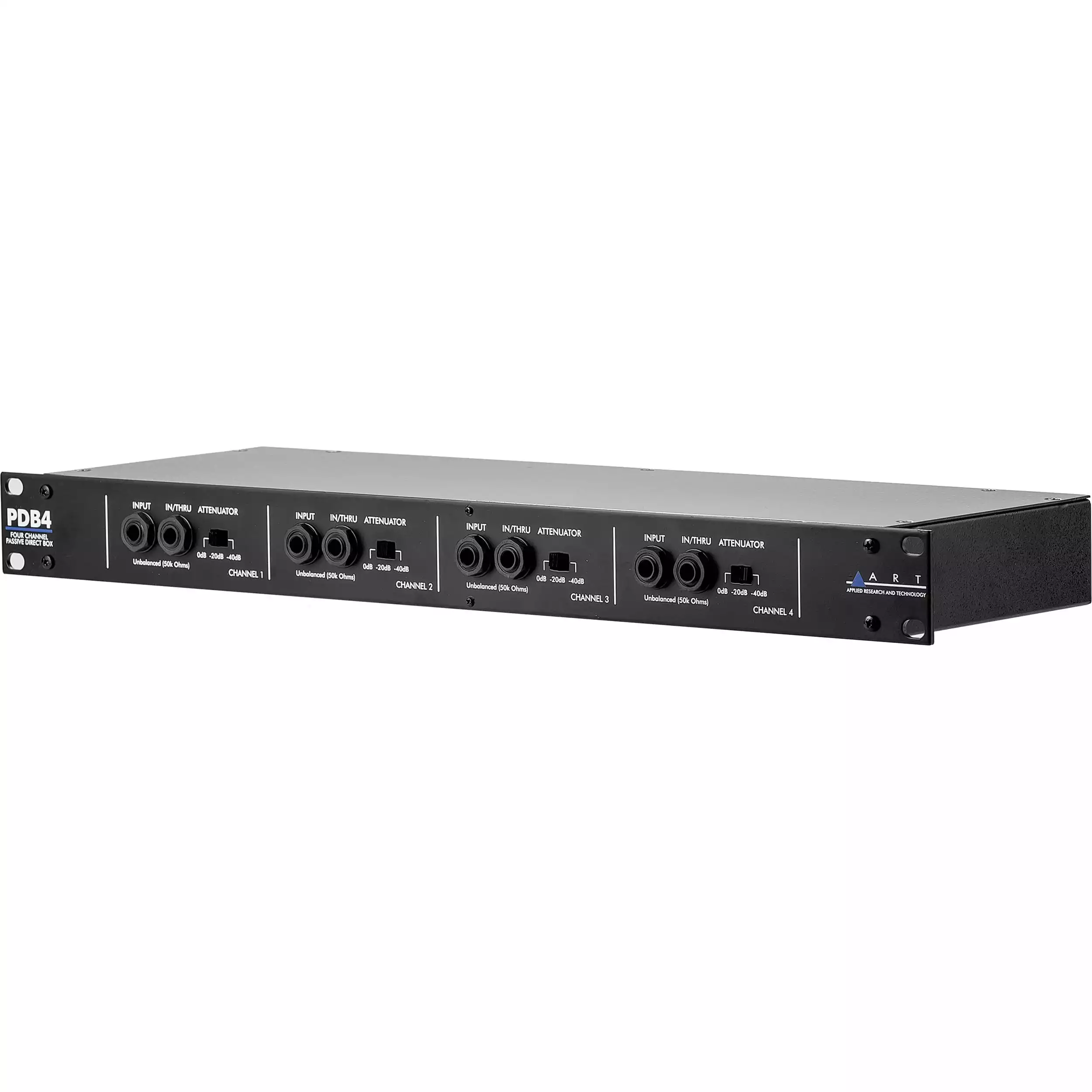

The ART PDB4- Rackmountable 4-Channel Passive Direct Box is designed for studio and live performance applications. The 1RU 19" rackmountable passive device features four fully transformer isolated direct boxes with inputs and outputs isolated from one another to maximize channel separation and remove system ground loops. It can be used to connect the 1/4" outputs of electronic music instruments and other audio sources to the balanced XLR inputs of a mixing console or other balanced audio equipment.

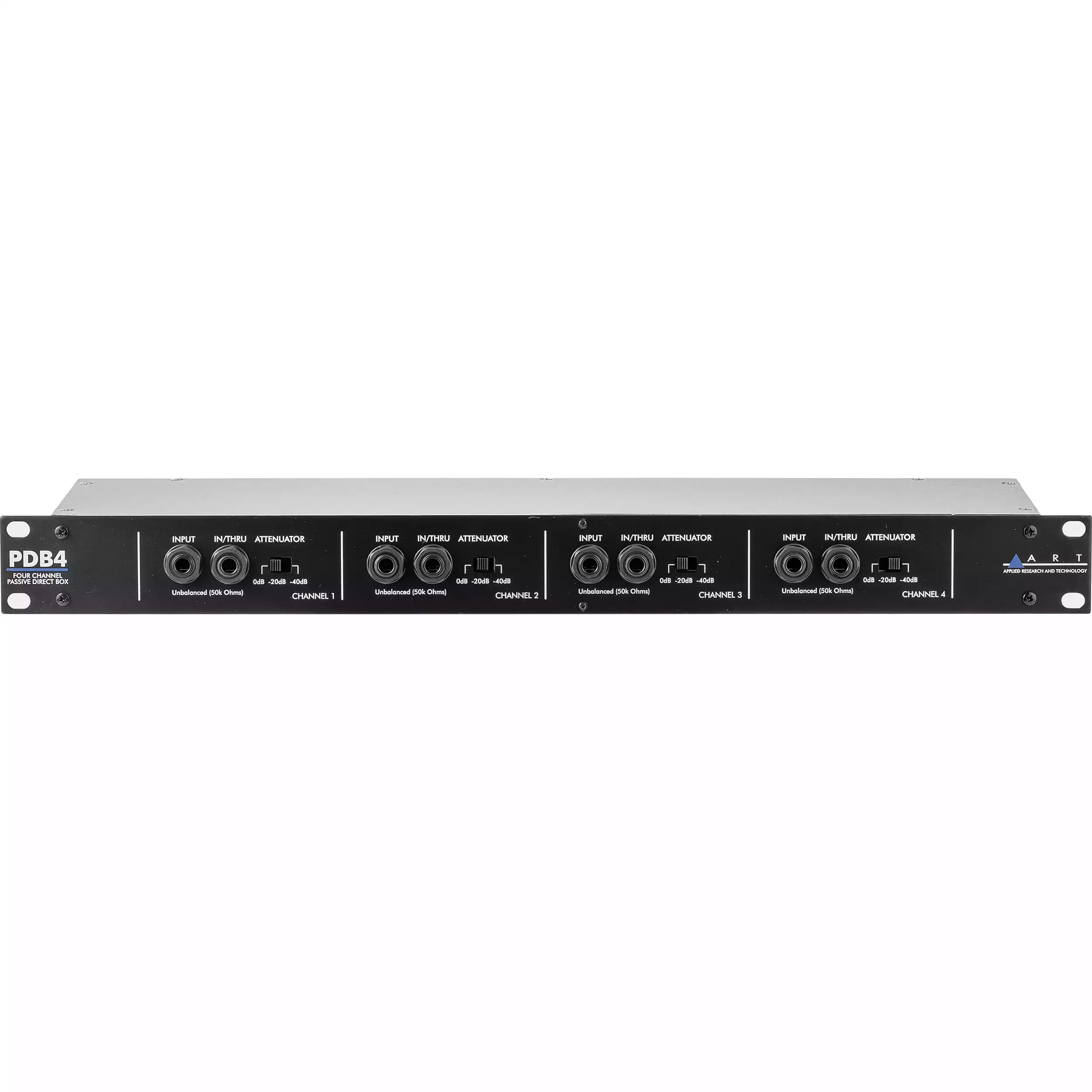

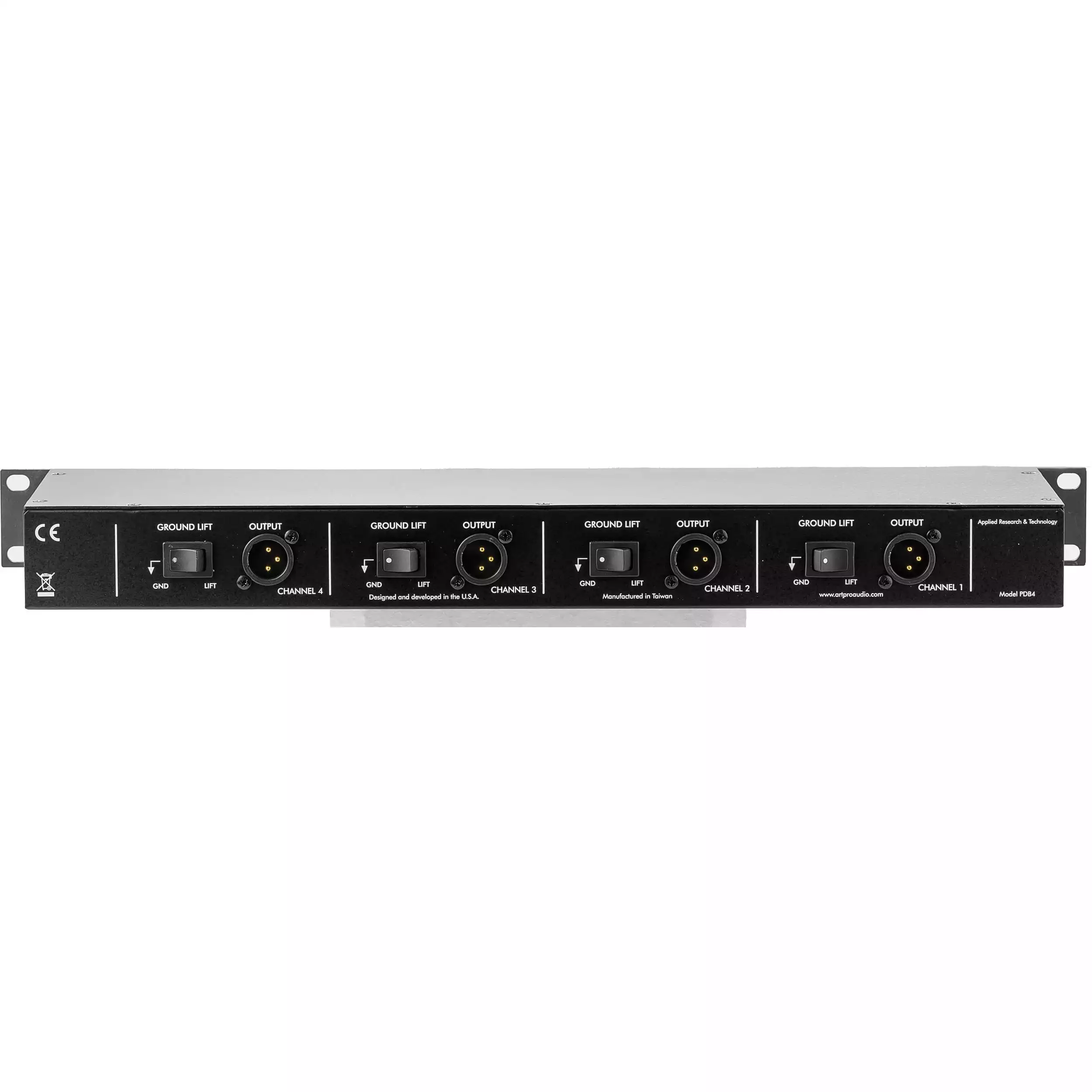

Each channel features a front panel 1/4" input, a 1/4" pass thru, and an input attenuation switch with 0 dB, -20 dB, -40 dB settings and accepts a frequency response of 10 to 50,000 Hz. Each channel features a back panel balanced XLR-3M output for connecting to a mixing console or preamplifier for recording as well as a ground lift switch.
ART PDB4 Specs
Inputs 4x 1/4" TS unbalanced
Outputs 4x 1/4" TS unbalanced pass thru
4x XLR-3M balanced
Input Impedance 50 kΩ
Output Impedance 600 Ω
Ground Lift Switchable
Input Attenuation Switchable (0 dB, -20 dB, -40 dB)
Frequency Response 10 to 50,000 Hz (±0.5 dB at +4 dBu)
Chassis Steel
Power Requirement Passive
Dimensions 1.75 x 19.00 x 6.00" (44.5 x 483 x 152 mm)
Weight 6.50 lb (2.95 kg)
Packaging Info
Package Weight 5.25 lb
Box Dimensions (LxWxH) 21.8 x 9.8 x 3.1"
