The unit's audio transformers have flat and wide frequency response and handle high signal levels while maintaining an isolated balanced output. This gives the T8 a very clean and neutral sound with a wide variety of signal sources. The transformers are wound for 1:1 unity gain and are designed to be used with impedances from 600 Ω to 100k Ω.

Versatility
Useful for making a "clean" interface between a computer based audio workstation and a speaker system, isolation on long cable runs in a fixed installation, isolation of a signal source from any recording equipment, or in many cases, just a safer connection between two audio systems.

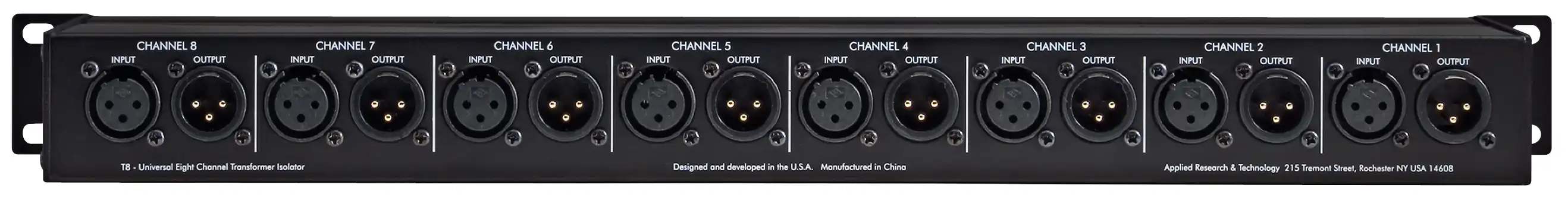

Connectivity
Provides XLR, 1/4" phone and RCA type phono connections on all inputs and outputs. This allows the unit to easily fit into virtually any audio system and be the clean patch point between all types of systems.
The mounting ears on the housing are reversible allowing for either the XLRs or the 1/4" and RCA phono jacks to be on the front of the unit. This maximizes flexibility in cabling a system.

Construction
Rugged construction and passive design allow the T8 to provide years of trouble free service in Live Sound, Permanent/Fixed Install, D.J. and virtually any PA application.

ART T8 Specs
Function Hum and ground-loop eliminator
Inputs 8 x XLR
8 x 1/4" TRS phone
8 x RCA phono
Outputs 8 x XLR
8 x 1/4" TRS phone
8 x RCA phono
Frequency Response 10Hz to 50kHz, +/-0.5dB @ +4dBu
Distortion Not specified by manufacturer
Crosstalk 90dB typical
Dimensions 19" x 3 3/4" x 1 3/4"
Weight 3.75 lbs
Specialties Passive design
