Unika NBB-0202
The NBB Series products are professional audio receiver and/or transmitter to send and/or receive audio datastream to/from the Dante network.
The NBB-0202 audio transceiver receives a couples of channels of analog audio and converts them intoDante networked stream which in turn can be received by other Dante-enabled devices; While it, in contrast,simultaneously transmits a couples of channels of analog audio converted from Dante networked streamwhich is distributed by other Dante-enabled devices. The audio receiver can accept signal in a wide rangefrom MIC level to LINE level while the output capability of the audio transmitter meets the industrialstandard up to 24dBu.
Channel Capacity (Analog)
• Input: 2x
• Output: 2x

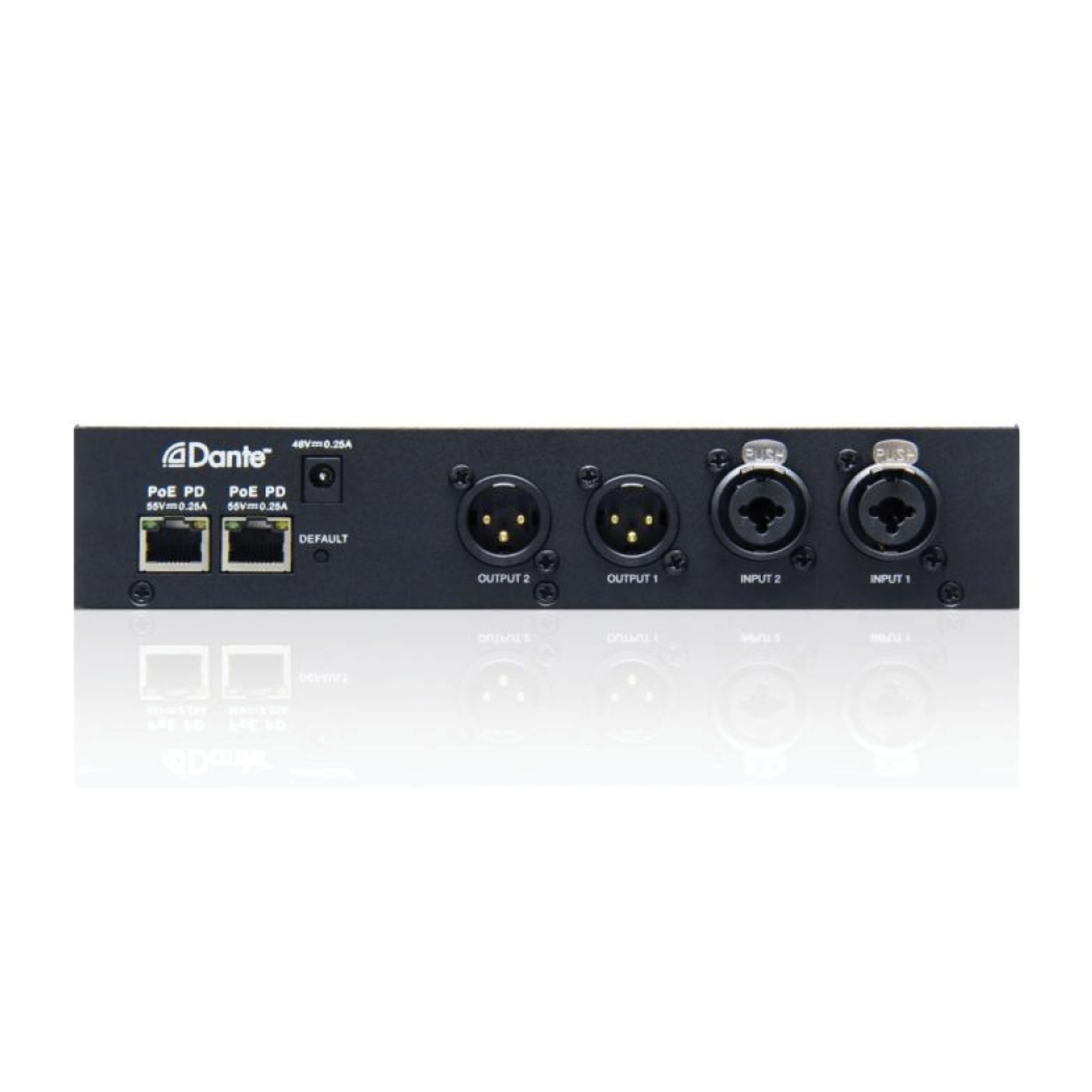

Audio Connectors (Analog)
• Input: XLR/TRS Combo
• Output: XLR
Level (Analog): 24dBu max.
Clip Indicator: 2x for each Input
Gain Control (Inputs): 60dB Rotary
Volume Control (Outputs): -20dB Rotary
+48V Phantom Power per Input: ON/OFF
Encoding: 24-bit PCM only
Sample Rate: 44.1KHz / 48KHz / 96KHz
Digitized Scaling: 0dBFS @24dBu
Ethernet: x2 Gigabit RJ45 Ports
Networking Mode: Switch Mode (a.k.a. Daisy-chain Mode)
Audio Latency: < 2ms typical
Flows (unicast + multicast): 2x
Node to Node Distance: 100m with Cat.5e Cable
Frequency Response: 20Hz ~ 20KHz ±0.5dB
S/N Ratio @0dBFS: > 105dB
THD+N @-10dBFS: < 0.002%
Dynamic Range: > 105dB
Crosstalk @10KHz: < -105dB
Powered by Adapter (rated): 48VDC, 0.15A
Powered by PoE (rated): 55VDC, 0.15A
Power Consumption: < 7.2Watts
Operation Temperature: 0 ~ 45℃
Operation Rel. Humidity: 0 ~ 90%
Construction: Metal Chassis with Aluminum Front Panel
Dimensions (H x W x D): 44mm x 220mm x 130mm
Net Weight: 845g
All the above test result are measured with no signal weighting.
The above information is subject to change without notice.
