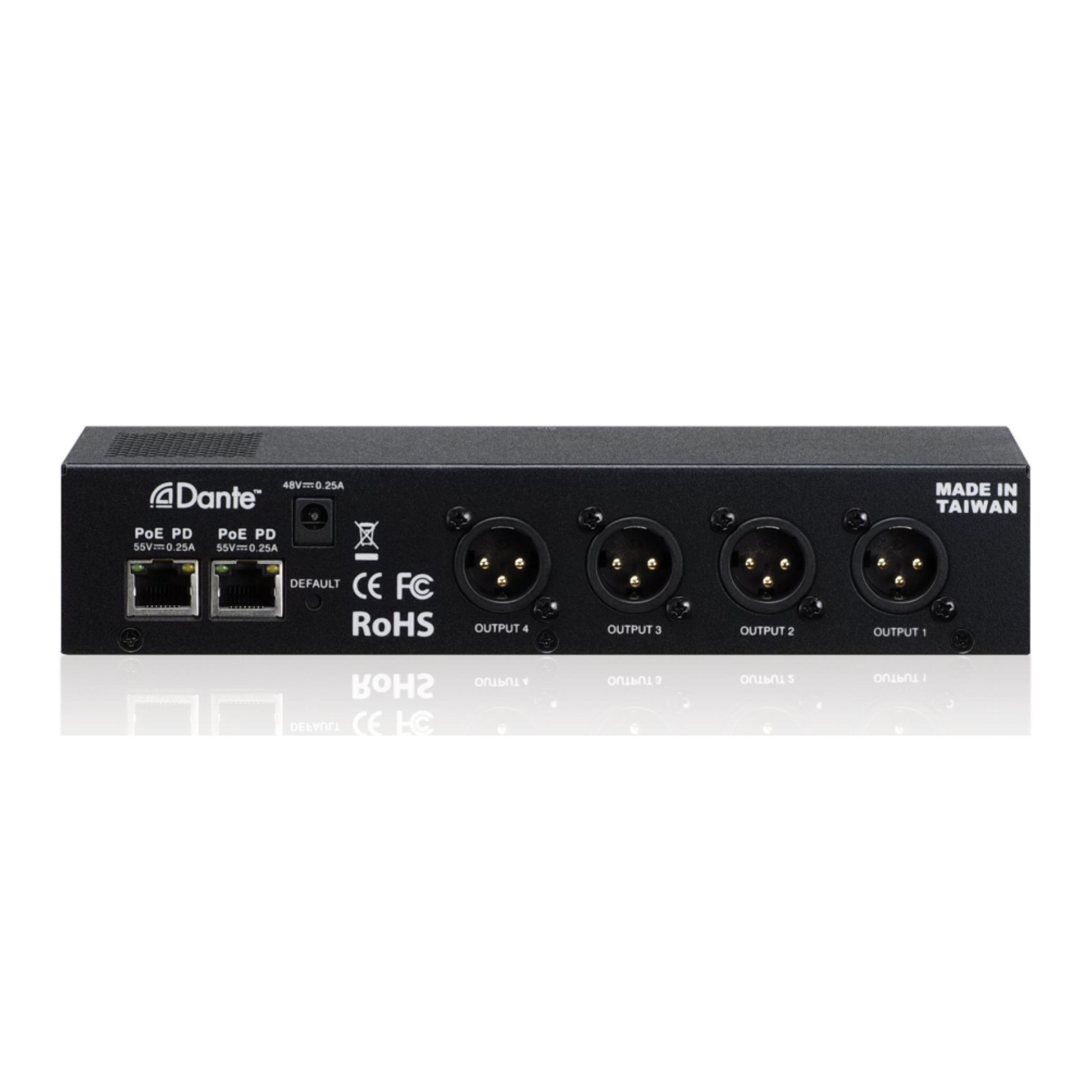

Unika NBB-04T
The NBB Series products are professional audio receiver and/or transmitter to send and/or receive audio datastream to/from the Dante network. The NBB Series products come with the following variation,
Channel Capacity (Analog)
Input:
Output: 4x
Audio Connectors (Analog)
Input:
Output:: XLR
Channel Capacity (Analog)
Input:
Output: 4x
Audio Connectors (Analog)
Input:
Output: XLR
Level (Analog): 24dBu max.
Clip Indicator
Gain Control (Inputs)
Volume Control (Outputs): -20dB Rotary
+48V Phantom Power per Input
Encoding: Uncompressed 32-bit or 24-bit PCM
Sample Rate: 44.1KHz / 48KHz / 96KHz
Digitized Scaling: 0dBFS @24dBu
Ethernet: x2 Gigabit RJ45 Ports
Networking Mode: Switch Mode (a.k.a. Daisy-chain Mode)
Audio Latency: < 2ms typical
Flows (unicast + multicast)
Node to Node Distance: 100m with Cat.5e Cable
Frequency Response: 20Hz ~ 20KHz ±0.5dB
S/N Ratio @0dBFS: > 105dB
THD+N @-10dBFS: < 0.002%
Dynamic Range: > 105dB
Crosstalk @10KHz: < -105dB
Powered by Adapter (rated): 48VDC, 0.15A
Powered by PoE (rated): 55VDC, 0.15A
Power Consumption: < 7.2Watts
Operation Temperature: 0 ~ 45℃111
Operation Rel. Humidity: 0 ~ 90%
Construction: Metal Chassis with Aluminum Front Panel
Dimensions (xWxD): 44mm x 220mm x 130mm
Net Weight: 820g
All the above est result are measured with no signal weighting.
The above information is subject to change without notice. 24dBu max.
