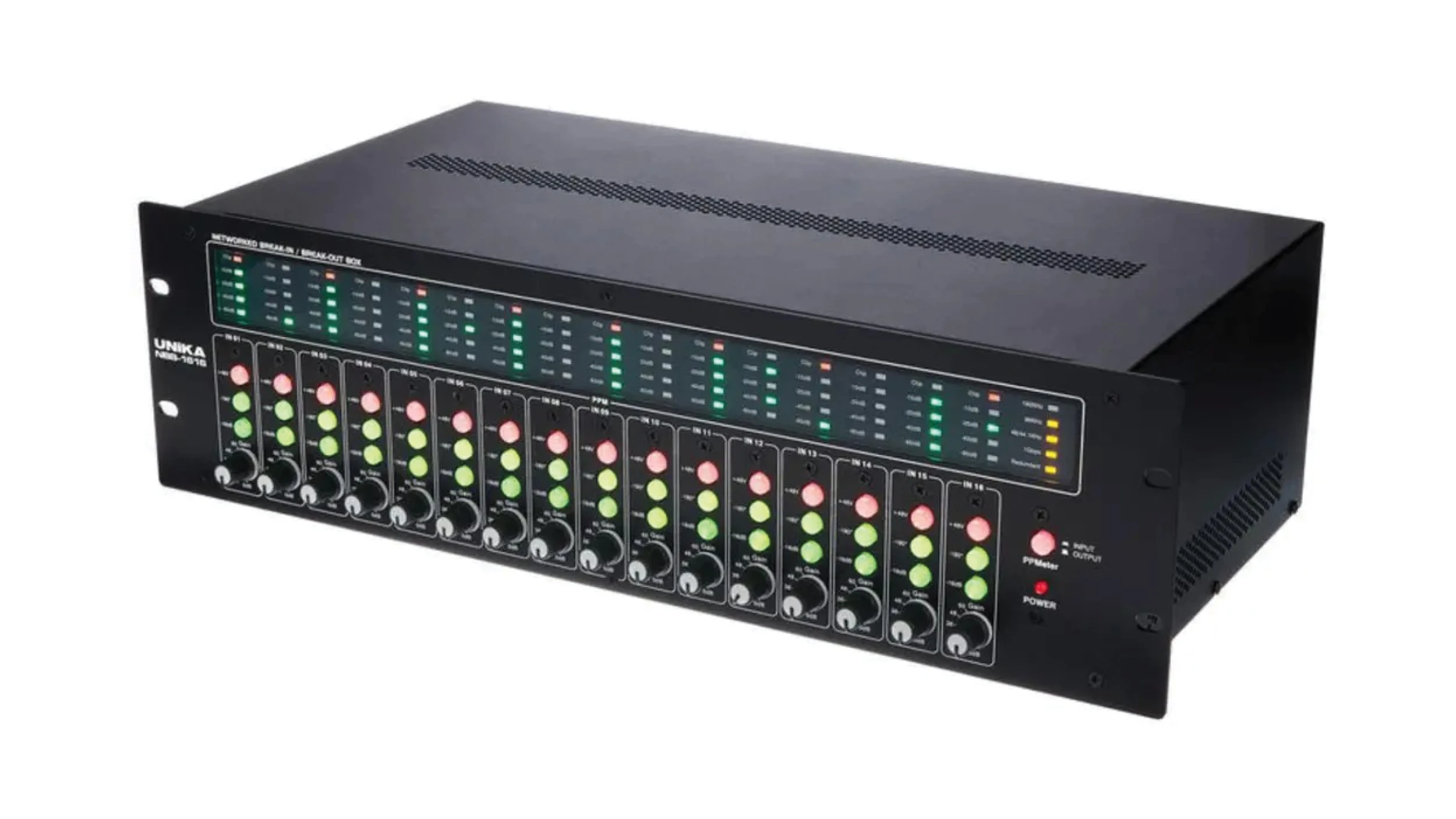

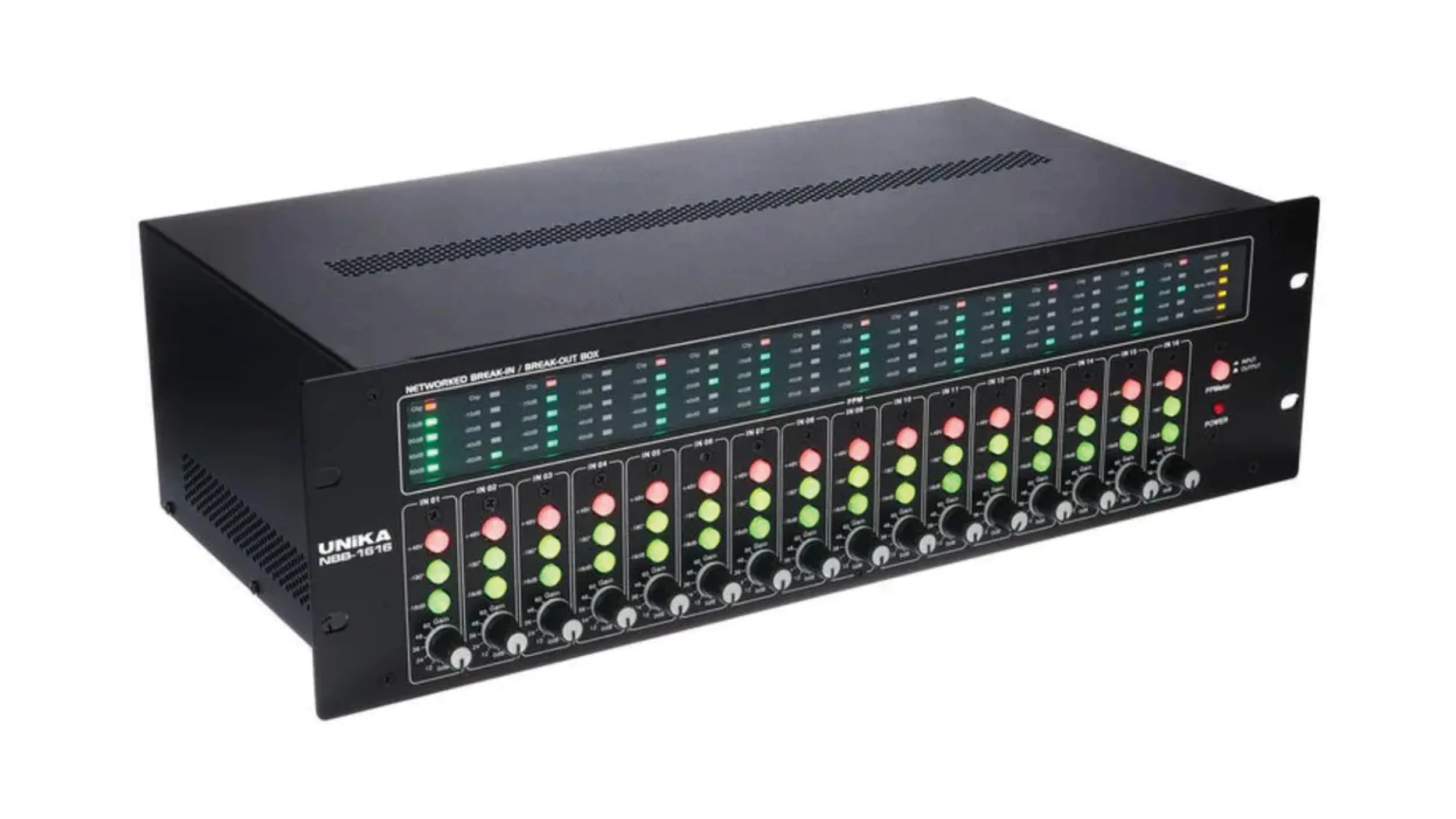

Unika NBB-1616

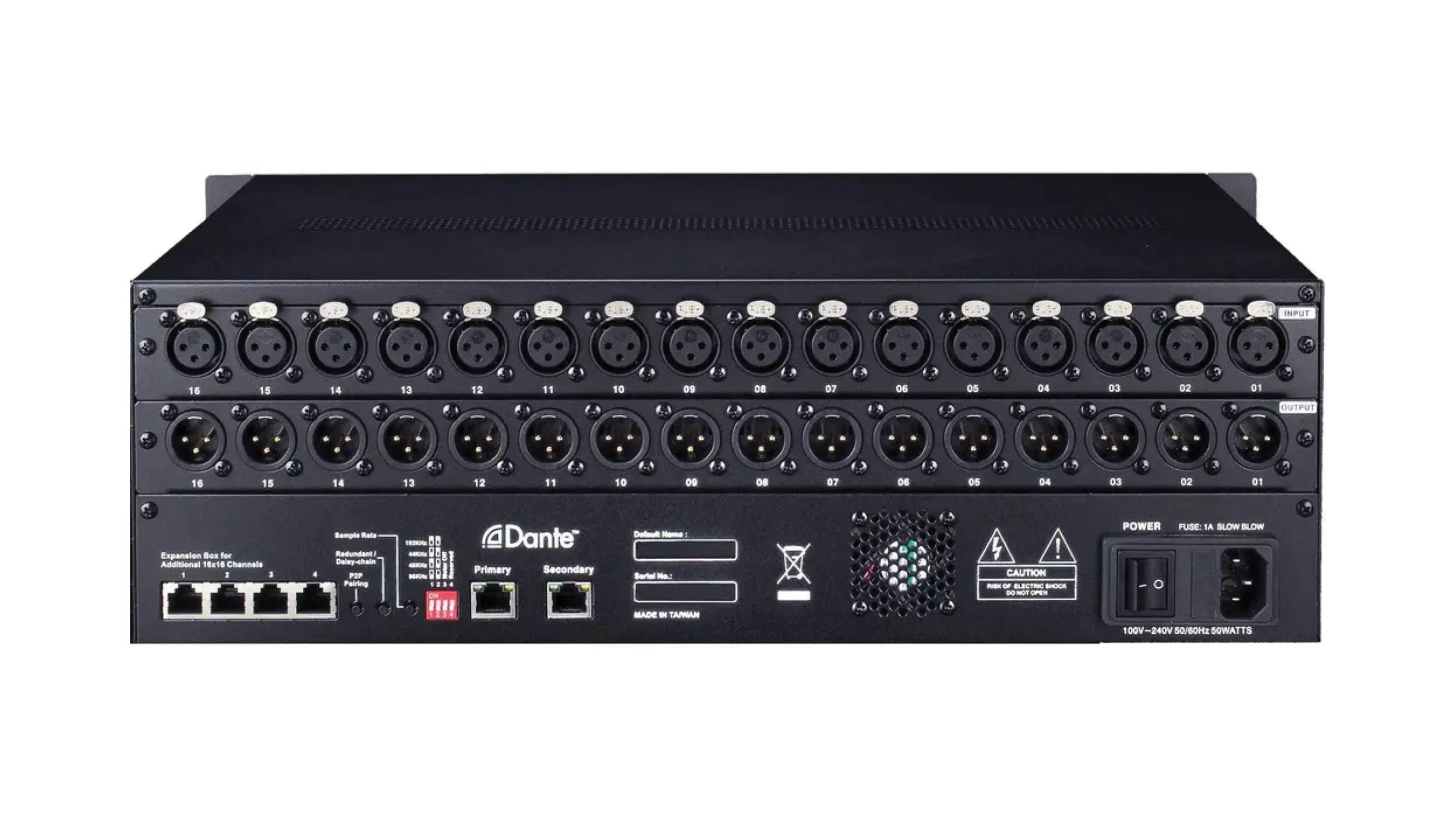

The NBB-1616 breakbox can be used as a stagebox and direct transceives audio to/from all kind of Dante-enabled audio consoles or DAW workstations in digital domain. With a dedicated P2P Pairing button on rear panel, two NBB-1616s can even be one-to-one paired to work as a digital snake which bidirectionally transceives audio throughout a regular Ethernet cable without the need of audio console or computer involved. All the routing configuration and device setting are automatically saved and preserved upon power recycle.
Channel Capacity: 16 x 16 Inputs and Outputs
Level Meter: PPM Meter with Clip Hold
Meter Scaling: 0dBFS @24dBu
Output: 24dBu max., Balanced XLR
Input: 42dBu max., Balanced XLR
Input Phase Control: 180° Inverting Control
Input Gain Control: 60dB Rotary and -18dB Pad Control
+48V Phantom Power: ON/OFF Control per Input
Encoding: Uncompressed 24-bit PCM
Sample Rate: 44.1KHz / 48KHz / 96KHz / 192KHz
Ethernet: x2 Gigabit RJ45 Ports
Networking Mode: Redundant or Daisy-chain
Transmission Distance: > 100m with CAT.5e Cable
Audio Flows: x32 (unicast + multicast)
Audio Latency: < 2ms typical
Frequency Response: 20Hz ~ 20KHz ±0.5dB
S/N Ratio (Input): > 110dB @0dBFFS
S/N Ratio (Output): > 110dB @0dBFS
THD + Noise (Input): < 0.002% @-10dBFS
THD + Noise (Output): < 0.001% @-10dBFS
Crosstalk (Input): < -95dB @1KHz
Crosstalk (Output): < -120dB @1KHz
Operating Voltage: 100 ~ 240VAC, 50/60Hz
Power Consumption: < 50Watts
Operation Temperature: 0 ~ 45?
Operation Relative Humidity: 0 ~ 90%
Construction: 3U Rack-Mount Chassis
Dimensions (HxWxD): 133 x 480 x 250 mm
Weight: 7 Kg
