Unika Pro BT5
PRO BT5 has a built-in standard Qualcomm Bluetooth 5.0 module, the receving distance can reach an astonishing 35 meters, and a built-in independent headphone monitoring output.
Circuit principle: Passive/Transformer balance output
Bluetooth Version: Ver 5.0 A2DP DUAL MODE with BLE, DID list ready
On board DA convert & sample rate: 16bit / 44.1KHz
Communication codec: SBC / AAC, A2DP standard
Power supply: 5VDC supplied from external power supply or power bank through Type-C connector with LED status indicator
Blue-tooth syncronization indicator: LED
Actual transmission distance: 25~35 meters tested by Android & iOS

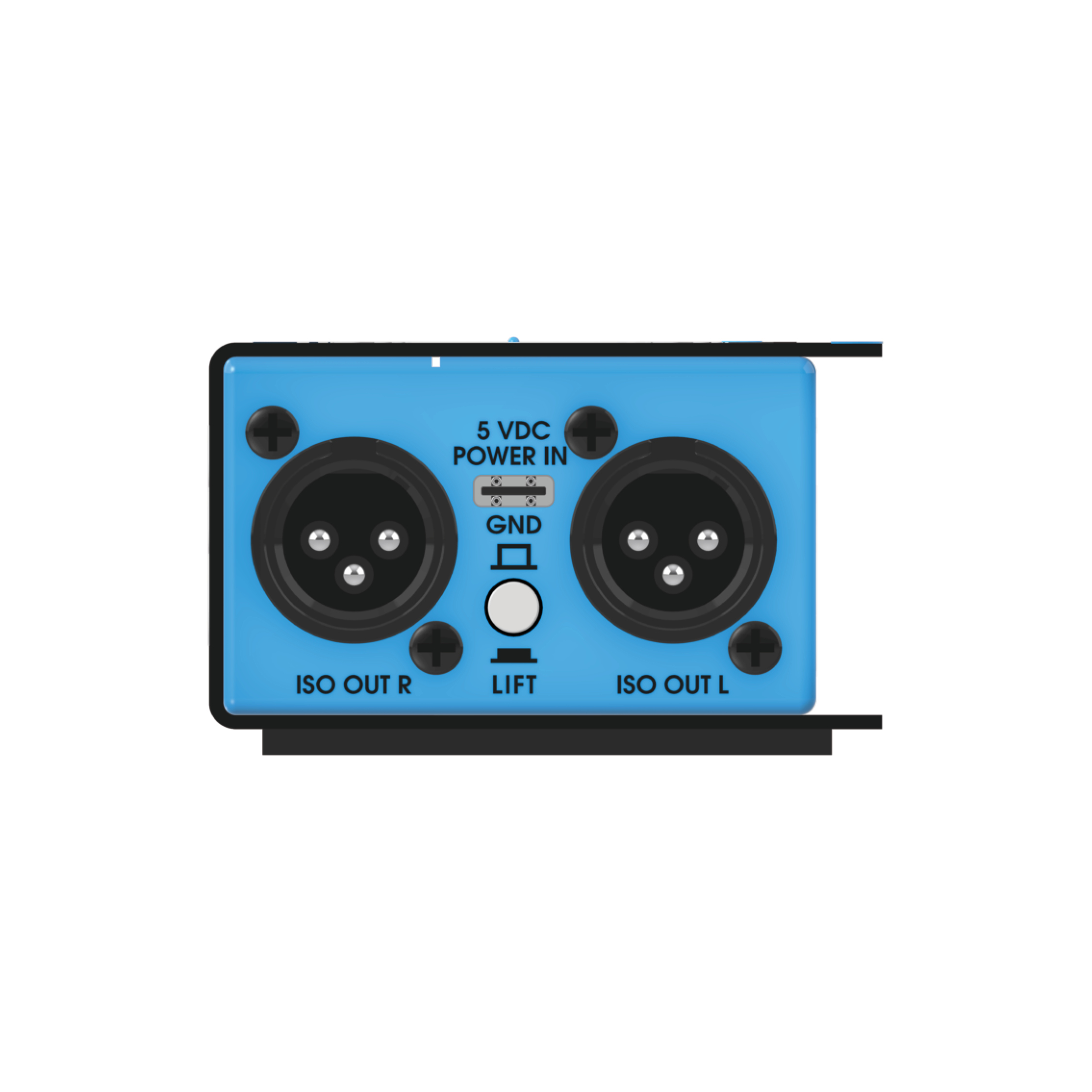

Output connector: 2 x Male XLR through ISO Transformer
Output GND/LIFT switch: Shared push button
Max Output level: 0.99Vrms

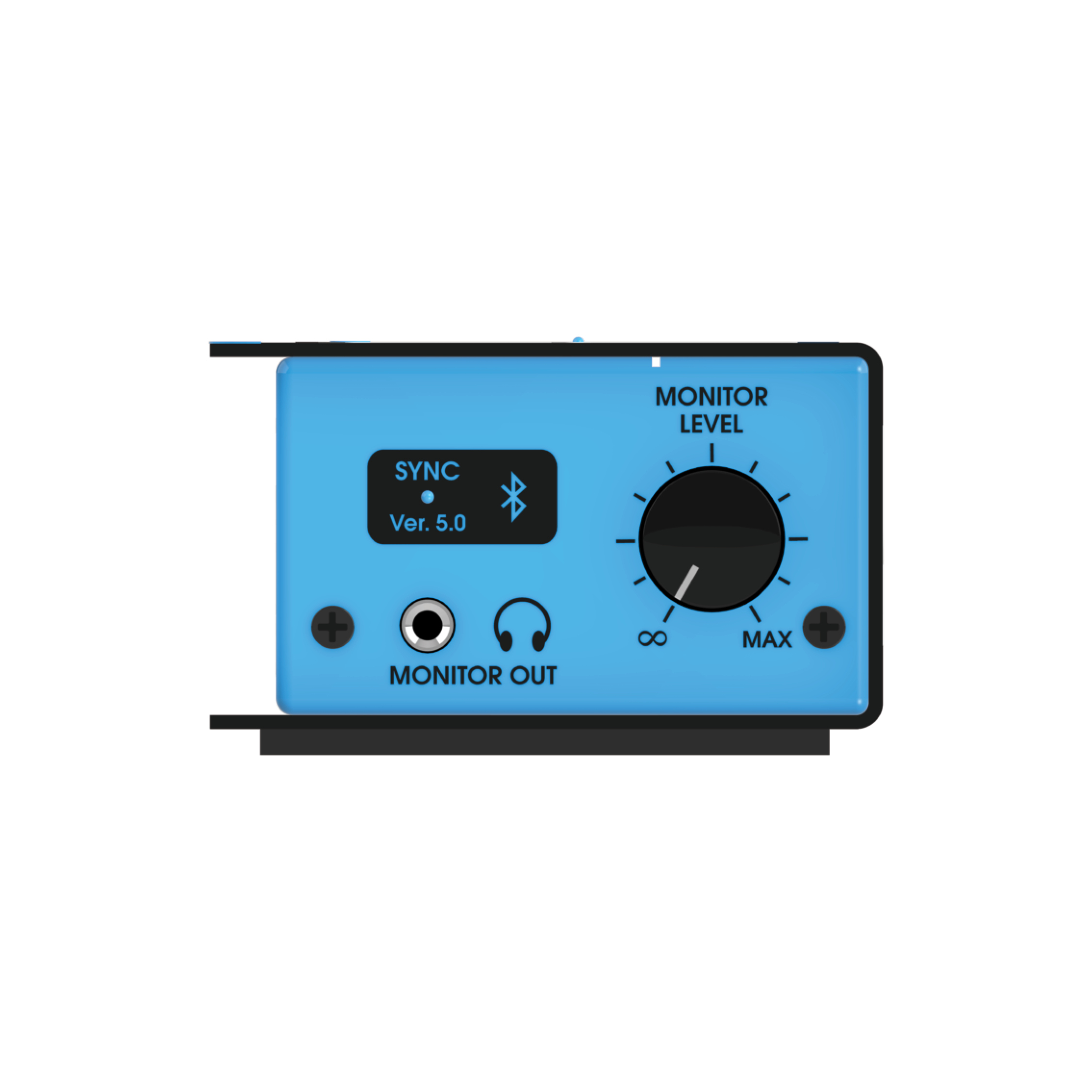

Headphone power output:
• 30mW per channel into 32Ω,
• 5mW per channel into 600Ω
Frequency response: 20Hz-20KHz, ±0.5dB
S/N ratio @20Hz~20KHz un-weight: >95dB
T.H.D. @1KHz 0dBV output: <0.005%
Transformer Ratio: 1:25:1
Output impedance: 50Ω, transformer balance
Chassis: 1.6mm/1.2mm steel cabinet and chassis plus acrylic to improve wireless penetration
Surface finished: Durable complex painting
Dimension (W x D x H): 78 x 124 x 46 mm
Weight: 0.61Kg
Shipping weight: 0.65kg
Packing per carton: 20pcs/13.60Kgs
Shipping dimension per carton: 305 x 283 x 195mm
