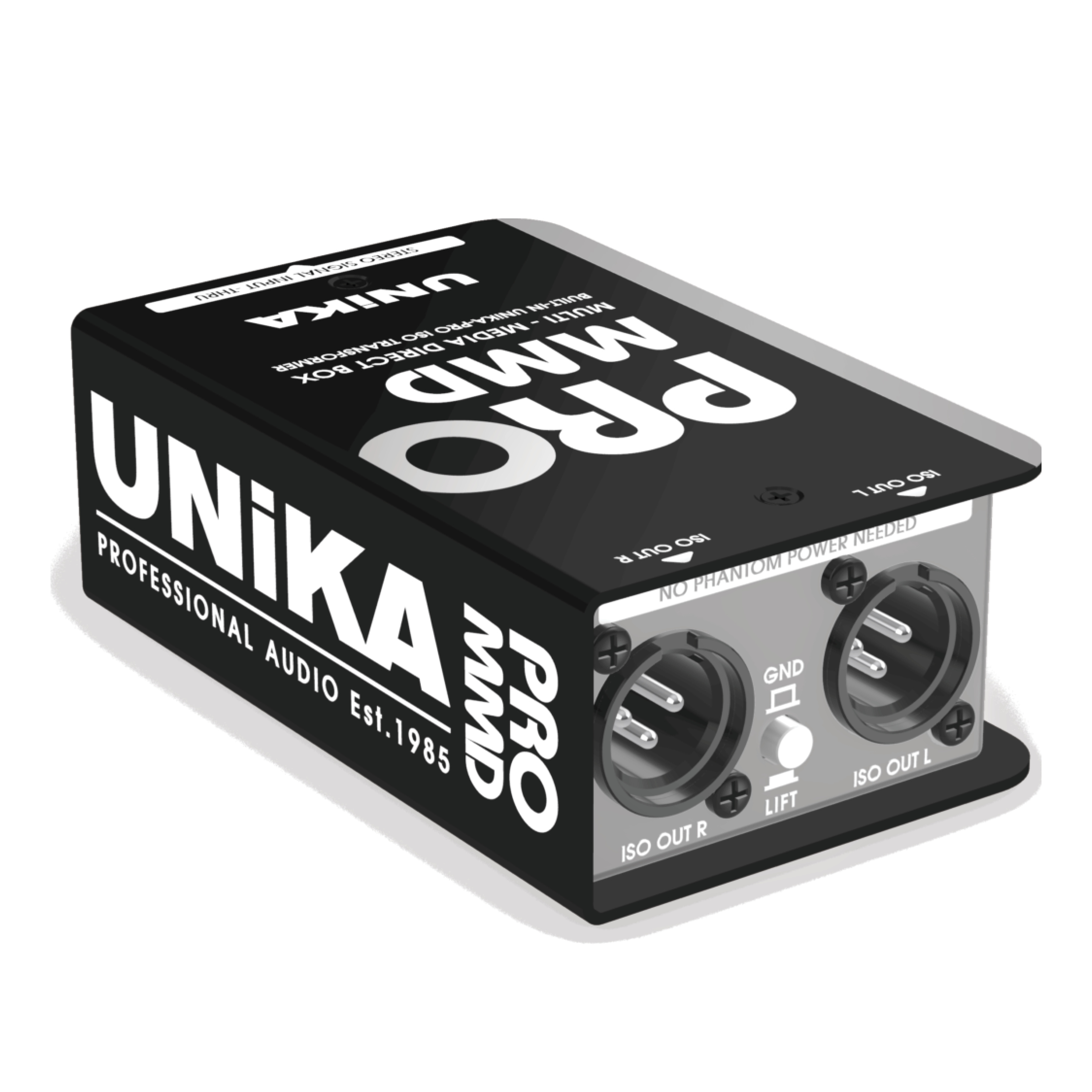

Unika Pro MMD
The PRO MMD Passive DI is ideal for keyboard instruments, electronic drum pads, DJ equipment, and media players. No batteries or +48V power supply are required, and a low distortion transformer is built in. PRO MMD is also specially equipped with 3.5mm TRS and RCA input terminals for multimedia systems.
Circuit principle: Passive/Transformer balance output

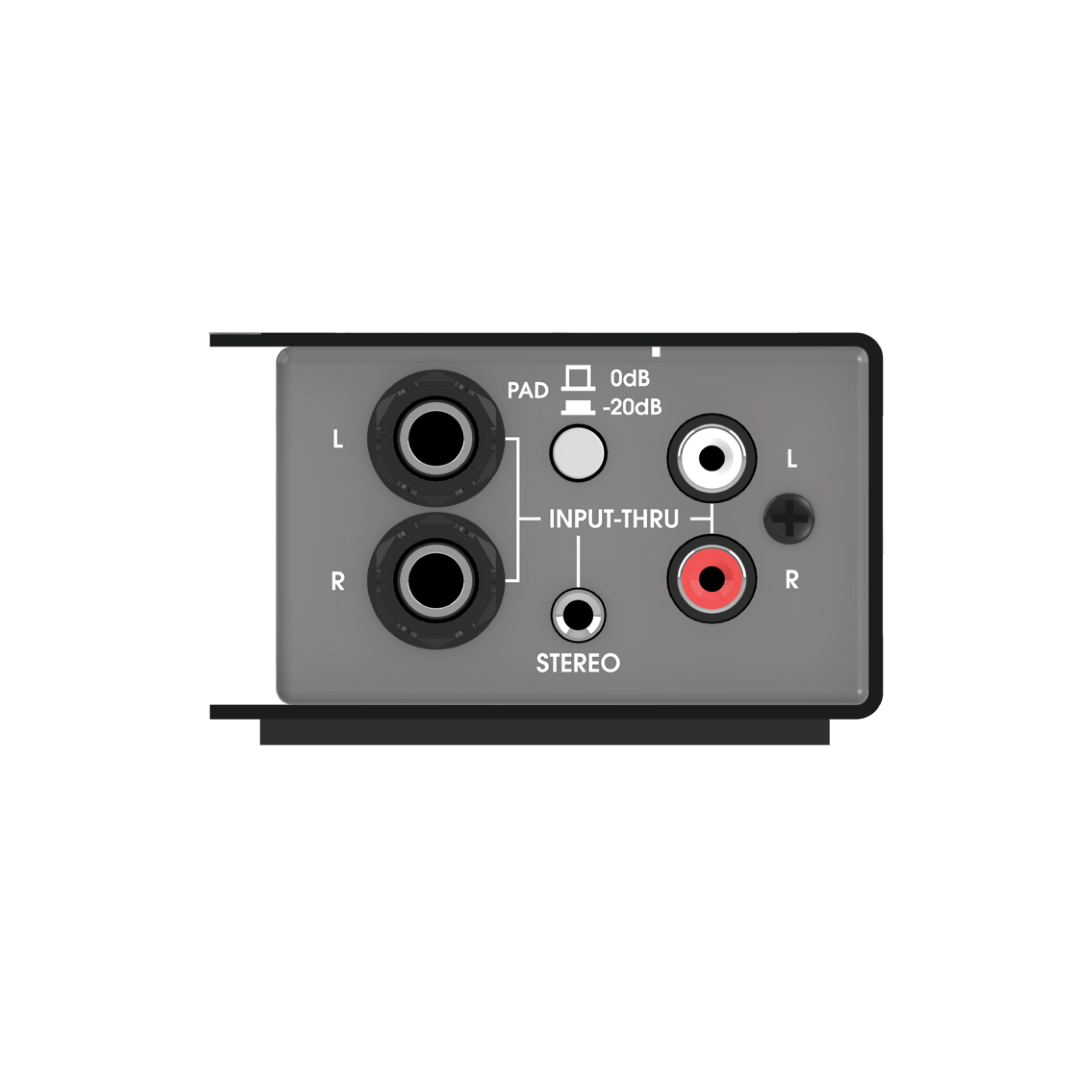

Input connector: 2 x TRS, 1 x Mini TRS, 1 pair of RCA
Thru connector: Any one of the input sockets
Input pad switch: 0/-20dB push button

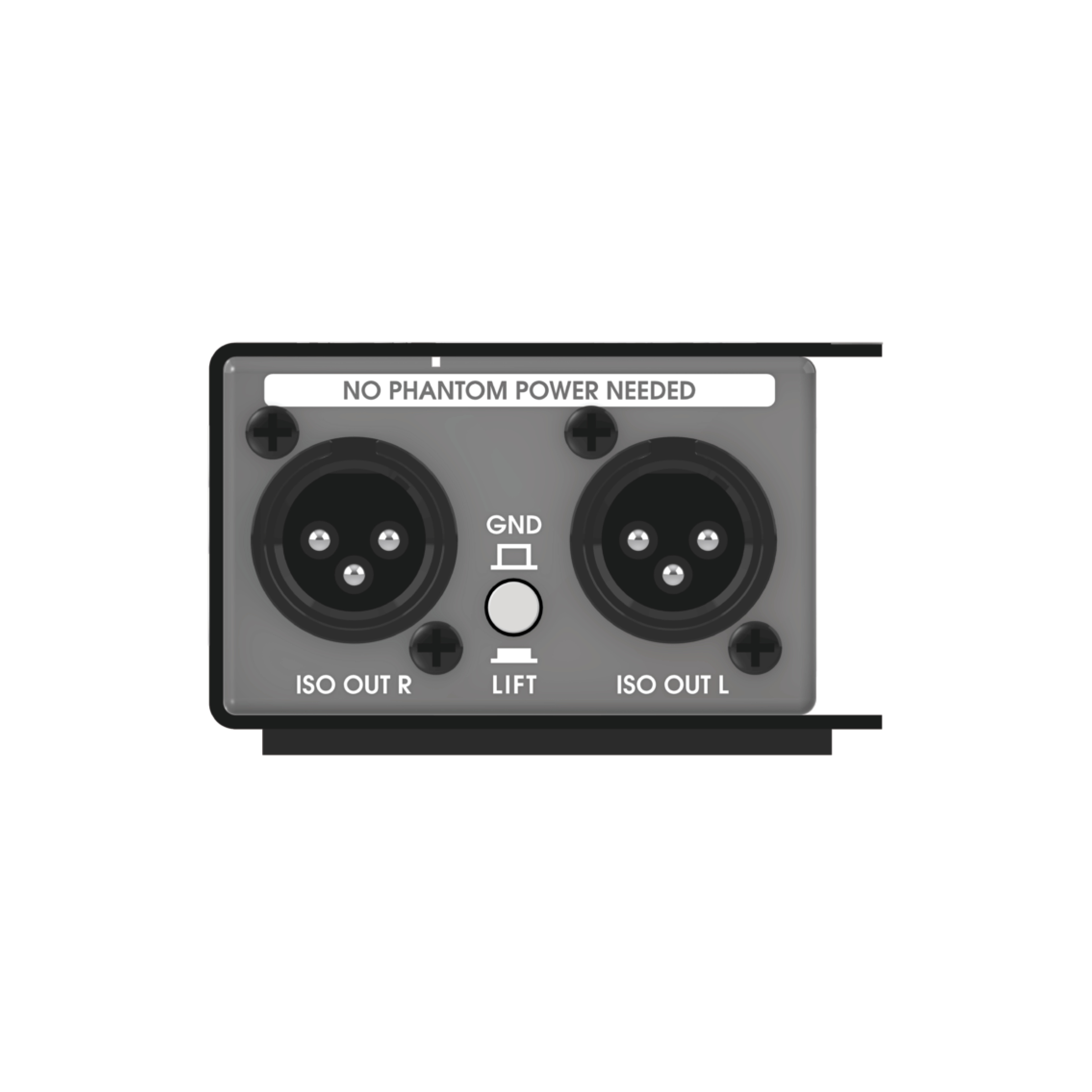

Output connector: 2 x Male XLR through ISO Transformer
Output GND/LIFT switch: Shared push button
Input impedance: 1KΩ / 0dB & -20dB
Output impedance: 50Ω
Max. input level before clipping: +22dB
Max Output level: +22dB
Frequency response: 20Hz-20KHz, -0.3/0.9dB
S/N ratio @20Hz~20KHz un-weight: >120dB
T.H.D. @1KHz 0dBV output: <0.02%
Transformer Ratio: 1.25:1
Chassis: 1.6mm/1.2mm steel cabinet and chassis
Surface finished: Durable complex painting
Dimension (W x D x H): 78 x 124 x 46 mm
Weight: 0.63Kg
Shipping weight: 0.66kg
Packing per carton: 20pcs/13.80Kgs
Shipping dimension per carton: 305 x 283 x 195mm
