Unika Pro USB
PRO USB is the world’s first high-end decoder DI that uses a USB-C input terminal to connect mobile phones and computers. It can not only decode lossless music, but also read DSD format streaming music formats.
Circuit principle: Passive/Transformer balance output
USB Version & connector: Ver 2.0 Type- C
UAC bridge solution: 32bit/192KHz
DAC solution: 32bit/192KHz with 2x DSD
Power supply: Powered by PC or mobile phone throuth Type-C playback connector with LED status indicator
Music beat indicator: LED

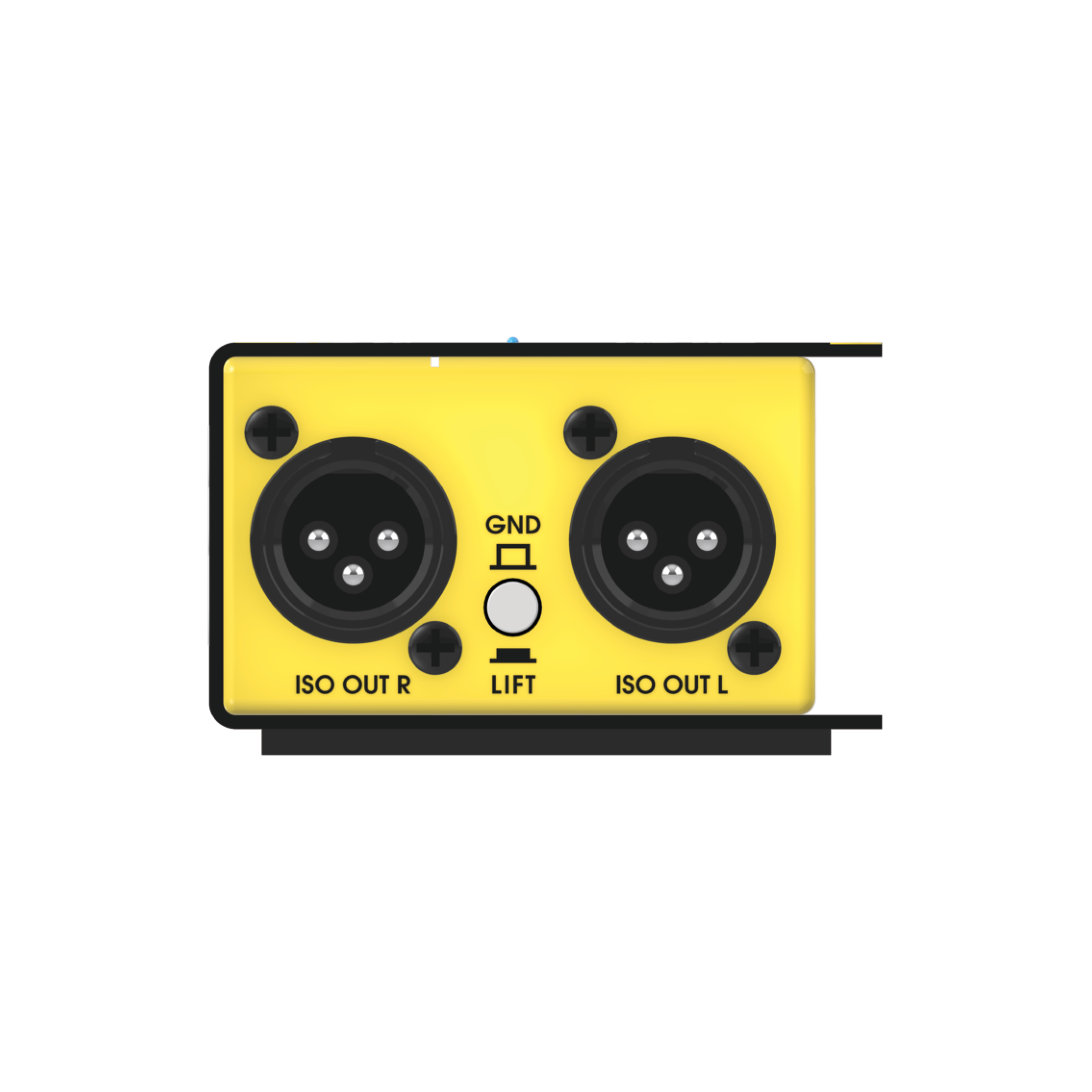

Output connector: 2 x Male XLR through ISO Transformer
Output GND/LIFT switch: Shared push button
Max Output level: 0.778Vrms
Headphone power output:
• 30mW per channel into 32Ω
• 5mW per channel into 600Ω
Frequency response: 20Hz-20KHz, ±0.5dB
S/N ratio @20Hz~20KHz un-weight: >110dB
T.H.D. @1KHz 0dBV output: <0.005%
Transformer Ratio: 1.25:1
Chassis: 1.6mm/1.2mm steel cabinet and chassis
Surface finished: Durable complex painting
Dimension (W x D x H): 78 x 124 x 46 mm
Weight: 0.64Kg
Shipping weight: 0.67kg
Packing per carton: 20pcs/14.00Kgs
Shipping dimension per carton: 305 x 283 x 195mm
