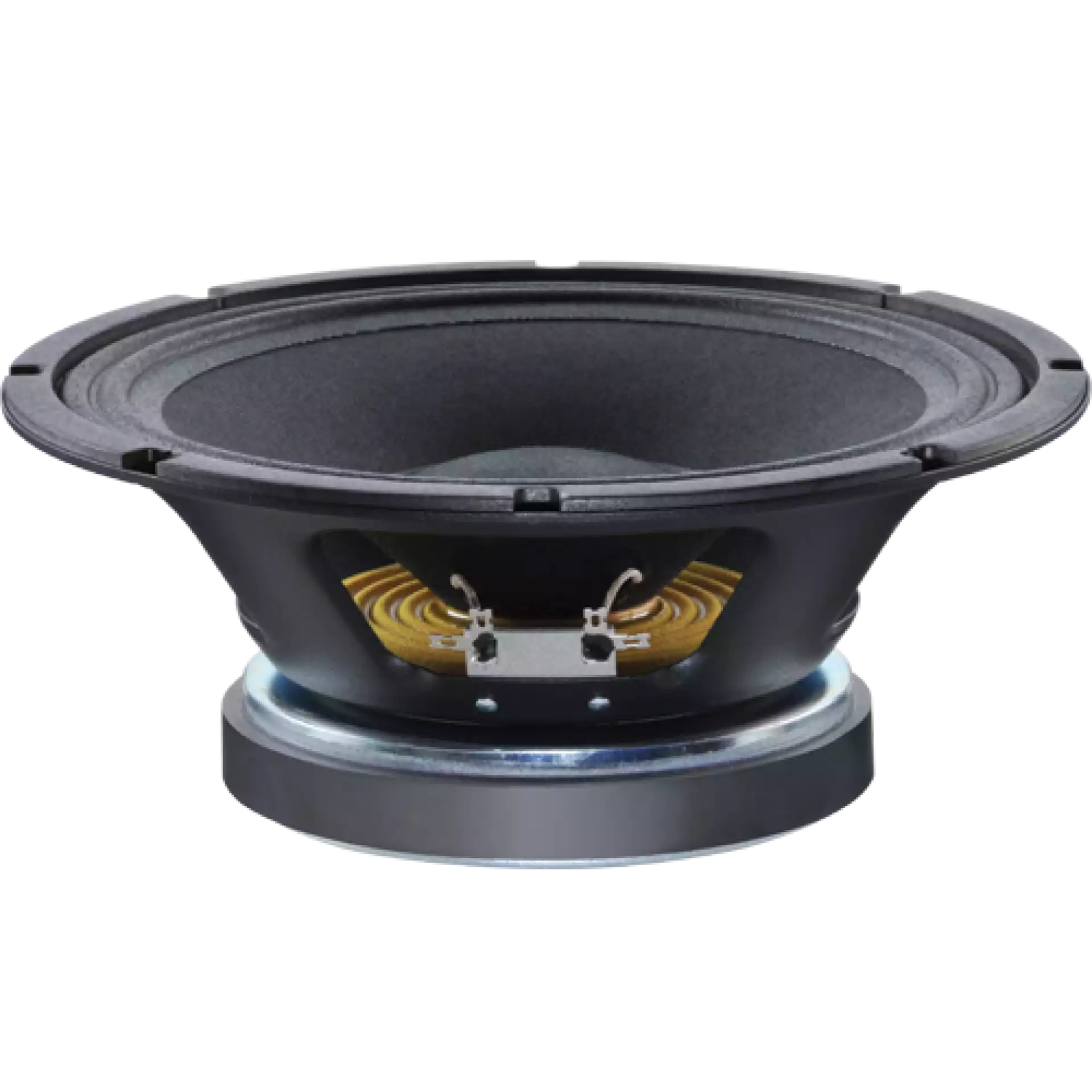

CELESTION TF 1020 - Zvučnik

Šifra: 1776
Regularna cena:
7.680,00 rsd
5.900,00 rsd (Bez PDV-a)
Cena sa popustom * :
Cena za kupovinu na rate:
Cena sa popustom * :
7.080,00 rsd

*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.

Iznos rate:
Ušteda : 600,00 rsd
Prikazana cena je za komad.

Garantujemo najnižu cenu!

Prijavi povoljniju cenu Obavesti me ako cena padne Postavi pitanje
Opcija:

10in mid bass driver provides 97dB sensitivity and 150Wrms

Specifications

150W
Nominal Power Rating
97dB
Sensitivity
2in
Voice coil diameter
Nominal Diameter
254mm/10in
Nominal Power Rating
150W
Additional Impedances
4
Continuous Power Rating
300W
Sensitivity
97dB
Rated Impedance
Frequency Range
60Hz-6000Hz
Voice coil diameter (mm)
50mm
Voice coil diameter (in)
2in
Chassis Type
Pressed steel
Magnet Type
Ferrite
Magnet Weight
1.2kg/42oz
Voice coil material
Round copper
Former Material
Polyimide
Cone material
Kevlar loaded paper
Surround Material
Cloth-sealed
Suspension
Single
Xmax
2mm/0.08in
Gap Depth
8mm/0.31in
Voice coil winding width
12mm/0.47in

Packed Dimensions & Weight

Single pack size W x D x H
280mm x 280mm x 120mm/11.0in x 11.0in x 4.7in
Single pack weight
4.2kg/9.2lb
Multi Pack Qty
96
Multi pack size W x D x H
1080mm x 880mm x 840mm/42.5in x 34.6in x 33.1in
Multi pack weight
390kg/860lb

Small Signal Parameters

Sd
346.36cm2/53.69in2
Fs
69.40Hz
Mms
31.10g/1.10oz
Qms
2.454
Qes
0.372
Qts
0.323
Re
5.45Ω
Vas
28.75L/1.02ft3
BI
14.10Tm
Cms
0.17mm/N
Rms
5.52kg/s
Le (at 1kHz)
0.60mH

Mounting Information

Mounting slot dimensions
8mm x 6mm/0.31in x 0.24in Ø
Mounting slot PCD
245mm/9.65in
Number of mounting slots
4
Overall Depth
110mm/4.33in
Overall Diameter (mm)
256mm
Overall Diameter (in)
10.08in
Cut-out diameter
229mm/9.02in
Unit Weight
3.7kg/8.2lb


Frequency Response and Impedance Curves

Frequency Response and Impedance Curves

Topmost curve: Frequency response on axis | Secondary curve: Frequency response at 45° off axis

Power Rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

Continuous Power Rating is defined as 3dB greater than the AES rating.

Sensitivity measured on axis at 1W, 1m in 2Π anechoic environment.

Xmax is derived from: (voice coil winding width-gap depth)/2.

Small Signal Parameters are measured after unit subjected to pre-conditioning signal.
