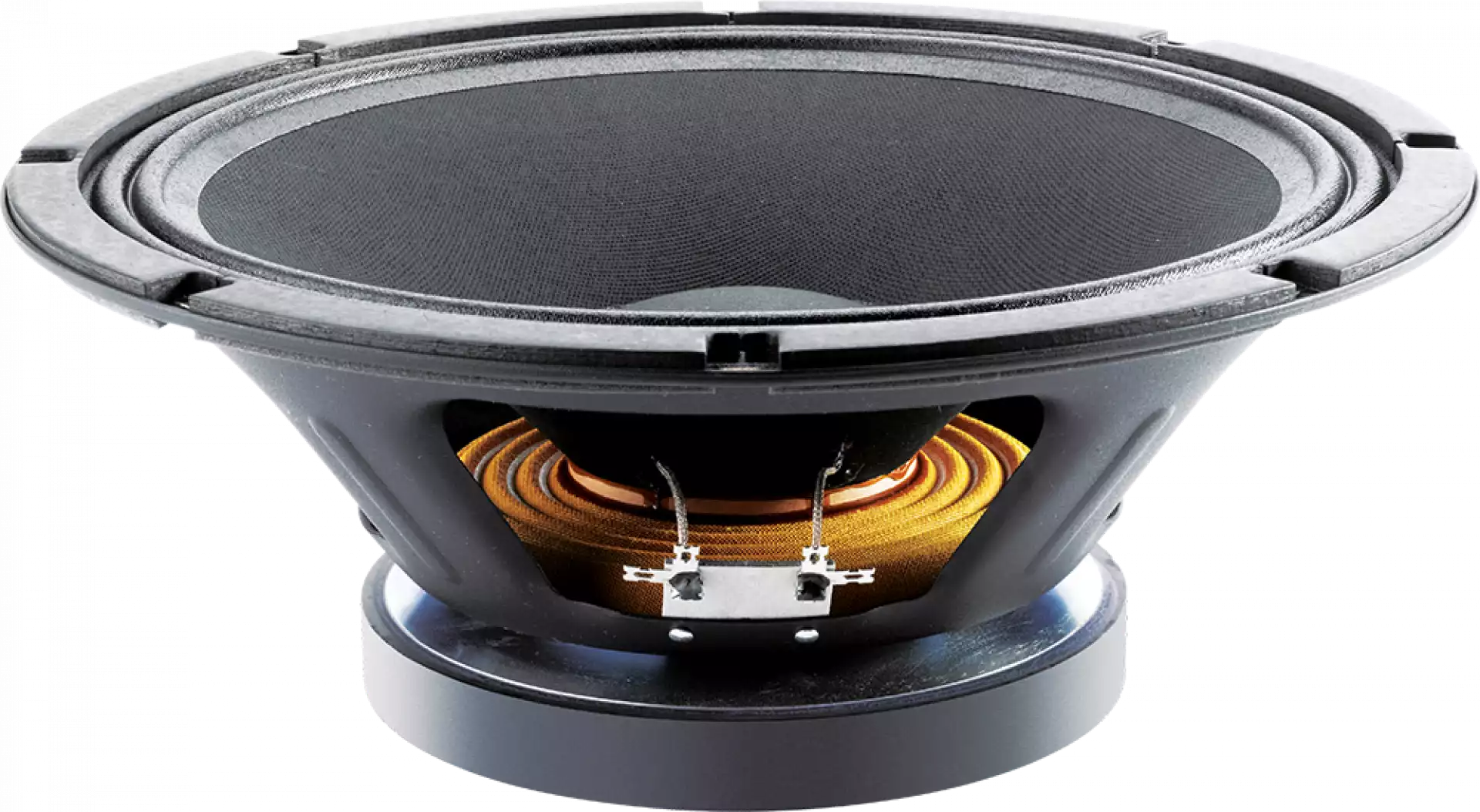

CELESTION TF1230S 8ohm - Zvučnik
Šifra: 16275
Na stanju
Regularna cena:
18.960,00 rsd
11.900,00 rsd (Bez PDV-a)
Cena sa popustom * :
Cena za kupovinu na rate:
14.280,00 rsd
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom karticom.
Iznos rate:
Ušteda :
4.680,00 rsd
Prijavi povoljniju cenu
Prikazana cena je za komad.
Garantujemo najnižu cenu!
Dostupno u prodavnici:
- Cara Dušana 85, Niš
- Svetogorska 9, Beograd
- Centralni magacin
Increased chassis diameter for compatibility with popular portable two-way reinforcement systems
Specifications
300W
Nominal Power Rating
96dB
Sensitivity
3in
Voice coil diameter
Nominal Diameter
305mm/12in
Nominal Power Rating
300W
Continuous Power Rating
600W
Sensitivity
96dB
Rated Impedance
8Ω
Frequency Range
50Hz-4000Hz
Voice coil diameter (mm)
75mm
Voice coil diameter (in)
3in
Chassis Type
Pressed steel
Magnet Type
Ferrite
Magnet Weight
1.7kg/60oz
Voice coil material
Edgewound copper clad aluminium
Former Material
Polyimide
Cone material
Kevlar loaded paper
Surround Material
Cloth-sealed
Suspension
Single
Xmax
4.5mm/0.18in
Gap Depth
8mm/0.31in
Voice coil winding width
17mm/0.67in
Small Signal Parameters
Sd
530.93cm2/82.29in2
Fs
60.30Hz
Mms
51.08g/1.8oz
Qms
3.28
Qes
0.422
Qts
0.374
Re
5.98Ω
Vas
54.41L/1.92ft3
BI
16.56Tm
Cms
0.14mm/N
Rms
5.91kg/s
Le (at 1kHz)
0.98mH
Mounting Information
Mounting slot dimensions
13mm x 6.5mm/0.51in x 0.26in Ø
Mounting slot PCD
299mm/11.77
Number of mounting slots
8
Overall Depth
137mm/5.43in
Overall Diameter (mm)
317.5mm
Overall Diameter (in)
12.5in
Cut-out diameter
283mm/11.14in
Unit Weight
4.3kg/9.5lb
Packed Dimensions & Weight
Single pack size W x D x H
330mm x 330mm x 150mm/13in x 13in x 5.9in
Single pack weight
5.5kg/12.0lb
